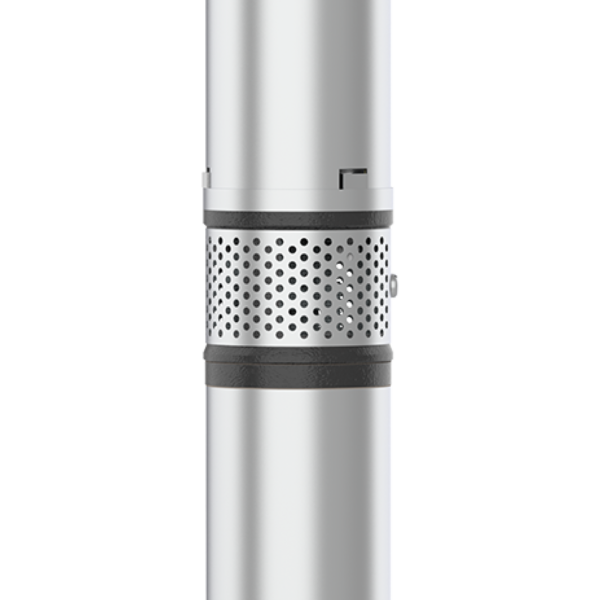

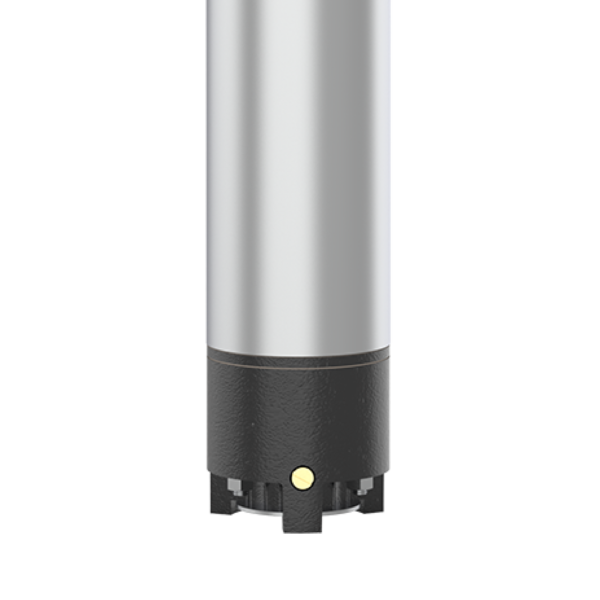

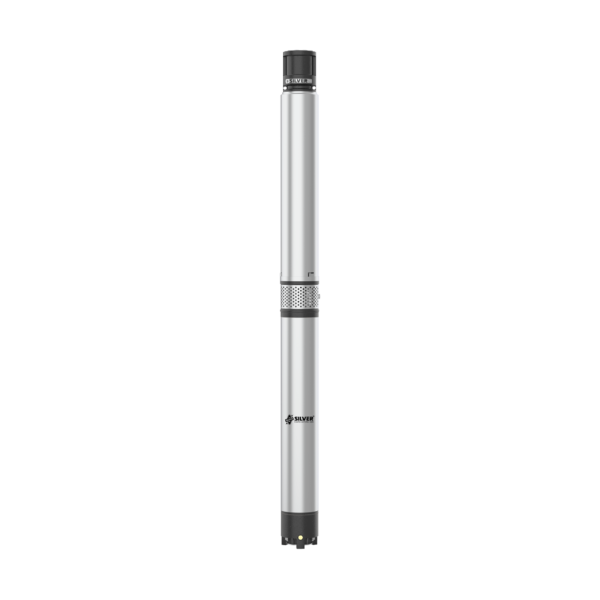

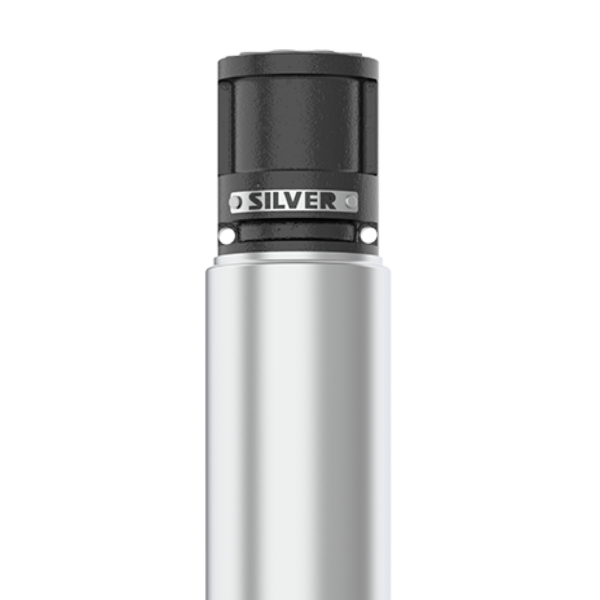

3″ Water Filled Stainless Steel Radial flow

  • High Efficiency and energy Saving Design
  • Wide Voltage Range
  • Designed To Prevent Overloading
  • Dynamically Balanced Rotating Parts
  • Low Power Consumption and Less Operating Cost
  • Longer And Trouble Free Life
  • Reliable Non-Return Valve so reduce Friction Loss
  • All Parts are Dual Coated
  • All Parts Machining Precisly
  • Easy Maintainable Designs

Specifications

Model Name Motor Rating Delivery Size Bore Size Head Range Discharge Range Power Supply Direction of Rotation Liquid Temperature Pumped Liquids :
SV3/2 SERIES 0.37 – 0.95 kW (0.50 – 1.25 HP) 1 PHASE 1” 80 MM Up to 115 meters Up to 45 LPM 180V TO 250V – 1 PHASE Anti-Clockwise Observed When viewed from Top side Maximum 45 ° C Clear Clean, Thin, Non-Aggressive, Non-Explosive, Clear, Cold Water Without Abrasive And Solid Particle Cold Water
SV3/4 SERIES 0.37 – 0.95 kW (0.50 – 1.25 HP) 1 PHASE 1 1/4” 80 MM Up to 69 meters Up to 80 LPM 180V TO 250V – 1 PHASE Anti-Clockwise Observed When viewed from Top side Maximum 45 ° C Clear Clean, Thin, Non-Aggressive, Non-Explosive, Clear, Cold Water Without Abrasive And Solid Particle Cold Water
SV3/7 SERIES 0.75 kW (1.00 HP) 1 PHASE 1 1/4” 80 MM Up to 55 meters Up to 95 LPM 180V TO 250V – 1 PHASE Anti-Clockwise Observed When viewed from Top side Maximum 45 °C Clear Clean, Thin, Non-Aggressive, Non-Explosive, Clear, Cold Water Without Abrasive And Solid Particle Cold Water.

MOC

Model Name Motor Body Motor Shaft Thrust Bearing Motor Bushes Pump Shaft Impeller Diffuser NRV Suction
SV3/2 SERIES Stainless Steel SS 420 Stainless Steel, Carbon, Cast iron LTB-4 SS 420 Noryl Noryl Cast Iron (CED Coated) Cast Iron (CED Coated)
SV3/4 SERIES Stainless Steel SS 420 Stainless Steel, Carbon, Cast iron LTB-4 SS 420 Noryl Noryl Cast Iron (CED Coated) Cast Iron (CED Coated)
SV3/7 SERIES Stainless Steel SS 410 Stainless Steel, Carbon, Cast iron LTB-4 SS 410 Noryl Noryl Cast Iron (CED Coated) Cast Iron (CED Coated)

Technical Specifications

Model Name Power (KW) Power (HP) Phase Pipe Sizesuc X Del (Inch) Head Range (MTR) Discharge Range (LPH)
SV3/2-0509 0.37 0.50 9 1″ X 1″ 8-40 45-10
SV3/2-7514 0.55 0.75 14 1″ X 1″ 10-59 45-10
SV3/2-1019 0.75 1.00 19 1″ X 1″ 15-81 45-10
SV3/2-1224 0.95 1.25 24 1″ X 1″ 20-103 45-10
SV3/4 – 0505 0.37 0.50 5 1 1/4″ X 1 1/4″ 4-19 80-15
SV3/4 – 7508 0.55 0.75 8 1 1/4″ X 1 1/4″ 6-30 80-15
SV3/4 – 1010 0.75 1.00 10 1 1/4″ X 1 1/4″ 8-38 80-15
SV3/4 – 1012 0.75 1.00 12 1 1/4″ X 1 1/4″ 9-45 80-15
SV3/4 – 1214 0.95 1.25 14 1 1/4″ X 1 1/4″ 11-53 80-15
SV3/4 – 1216 0.95 1.25 16 1 1/4″ X 1 1/4″ 12-60 80-15
SV3/7 – 1010 0.75 1.00 10 1 1/4″ X 1 1/4″ 8-46 95-5
SV3/7 – 1012 0.75 1.00 12 1 1/4″ X 1 1/4″ 9-54 95-5
