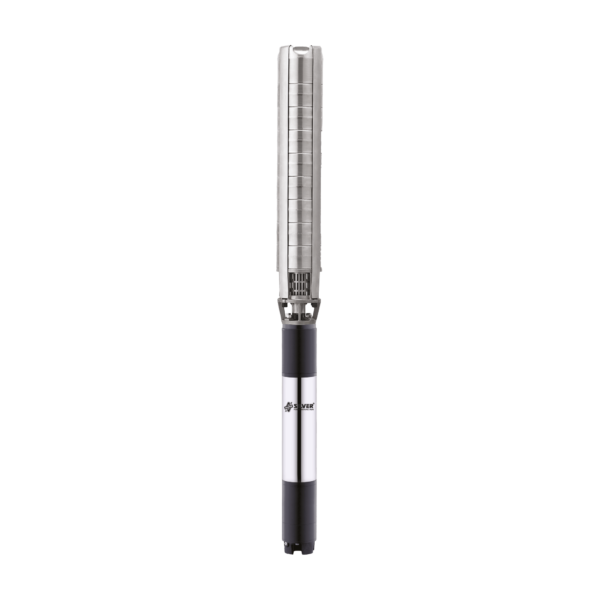

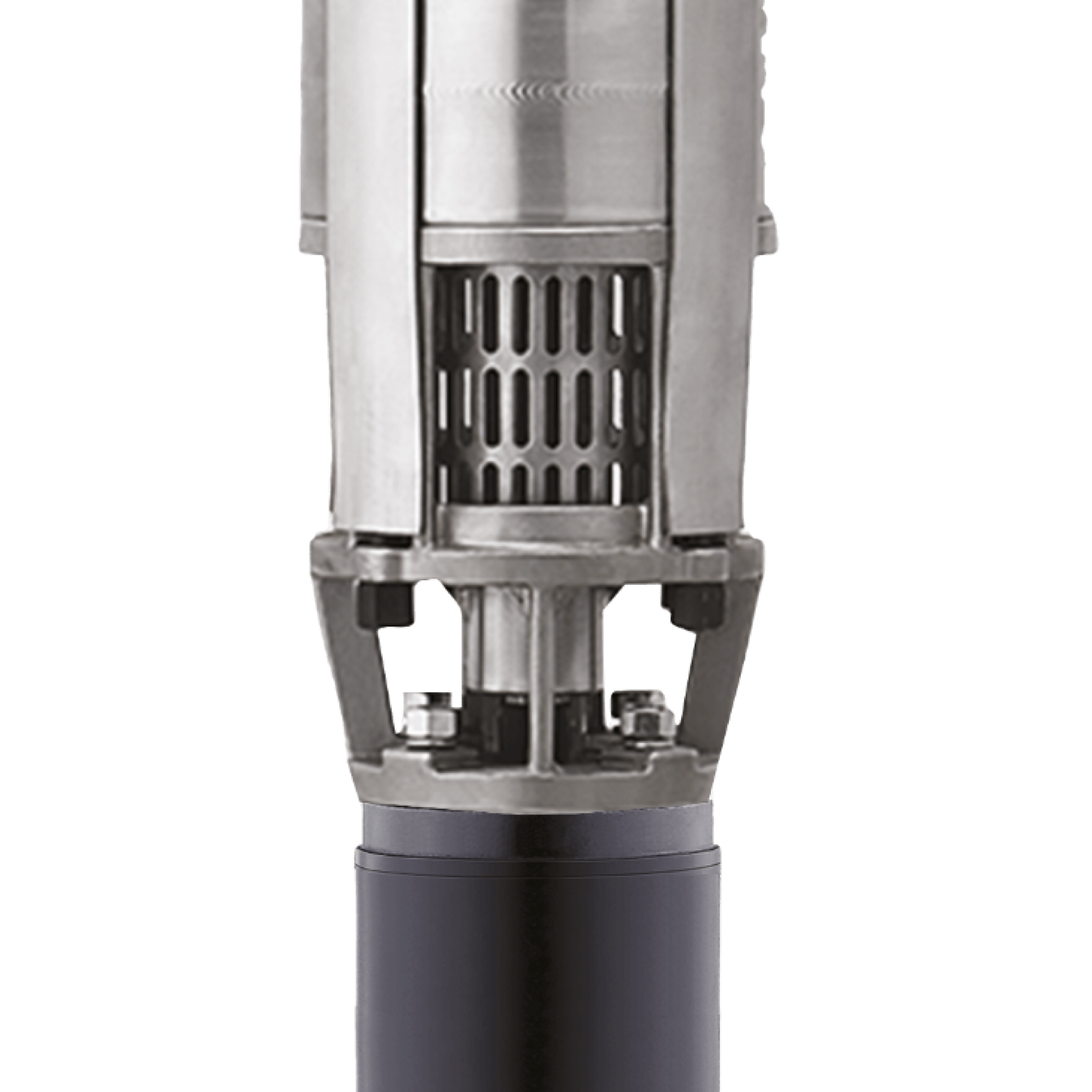

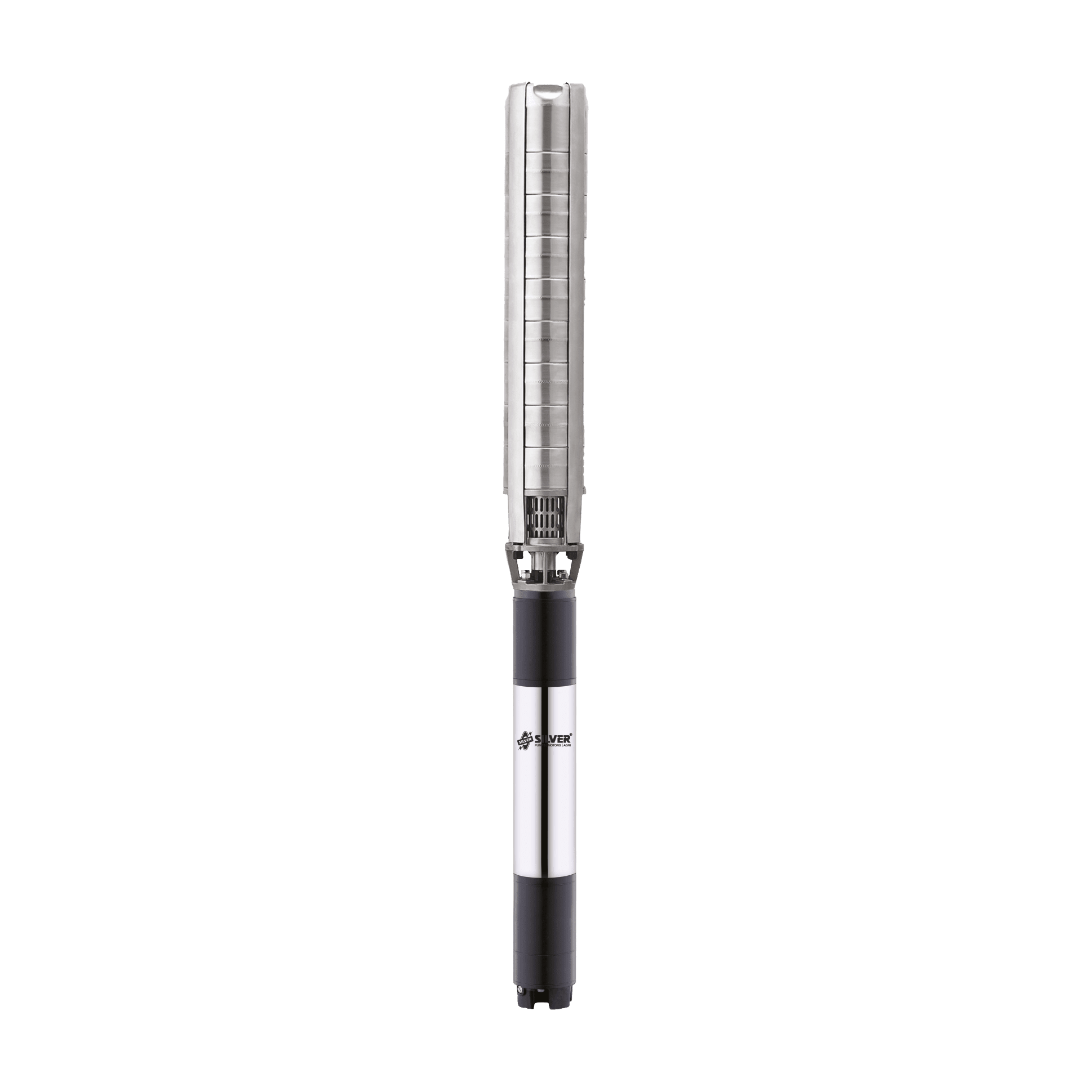

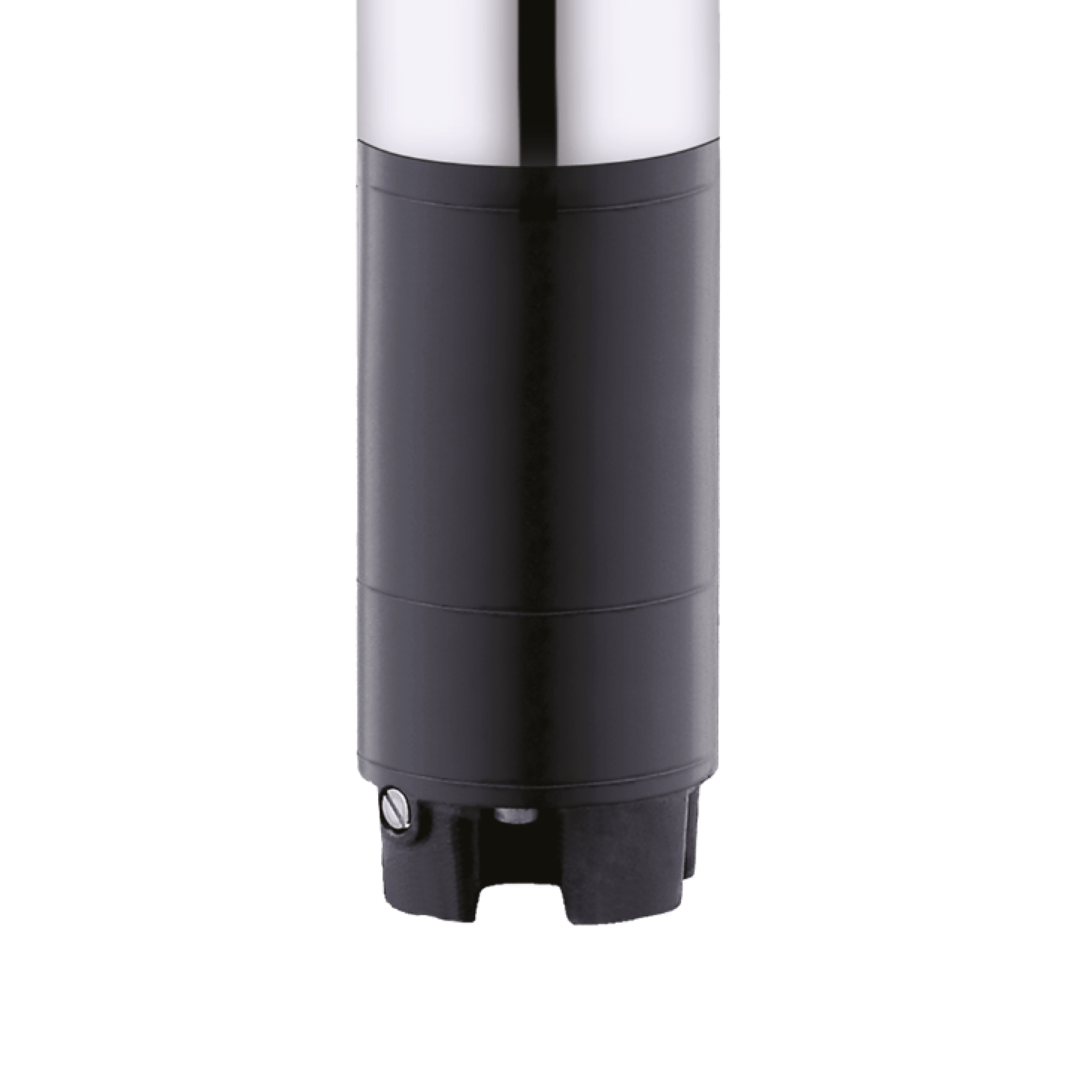

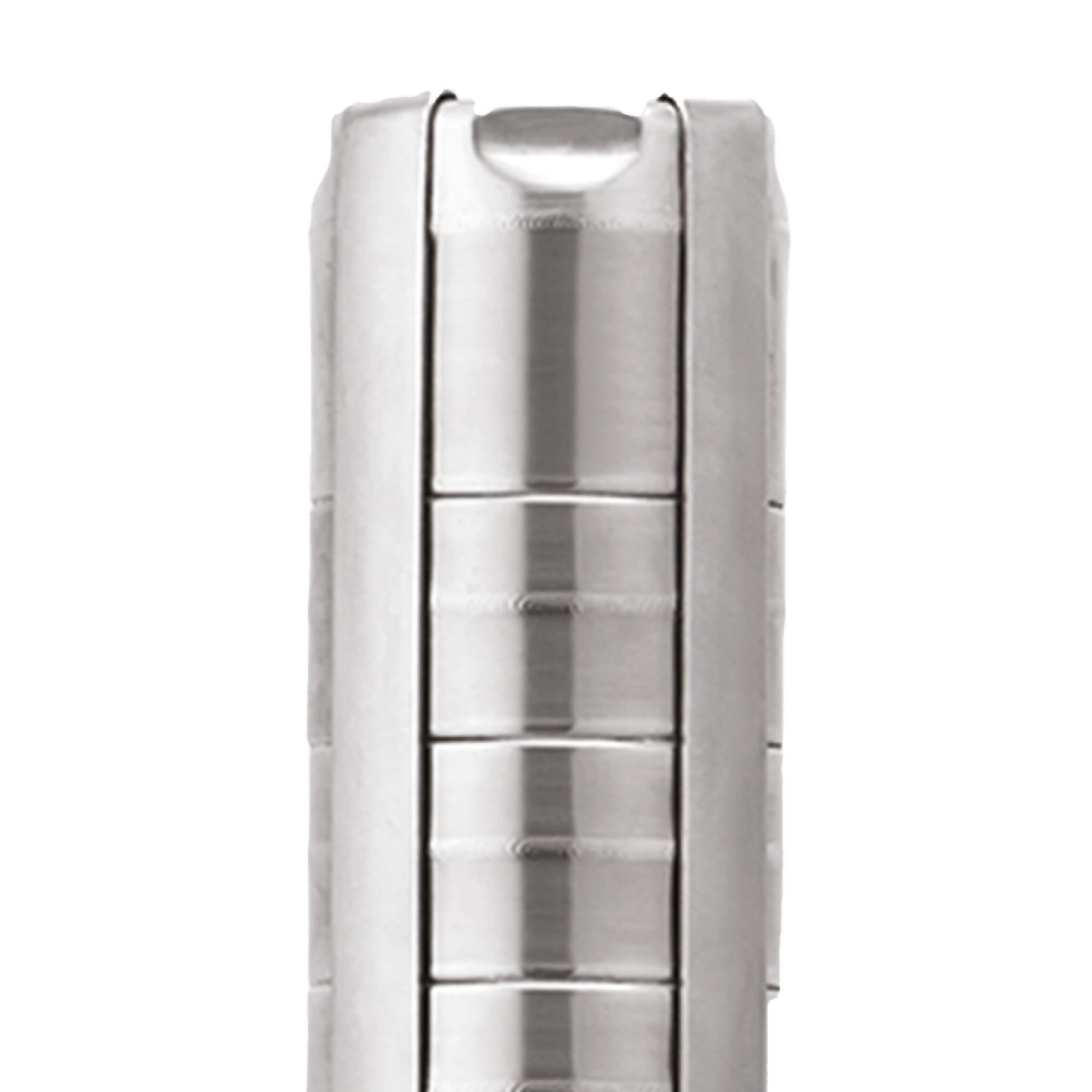

4” 6″ Water filled Stainless Steel Fabricated Radial Flow Submersible Pump Sets

  • High Efficiency and energy Saving Design
  • Wide Voltage Range
  • Designed To Prevent Overloading
  • Dynamically Balanced Rotating Parts
  • Low Power Consumption and Less Operating Cost
  • Longer And Trouble Free Life
  • Reliable Non-Return Valve so reduce Friction Loss
  • All Parts are Dual Coated
  • All Parts Machining Precisly
  • Easy Maintainable Designs

Specifications

Model Name Motor Rating Delivery Size Bore Size Head Range Discharge Range Power Supply Direction of Rotation Liquid Temperature Pumped Liquids
SSF17-4 SERIES 2.20 – 3.70 kW (3.00 – 5.00 HP) – 1 PHASE & 2.20 – 5.50 kW (3.00 – 7.50 HP) – 3 PHASE 2 1/2” 150 MM Up to 99 meters Up to 415 LPM 180V TO 250V – (1 PHASE) & 350V TO 440V – (3 PHASE) Anti-Clockwise Observed When viewed from Top side Maximum 45 °C Clear Clean, Thin, Non-Aggressive, Non-Explosive, Clear, Cold Water Without Abrasive And Solid Particle Cold Water.
SSF30-4 SERIES 2.20 – 3.70 kW (3.00 – 5.00 HP) – 1 PHASE & 2.20 – 5.50 kW (3.00 – 7.50 HP) – 3 PHASE 3” 150 MM Up to 77 meters Up to 740 LPM 180V TO 250V – (1 PHASE) & 350V TO 440V – (3 PHASE) Anti-Clockwise Observed When viewed from Top side Maximum 45 °C Clear Clean, Thin, Non-Aggressive, Non-Explosive, Clear, Cold Water Without Abrasive And Solid Particle Cold Water.

MOC

Model Name Motor Body Motor Shaft Thrust Bearing Motor Bushes Pump Shaft Impeller Diffuser NRV Suction
SSF17-4 SERIES Stainless Steel SS431 Stainless Steel, Carbon, Cast iron Carbon SS431 SS 304 SS 304 SS 304 SS 304
SSF30-4 SERIES Stainless Steel SS431 Stainless Steel, Carbon, Cast iron Carbon SS431 SS 304 SS 304 SS 304 SS 304

Technical Specifications

Model Name Power (KW) Power (HP) Stage Phase Delivery Size (Inch) Head Range (MTR) Discharge Range (LPM)
SSF17-0305-4 2.20 3.00 5 1 & 3 2 1/2″ 10-50 415-140
SSF17-0505-4 3.70 5.00 5 1 & 3 2 1/2″ 10-52 415-140
SSF17-0306-4 2.20 3.00 6 1 & 3 2 1/2″ 12-58 415-140
SSF17-0506-4 3.70 5.00 6 1 & 3 2 1/2″ 12-60 415-140
SSF17-0508-4 3.70 5.00 8 1 & 3 2 1/2″ 16-80 415-140
SSF17-7509-4 5.50 7.50 9 3 2 1/2″ 18-90 415-140
SSF30-0302-4 2.20 3.00 2 1 & 3 3″ 4-20 740-255
SSF30-0403-4 3.00 4.00 3 1 & 3 3″ 6-30 740-255
SSF30-0505-4 3.70 5.00 5 1 & 3 3″ 10-50 740-255
SSF30-7507-4 5.50 7.50 7 3 3″ 14-70 740-255
