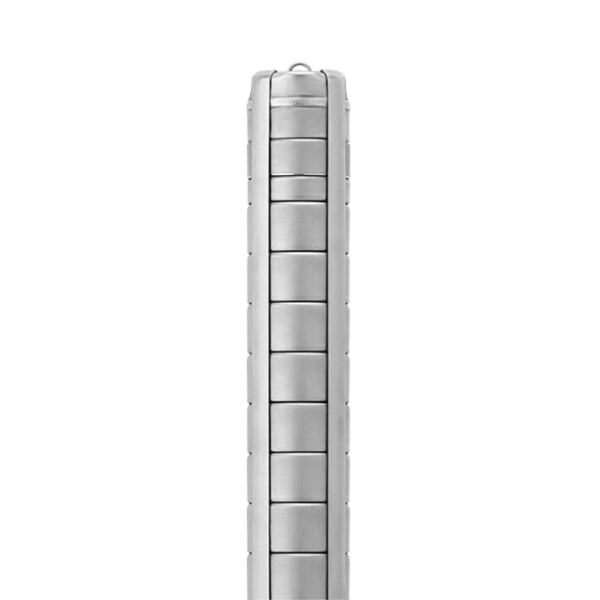

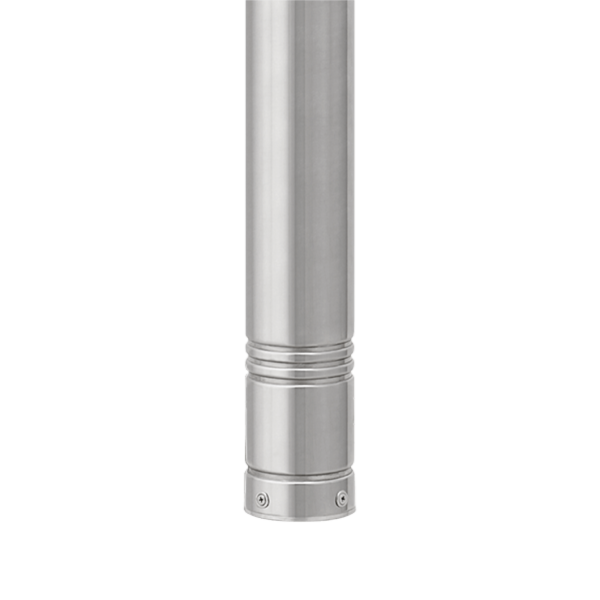

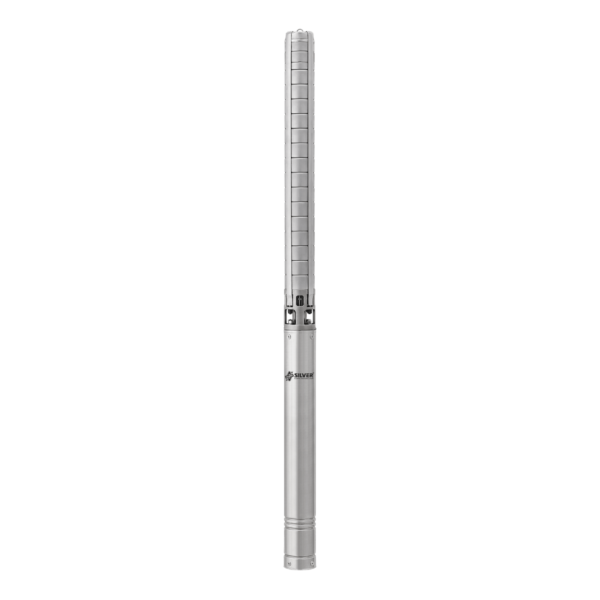

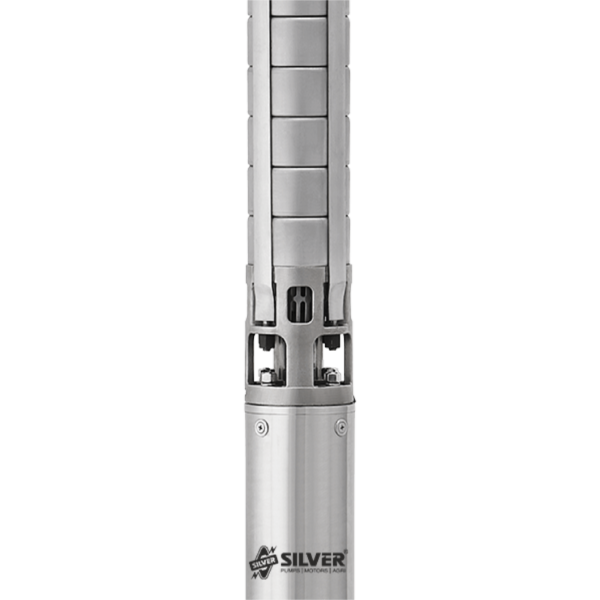

4″ Oil filled Stainless Steel Fabricated Mixed Flow Submersible Pump Sets

  • High Efficiency and energy Saving Design
  • Wide Voltage Range
  • Designed To Prevent Overloading
  • Dynamically Balanced Rotating Parts
  • Low Power Consumption and Less Operating Cost
  • Longer And Trouble Free Life
  • Reliable Non-Return Valve so reduce Friction Loss
  • All Parts are Dual Coated
  • All Parts Machining Precisly
  • Easy Maintainable Designs

Specifications

Model Name Motor Rating Delivery Size Bore Size Head Range Discharge Range Power Supply Direction of Rotation Liquid Temperature Pumped Liquids
SSOF7 SERIES 0.75 – 2.20 kW (1.00 – 3.00 HP) – 1 PHASE & 0.75 – 2.20 kW (1.00 – 3.00 HP) – 3 PHASE 2” 100 MM Up to 112 meters Up to 175 LPM 180V TO 250V – (1 PHASE) & 350V TO 440V – (3 PHASE) Anti-Clockwise Observed When viewed from Top side Maximum 45 °C Clear Clean, Thin, Non-Aggressive, Non-Explosive, Clear, Cold Water Without Abrasive And Solid Particle Cold Water.
SSOF8 SERIES 0.75 – 2.20 kW (1.00 – 3.00 HP) – 1 PHASE & 0.75 – 2.20 kW (1.00 – 3.00 HP) – 3 PHASE 2” 100 MM Up to 106 meters Up to 180 LPM 180V TO 250V – (1 PHASE) & 350V TO 440V – (3 PHASE) Anti-Clockwise Observed When viewed from Top side Maximum 45 °C Clear Clean, Thin, Non-Aggressive, Non-Explosive, Clear, Cold Water Without Abrasive And Solid Particle Cold Water.
SSOF9 SERIES 0.75 – 2.20 kW (1.00 – 3.00 HP) – 1 PHASE & 0.75 – 2.20 kW (1.00 – 3.00 HP) – 3 PHASE 2” 100 MM Up to 89 meters Up to 225 LPM 180V TO 250V – (1 PHASE) & 350V TO 440V – (3 PHASE) Anti-Clockwise Observed When viewed from Top side Maximum 45 °C Clear Clean, Thin, Non-Aggressive, Non-Explosive, Clear, Cold Water Without Abrasive And Solid Particle Cold Water.

MOC

Model Name Motor Body Motor Shaft Pump Shaft Impeller Diffuser NRV Suction
SSOF7 SERIES Stainless Steel SS 420 SS431 SS 304 SS 304 SS 304 SS 304
SSOF8 SERIES Stainless Steel SS 420 SS431 SS 304 SS 304 SS 304 SS 304
SSOF9 SERIES Stainless Steel SS 420 SS431 SS 304 SS 304 SS 304 SS 304

Technical Specifications

Model Name Power (KW) Power (HP) Stage Phase Delivery Size (Inch) Head Range (MTR) Discharge Range (LPM)
SSOF7-1007 0.75 1.00 7 1 & 3 2″ 9-35 175-30
SSOF7-1511 1.10 1.50 11 1 & 3 2″ 14-55 175-30
SSOF7-2015 1.50 2.00 15 1 & 3 2″ 19-75 175-30
SSOF7-3020 2.20 3.00 20 1 & 3 2″ 25-100 175-30
SSOF8-1006 0.75 1.00 6 1 & 3 2″ 12-30 180-45
SSOF8-1510 1.10 1.50 10 1 & 3 2″ 20-50 180-45
SSOF8-2012 1.50 2.00 12 1 & 3 2″ 24-60 180-45
SSOF8-3015 2.20 3.00 15 1 & 3 2″ 30-75 180-45
SSOF8-3018 2.20 3.00 18 1 & 3 2″ 36-90 180-45
SSOF9-1004 0.75 1.00 4 1 & 3 2″ 2-23 225-60
SSOF9-1005 0.75 1.00 5 1 & 3 2″ 3-29 225-60
SSOF9-1507 1.10 1.50 7 1 & 3 2″ 4-41 225-60
SSOF9-2010 1.50 2.00 10 1 & 3 2″ 5-58 225-60
SSOF9-3014 2.20 3.00 14 1 & 3 2″ 7-81 225-60
SSOF9-3015 2.20 3.00 15 1 & 3 2″ 8-87 225-60
