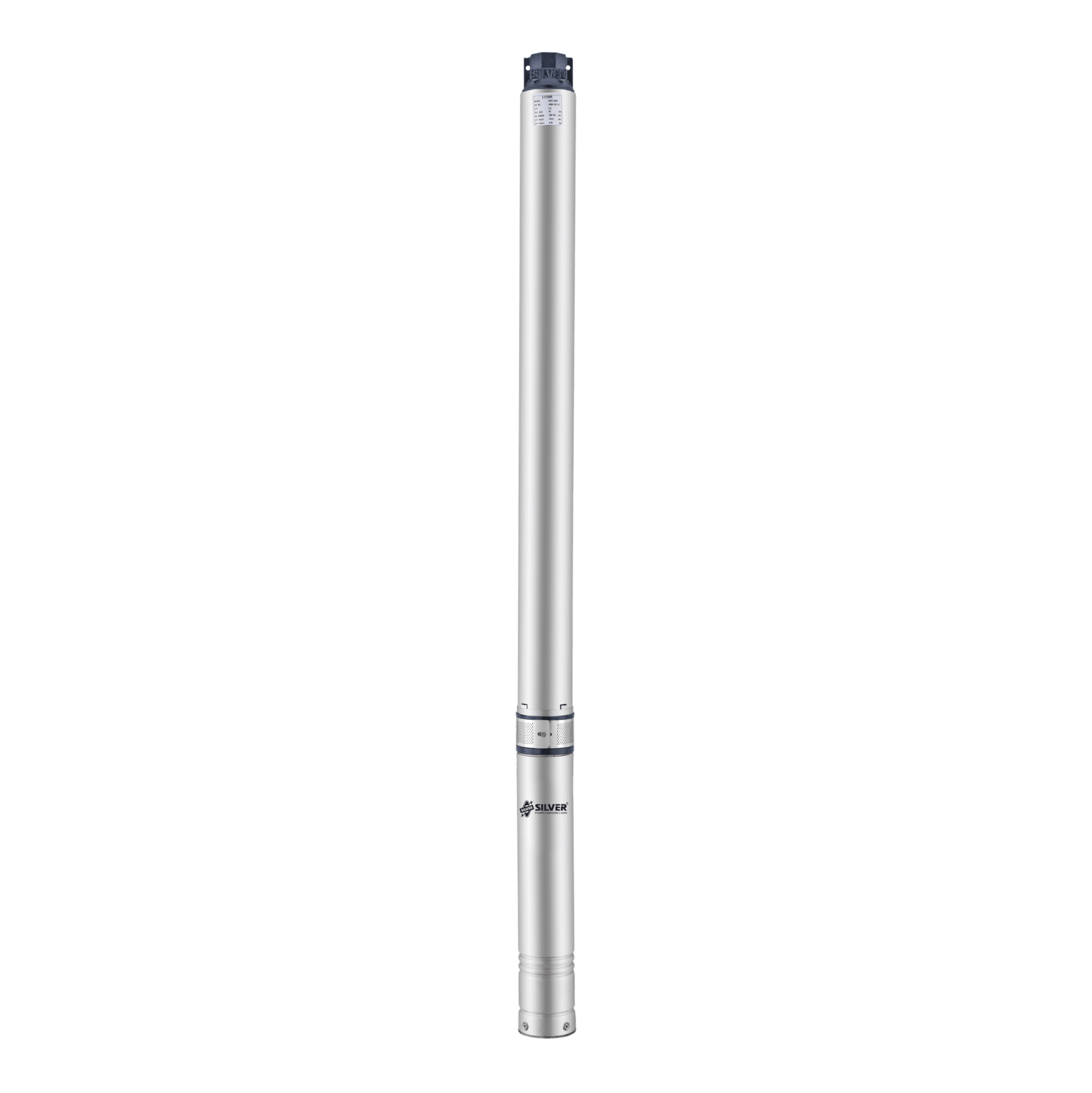

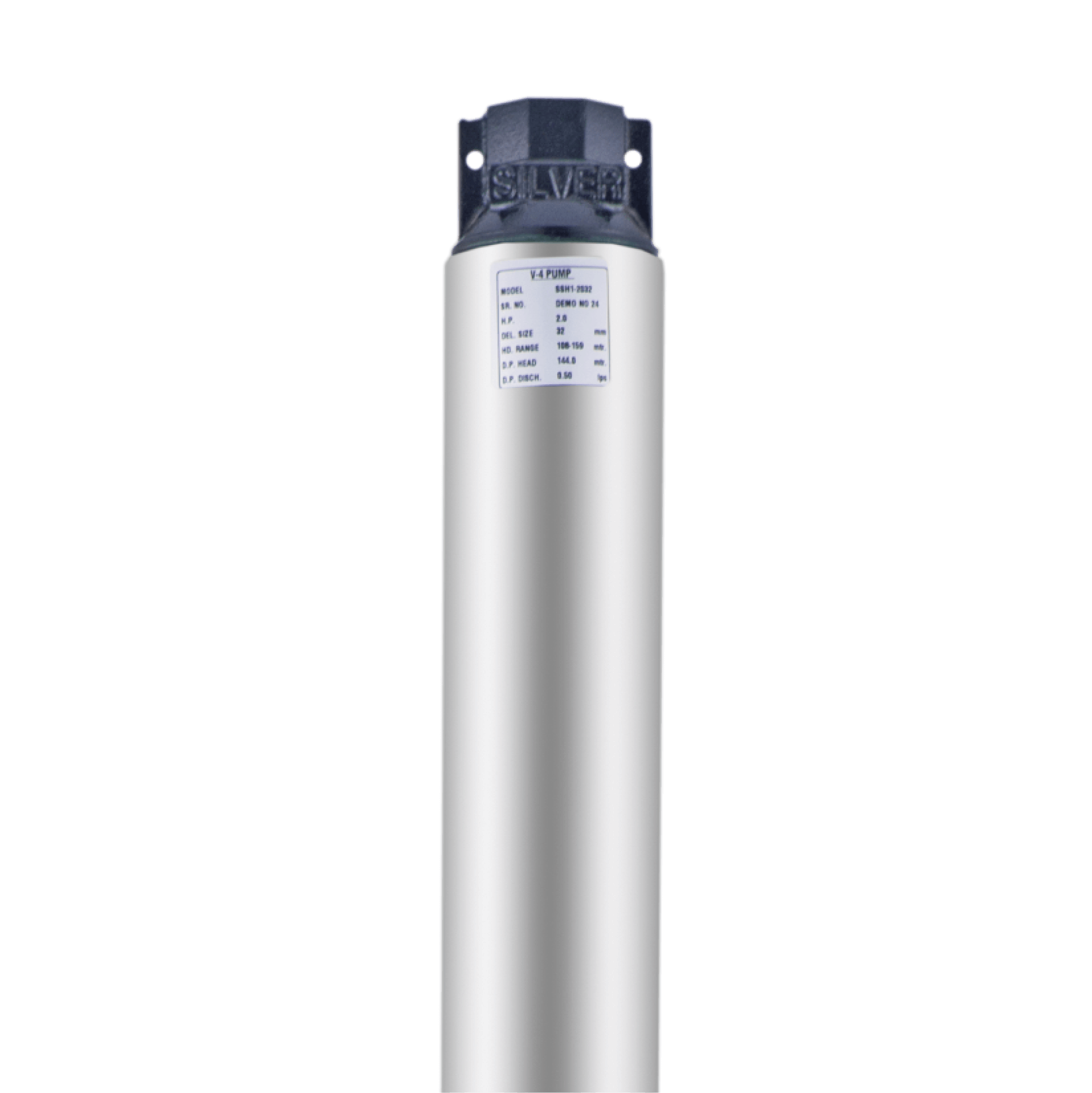

4″ Oil filled Stainless Steel Radial Flow Submersible Pump Sets

  • High Efficiency and energy Saving Design
  • Wide Voltage Range
  • Designed To Prevent Overloading
  • Dynamically Balanced Rotating Parts
  • Low Power Consumption and Less Operating Cost
  • Longer And Trouble Free Life
  • Reliable Non-Return Valve so reduce Friction Loss
  • All Parts are Dual Coated
  • All Parts Machining Precisly
  • Easy Maintainable Designs

Specifications

Model Name Motor Rating Delivery Size Bore Size Head Range Discharge Range Power Supply Direction of Rotation Liquid Temperature Pumped Liquids
SSO2N SERIES 0.37 – 1.50 kW (0.50 – 2.00 HP) – 1 PHASE 1 1/4” & 1 1/2” 100 MM Up to 160 meters Up to 65 LPM 180V TO 250V – 1 PHASE Anti-Clockwise Observed When viewed from Top side Maximum 45 °C Clear Clean, Thin, Non-Aggressive, Non-Explosive, Clear, Cold Water Without Abrasive And Solid Particle Cold Water.
SSO3N SERIES 0.37 – 1.50 kW (0.50 – 2.00 HP) – 1 PHASE 1 1/4” & 1 1/2” 100 MM Up to 123 meters Up to 100 LPM 180V TO 250V – (1 PHASE) Anti-Clockwise Observed When viewed from Top side Maximum 45 °C Clear Clean, Thin, Non-Aggressive, Non-Explosive, Clear, Cold Water Without Abrasive And Solid Particle Cold Water.
SSO4N SERIES 0.75 – 1.50 kW (1.00 – 2.00 HP) – 1 PHASE 1 1/4” & 1 1/2” 100 MM Up to 96 meters Up to 115 LPM 180V TO 250V – (1 PHASE) Anti-Clockwise Observed When viewed from Top side Maximum 45 °C Clear Clean, Thin, Non-Aggressive, Non-Explosive, Clear, Cold Water Without Abrasive And Solid Particle Cold Water.
SS9 SERIES 0.75 – 1.50 kW (1.00 – 2.00 HP) – 1 PHASE 1 1/4” & 1 1/2” 100 MM Up to 98 meters Up to 100 LPM 180V TO 250V – (1 PHASE) Anti-Clockwise Observed When viewed from Top side Maximum 45 °C Clear Clean, Thin, Non-Aggressive, Non-Explosive, Clear, Cold Water Without Abrasive And Solid Particle Cold Water.
SSOJ4U SERIES 1.10 – 1.50 kW (1.50 – 2.00 HP) – 1 PHASE 1 1/4” & 1 1/2” 100 MM Up to 135 meters Up to 110 LPM 180V TO 250V – (1 PHASE) Anti-Clockwise Observed When viewed from Top side Maximum 45 °C Clear Clean, Thin, Non-Aggressive, Non-Explosive, Clear, Cold Water Without Abrasive And Solid Particle Cold Water.
SSOG4U SERIES 0.75 kW (1.00 HP) – 1 PHASE 1 1/4” & 1 1/2” 100 MM Up to 59 meters Up to 110 LPM 180V TO 250V – (1 PHASE) Anti-Clockwise Observed When viewed from Top side Maximum 45 °C Clear Clean, Thin, Non-Aggressive, Non-Explosive, Clear, Cold Water Without Abrasive And Solid Particle Cold Water.
SSOH1 SERIES 0.37 – 2.20 kW (0.50 – 3.00 HP) – 1 PHASE & 0.75 – 2.20 kW (1.00 – 3.00 HP) – 3 PHASE 1 1/4” 100 MM Up to 292 meters Up to 60 LPM 180V TO 250V – (1 PHASE) & 350V TO 440V – (3 PHASE) Anti-Clockwise Observed When viewed from Top side Maximum 45 °C Clear Clean, Thin, Non-Aggressive, Non-Explosive, Clear, Cold Water Without Abrasive And Solid Particle Cold Water.
SSOH2 SERIES 0.37 – 2.20 kW (0.50 – 3.00 HP) – 1 PHASE & 0.75 – 2.20 kW (1.00 – 3.00 HP) – 3 PHASE 1 1/4” 100 MM Up to 240 meters Up to 90 LPM 180V TO 250V – (1 PHASE) & 350V TO 440V – (3 PHASE) Anti-Clockwise Observed When viewed from Top side Maximum 45 °C Clear Clean, Thin, Non-Aggressive, Non-Explosive, Clear, Cold Water Without Abrasive And Solid Particle Cold Water.
SSOH3 SERIES 0.55 – 2.20 kW (0.75 – 3.00 HP) – 1 PHASE & 0.75 – 2.20 kW (1.00 – 3.00 HP) – 3 PHASE 1 1/2” 100 MM Up to 204 meters Up to 105 LPM 180V TO 250V – (1 PHASE) & 350V TO 440V – (3 PHASE) Anti-Clockwise Observed When viewed from Top side Maximum 45 °C Clear Clean, Thin, Non-Aggressive, Non-Explosive, Clear, Cold Water Without Abrasive And Solid Particle Cold Water.
SSOH5 SERIES 0.55 – 2.20 kW (0.75 – 3.00 HP) – 1 PHASE & 0.75 – 2.20 kW (1.00 – 3.00 HP) – 3 PHASE 2” 100 MM Up to 144 meters Up to 135 LPM 180V TO 250V – (1 PHASE) & 350V TO 440V – (3 PHASE) Anti-Clockwise Observed When viewed from Top side Maximum 45 °C Clear Clean, Thin, Non-Aggressive, Non-Explosive, Clear, Cold Water Without Abrasive And Solid Particle Cold Water.
SSOH7 SERIES 0.75 – 2.20 kW (1.00 – 3.00 HP) – 1 PHASE & 0.75 – 2.20 kW (1.00 – 3.00 HP) – 3 PHASE 2” 100 MM Up to 120 meters Up to 150 LPM 180V TO 250V – (1 PHASE) & 350V TO 440V – (3 PHASE) Anti-Clockwise Observed When viewed from Top side Maximum 45 °C Clear Clean, Thin, Non-Aggressive, Non-Explosive, Clear, Cold Water Without Abrasive And Solid Particle Cold Water.

MOC

Model Name Motor Body Motor Shaft Pump Shaft Impeller Diffuser NRV Suction
SSO2N SERIES Stainless Steel SS 410 SS 410 Noryl Noryl Cast Iron (CED Coated) Cast Iron (CED Coated)
SSO3N SERIES Stainless Steel SS 410 SS 410 Noryl Noryl Cast Iron (CED Coated) Cast Iron (CED Coated)
SSO4N SERIES Stainless Steel SS 410 SS 410 Noryl Noryl Cast Iron (CED Coated) Cast Iron (CED Coated)
SS9 SERIES Stainless Steel SS 410 SS 410 Noryl Noryl Cast Iron (CED Coated) Cast Iron (CED Coated)
SSOJ4U SERIES Stainless Steel SS 410 SS 410 Noryl Noryl Cast Iron (CED Coated) Cast Iron (CED Coated)
SSOG4U SERIES Stainless Steel SS 410 SS 410 Noryl Noryl Cast Iron (CED Coated) Cast Iron (CED Coated)
SSOH1 SERIES Stainless Steel SS 410 SS 410 Noryl Noryl Cast Iron (CED Coated) Cast Iron (CED Coated)
SSOH2 SERIES Stainless Steel SS 410 SS 410 Noryl Noryl Cast Iron (CED Coated) Cast Iron (CED Coated)
SSOH3 SERIES Stainless Steel SS 410 SS 410 Noryl Noryl Cast Iron (CED Coated) Cast Iron (CED Coated)
SSOH5 SERIES Stainless Steel SS 410 SS 410 Noryl Noryl Cast Iron (CED Coated) Cast Iron (CED Coated)
SSOH7 SERIES Stainless Steel SS 410 SS 410 Noryl Noryl Cast Iron (CED Coated) Cast Iron (CED Coated)

Technical Specifications

Model Name Power (KW) Power (HP) Stage Phase Delivery Size (Inch) Head Range (MTR) Discharge Range (LPM)
SSO2N-0508 0.37 0.50 8 1 1 1/4” & 1 1/2” 8-38 65-9
SSO2N-7512 0.55 0.75 12 1 1 1/4” & 1 1/2” 11-57 65-9
SSO2N-1016 0.75 1.00 16 1 1 1/4” & 1 1/2” 15-76 65-9
SSO2N-1018 0.75 1.00 18 1 1 1/4” & 1 1/2” 17-86 65-9
SSO2N-1020 0.75 1.00 20 1 1 1/4” & 1 1/2” 19-95 65-9
SSO2N-1021 0.75 1.00 21 1 1 1/4” & 1 1/2” 20-100 65-9
SSO2N-1525 1.10 1.50 25 1 1 1/4” & 1 1/2” 22-116 65-9
SSO2N-2032 1.50 2.00 32 1 1 1/4” & 1 1/2” 28-148 65-9
SSO3N-0506 0.37 0.50 6 1 1 1/4” & 1 1/2” 8-31 100-15
SSO3N-7508 0.55 0.75 8 1 1 1/4” & 1 1/2” 11-41 100-15
SSO3N-7510 0.55 0.75 10 1 1 1/4” & 1 1/2” 14-51 100-15
SSO3N-1012 0.75 1.00 12 1 1 1/4” & 1 1/2” 17-62 100-15
SSO3N-1516 1.10 1.50 16 1 1 1/4” & 1 1/2” 22-82 100-15
SSO3N-1518 1.10 1.50 18 1 1 1/4” & 1 1/2” 23-92 100-15
SSO3N-2023 1.50 2.00 23 1 1 1/4” & 1 1/2” 28-116 100-15
SSO4N-1010 0.75 1.00 10 1 1 1/4” & 1 1/2” 11-57 115-20
SSO4N-1514 1.10 1.50 14 1 1 1/4” & 1 1/2” 16-79 115-20
SSO4N-2016 1.50 2.00 16 1 1 1/4” & 1 1/2” 18-90 115-20
SSO9-1007 0.75 1.00 7 1 1 1/4” & 1 1/2” 12-45 100-20
SSO9-1008 0.75 1.00 8 1 1 1/4” & 1 1/2” 14-51 100-20
SSO9-1512 1.10 1.50 12 1 1 1/4” & 1 1/2” 16-74 100-20
SSO9-2014 1.50 2.00 14 1 1 1/4” & 1 1/2” 20-88 100-20
SSOJ4U-1512 1.10 1.50 12 1 1 1/4” & 1 1/2” 8-78 110-10
SSOJ4U-1514 1.10 1.50 14 1 1 1/4” & 1 1/2” 10-91 110-10
SSOJ4U-1516 1.10 1.50 16 1 1 1/4” & 1 1/2” 10-107 110-10
SSOJ4U-2020 1.50 2.00 20 1 1 1/4” & 1 1/2” 14-128 110-10
SSOG4U-1007 0.75 1.00 7 1 1 1/4” & 1 1/2” 10-40 110-10
SSOG4U-1008 0.75 1.00 8 1 1 1/4” & 1 1/2” 11-46 110-10
SSOG4U-1010 0.75 1.00 10 1 1 1/4” & 1 1/2” 14-57 110-10
SSOH1-0506 0.37 0.50 6 1 1 1/4″ 6-39 60-15
SSOH1-0508 0.37 0.50 8 1 1 1/4″ 8-52 60-15
SSOH1-7512 0.55 0.75 12 1 1 1/4″ 12-78 60-15
SSOH1-1013 0.75 1.00 13 1 & 3 1 1/4″ 13-85 60-15
SSOH1-1016 0.75 1.00 16 1 & 3 1 1/4″ 16-104 60-15
SSOH1-1520 1.10 1.50 20 1 & 3 1 1/4″ 20-130 60-15
SSOH1-1524 1.10 1.50 24 1 & 3 1 1/4″ 24-156 60-15
SSOH1-2025 1.50 2.00 25 1 & 3 1 1/4″ 25-163 60-15
SSOH1-2032 1.50 2.00 32 1 & 3 1 1/4″ 32-208 60-15
SSOH1-3040 2.20 3.00 40 1 & 3 1 1/4″ 40-260 60-15
SSOH2-0504 0.37 0.50 4 1 1 1/4″ 8-28 90-28
SSOH2-0505 0.37 0.50 5 1 1 1/4″ 10-35 90-28
SSOH2-7507 0.55 0.75 7 1 1 1/4″ 14-49 90-28
SSOH2-1010 0.75 1.00 10 1 & 3 1 1/4″ 20-70 90-28
SSOH2-1515 1.10 1.50 15 1 & 3 1 1/4″ 30-105 90-28
SSOH2-2020 1.50 2.00 20 1 & 3 1 1/4″ 40-140 90-28
SSOH2-3025 2.20 3.00 25 1 & 3 1 1/4″ 50-175 90-28
SSOH2-3028 2.20 3.00 28 1 & 3 1 1/4″ 56-196 90-28
SSOH2-3030 2.20 3.00 30 1 & 3 1 1/4″ 60-210 90-28
SSOH3-7506 0.55 0.75 6 1 1 1/2″ 12-42 105-40
SSOH3-1008 0.75 1.00 8 1 & 3 1 1/2″ 16-56 105-40
SSOH3-1512 1.10 1.50 12 1 & 3 1 1/2″ 24-84 105-40
SSOH3-2016 1.50 2.00 16 1 & 3 1 1/2″ 32-112 105-40
SSOH3-3024 2.20 3.00 24 1 & 3 1 1/2″ 48-168 105-40
SSOH5-7505 0.55 0.75 5 1 2″ 10-35 135-20
SSOH5-1007 0.75 1.00 7 1 & 3 2″ 14-49 135-20
SSOH5-1510 1.10 1.50 10 1 & 3 2″ 20-70 135-20
SSOH5-2013 1.20 2.00 13 1 & 3 2″ 26-91 135-20
SSOH5-3020 2.20 3.00 20 1 & 3 2″ 40-140 135-20
SSOH7-1005 0.75 1.00 5 1 & 3 2″ 10-35 150-40
SSOH7-1508 1.10 1.50 8 1 & 3 2″ 14-49 150-40
SSOH7-2010 1.50 2.00 10 1 & 3 2″ 20-70 150-40
SSOH7-3015 2.20 3.00 15 1 & 3 2″ 26-91 150-40
