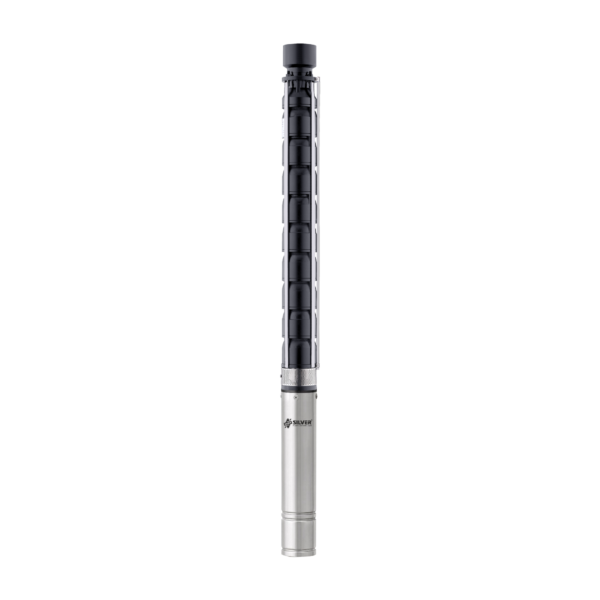

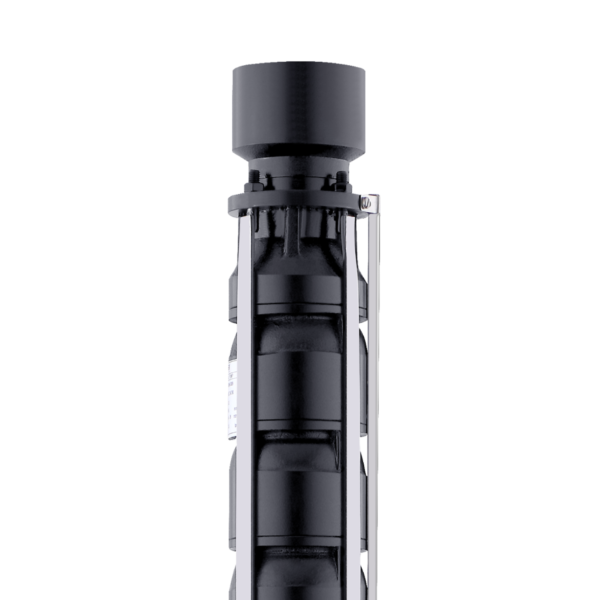

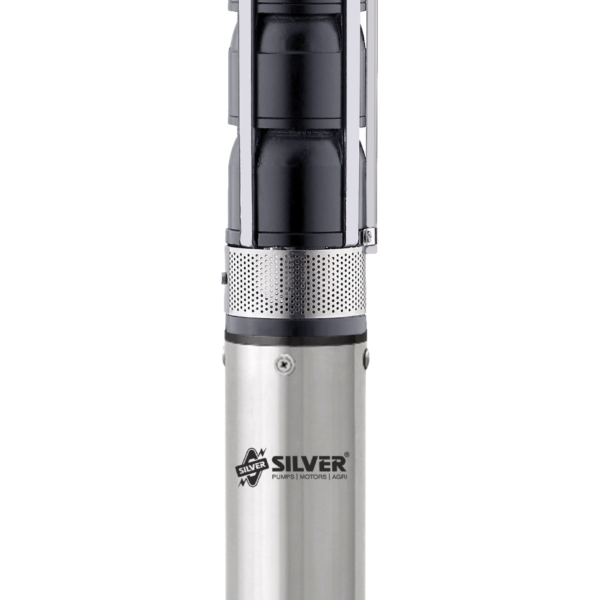

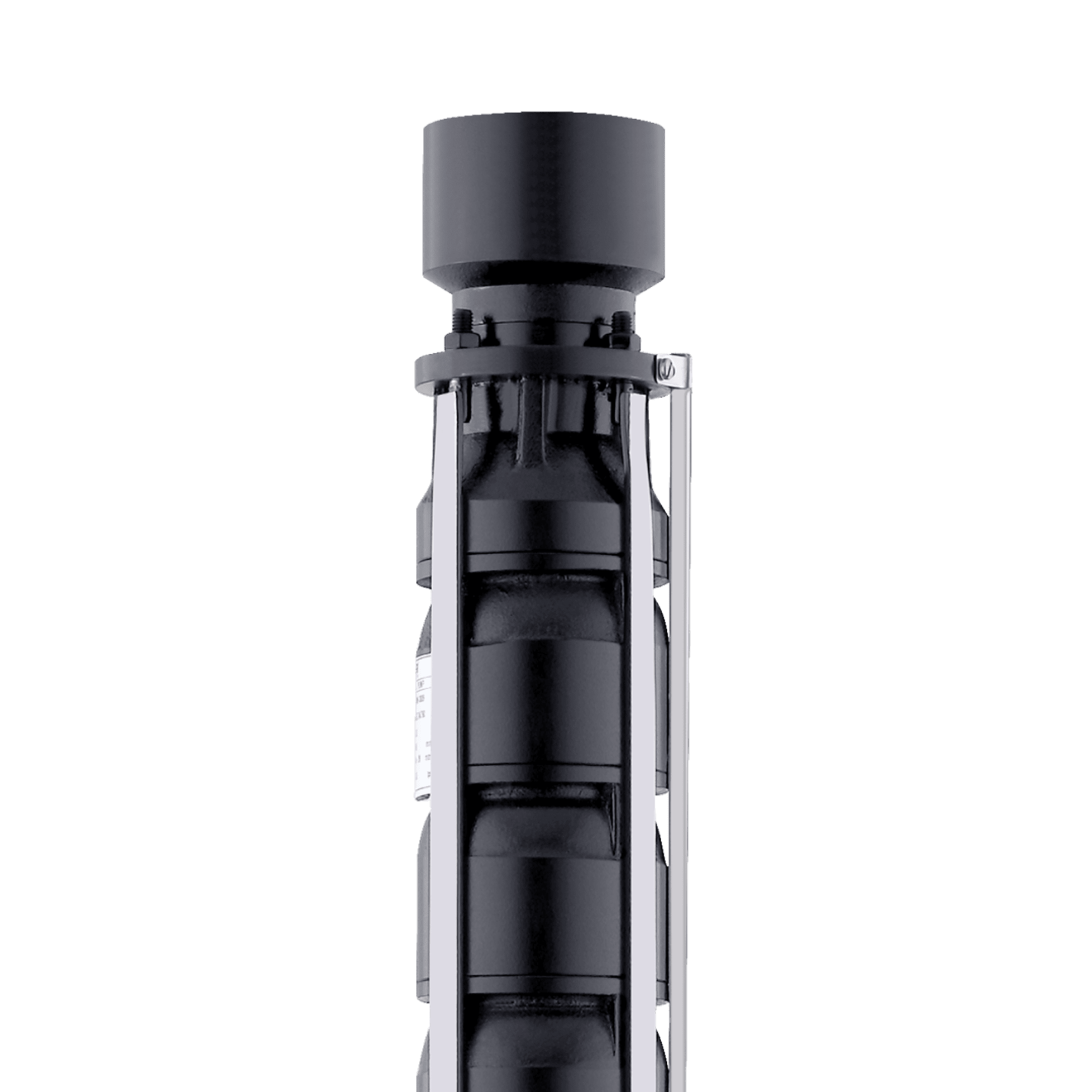

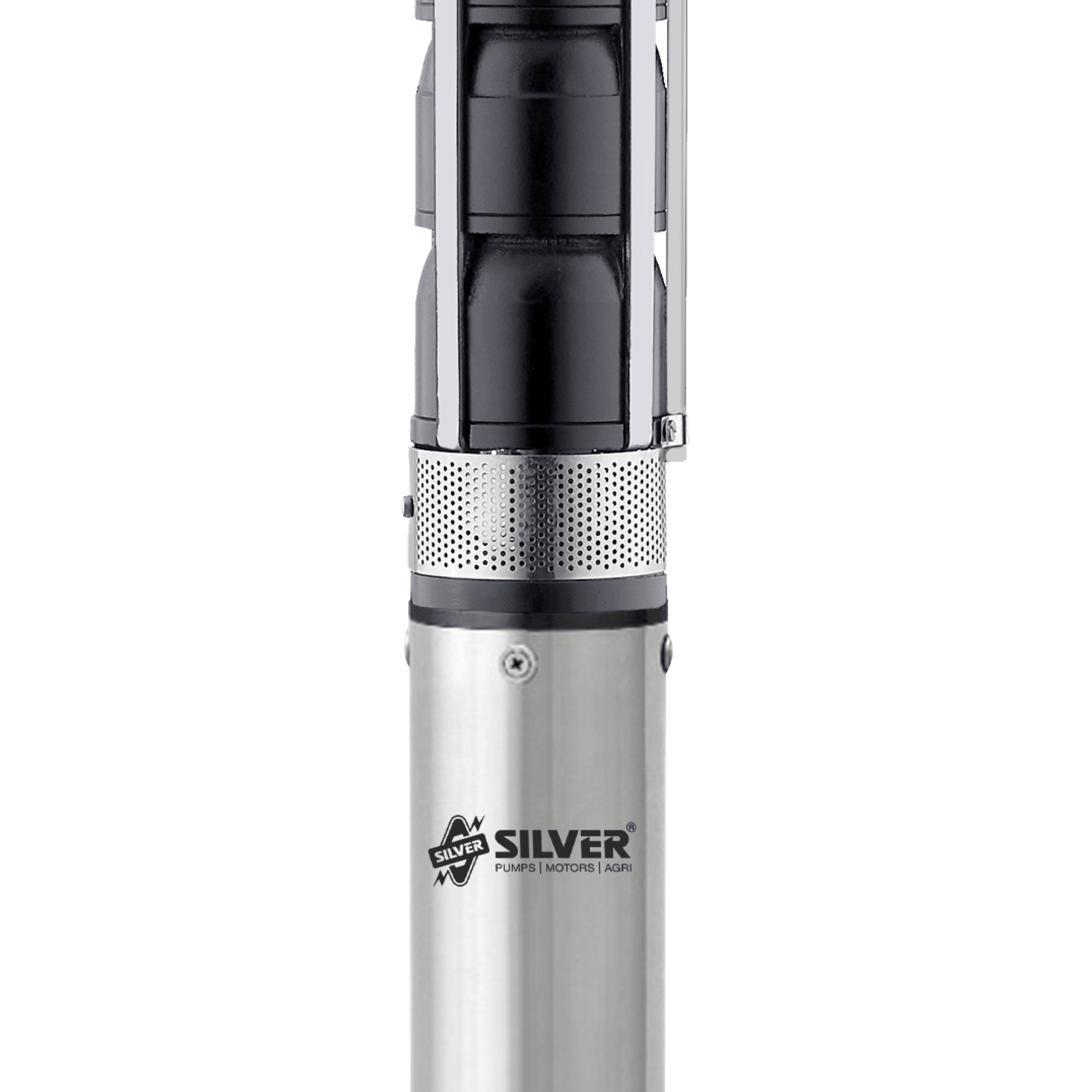

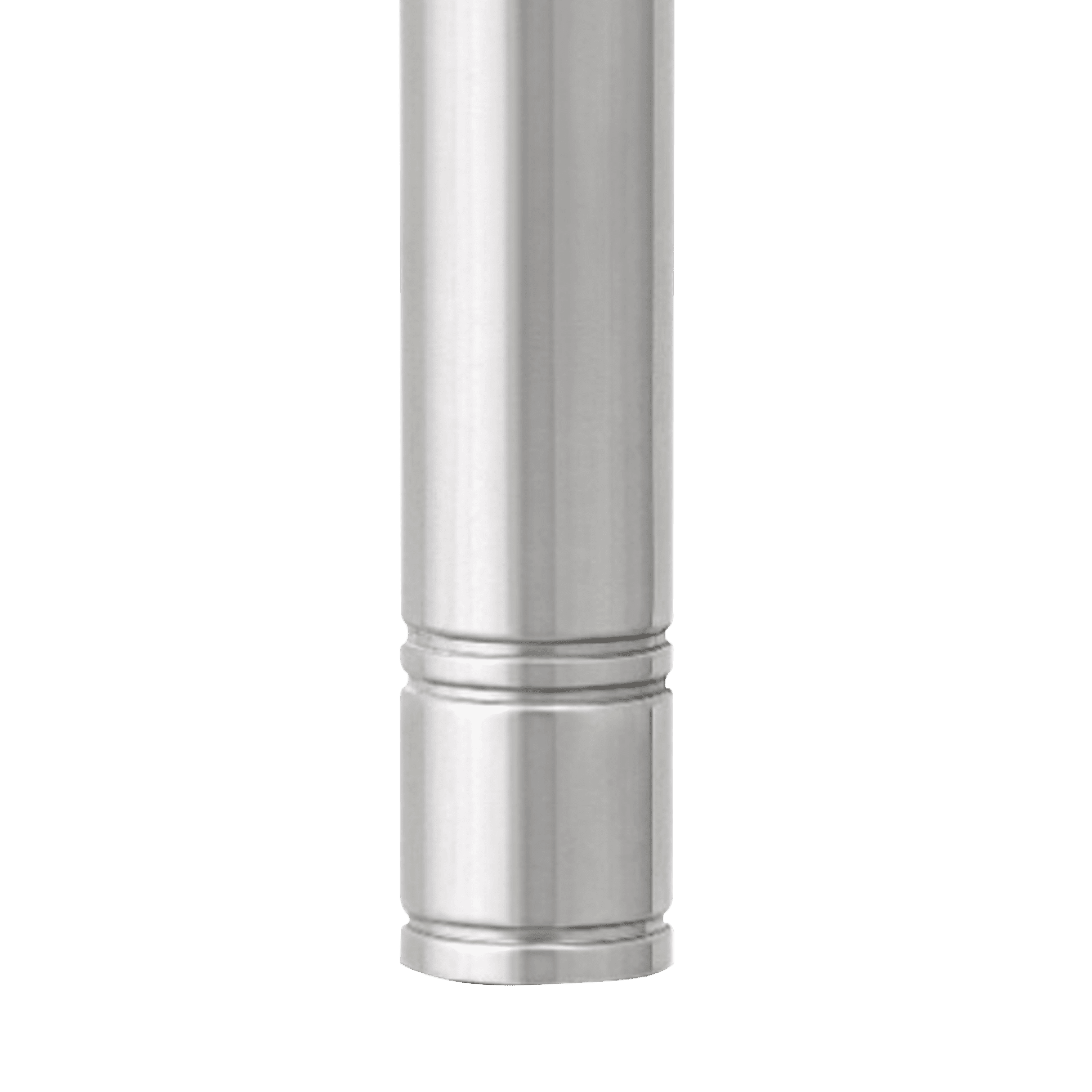

4” Water filled Cast Iron Type Mixed Flow Submersible Pump Sets

  • High Efficiency and energy Saving Design
  • Wide Voltage Range
  • Designed To Prevent Overloading
  • Dynamically Balanced Rotating Parts
  • Low Power Consumption and Less Operating Cost
  • Longer And Trouble Free Life
  • Reliable Non-Return Valve so reduce Friction Loss
  • All Parts are Dual Coated
  • All Parts Machining Precisly
  • Easy Maintainable Designs

Specifications

Model Name Motor Rating Delivery Size Bore Size Head Range Discharge Range Power Supply Direction of Rotation Liquid Temperature Pumped Liquids
SSM SERIES 1.50 – 3.70 kW (2.00 – 5.00 HP) – 1 PHASE & 1.50 – 5.50 kW (2.00 – 7.50 HP) – 3 PHASE 2 1/2” 100 MM Up to 86 meters Up to 575 LPM 180V TO 250V – (1 PHASE) & 350V TO 440V – (3 PHASE) Anti-Clockwise Observed When viewed from Top side Maximum 45 °C Clear Clean, Thin, Non-Aggressive, Non-Explosive, Clear, Cold Water Without Abrasive And Solid Particle Cold Water.

MOC

Model Name Motor Body Motor Shaft Thrust Bearing Motor Bushes Pump Shaft Impeller Diffuser NRV Suction
SSM SERIES Stainless Steel SS431 Stainless Steel, Carbon, Cast iron LTB-4 / Carbon SS 410 SS 410 Cast Iron Cast Iron (CED Coated) Cast Iron (CED Coated)

Technical Specifications

Model Name Power (KW) Power (HP) Stage Phase Delivery Size (Inch) Head Range (MTR) Discharge Range (LPM)
SSM – 2004 1.50 2.00 4 1 & 3 2 1/2″ 5-21 575-160
SSM – 3006 2.20 3.00 6 1 & 3 2 1/2″ 7-31 575-160
SSM – 3007 2.20 3.00 7 1 & 3 2 1/2″ 8-36 575-160
SSM – 3008 2.20 3.00 8 1 & 3 2 1/2″ 10-41 575-160
SSM – 3009 2.20 3.00 9 1 & 3 2 1/2″ 11-46 575-160
SSM – 5010 3.70 5.00 10 1 & 3 2 1/2″ 12-52 575-160
SSM – 5011 3.70 5.00 11 1 & 3 2 1/2″ 13-57 575-160
SSM – 5012 3.70 5.00 12 3 2 1/2″ 14-62 575-160
SSM – 7513 5.50 7.50 13 3 2 1/2″ 16-67 575-160
SSM – 7514 5.50 7.50 14 3 2 1/2″ 17-72 575-160
