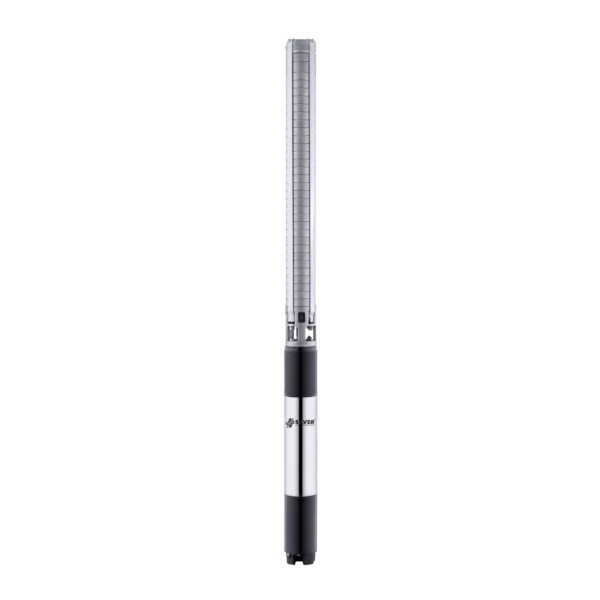

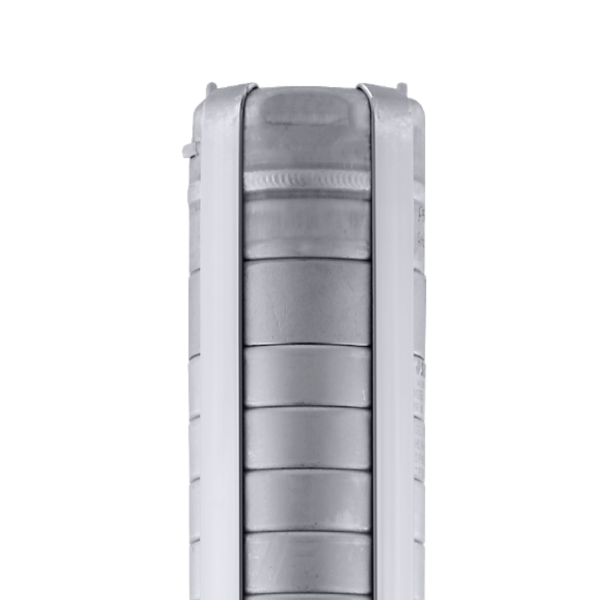

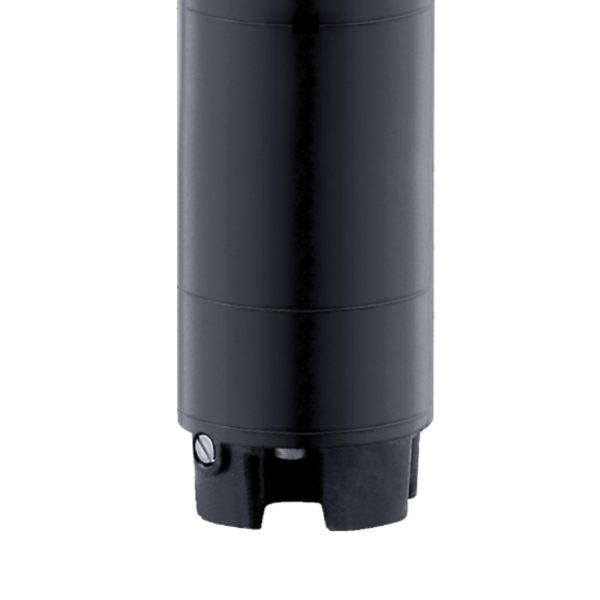

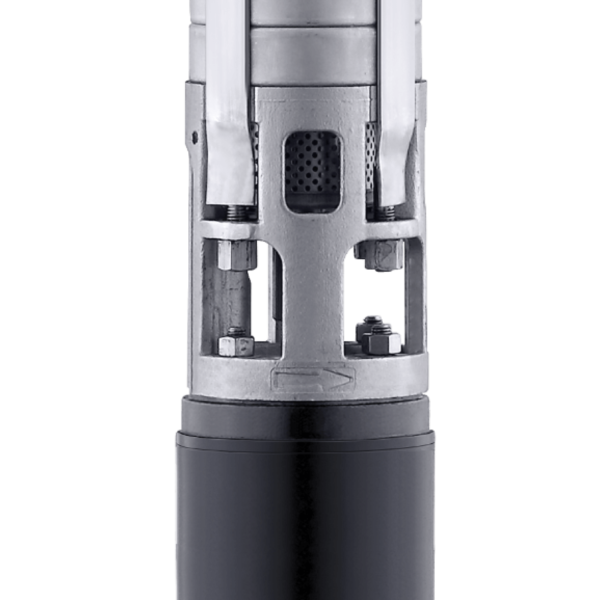

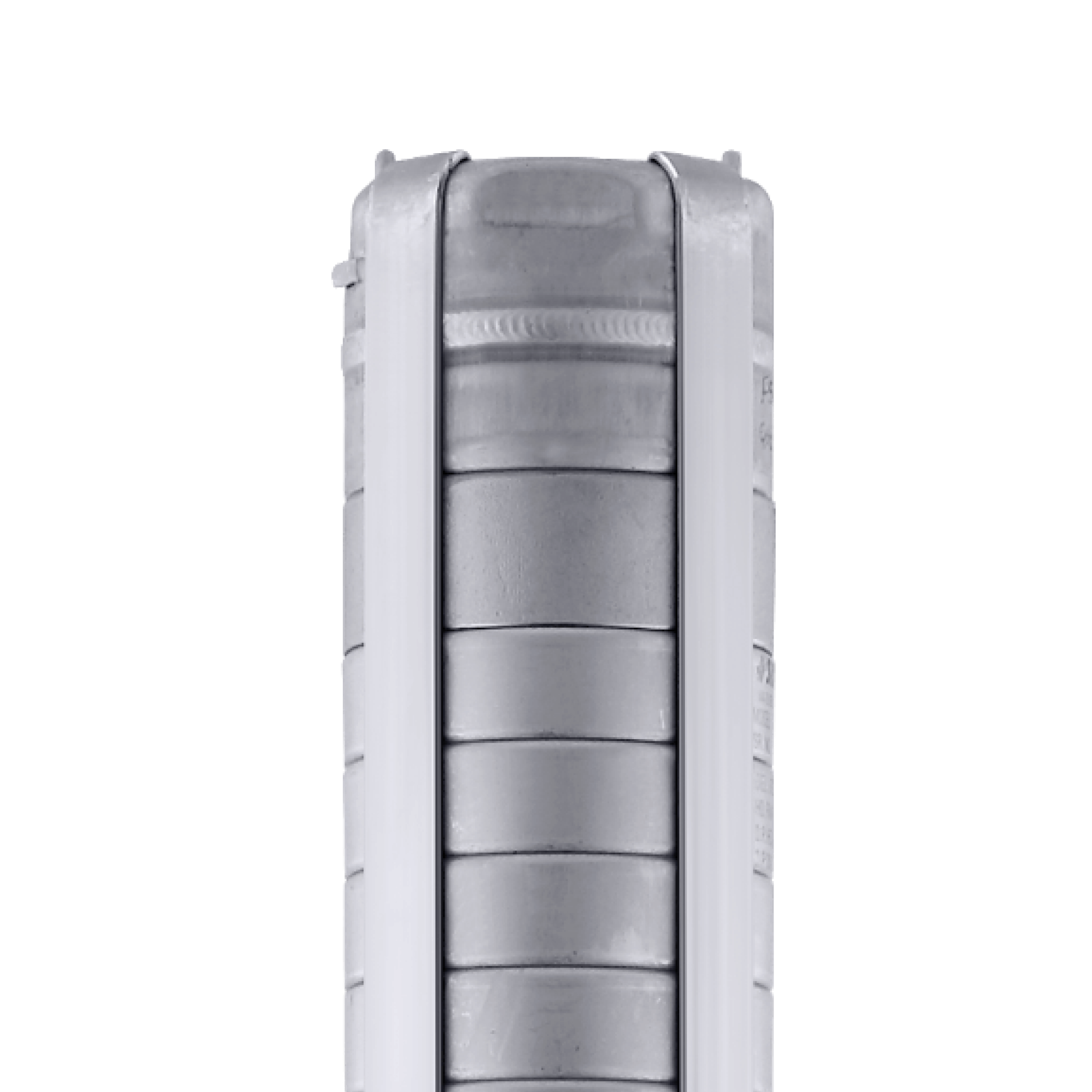

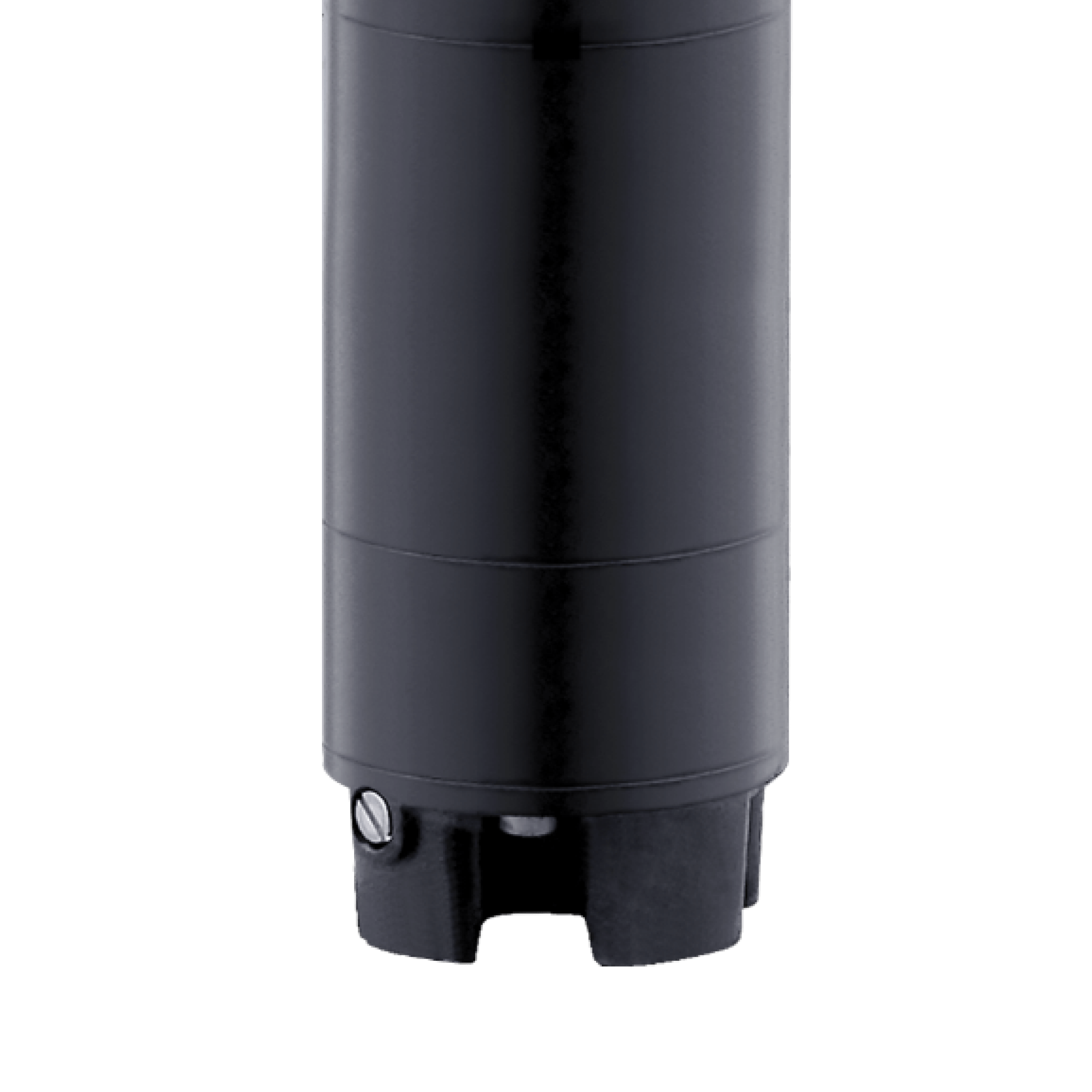

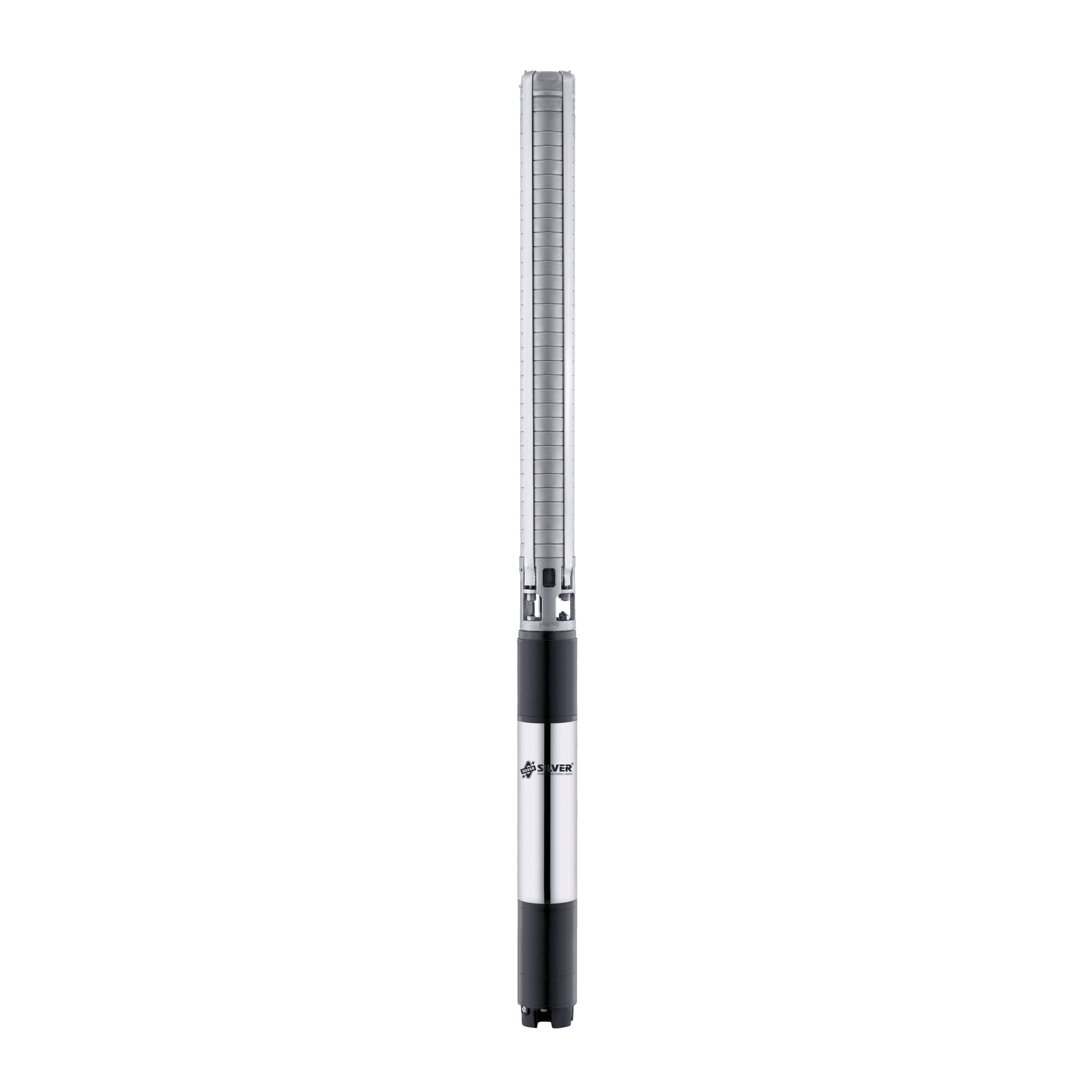

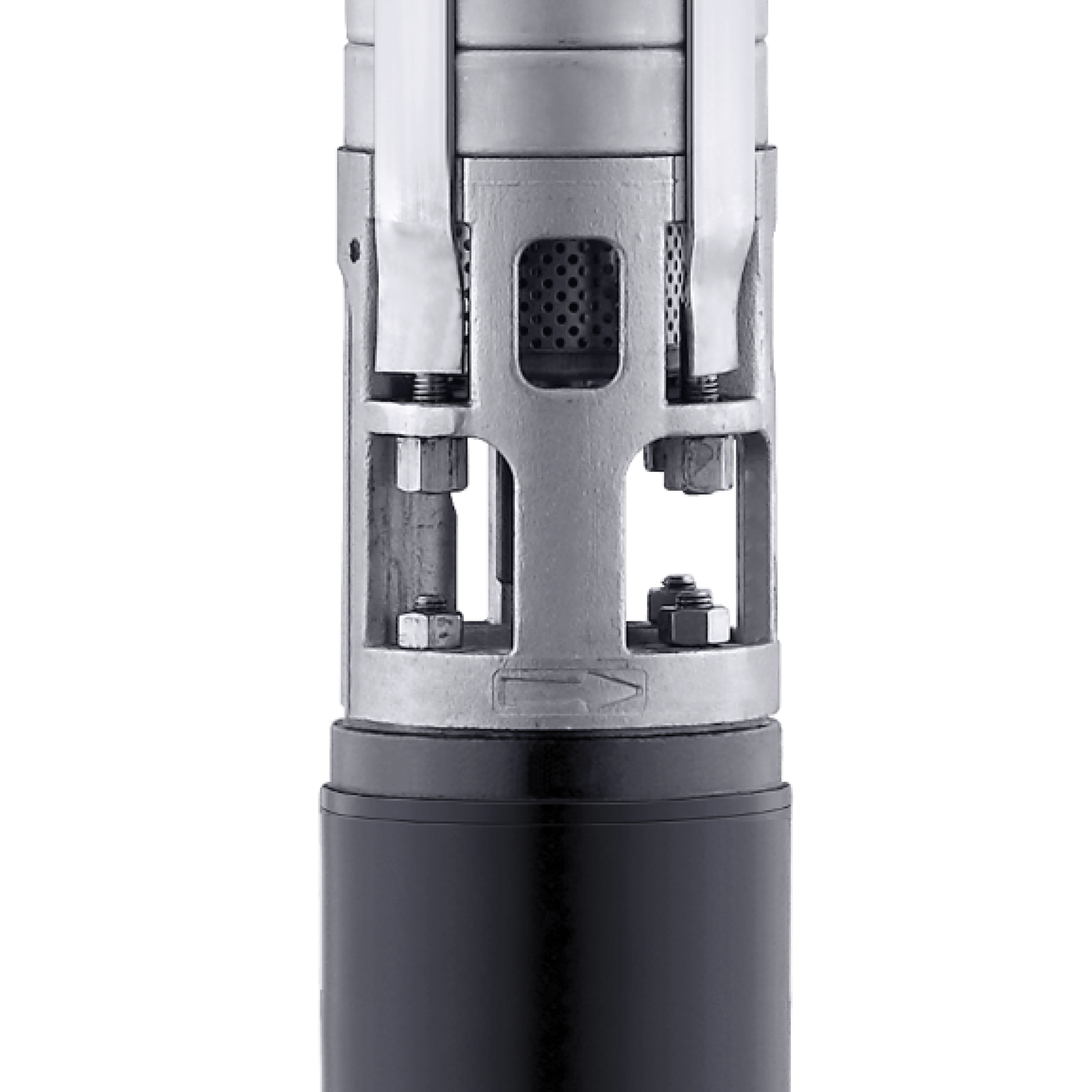

4” Water filled Stainless Steel Fabricated Mixed Flow Submersible Pump Sets

  • High Efficiency and energy Saving Design
  • Wide Voltage Range
  • Designed To Prevent Overloading
  • Dynamically Balanced Rotating Parts
  • Low Power Consumption and Less Operating Cost
  • Longer And Trouble Free Life
  • Reliable Non-Return Valve so reduce Friction Loss
  • All Parts are Dual Coated
  • All Parts Machining Precisly
  • Easy Maintainable Designs

Specifications

Model Name Motor Rating Delivery Size Bore Size Head Range Discharge Range Power Supply Direction of Rotation Liquid Temperature Pumped Liquids
SSF7 SERIES 0.75 – 3.70 kW (1.00 – 5.00 HP) – 1 PHASE & 0.75 – 5.50 kW (1.00 – 7.50 HP) – 3 PHASE 2” 100 MM Up to 280 meters Up to 175 LPM 180V TO 250V – (1 PHASE) & 350V TO 440V – (3 PHASE) Anti-Clockwise Observed When viewed from Top side Maximum 45 °C Clear Clean, Thin, Non-Aggressive, Non-Explosive, Clear, Cold Water Without Abrasive And Solid Particle Cold Water.
SSF8 SERIES 0.75 – 3.70 kW (1.00 – 5.00 HP) – 1 PHASE & 0.75 – 5.50 kW (1.00 – 7.50 HP) – 3 PHASE 2” 100 MM Up to 260 meters Up to 180 LPM 180V TO 250V – (1 PHASE) & 350V TO 440V – (3 PHASE) Anti-Clockwise Observed When viewed from Top side Maximum 45 °C Clear Clean, Thin, Non-Aggressive, Non-Explosive, Clear, Cold Water Without Abrasive And Solid Particle Cold Water.
SSF9 SERIES 0.75 – 3.70 kW (1.00 – 5.00 HP) – 1 PHASE & 0.75 – 5.50 kW (1.00 – 7.50 HP) – 3 PHASE 2” 100 MM Up to 215 meters Up to 225 LPM 180V TO 250V – (1 PHASE) & 350V TO 440V – (3 PHASE) Anti-Clockwise Observed When viewed from Top side Maximum 45 °C Clear Clean, Thin, Non-Aggressive, Non-Explosive, Clear, Cold Water Without Abrasive And Solid Particle Cold Water.

MOC

Model Name Motor Body Motor Shaft Thrust Bearing Motor Bushes Pump Shaft Impeller Diffuser NRV Suction
SSF7 SERIES Stainless Steel SS431 Stainless Steel, Carbon, Cast iron LTB-4 / Carbon SS431 SS 304 SS 304 SS 304 SS 304
SSF8 SERIES Stainless Steel SS431 Stainless Steel, Carbon, Cast iron LTB-4 / Carbon SS431 SS 304 SS 304 SS 304 SS 304
SSF9 SERIES Stainless Steel SS431 Stainless Steel, Carbon, Cast iron LTB-4 / Carbon SS431 SS 304 SS 304 SS 304 SS 304

Technical Specifications

Model Name Power (KW) Power (HP) Stage Phase Delivery Size (Inch) Head Range (MTR) Discharge Range (LPM)
SSF7-1007 0.75 1.00 7 1 & 3 2″ 9-35 175-30
SSF7-1511 1.10 1.50 11 1 & 3 2″ 14-55 175-30
SSF7-2015 1.50 2.00 15 1 & 3 2″ 19-75 175-30
SSF7-3020 2.20 3.00 20 1 & 3 2″ 25-100 175-30
SSF7-4025 3.00 4.00 25 1 & 3 2″ 31-125 175-30
SSF7-5035 3.70 5.00 35 1 & 3 2″ 44-175 175-30
SSF7-6040 4.00 6.00 40 3 2″ 50-200 175-30
SSF7-7550 5.50 7.50 50 3 2″ 63-250 175-30
SSF8-1006 0.75 1.00 6 1 & 3 2″ 12-30 180-45
SSF8-1510 1.10 1.50 10 1 & 3 2″ 20-50 180-45
SSF8-2012 1.50 2.00 12 1 & 3 2″ 24-60 180-45
SSF8-3015 2.20 3.00 15 1 & 3 2″ 30-75 180-45
SSF8-3018 2.20 3.00 18 1 & 3 2″ 36-90 180-45
SSF8-4020 3.00 4.00 20 1 & 3 2″ 40-100 180-45
SSF8-4022 3.00 4.00 22 1 & 3 2″ 44-110 180-45
SSF8-5025 3.70 5.00 25 1 & 3 2″ 50-125 180-45
SSF8-5028 3.70 5.00 28 1 & 3 2″ 56-140 180-45
SSF8-5030 3.70 5.00 30 1 & 3 2″ 60-150 180-45
SSF8-6035 4.50 6.00 35 3 2″ 70-175 180-45
SSF8-7540 5.50 7.50 40 3 2″ 80-200 180-45
SSF8-7544 5.50 7.50 44 3 2″ 88-220 180-45
SSF9-1004 0.75 1.00 4 1 & 3 2″ 2-23 225-60
SSF9-1005 0.75 1.00 5 1 & 3 2″ 3-29 225-60
SSF9-1507 1.10 1.50 7 1 & 3 2″ 4-41 225-60
SSF9-2010 1.50 2.00 10 1 & 3 2″ 5-58 225-60
SSF9-3014 2.20 3.00 14 1 & 3 2″ 7-81 225-60
SSF9-3015 2.20 3.00 15 1 & 3 2″ 8-87 225-60
SSF9-4018 3.00 4.00 18 1 & 3 2″ 9-105 225-60
SSF9-4020 3.00 4.00 20 1 & 3 2″ 10-116 225-60
SSF9-5022 3.70 5.00 22 1 & 3 2″ 11-128 225-60
SSF9-5024 3.70 5.00 24 1 & 3 2″ 12-140 225-60
SSF9-6027 4.50 6.00 27 1 & 3 2″ 14-157 225-60
SSF9-6029 4.50 6.00 29 3 2″ 15-169 225-60
SSF9-7534 5.50 7.50 34 3 2″ 17-198 225-60
SSF9-7536 5.50 7.50 36 3 2″ 18-210 225-60
