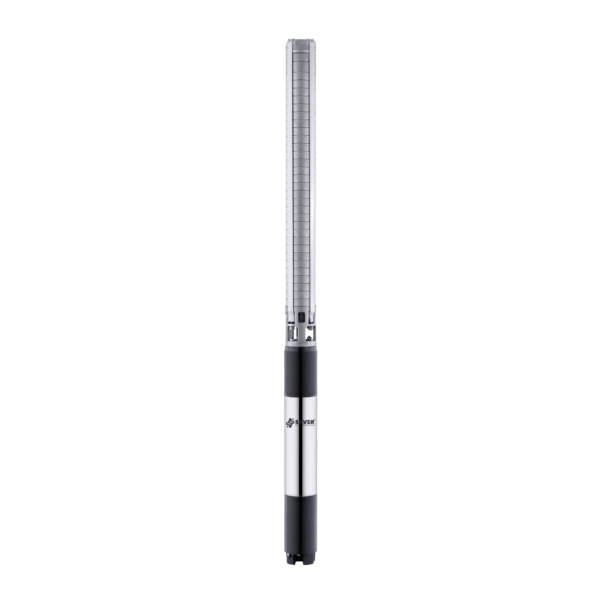

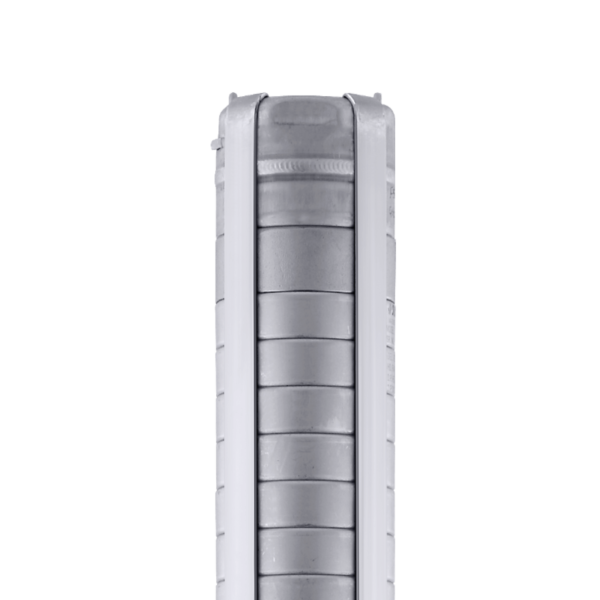

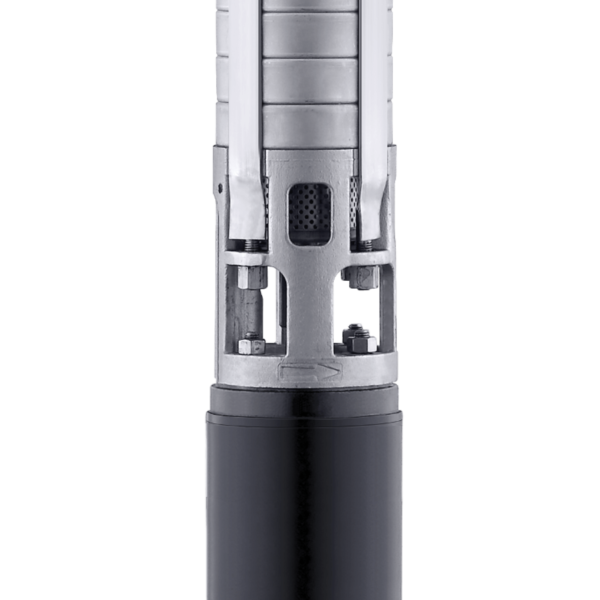

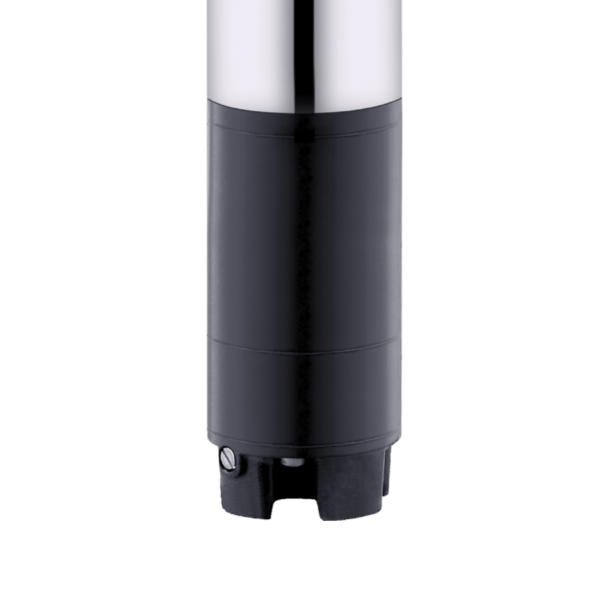

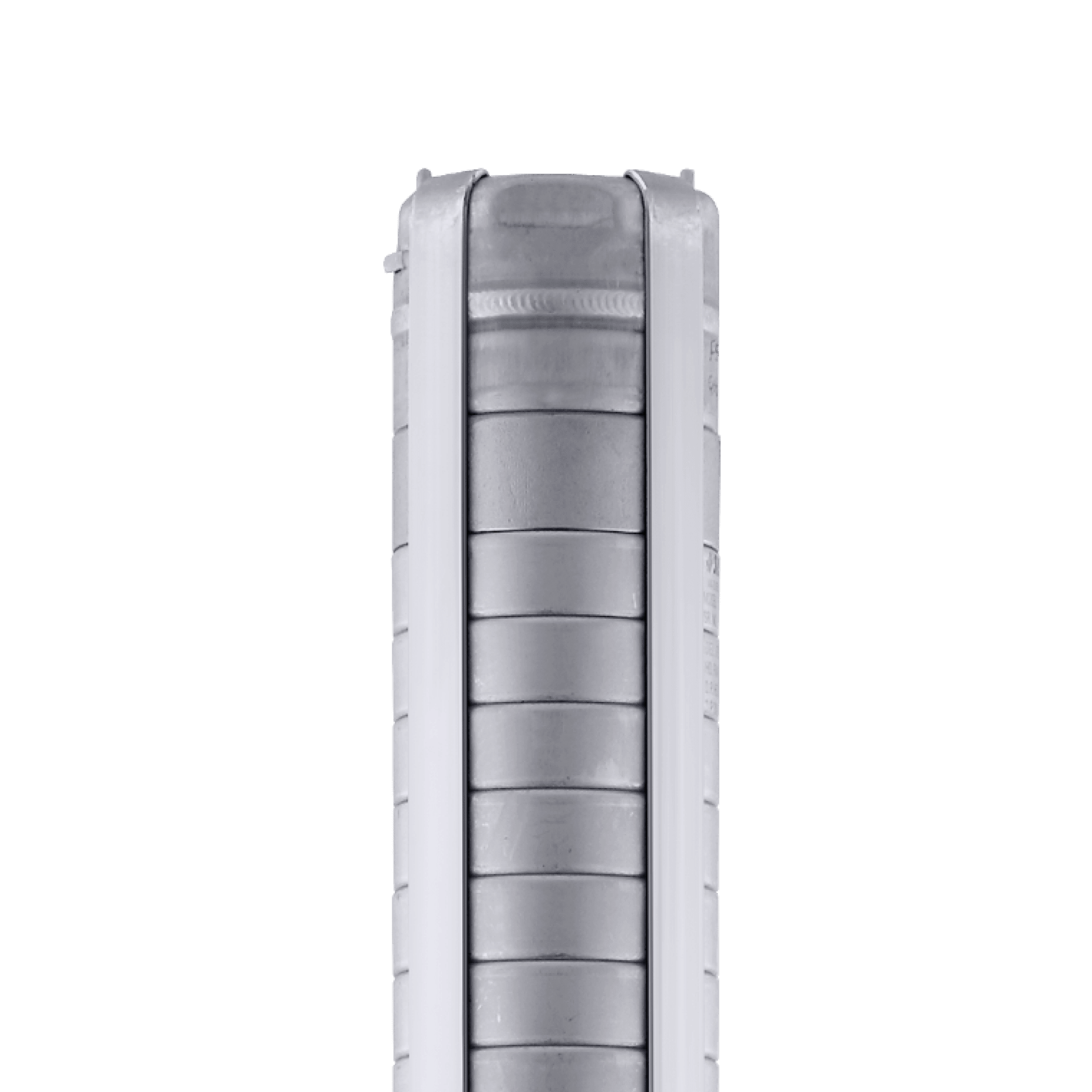

4” Water filled Stainless Steel Fabricated Radial Flow Submersible Pump Sets

  • High Efficiency and energy Saving Design
  • Wide Voltage Range
  • Designed To Prevent Overloading
  • Dynamically Balanced Rotating Parts
  • Low Power Consumption and Less Operating Cost
  • Longer And Trouble Free Life
  • Reliable Non-Return Valve so reduce Friction Loss
  • All Parts are Dual Coated
  • All Parts Machining Precisly
  • Easy Maintainable Designs

Specifications

Model Name Motor Rating Delivery Size Bore Size Head Range Discharge Range Power Supply Direction of Rotation Liquid Temperature Pumped Liquids
SSF3E SERIES 0.75 – 1.50 kW (1.00 – 2.00 HP) – 1 PHASE & 1.10 – 1.50 kW (1.50 – 2.00 HP) – 3 PHASE 1 1/4” 100 MM Up to 153 meters Up to 65 LPM 180V TO 250V – (1 PHASE) & 350V TO 440V – (3 PHASE) Anti-Clockwise Observed When viewed from Top side Maximum 45 °C Clear Clean, Thin, Non-Aggressive, Non-Explosive, Clear, Cold Water Without Abrasive And Solid Particle Cold Water.
SSF3X SERIES 0.37 – 1.50 kW (0.50 – 2.00 HP) – 1 PHASE 1 1/4” 100 MM Up to 192 meters Up to 64 LPM 180V TO 250V – (1 PHASE) Anti-Clockwise Observed When viewed from Top side Maximum 45 °C Clear Clean, Thin, Non-Aggressive, Non-Explosive, Clear, Cold Water Without Abrasive And Solid Particle Cold Water.
SSF5X SERIES 0.37 – 1.50 kW (0.50 – 2.00 HP) – 1 PHASE 1 1/2” 100 MM Up to 144 meters Up to 100 LPM 180V TO 250V – (1 PHASE) Anti-Clockwise Observed When viewed from Top side Maximum 45 °C Clear Clean, Thin, Non-Aggressive, Non-Explosive, Clear, Cold Water Without Abrasive And Solid Particle Cold Water.
SSF2 SERIES 0.37 – 3.70 kW (0.50 – 5.00 HP) – 1 PHASE & 0.75 – 3.70 kW (1.00 – 5.00 HP) – 3 PHASE 1 1/4” 100 MM Up to 506 meters Up to 47 LPM 180V TO 250V – (1 PHASE) & 350V TO 440V – (3 PHASE) Anti-Clockwise Observed When viewed from Top side Maximum 45 °C Clear Clean, Thin, Non-Aggressive, Non-Explosive, Clear, Cold Water Without Abrasive And Solid Particle Cold Water.
SSF3 SERIES 0.37 – 3.70 kW (0.50 – 5.00 HP) – 1 PHASE & 0.75 – 3.70 kW (1.00 – 5.00 HP) – 3 PHASE 1 1/4” 100 MM Up to 435 meters Up to 64 LPM 180V TO 250V – (1 PHASE) & 350V TO 440V – (3 PHASE) Anti-Clockwise Observed When viewed from Top side Maximum 45 °C Clear Clean, Thin, Non-Aggressive, Non-Explosive, Clear, Cold Water Without Abrasive And Solid Particle Cold Water.
SSF5 SERIES 0.37 – 3.70 kW (0.50 – 5.00 HP) – 1 PHASE & 0.75 – 5.50 kW (1.00 – 7.50 HP) – 3 PHASE 1 1/2” 100 MM Up to 435 meters Up to 100 LPM 180V TO 250V – (1 PHASE) & 350V TO 440V – (3 PHASE) Anti-Clockwise Observed When viewed from Top side Maximum 45 °C Clear Clean, Thin, Non-Aggressive, Non-Explosive, Clear, Cold Water Without Abrasive And Solid Particle Cold Water.

MOC

Model Name Motor Body Motor Shaft Thrust Bearing Motor Bushes Pump Shaft Impeller Diffuser NRV Suction
SSF3E SERIES Stainless Steel SS431 Stainless Steel, Carbon, Cast iron LTB-4 SS431 SS 304 SS 304 SS 304 SS 304
SSF3X SERIES Stainless Steel SS431 Stainless Steel, Carbon, Cast iron LTB-4 SS431 SS 304 SS 304 SS 304 SS 304
SSF5X SERIES Stainless Steel SS431 Stainless Steel, Carbon, Cast iron LTB-4 SS431 SS 304 SS 304 SS 304 SS 304
SSF2 SERIES Stainless Steel SS431 Stainless Steel, Carbon, Cast iron LTB-4 / Carbon SS431 SS 304 SS 304 SS 304 SS 304
SSF3 SERIES Stainless Steel SS431 Stainless Steel, Carbon, Cast iron LTB-4 / Carbon SS431 SS 304 SS 304 SS 304 SS 304
SSF5 SERIES Stainless Steel SS431 Stainless Steel, Carbon, Cast iron LTB-4 / Carbon SS431 SS 304 SS 304 SS 304 SS 304

Technical Specifications

Model Name Power (KW) Power (HP) Stage Phase Delivery Size (Inch) Head Range (MTR) Discharge Range (LPM)
SSF3E-1010 0.75 1.00 10 1 1 1/4″ 11-56 65-14
SSF3E-1012 0.75 1.00 12 1 1 1/4″ 13-67 65-14
SSF3E-1515 1.10 1.50 15 1 & 3 1 1/4″ 17-84 65-14
SSF3E-1518 1.10 1.50 18 1 & 3 1 1/4″ 20-101 65-14
SSF3E-2020 1.50 2.00 20 1 & 3 1 1/4″ 22-112 65-14
SSF3E-2025 1.50 2.00 25 1 & 3 1 1/4″ 28-140 65-14
SSF3X-0508 0.37 0.50 8 1 1 1/4″ 7-42 64-13
SSF3X-1010 0.75 1.00 10 1 1 1/4″ 9-53 64-13
SSF3X-1011 0.75 1.00 11 1 1 1/4″ 10-58 64-13
SSF3X-1013 0.75 1.00 13 1 1 1/4″ 12-66 64-13
SSF3X-1014 0.75 1.00 14 1 1 1/4″ 13-71 64-13
SSF3X-1016 0.75 1.00 16 1 1 1/4″ 14-82 64-13
SSF3X-1018 0.75 1.00 18 1 1 1/4″ 15-92 64-13
SSF3X-1520 1.10 1.50 20 1 1 1/4″ 18-106 64-13
SSF3X-1522 1.10 1.50 22 1 1 1/4″ 20-112 64-13
SSF3X-1525 1.10 1.50 25 1 1 1/4″ 21-128 64-13
SSF3X-2028 1.50 2.00 28 1 1 1/4″ 25-148 64-13
SSF3X-2032 1.50 2.00 32 1 1 1/4″ 27-163 64-13
SSF5X-0506 0.37 0.50 6 1 1 1/2″ 4-32 100-22
SSF5X-1008 0.75 1.00 8 1 1 1/2″ 5-42 100-22
SSF5X-1010 0.75 1.00 10 1 1 1/2″ 7-53 100-22
SSF5X-1012 0.75 1.00 12 1 1 1/2″ 8-63 100-22
SSF5X-1515 1.10 1.50 15 1 1 1/2″ 9-77 100-22
SSF5X-1518 1.10 1.50 18 1 1 1/2″ 12-95 100-22
SSF5X-2020 1.50 2.00 20 1 1 1/2″ 12-102 100-22
SSF5X-2024 1.50 2.00 24 1 1 1/2″ 16-126 100-22
SSF2-0506 0.37 0.50 6 1 1 1/4″ 6-30 47-13
SSF2-0509 0.37 0.50 9 1 1 1/4″ 9-45 47-13
SSF2-7513 0.55 0.75 13 1 1 1/4″ 13-65 47-13
SSF2-1018 0.75 1.00 18 1 & 3 1 1/4″ 18-90 47-13
SSF2-1523 1.10 1.50 23 1 & 3 1 1/4″ 23-115 47-13
SSF2-2028 1.50 2.00 28 1 & 3 1 1/4″ 28-140 47-13
SSF2-2033 1.50 2.00 33 1 & 3 1 1/4″ 33-165 47-13
SSF2-3040 2.20 3.00 40 1 & 3 1 1/4″ 40-200 47-13
SSF2-3048 2.20 3.00 48 1 & 3 1 1/4″ 48-240 47-13
SSF2-4055 3.00 4.00 55 1 & 3 1 1/4″ 55-275 47-13
SSF2-4065 3.00 4.00 65 1 & 3 1 1/4″ 65-325 47-13
SSF2-5075 3.70 5.00 75 1 & 3 1 1/4″ 75-375 47-13
SSF2-5090 3.70 5.00 90 1 & 3 1 1/4″ 90-450 47-13
SSF3-0508 0.37 0.50 8 1 1 1/4″ 8-44 64-13
SSF3-7512 0.55 0.75 12 1 1 1/4″ 12-66 64-13
SSF3-1016 0.75 1.00 16 1 & 3 1 1/4″ 16-88 64-13
SSF3-1018 0.75 1.00 18 1 & 3 1 1/4″ 18-99 64-13
SSF3-1520 1.10 1.50 20 1 & 3 1 1/4″ 20-110 64-13
SSF3-1525 1.10 1.50 25 1 & 3 1 1/4″ 25-138 64-13
SSF3-2028 1.50 2.00 28 1 & 3 1 1/4″ 28-154 64-13
SSF3-2032 1.50 2.00 32 1 & 3 1 1/4″ 32-176 64-13
SSF3-3045 2.20 3.00 45 1 & 3 1 1/4″ 45-243 64-13
SSF3-3050 2.20 3.00 50 1 & 3 1 1/4″ 50-270 64-13
SSF3-4060 3.00 4.00 60 1 & 3 1 1/4″ 60-324 64-13
SSF3-5075 3.70 5.00 75 1 & 3 1 1/4″ 75-405 64-13
SSF5-0506 0.37 0.50 6 1 1 1/2″ 6-33 100-22
SSF5-7508 0.55 0.75 8 1 1 1/2″ 8-44 100-22
SSF5E-1008 0.75 1.00 8 1 1 1/2″ 9-46 100-22
SSF5-1010 0.75 1.00 10 1 & 3 1 1/2″ 10-55 100-22
SSF5-1012 0.75 1.00 12 1 & 3 1 1/2″ 12-66 100-22
SSF5-1515 1.10 1.50 15 1 & 3 1 1/2″ 15-83 100-22
SSF5-1518 1.10 1.50 18 1 & 3 1 1/2″ 18-99 100-22
SSF5-2020 1.50 2.00 20 1 & 3 1 1/2″ 20-110 100-22
SSF5-2024 1.50 2.00 24 1 & 3 1 1/2″ 24-132 100-22
SSF5-3030 2.20 3.00 30 1 & 3 1 1/2″ 30-165 100-22
SSF5-3036 2.20 3.00 36 1 & 3 1 1/2″ 36-198 100-22
SSF5-4040 3.00 4.00 40 1 & 3 1 1/2″ 40-216 100-22
SSF5-4046 3.00 4.00 46 1 & 3 1 1/2″ 46-248 100-22
SSF5-5050 3.70 5.00 50 1 & 3 1 1/2″ 50-270 100-22
SSF5-6060 4.50 6.00 60 3 1 1/2″ 60-324 100-22
SSF5-7575 5.50 7.50 75 3 1 1/2″ 75-405 100-22
