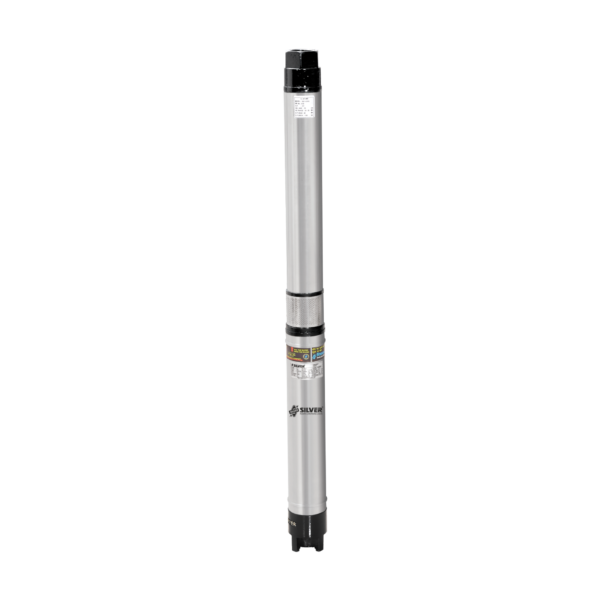

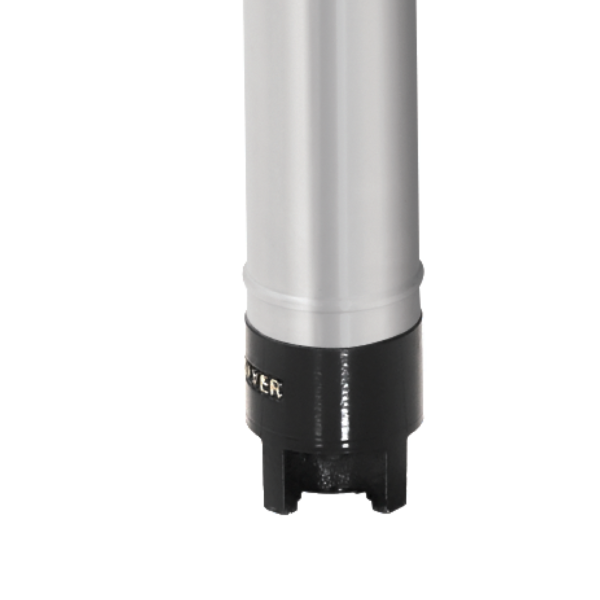

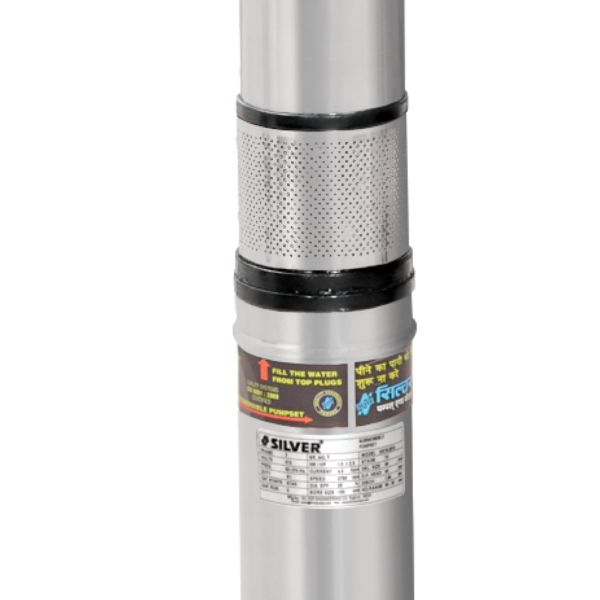

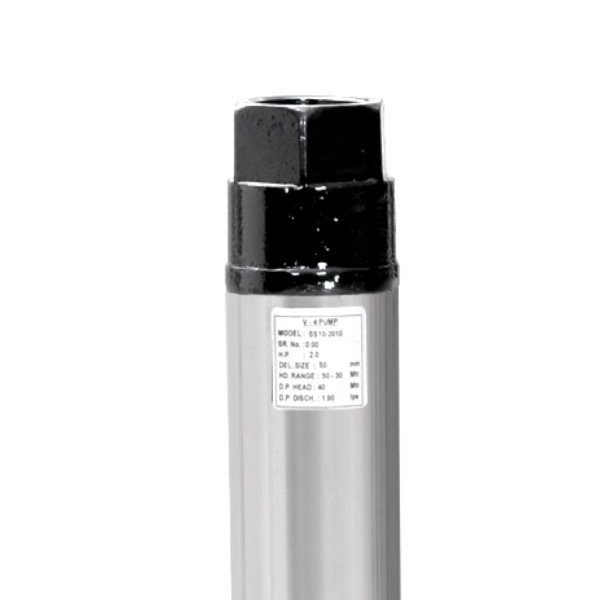

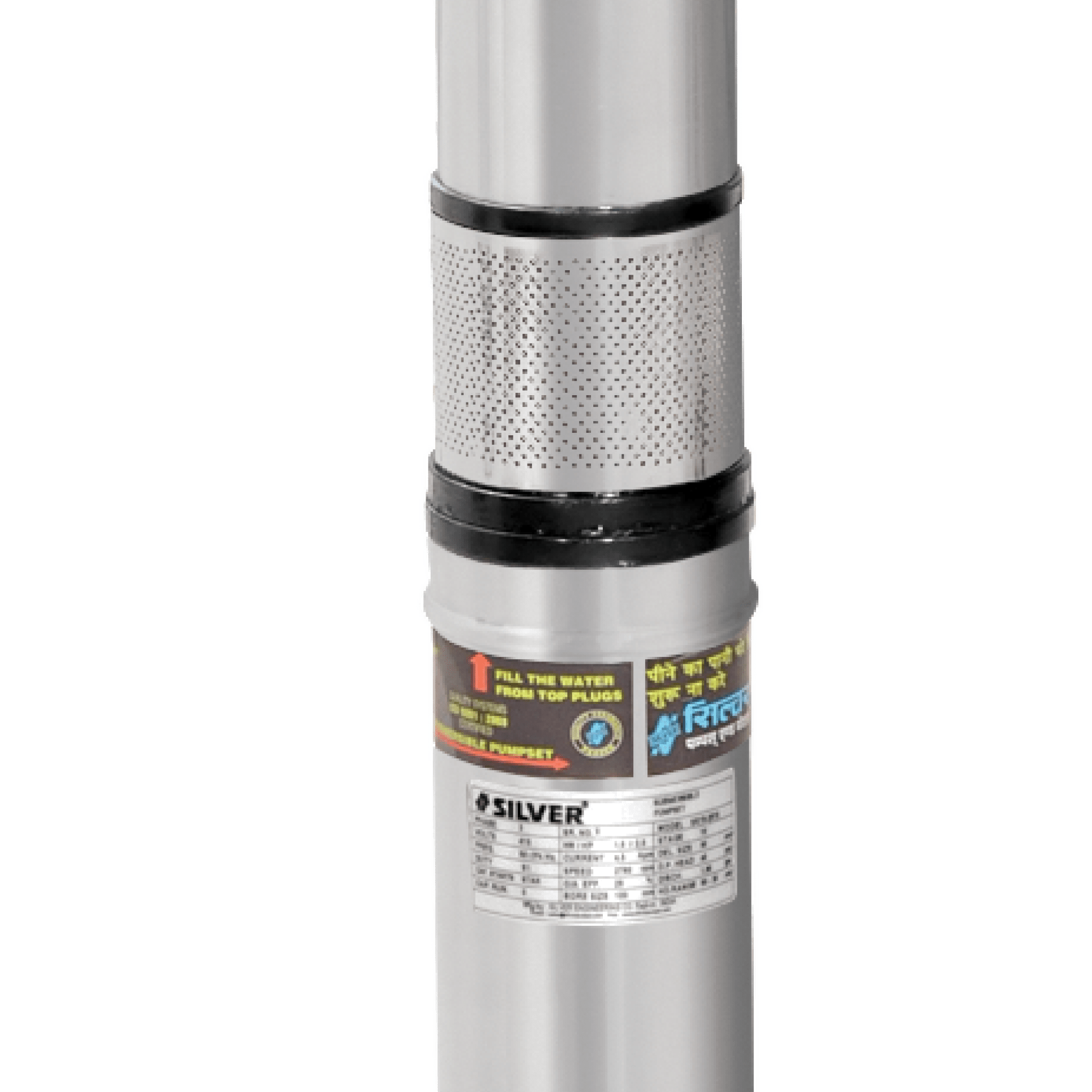

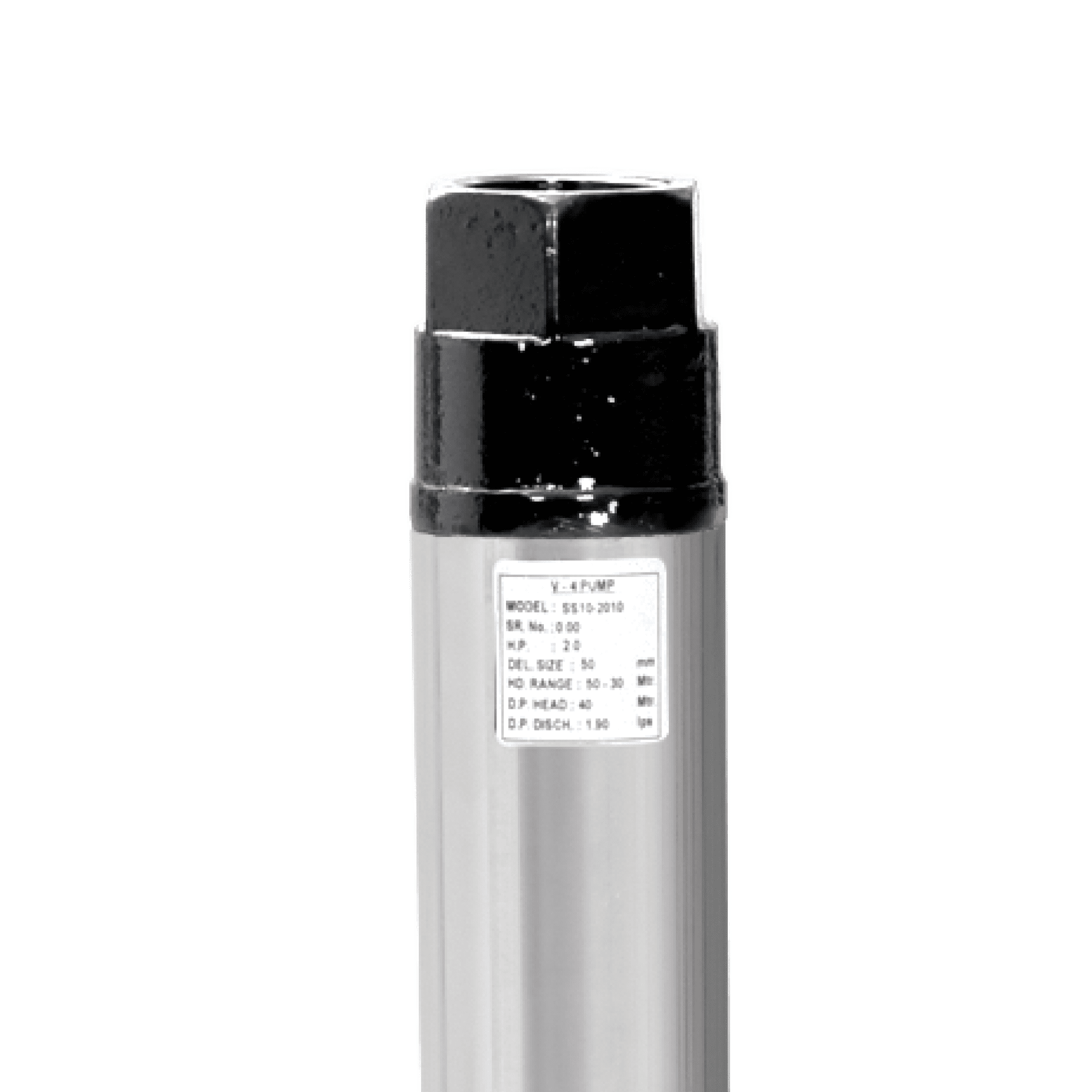

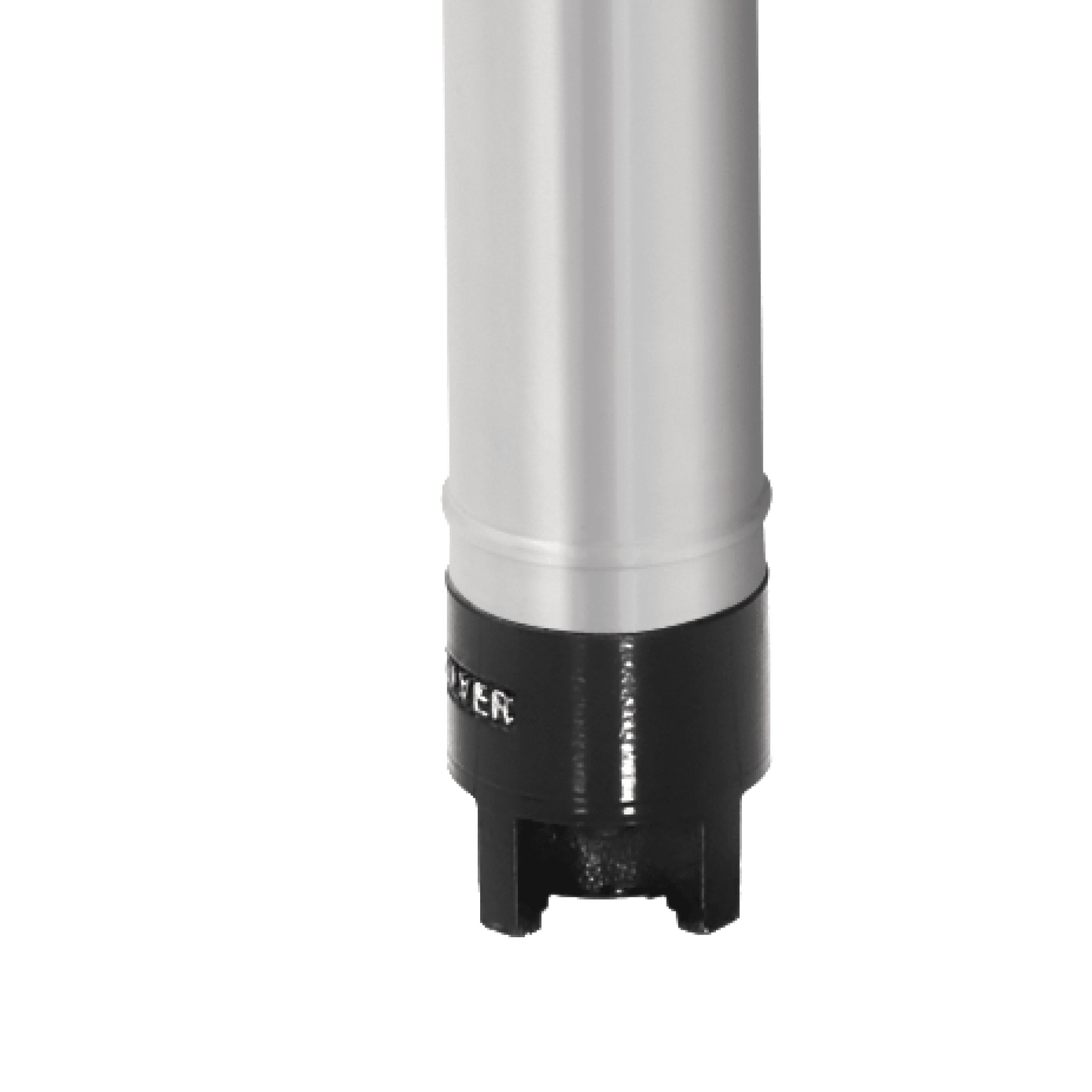

4” Water filled Stainless Steel Mixed Flow Submersible Pump Sets

  • High Efficiency and energy Saving Design
  • Wide Voltage Range
  • Designed To Prevent Overloading
  • Dynamically Balanced Rotating Parts
  • Low Power Consumption and Less Operating Cost
  • Longer And Trouble Free Life
  • Reliable Non-Return Valve so reduce Friction Loss
  • All Parts are Dual Coated
  • All Parts Machining Precisly
  • Easy Maintainable Designs

Specifications

Model Name Motor Rating Delivery Size Bore Size Head Range Discharge Range Power Supply Direction of Rotation Liquid Temperature Pumped Liquids
SS10 SERIES 0.75 – 3.70 kW (1.00 – 5.00 HP) – 1 PHASE & 0.75 – 3.70 kW (1.00 – 3.70 HP) – 3 PHASE 2” 100 MM Up to 150 meters Up to 180 LPM 180V TO 250V – (1 PHASE) & 350V TO 440V – (3 PHASE) Anti-Clockwise Observed When viewed from Top side Maximum 45 °C Clear Clean, Thin, Non-Aggressive, Non-Explosive, Clear, Cold Water Without Abrasive And Solid Particle Cold Water.
SS12 SERIES 0.75 – 3.70 kW (1.00 – 5.00 HP) – 1 PHASE & 0.75 – 3.70 kW (1.00 – 3.70 HP) – 3 PHASE 2” 100 MM Up to 114 meters Up to 210 LPM 180V TO 250V – (1 PHASE) & 350V TO 440V – (3 PHASE) Anti-Clockwise Observed When viewed from Top side Maximum 45 °C Clear Clean, Thin, Non-Aggressive, Non-Explosive, Clear, Cold Water Without Abrasive And Solid Particle Cold Water.
SS18N SERIES 1.50 – 3.70 kW (2.00 – 5.00 HP) – 1 PHASE & 1.50 – 3.70 kW (2.00 – 3.70 HP) – 3 PHASE 2 1/2” 100 MM Up to 80 meters Up to 442 LPM 180V TO 250V – (1 PHASE) & 350V TO 440V – (3 PHASE) Anti-Clockwise Observed When viewed from Top side Maximum 45 °C Clear Clean, Thin, Non-Aggressive, Non-Explosive, Clear, Cold Water Without Abrasive And Solid Particle Cold Water.
SS18NR SERIES 2.20 kW (3.00 HP) – 1 PHASE & 2.20 kW (3.00 HP) – 3 PHASE 2 1/2” 100 MM Up to 42 meters Up to 442 LPM 180V TO 250V – (1 PHASE) & 350V TO 440V – (3 PHASE) Anti-Clockwise Observed When viewed from Top side Maximum 45 °C Clear Clean, Thin, Non-Aggressive, Non-Explosive, Clear, Cold Water Without Abrasive And Solid Particle Cold Water.

MOC

Model Name Motor Body Motor Shaft Thrust Bearing Motor Bushes Pump Shaft Impeller Diffuser NRV Suction
SS10 SERIES Stainless Steel SS431 Stainless Steel, Carbon, Cast iron LTB-4 / Carbon SS 410 Noryl Noryl Cast Iron (CED Coated) Cast Iron (CED Coated)
SS12 SERIES Stainless Steel SS431 Stainless Steel, Carbon, Cast iron LTB-4 / Carbon SS 410 Noryl Noryl Cast Iron (CED Coated) Cast Iron (CED Coated)
SS18N SERIES Stainless Steel SS431 Stainless Steel, Carbon, Cast iron LTB-4 / Carbon SS 410 Noryl + Stainless Steel Noryl + Stainless Steel Cast Iron (CED Coated) Cast Iron (CED Coated)
SS18NR SERIES Stainless Steel SS431 Stainless Steel, Carbon, Cast iron Carbon SS 410 Noryl + Stainless Steel Noryl + Stainless Steel Cast Iron (CED Coated) Cast Iron (CED Coated)

Technical Specifications

Model Name Power (KW) Power (HP) Stage Phase Delivery Size (Inch) Head Range (MTR) Discharge Range (LPM)
SS10-1005 0.75 1.00 5 1 & 3 2″ 7-28 180-60
SS10-1506 1.10 1.50 6 1 & 3 2″ 8-34 180-60
SS10-1508 1.10 1.50 8 1 & 3 2″ 11-45 180-60
SS10-2009 1.50 2.00 9 1 & 3 2″ 12-51 180-60
SS10-2010 1.50 2.00 10 1 & 3 2″ 14-56 180-60
SS10-3011 2.20 3.00 11 1 & 3 2″ 15-62 180-60
SS10-3012 2.20 3.00 12 1 & 3 2″ 17-67 180-60
SS10-3014 2.20 3.00 14 1 & 3 2″ 20-78 180-60
SS10-3015 2.20 3.00 15 1 & 3 2″ 21-84 180-60
SS10-4020 3.00 4.00 20 1 & 3 2″ 26-110 180-60
SS10-5025 3.70 5.00 25 1 & 3 2″ 33-137 180-60
SS12-1004 0.75 1.00 4 1 & 3 2″ 5-23 210-90
SS12-1505 1.10 1.50 5 1 & 3 2″ 6-29 210-90
SS12-1506 1.10 1.50 6 1 & 3 2″ 8-35 210-90
SS12-2008 1.50 2.00 8 1 & 3 2″ 10-46 210-90
SS12-3010 2.20 3.00 10 1 & 3 2″ 13-58 210-90
SS12-3011 2.20 3.00 11 1 & 3 2″ 14-63 210-90
SS12-3012 2.20 3.00 12 1 & 3 2″ 15-69 210-90
SS12-4015 3.00 4.00 15 1 & 3 2″ 18-84 210-90
SS12-5019 3.70 5.00 19 1 & 3 2″ 22-107 210-90
SS18N-2007 1.50 2.00 7 1 & 3 2 1/2″ 7-33 442-142
SS18N-3008 2.20 3.00 8 1 & 3 2 1/2″ 8-38 442-142
SS18N-3009 2.20 3.00 9 1 & 3 2 1/2″ 9-43 442-142
SS18N-4010 3.00 4.00 10 1 & 3 2 1/2″ 10-48 442-142
SS18N-5012 3.70 5.00 12 1 & 3 2 1/2″ 12-57 442-142
SS18N-5014 3.70 5.00 14 1 & 3 2 1/2″ 14-64 442-142
SS18NR-3007 2.20 3.00 7 1 & 3 2 1/2″ 4-34 442-142
