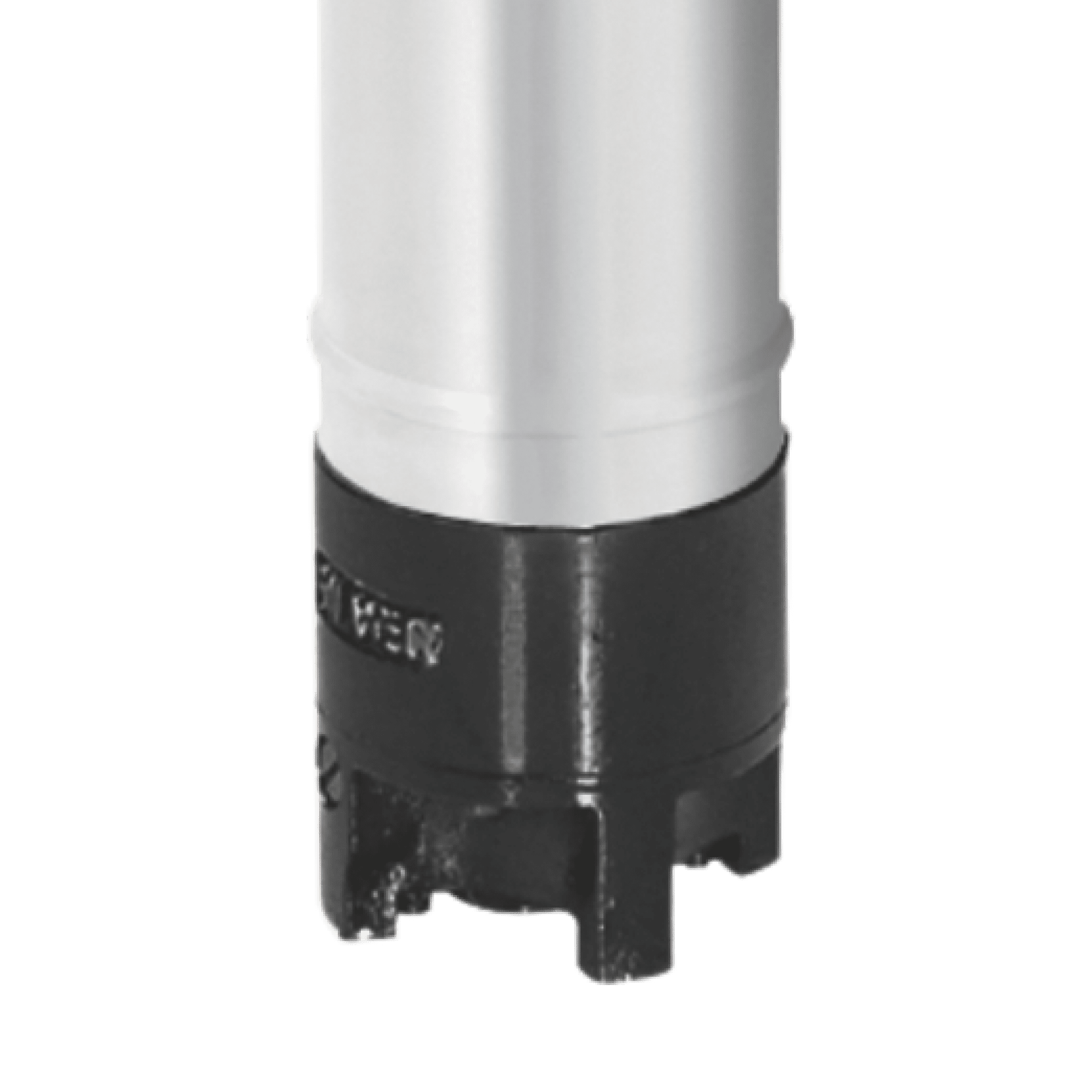

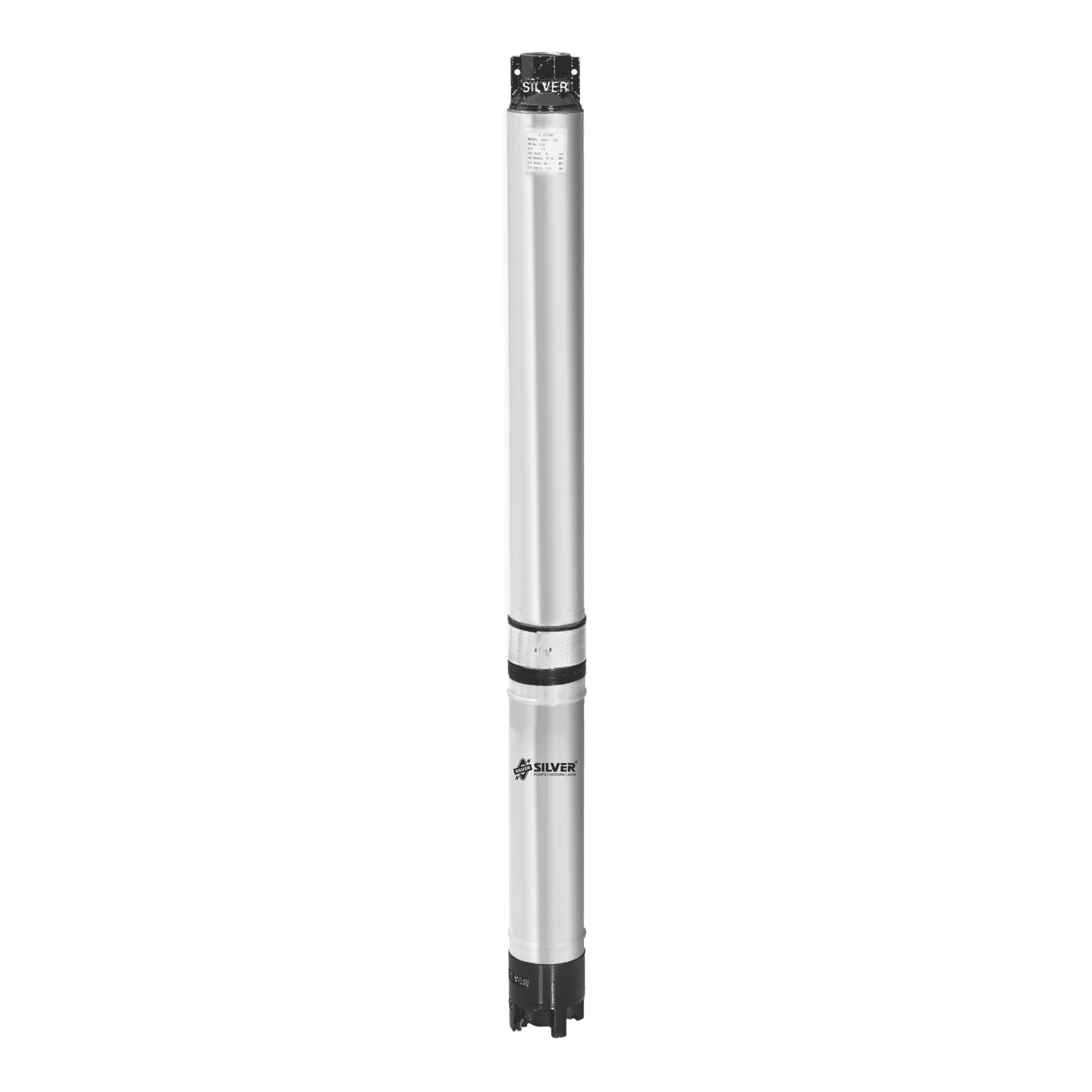

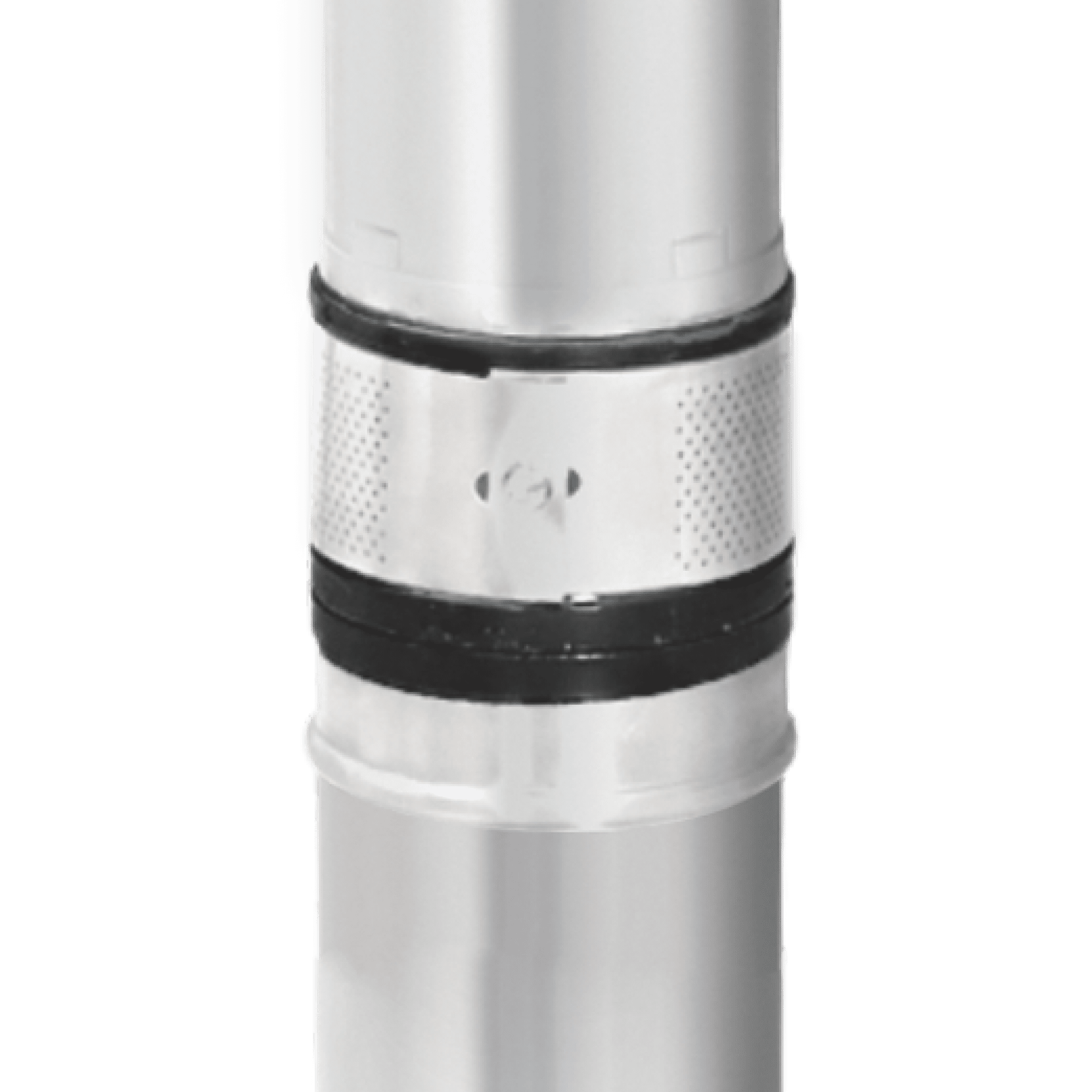

4” Water filled Stainless Steel Radial Flow Submersible Pump Sets

  • High Efficiency and energy Saving Design
  • Wide Voltage Range
  • Designed To Prevent Overloading
  • Dynamically Balanced Rotating Parts
  • Low Power Consumption and Less Operating Cost
  • Longer And Trouble Free Life
  • Reliable Non-Return Valve so reduce Friction Loss
  • All Parts are Dual Coated
  • All Parts Machining Precisly
  • Easy Maintainable Designs

Specifications

Model Name Motor Rating Delivery Size Bore Size Head Range Discharge Range Power Supply Direction of Rotation Liquid Temperature Pumped Liquids
SS2N SERIES 0.37 – 1.50 kW (0.50 – 2.00 HP) 1 PHASE 1 1/4” & 1 1/2” 100 MM Up to 160 meters Up to 65 LPM 180V TO 250V – 1 PHASE Anti-Clockwise Observed When viewed from Top side Maximum 45 °C Clear Clean, Thin, Non-Aggressive, Non-Explosive, Clear, Cold Water Without Abrasive And Solid Particles
SS3N SERIES 0.37 – 1.50 kW (0.50 – 2.00 HP) – 1 PHASE 1 1/4” & 1 1/2” 100 MM Up to 123 meters Up to 100 LPM 180V TO 250V – (1 PHASE) Anti-Clockwise Observed When viewed from Top side Maximum 45 °C Clear Clean, Thin, Non-Aggressive, Non-Explosive, Clear, Cold Water Without Abrasive And Solid Particles
SS4N SERIES 0.75 – 1.50 kW (1.00 – 2.00 HP) – 1 PHASE 1 1/4” & 1 1/2” 100 MM Up to 96 meters Up to 115 LPM 180V TO 250V – 1 PHASE Anti-Clockwise Observed When viewed from Top side Maximum 45 °C Clear Clean, Thin, Non-Aggressive, Non-Explosive, Clear, Cold Water Without Abrasive And Solid Particles
SS9 SERIES 0.75 – 1.50 kW (1.00 – 2.00 HP) – 1 PHASE & 5.50 kW (7.50 HP) – 3 PHASE 1 1/4” & 1 1/2” 100 MM Up to 402 meters Up to 100 LPM 180V TO 250V – (1 PHASE) & 350V TO 440V – (3 PHASE) Anti-Clockwise Observed When viewed from Top side Maximum 45 °C Clear Clean, Thin, Non-Aggressive, Non-Explosive, Clear, Cold Water Without Abrasive And Solid Particles
SSJ4 SERIES 0.75 – 1.50 kW (1.00 – 2.00 HP) – 1 PHASE 1 1/4” & 1 1/2” 100 MM Up to 132 meters Up to 95 LPM 180V TO 250V – (1 PHASE) Anti-Clockwise Observed When viewed from Top side Maximum 45 °C Clear Clean, Thin, Non-Aggressive, Non-Explosive, Clear, Cold Water Without Abrasive And Solid Particles
SSH1N SERIES 0.37 – 1.10 kW (0.50 – 1.50 HP) – 1 PHASE 1 1/4” 100 MM Up to 175 meters Up to 60 LPM 180V TO 250V – (1 PHASE) Anti-Clockwise Observed When viewed from Top side Maximum 45 °C Clear Clean, Thin, Non-Aggressive, Non-Explosive, Clear, Cold Water Without Abrasive And Solid Particle Cold Water.
SSH2N SERIES 0.37 – 1.10 kW (0.50 – 1.50 HP) – 1 PHASE 1 1/4” 100 MM Up to 120 meters Up to 90 LPM 180V TO 250V – (1 PHASE) Anti-Clockwise Observed When viewed from Top side Maximum 45 °C Clear Clean, Thin, Non-Aggressive, Non-Explosive, Clear, Cold Water Without Abrasive And Solid Particle Cold Water.
SSH3N SERIES 0.55 – 1.10 kW (0.75 – 1.50 HP) – 1 PHASE 1 1/2” 100 MM Up to 102 meters Up to 105 LPM 180V TO 250V – (1 PHASE) Anti-Clockwise Observed When viewed from Top side Maximum 45 °C Clear Clean, Thin, Non-Aggressive, Non-Explosive, Clear, Cold Water Without Abrasive And Solid Particle Cold Water.
SSH5N SERIES 0.55 – 1.10 kW (0.75 – 1.50 HP) – 1 PHASE 2” 100 MM Up to 72 meters Up to 135 LPM 180V TO 250V – (1 PHASE) Anti-Clockwise Observed When viewed from Top side Maximum 45 °C Clear Clean, Thin, Non-Aggressive, Non-Explosive, Clear, Cold Water Without Abrasive And Solid Particle Cold Water.
SSH7N SERIES 0.75 – 1.10 kW (1.00 – 1.50 HP) – 1 PHASE 2” 100 MM Up to 64 meters Up to 150 LPM 180V TO 250V – (1 PHASE) Anti-Clockwise Observed When viewed from Top side Maximum 45 °C Clear Clean, Thin, Non-Aggressive, Non-Explosive, Clear, Cold Water Without Abrasive And Solid Particle Cold Water.
SSJ4U SERIES 1.10 – 1.50 kW (1.50 – 2.00 HP) – 1 PHASE 1 1/4” & 1 1/2” 100 MM Up to 135 meters Up to 110 LPM 180V TO 250V – (1 PHASE) Anti-Clockwise Observed When viewed from Top side Maximum 45 °C Clear Clean, Thin, Non-Aggressive, Non-Explosive, Clear, Cold Water Without Abrasive And Solid Particle Cold Water.
SSG4U SERIES 0.75 kW (1.00 HP) – 1 PHASE 1 1/4” & 1 1/2” 100 MM Up to 59 meters Up to 110 LPM 180V TO 250V – (1 PHASE) Anti-Clockwise Observed When viewed from Top side Maximum 45 °C Clear Clean, Thin, Non-Aggressive, Non-Explosive, Clear, Cold Water Without Abrasive And Solid Particle Cold Water.
SSH1 SERIES 0.37 – 2.20 kW (0.50 – 3.00 HP) – 1 PHASE & 0.75 – 2.20 kW (1.00 – 3.00 HP) – 3 PHASE 1 1/4” 100 MM Up to 340 meters Up to 60 LPM 180V TO 250V – (1 PHASE) & 350V TO 440V – (3 PHASE) Anti-Clockwise Observed When viewed from Top side Maximum 45 °C Clear Clean, Thin, Non-Aggressive, Non-Explosive, Clear, Cold Water Without Abrasive And Solid Particle Cold Water.
SSH2 SERIES 0.37 – 3.70 kW (0.50 – 5.00 HP) – 1 PHASE & 0.75 – 4.50 kW (1.00 – 6.00 HP) – 3 PHASE 1 1/4” 100 MM Up to 480 meters Up to 90 LPM 180V TO 250V – (1 PHASE) & 350V TO 440V – (3 PHASE) Anti-Clockwise Observed When viewed from Top side Maximum 45 °C Clear Clean, Thin, Non-Aggressive, Non-Explosive, Clear, Cold Water Without Abrasive And Solid Particle Cold Water.
SSH3 SERIES 0.55 – 3.70 kW (0.75 – 5.00 HP) – 1 PHASE & 0.75 – 3.70 kW (1.00 – 5.00 HP) – 3 PHASE 1 1/2” 100 MM Up to 340 meters Up to 105 LPM 180V TO 250V – (1 PHASE) & 350V TO 440V – (3 PHASE) Anti-Clockwise Observed When viewed from Top side Maximum 45 °C Clear Clean, Thin, Non-Aggressive, Non-Explosive, Clear, Cold Water Without Abrasive And Solid Particle Cold Water.
SSH5 SERIES 0.55 – 3.70 kW (0.75 – 5.00 HP) – 1 PHASE & 0.75 – 5.50 kW (1.00 – 7.50 HP) – 3 PHASE 2” 100 MM Up to 316 meters Up to 135 LPM 180V TO 250V – (1 PHASE) & 350V TO 440V – (3 PHASE) Anti-Clockwise Observed When viewed from Top side Maximum 45 °C Clear Clean, Thin, Non-Aggressive, Non-Explosive, Clear, Cold Water Without Abrasive And Solid Particle Cold Water.
SSH7 SERIES 0.75 – 3.70 kW (1.00 – 5.00 HP) – 1 PHASE & 0.75 – 5.50 kW (1.00 – 7.50 HP) – 3 PHASE 2” 100 MM Up to 320 meters Up to 150 LPM 180V TO 250V – (1 PHASE) & 350V TO 440V – (3 PHASE) Anti-Clockwise Observed When viewed from Top side Maximum 45 °C Clear Clean, Thin, Non-Aggressive, Non-Explosive, Clear, Cold Water Without Abrasive And Solid Particle Cold Water.

MOC

Model Name Motor Body Motor Shaft Thrust Bearing Motor Bushes Pump Shaft Impeller Diffuser NRV Suction
SS2N SERIES Stainless Steel SS 410 Stainless Steel, Carbon, Cast iron LTB-4 SS 410 Noryl Noryl Cast Iron (CED Coated) Cast Iron (CED Coated)
SS3N SERIES Stainless Steel SS 410 Stainless Steel, Carbon, Cast iron LTB-4 SS 410 Noryl Noryl Cast Iron (CED Coated) Cast Iron (CED Coated)
SS4N SERIES Stainless Steel SS 410 Stainless Steel, Carbon, Cast iron LTB-4 SS 410 Noryl Noryl Cast Iron (CED Coated) Cast Iron (CED Coated)
SS9 SERIES Stainless Steel SS 410 Stainless Steel, Carbon, Cast iron LTB-4 SS 410 Noryl Noryl Cast Iron (CED Coated) Cast Iron (CED Coated)
SSJ4 SERIES Stainless Steel SS 410 Stainless Steel, Carbon, Cast iron LTB-4 SS 410 Noryl Noryl Cast Iron (CED Coated) Cast Iron (CED Coated)
SSH1N SERIES Stainless Steel SS 410 Stainless Steel, Carbon, Cast iron LTB-4 SS 410 Noryl Noryl Cast Iron (CED Coated) Cast Iron (CED Coated)
SSH2N SERIES Stainless Steel SS 410 Stainless Steel, Carbon, Cast iron LTB-4 SS 410 Noryl Noryl Cast Iron (CED Coated) Cast Iron (CED Coated)
SSH3N SERIES Stainless Steel SS 410 Stainless Steel, Carbon, Cast iron LTB-4 SS 410 Noryl Noryl Cast Iron (CED Coated) Cast Iron (CED Coated)
SSH5N SERIES Stainless Steel SS 410 Stainless Steel, Carbon, Cast iron LTB-4 SS 410 Noryl Noryl Cast Iron (CED Coated) Cast Iron (CED Coated)
SSH7N SERIES Stainless Steel SS 410 Stainless Steel, Carbon, Cast iron LTB-4 SS 410 Noryl Noryl Cast Iron (CED Coated) Cast Iron (CED Coated)
SSJ4U SERIES Stainless Steel SS 410 Stainless Steel, Carbon, Cast iron LTB-4 SS 410 Noryl Noryl Cast Iron (CED Coated) Cast Iron (CED Coated)
SSG4U SERIES Stainless Steel SS 410 Stainless Steel, Carbon, Cast iron LTB-4 SS 410 Noryl Noryl Cast Iron (CED Coated) Cast Iron (CED Coated)
SSH1 SERIES Stainless Steel SS 410 Stainless Steel, Carbon, Cast iron LTB-4 / Carbon SS 410 Noryl Noryl Cast Iron (CED Coated) Cast Iron (CED Coated)
SSH2 SERIES Stainless Steel SS 410 Stainless Steel, Carbon, Cast iron LTB-4 / Carbon SS 410 Noryl Noryl Cast Iron (CED Coated) Cast Iron (CED Coated)
SSH3 SERIES Stainless Steel SS 410 Stainless Steel, Carbon, Cast iron LTB-4 / Carbon SS 410 Noryl Noryl Cast Iron (CED Coated) Cast Iron (CED Coated)
SSH5 SERIES Stainless Steel SS 410 Stainless Steel, Carbon, Cast iron LTB-4 / Carbon SS 410 Noryl Noryl Cast Iron (CED Coated) Cast Iron (CED Coated)
SSH7 SERIES Stainless Steel SS 410 Stainless Steel, Carbon, Cast iron LTB-4 / Carbon SS 410 Noryl Noryl Cast Iron (CED Coated) Cast Iron (CED Coated)

Technical Specifications

Model Name Power (KW) Power (HP) Stage Phase Delivery Size (Inch) Head Range (MTR) Discharge Range (LPM)
SS2N – 0508 0.37 0.50 8 1 1 1/4” & 1 1/2” 8-38 65-9
SS2N – 7512 0.55 0.75 12 1 1 1/4” & 1 1/2” 11-57 65-9
SS2N – 1016 0.75 1.00 16 1 1 1/4” & 1 1/2” 15-76 65-9
SS2N – 1018 0.75 1.00 18 1 1 1/4” & 1 1/2” 17-86 65-9
SS2N – 1020 0.75 1.00 20 1 1 1/4” & 1 1/2” 19-95 65-9
SS2N – 1021 0.75 1.00 21 1 1 1/4” & 1 1/2” 20-100 65-9
SS2N – 1525 1.10 1.50 25 1 1 1/4” & 1 1/2” 22-116 65-9
SS2N – 2032 1.50 2.00 32 1 1 1/4” & 1 1/2” 28-148 65-9
SS3N – 0506 0.37 0.50 6 1 1 1/4” & 1 1/2” 8-31 100-15
SS3N – 7508 0.55 0.75 8 1 1 1/4” & 1 1/2” 11-41 100-15
SS3N – 7510 0.55 0.75 10 1 1 1/4” & 1 1/2” 14-51 100-15
SS3N – 1012 0.75 1.00 12 1 1 1/4” & 1 1/2” 17-62 100-15
SS3N – 1516 1.10 1.50 16 1 1 1/4” & 1 1/2” 22-82 100-15
SS3N – 1518 1.10 1.50 18 1 1 1/4” & 1 1/2” 23-92 100-15
SS3N – 2023 1.50 2.00 23 1 1 1/4” & 1 1/2” 28-116 100-15
SS4N-1010 0.75 1.00 10 1 1 1/4” & 1 1/2” 11-57 115-20
SS4N-1514 1.10 1.50 14 1 1 1/4” & 1 1/2” 16-79 115-20
SS4N-2016 1.50 2.00 16 1 1 1/4” & 1 1/2” 18-90 115-20
SS9-1007 0.75 1.00 7 1 1 1/4” & 1 1/2” 12-45 100-20
SS9-1008 0.75 1.00 8 1 1 1/4” & 1 1/2” 14-51 100-20
SS9-1512 1.10 1.50 12 1 1 1/4” & 1 1/2” 16-74 100-20
SS9-2014 1.50 2.00 14 1 1 1/4” & 1 1/2” 20-88 100-20
SS9-7556 5.50 7.50 56 3 1 1/4” & 1 1/2” 67-336 100-20
SS9-7560 5.50 7.50 60 3 1 1/4” & 1 1/2” 72-360 100-20
SSJ4 – 1007 0.75 1.00 7 1 1 1/4” & 1 1/2” 15-45 95-20
SSJ4 – 1512 1.10 1.50 12 1 1 1/4” & 1 1/2” 20-74 95-20
SSJ4 – 1514 1.10 1.50 14 1 1 1/4” & 1 1/2” 25-84 95-20
SSJ4 – 1516 1.10 1.50 16 1 1 1/4” & 1 1/2” 28-94 95-20
SSJ4 – 2014 1.50 2.00 14 1 1 1/4” & 1 1/2” 27-88 95-20
SSJ4 – 2018 1.50 2.00 18 1 1 1/4” & 1 1/2” 32-110 95-20
SSJ4 – 2020 1.50 2.00 20 1 1 1/4” & 1 1/2” 35-118 95-20
SSH1N-0506 0.37 0.50 6 1 1 1/4″ 6-39 60-15
SSH1N-0508 0.37 0.50 8 1 1 1/4″ 8-52 60-15
SSH1N-7512 0.55 0.75 12 1 1 1/4″ 12-78 60-15
SSH1N-1013 0.75 1.00 13 1 1 1/4″ 13-85 60-15
SSH1N-1016 0.75 1.00 16 1 1 1/4″ 16-104 60-15
SSH1N-1520 1.10 1.50 20 1 1 1/4″ 20-130 60-15
SSH1N-1524 1.10 1.50 24 1 1 1/4″ 24-156 60-15
SSH2N-0504 0.37 0.50 4 1 1 1/4″ 8-28 90-28
SSH2N-0505 0.37 0.50 5 1 1 1/4″ 10-35 90-28
SSH2N-7507 0.55 0.75 7 1 1 1/4″ 14-49 90-28
SSH2N-1010 0.75 1.00 10 1 1 1/4″ 20-70 90-28
SSH2N-1515 1.10 1.50 15 1 1 1/4″ 30-105 90-28
SSH3N-7506 0.55 0.75 6 1 1 1/2″ 12-42 105-40
SSH3N-1008 0.75 1.00 8 1 1 1/2″ 16-56 105-40
SSH3N-1512 1.10 1.50 12 1 1 1/2″ 24-84 105-40
SSH5N-7505 0.50 0.75 5 1 2″ 10-35 135-20
SSH5N-1007 0.75 1.00 7 1 2″ 14-49 135-20
SSH5N-1510 1.10 1.50 10 1 2″ 20-70 135-20
SSH7N-1005 0.75 1.00 5 1 2″ 10-35 150-40
SSH7N-1508 1.10 1.50 8 1 2″ 16-56 150-40
SSJ4U – 1512 1.10 1.50 12 1 1 1/4” & 1 1/2” 8-78 110-10
SSJ4U – 1514 1.10 1.50 14 1 1 1/4” & 1 1/2” 10-91 110-10
SSJ4U – 1516 1.10 1.50 16 1 1 1/4” & 1 1/2” 10-107 110-10
SSJ4U – 2020 1.50 2.00 20 1 1 1/4” & 1 1/2” 14-128 110-10
SSG4U – 1007 0.75 1.00 7 1 1 1/4” & 1 1/2” 10-40 110-10
SSG4U – 1008 0.75 1.00 8 1 1 1/4” & 1 1/2” 11-46 110-10
SSG4U – 1010 0.75 1.00 10 1 1 1/4” & 1 1/2” 14-57 110-10
SSH1-0506 0.37 0.50 6 1 1 1/4″ 6-39 60-15
SSH1-0508 0.37 0.50 8 1 1 1/4″ 8-52 60-15
SSH1-7512 0.55 0.75 12 1 1 1/4″ 12-78 60-15
SSH1-1013 0.75 1.00 13 1 & 3 1 1/4″ 13-85 60-15
SSH1-1016 0.75 1.00 16 1 & 3 1 1/4″ 16-104 60-15
SSH1-1520 1.10 1.50 20 1 & 3 1 1/4″ 20-130 60-15
SSH1-1524 1.10 1.50 24 1 & 3 1 1/4″ 24-156 60-15
SSH1-2025 1.50 2.00 25 1 & 3 1 1/4″ 25-163 60-15
SSH1-2032 1.50 2.00 32 1 & 3 1 1/4″ 32-208 60-15
SSH1-3036 2.20 3.00 36 1 & 3 1 1/4″ 38-234 60-15
SSH1-3040 2.20 3.00 40 1 & 3 1 1/4″ 40-260 60-15
SSH1-3046 2.20 3.00 46 1 & 3 1 1/4″ 48-299 60-15
SSH2-0504 0.37 0.50 4 1 1 1/4″ 8-28 90-28
SSH2-0505 0.37 0.50 5 1 1 1/4″ 10-35 90-28
SSH2-7507 0.55 0.75 7 1 1 1/4″ 14-49 90-28
SSH2-1010 0.75 1.00 10 1 & 3 1 1/4″ 20-70 90-28
SSH2-1515 1.10 1.50 15 1 & 3 1 1/4″ 30-105 90-28
SSH2-2020 1.50 2.00 20 1 & 3 1 1/4″ 40-140 90-28
SSH2-3025 2.20 3.00 25 1 & 3 1 1/4″ 50-175 90-28
SSH2-3028 2.20 3.00 28 1 & 3 1 1/4″ 56-196 90-28
SSH2-3030 2.20 3.00 30 1 & 3 1 1/4″ 60-210 90-28
SSH2-4040 3.00 4.00 40 1 & 3 1 1/4″ 80-280 90-28
SSH2-4046 3.00 4.00 46 1 & 3 1 1/4″ 92-322 90-28
SSH2-5050 3.70 5.00 50 1 & 3 1 1/4″ 100-350 90-28
SSH2-6060 4.50 6.00 60 3 1 1/4″ 120-420 90-28
SSH3-7506 0.55 0.75 6 1 1 1/2″ 12-42 105-40
SSH3-1008 0.75 1.00 8 1 & 3 1 1/2″ 16-56 105-40
SSH3-1512 1.10 1.50 12 1 & 3 1 1/2″ 24-84 105-40
SSH3-2016 1.50 2.00 16 1 & 3 1 1/2″ 32-112 105-40
SSH3-3024 2.20 3.00 24 1 & 3 1 1/2″ 48-168 105-40
SSH3-4032 3.00 4.00 32 1 & 3 1 1/2″ 64-224 105-40
SSH3-5040 3.70 5.00 40 1 & 3 1 1/2″ 80-280 105-40
SSH5-7505 0.55 0.75 5 1 2″ 10-35 135-20
SSH5-1007 0.75 1.00 7 1 & 3 2″ 14-49 135-20
SSH5-1510 1.10 1.50 10 1 & 3 2″ 20-70 135-20
SSH5-2013 1.20 2.00 13 1 & 3 2″ 26-91 135-20
SSH5-3020 2.20 3.00 20 1 & 3 2″ 40-140 135-20
SSH5-4025 3.00 4.00 25 1 & 3 2″ 50-175 135-20
SSH5-5032 3.70 5.00 32 1 & 3 2″ 64-224 135-20
SSH5-7544 5.50 7.50 44 3 2″ 88-308 135-20
SSH7-1005 0.75 1.00 5 1 & 3 2″ 10-35 150-40
SSH7-1508 1.10 1.50 8 1 & 3 2″ 14-49 150-40
SSH7-2010 1.50 2.00 10 1 & 3 2″ 20-70 150-40
SSH7-3015 2.20 3.00 15 1 & 3 2″ 26-91 150-40
SSH7-4020 3.00 4.00 20 1 & 3 2″ 40-140 150-40
SSH7-5025 3.70 5.00 25 1 & 3 2″ 50-175 150-40
SSH7-7540 5.50 7.50 40 3 2″ 80-280 150-40
