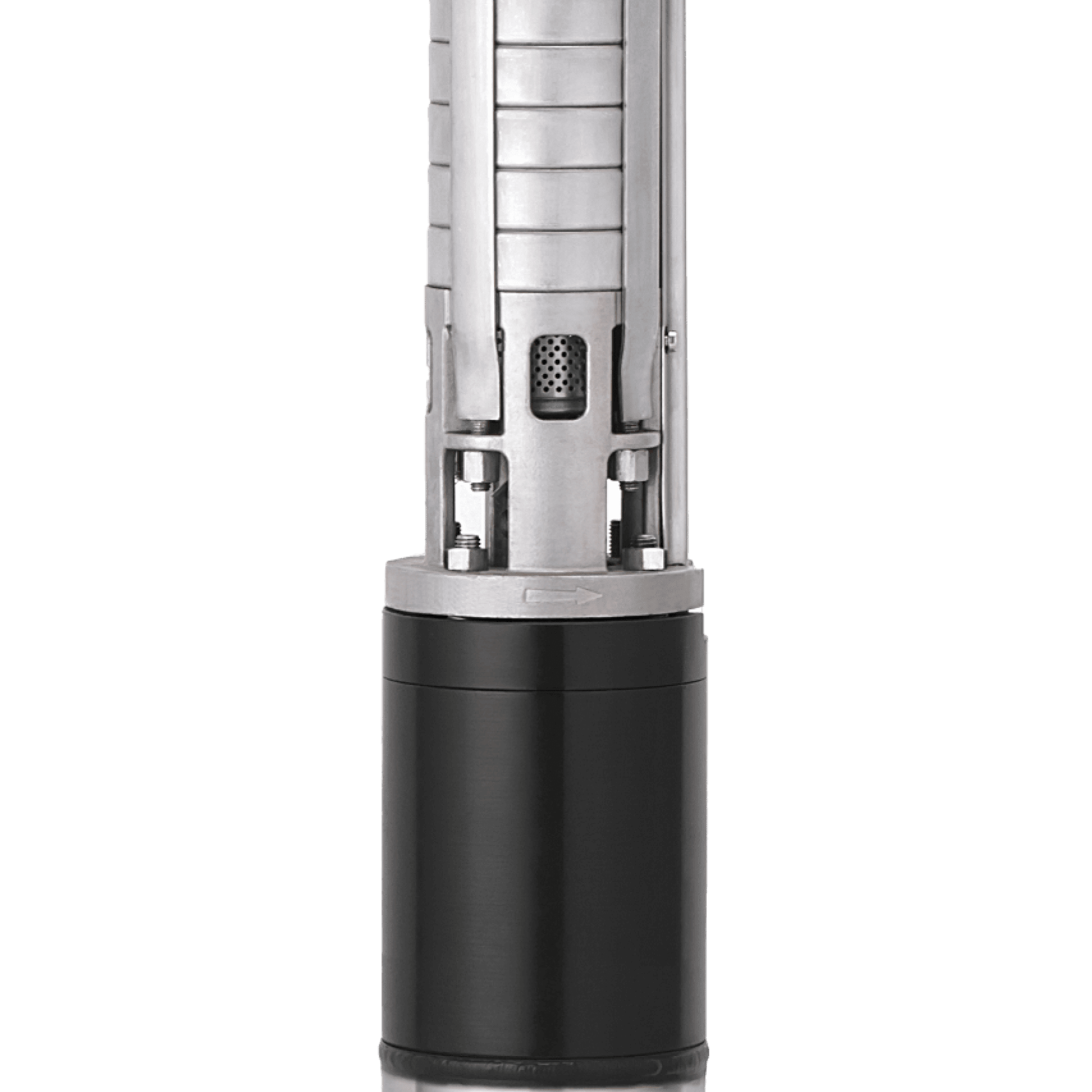

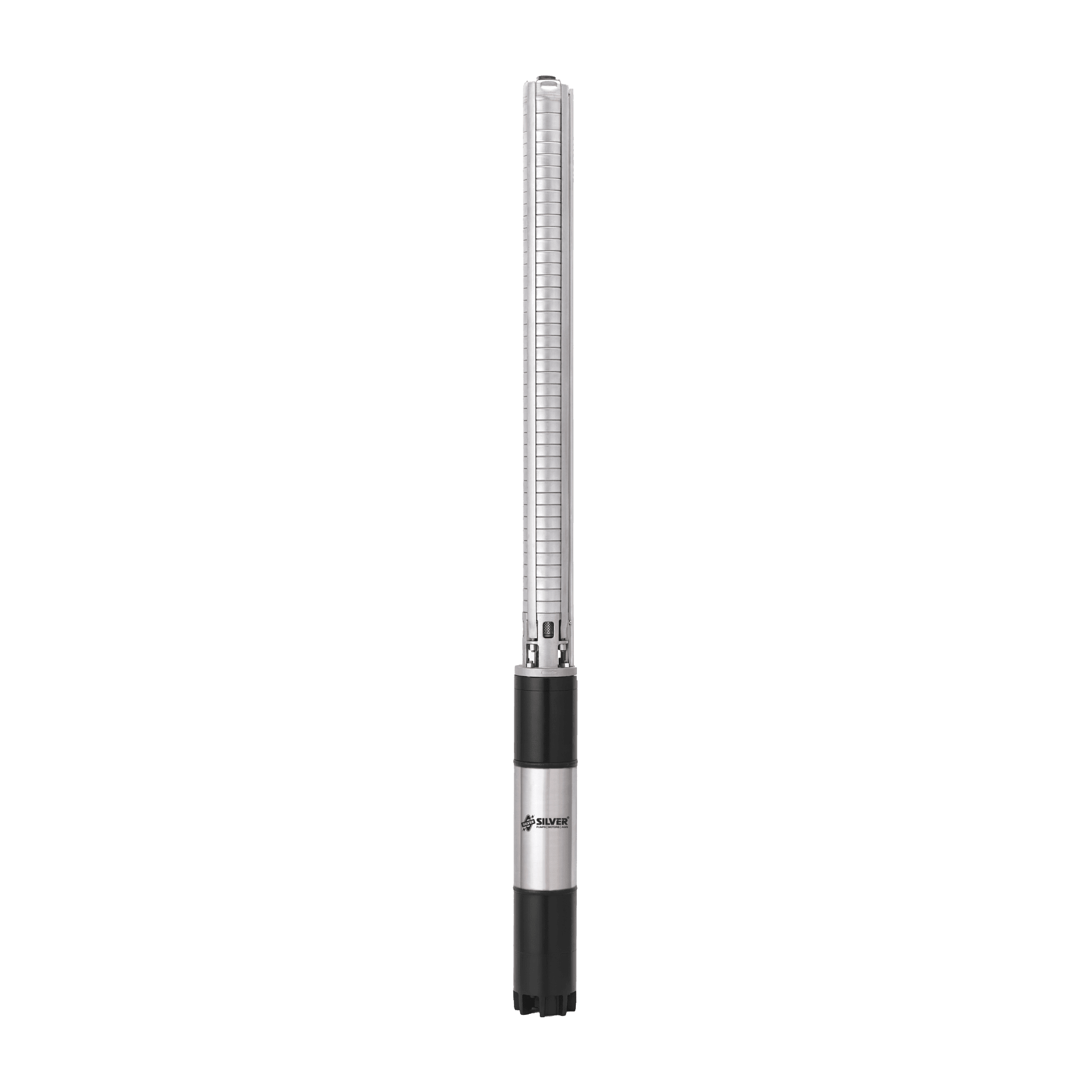

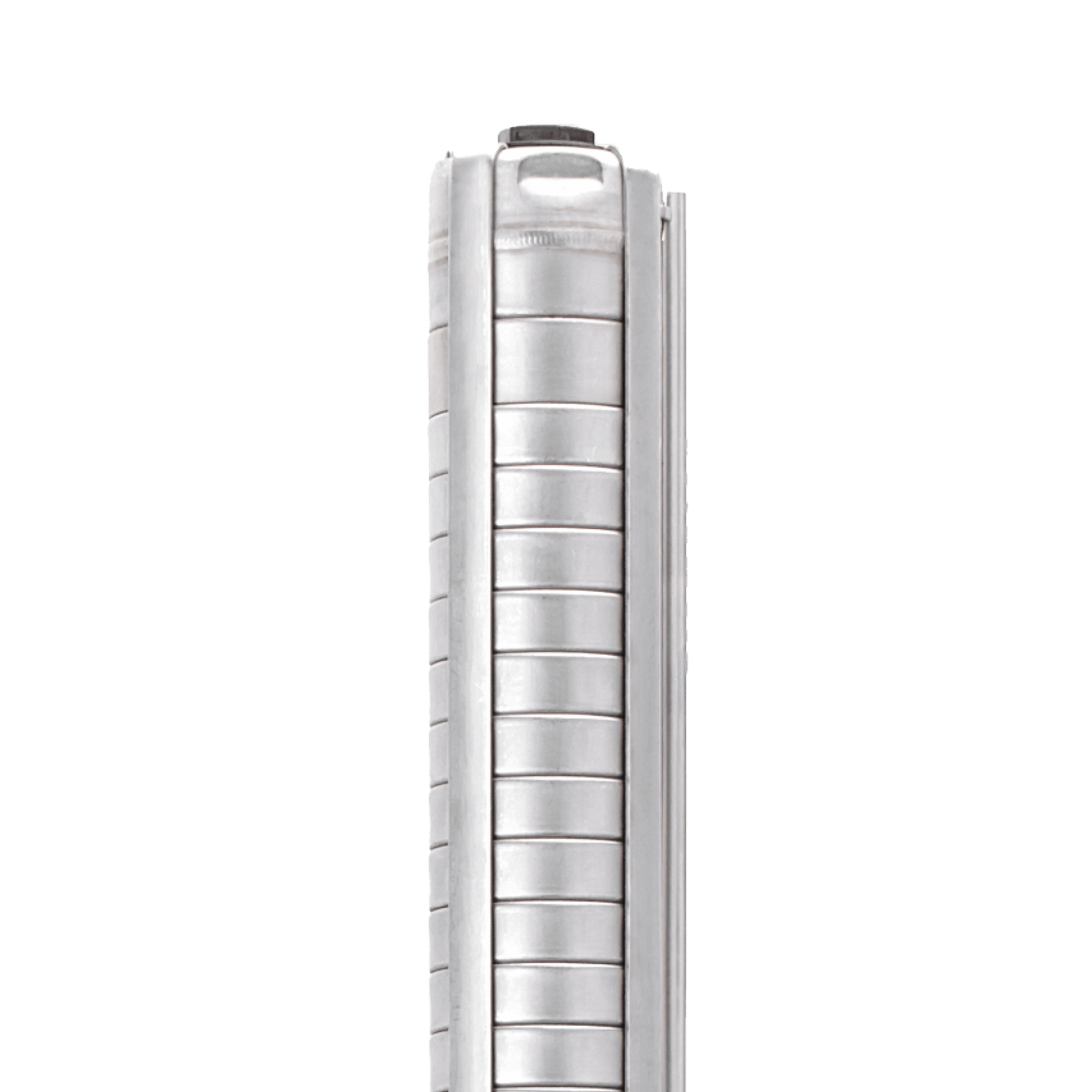

5” 4″ Water filled Stainless Steel Fabricated Mixed Flow Submersible Pump Sets

  • High Efficiency and energy Saving Design
  • Wide Voltage Range
  • Designed To Prevent Overloading
  • Dynamically Balanced Rotating Parts
  • Low Power Consumption and Less Operating Cost
  • Longer And Trouble Free Life
  • Reliable Non-Return Valve so reduce Friction Loss
  • All Parts are Dual Coated
  • All Parts Machining Precisly
  • Easy Maintainable Designs

Specifications

Model Name Motor Rating Delivery Size Bore Size Head Range Discharge Range Power Supply Direction of Rotation Liquid Temperature Pumped Liquids
SSF7-5 SERIES 5.50 – 7.50 kW (7.50 – 10.00 HP) – 3 PHASE 2” 125 MM Up to 336 meters Up to 175 LPM 350V TO 440V – (3 PHASE) Anti-Clockwise Observed When viewed from Top side Maximum 45 °C Clear Clean, Thin, Non-Aggressive, Non-Explosive, Clear, Cold Water Without Abrasive And Solid Particle Cold Water.
SSF7-5 SERIES 3.70 – 5.50 kW (5.00 – 7.50 HP) – 3 PHASE 2” 125 MM Up to 236 meters Up to 180 LPM 350V TO 440V – (3 PHASE) Anti-Clockwise Observed When viewed from Top side Maximum 45 °C Clear Clean, Thin, Non-Aggressive, Non-Explosive, Clear, Cold Water Without Abrasive And Solid Particle Cold Water.

MOC

Model Name Motor Body Motor Shaft Thrust Bearing Motor Bushes Pump Shaft Impeller Diffuser NRV Suction
SSF7-5 SERIES Stainless Steel SS410 Stainless Steel, Carbon, Cast iron LTB-4 SS431 SS 304 SS 304 SS 304 SS 304
SSF7-5 SERIES Stainless Steel SS410 Stainless Steel, Carbon, Cast iron LTB-4 SS431 SS 304 SS 304 SS 304 SS 304

Technical Specifications

Model Name Power (KW) Power (HP) Stage Phase Delivery Size (Inch) Head Range (MTR) Discharge Range (LPM)
SSF7-7552-5 5.50 7.50 52 3 2″ 65-260 175-30
SSF7-1060-5 7.50 10.00 60 3 2″ 75-300 175-30
SSF8-5030-5 3.70 5.00 30 3 2″ 60-150 180-45
SSF8-7540-5 5.50 7.50 40 3 2″ 80-200 180-45
