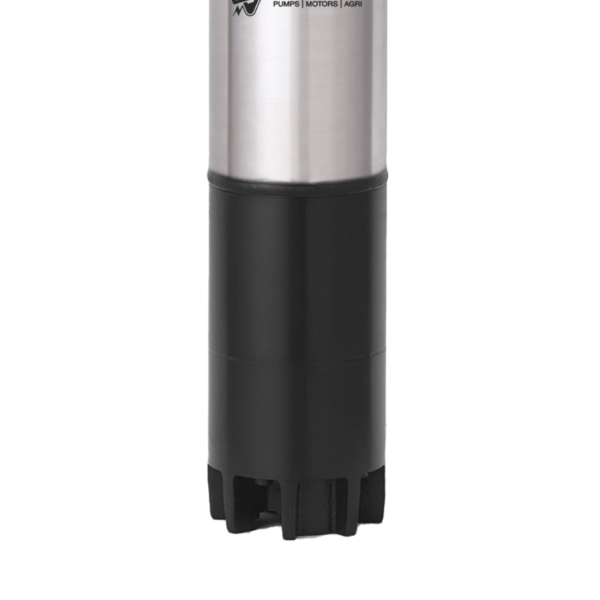

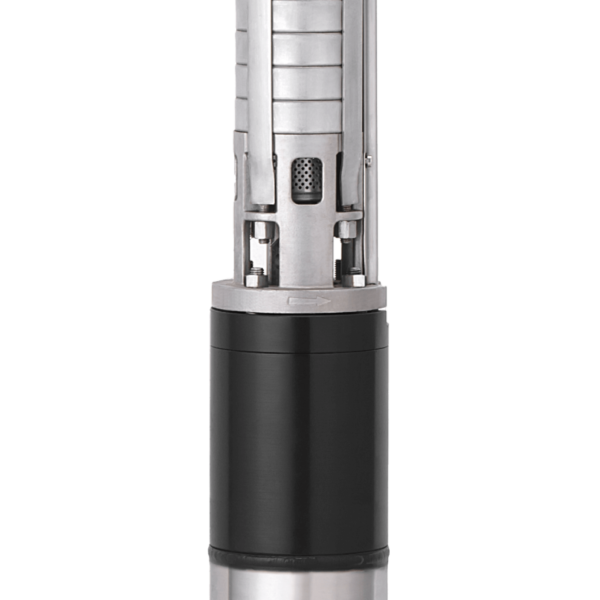

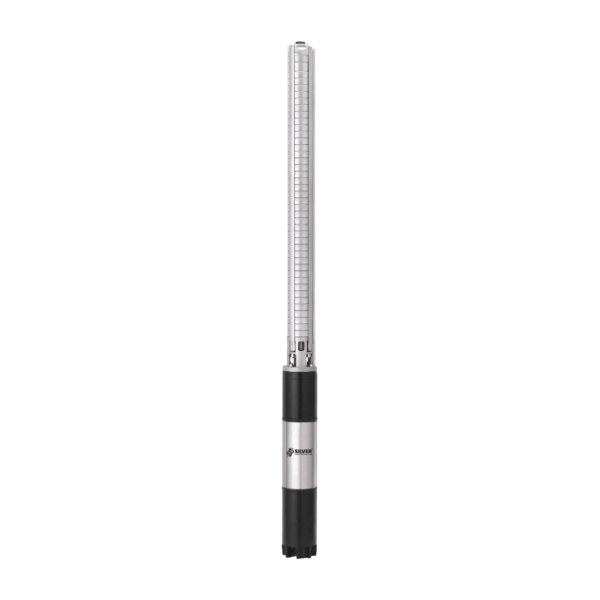

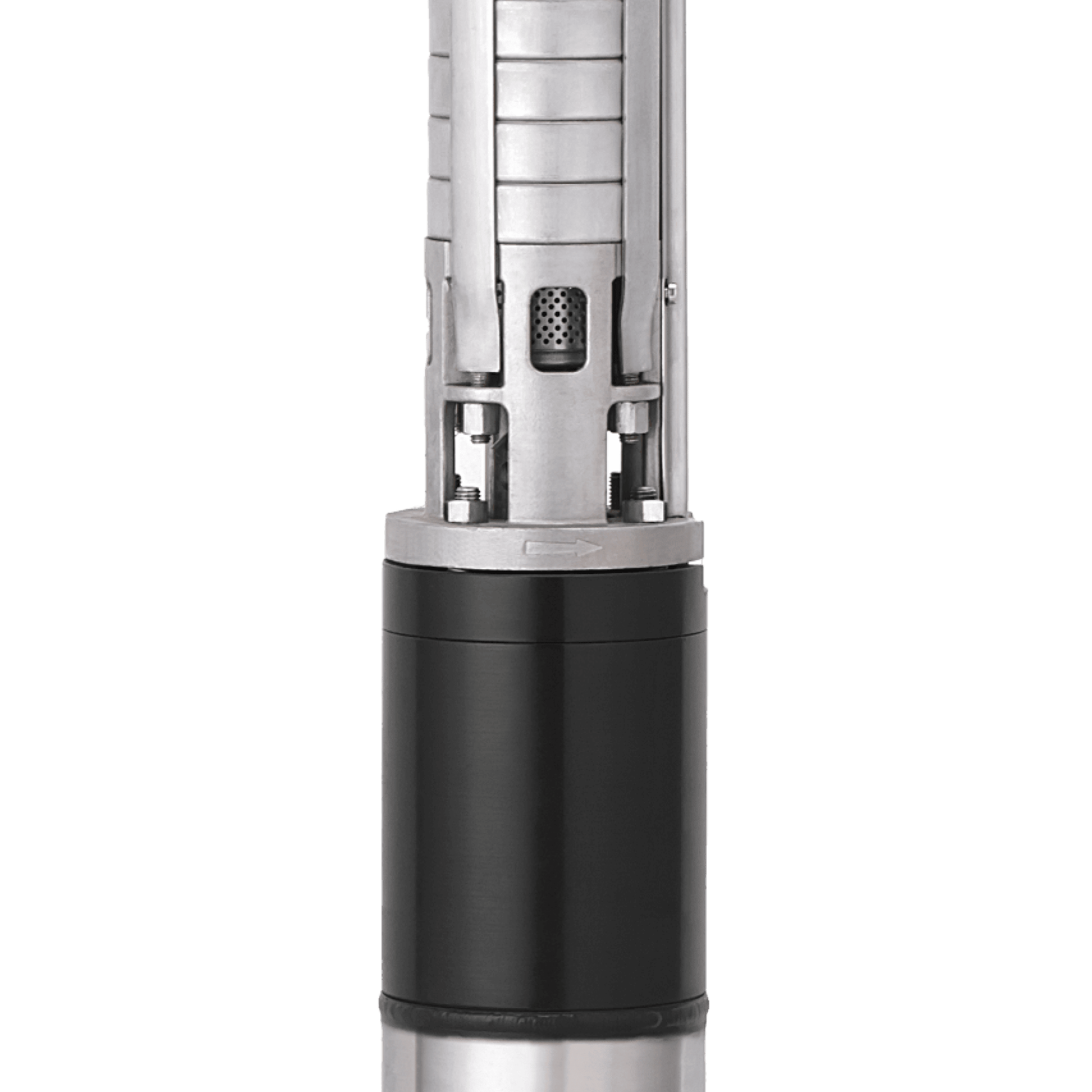

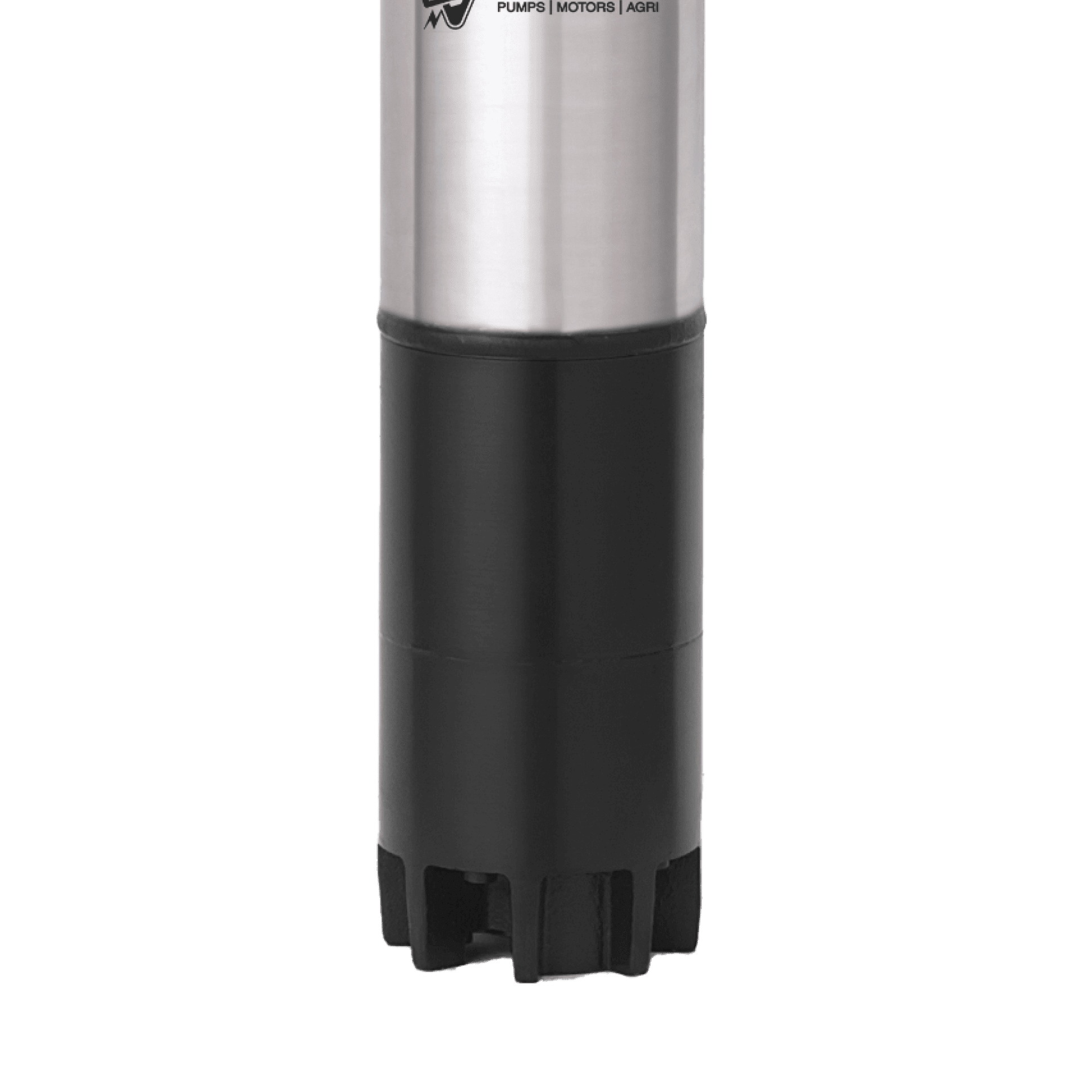

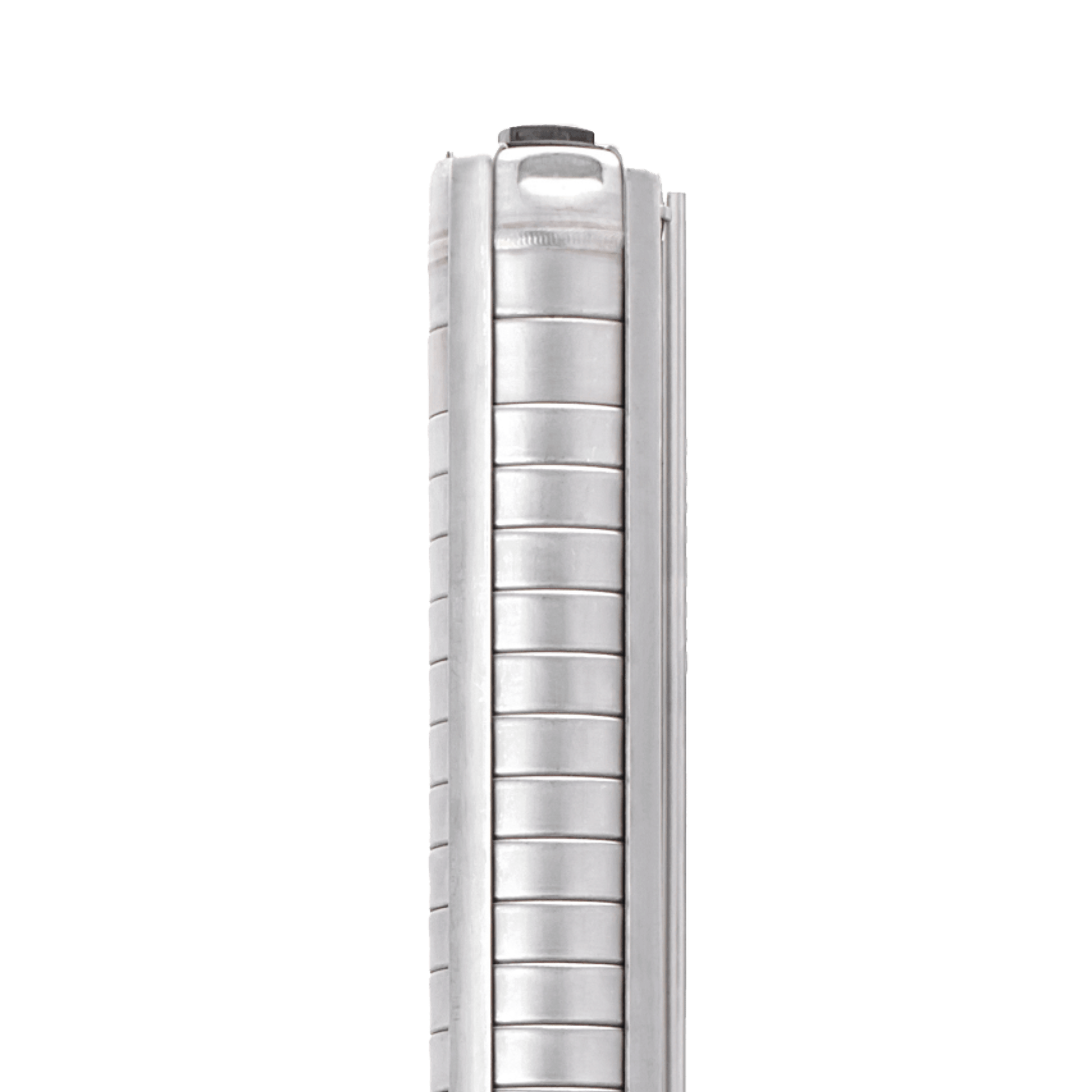

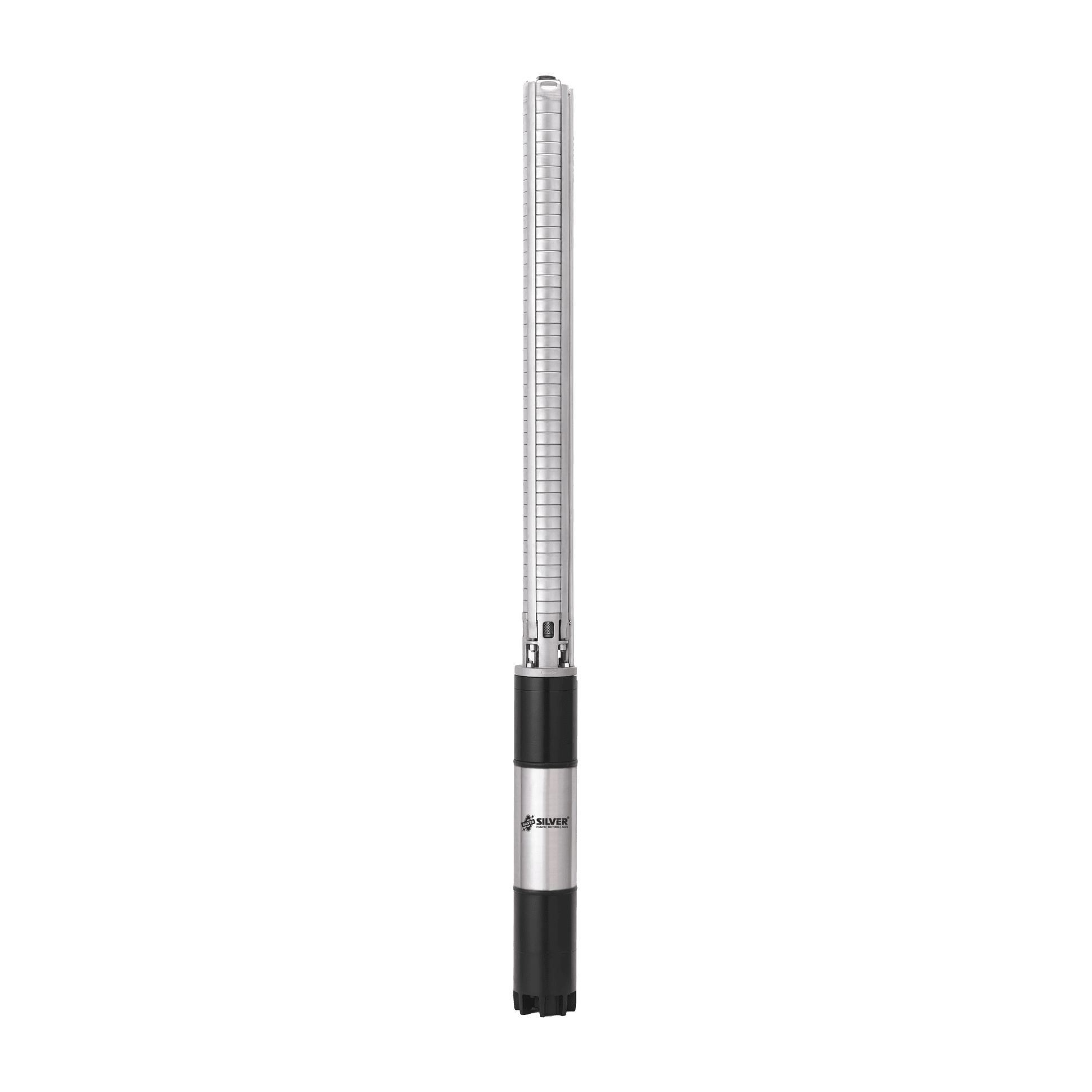

5” 4″ Water filled Stainless Steel Fabricated Radial Flow Submersible Pump Sets

  • High Efficiency and energy Saving Design
  • Wide Voltage Range
  • Designed To Prevent Overloading
  • Dynamically Balanced Rotating Parts
  • Low Power Consumption and Less Operating Cost
  • Longer And Trouble Free Life
  • Reliable Non-Return Valve so reduce Friction Loss
  • All Parts are Dual Coated
  • All Parts Machining Precisly
  • Easy Maintainable Designs

Specifications

Model Name Motor Rating Delivery Size Bore Size Head Range Discharge Range Power Supply Direction of Rotation Liquid Temperature Pumped Liquids
SSF2-5 SERIES 2.20 kW (3.00 HP) – 3 PHASE 1 1/4” 125 MM Up to 270 meters Up to 47 LPM 350V TO 440V – (3 PHASE) Anti-Clockwise Observed When viewed from Top side Maximum 45 °C Clear Clean, Thin, Non-Aggressive, Non-Explosive, Clear, Cold Water Without Abrasive And Solid Particle Cold Water.
SSF3-5 SERIES 2.20 – 5.50 kW (3.00 – 7.50 HP) – 3 PHASE 1 1/4” 125 MM Up to 435 meters Up to 64 LPM 350V TO 440V – (3 PHASE) Anti-Clockwise Observed When viewed from Top side Maximum 45 °C Clear Clean, Thin, Non-Aggressive, Non-Explosive, Clear, Cold Water Without Abrasive And Solid Particle Cold Water.
SSF5-5 SERIES 3.70 – 7.50 kW (5.00 – 10.00 HP) – 3 PHASE 1 1/2” 125 MM Up to 493 meters Up to 100 LPM 350V TO 440V – (3 PHASE) Anti-Clockwise Observed When viewed from Top side Maximum 45 °C Clear Clean, Thin, Non-Aggressive, Non-Explosive, Clear, Cold Water Without Abrasive And Solid Particle Cold Water.

MOC

Model Name Motor Body Motor Shaft Thrust Bearing Motor Bushes Pump Shaft Impeller Diffuser NRV Suction
SSF2-5 SERIES Stainless Steel SS410 Stainless Steel, Carbon, Cast iron LTB-4 SS431 SS 304 SS 304 SS 304 SS 304
SSF3-5 SERIES Stainless Steel SS410 Stainless Steel, Carbon, Cast iron LTB-4 SS431 SS 304 SS 304 SS 304 SS 304
SSF5-5 SERIES Stainless Steel SS410 Stainless Steel, Carbon, Cast iron LTB-4 SS431 SS 304 SS 304 SS 304 SS 304

Technical Specifications

Model Name Power (KW) Power (HP) Stage Phase Delivery Size (Inch) Head Range (MTR) Discharge Range (LPM)
SSF2-3040-5 2.20 3.00 40 3 1 1/4″ 40-200 47-13
SSF2-3048-5 2.20 3.00 48 3 1 1/4″ 48-240 47-13
SSF3-3033-5 2.20 3.00 33 3 1 1/4″ 33-178 64-13
SSF3-5052-5 3.70 5.00 52 3 1 1/4″ 52-281 64-13
SSF3-5060-5 3.70 5.00 60 3 1 1/4″ 60-324 64-13
SSF3-7575-5 5.50 7.50 75 3 1 1/4″ 75-405 64-13
SSF5-5038-5 3.70 5.00 38 3 1 1/2″ 38-205 100-22
SSF5-5044-5 3.70 5.00 44 3 1 1/2″ 44-238 100-22
SSF5-6052-5 4.50 6.00 52 3 1 1/2″ 52-281 100-22
SSF5-7560-5 5.50 7.50 60 3 1 1/2″ 60-324 100-22
SSF5-1067-5 7.50 10.00 67 3 1 1/2″ 67-362 100-22
SSF5-1075-5 7.50 10.00 75 3 1 1/2″ 75-405 100-22
SSF5-1085-5 7.50 10.00 85 3 1 1/2″ 85-459 100-22
