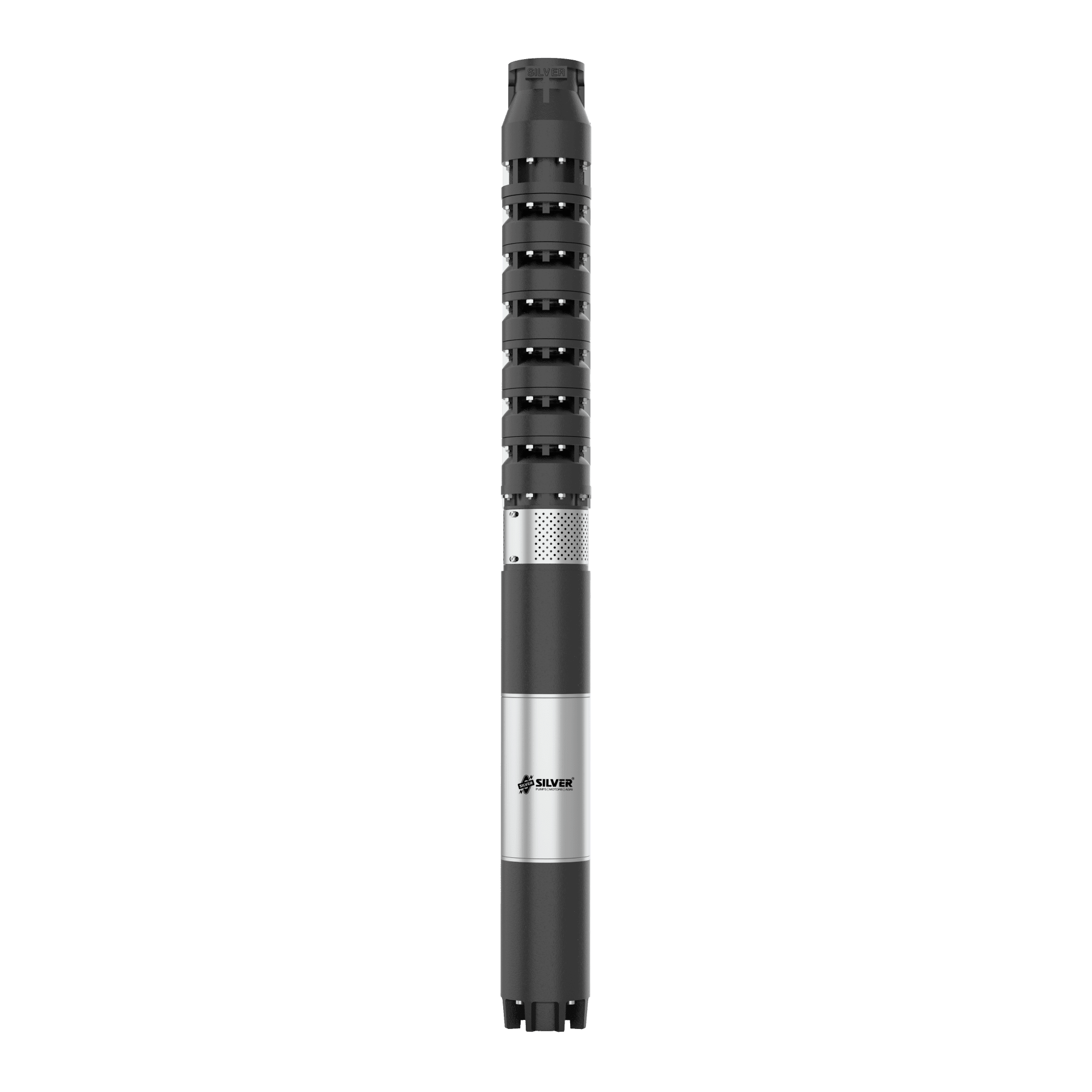

5” Water filled Cast Iron Type Mixed Flow Submersible Pump Sets

  • High Efficiency and energy Saving Design
  • Wide Voltage Range
  • Designed To Prevent Overloading
  • Dynamically Balanced Rotating Parts
  • Low Power Consumption and Less Operating Cost
  • Longer And Trouble Free Life
  • Reliable Non-Return Valve so reduce Friction Loss
  • All Parts are Dual Coated
  • All Parts Machining Precisly
  • Easy Maintainable Designs

Specifications

Model Name Motor Rating Delivery Size Bore Size Head Range Discharge Range Power Supply Direction of Rotation Liquid Temperature Pumped Liquids
SSQ506 SERIES 2.20 – 7.50 kW (3.00 – 10.00 HP) – 3 PHASE 2 1/2” 125 MM Up to 146 meters Up to 400 LPM 350V TO 440V – (3 PHASE) Anti-Clockwise Observed When viewed from Top side Maximum 45 °C Clear Clean, Thin, Non-Aggressive, Non-Explosive, Clear, Cold Water Without Abrasive And Solid Particle Cold Water.
SSQ510 SERIES 2.20 – 7.50 kW (3.00 – 10.00 HP) – 3 PHASE 2 1/2” 125 MM Up to 100 meters Up to 655 LPM 350V TO 440V – (3 PHASE) Anti-Clockwise Observed When viewed from Top side Maximum 45 °C Clear Clean, Thin, Non-Aggressive, Non-Explosive, Clear, Cold Water Without Abrasive And Solid Particle Cold Water.
SSQ512 SERIES 2.20 – 7.50 kW (3.00 – 10.00 HP) – 3 PHASE 2 1/2” 125 MM Up to 84 meters Up to 740 LPM 350V TO 440V – (3 PHASE) Anti-Clockwise Observed When viewed from Top side Maximum 45 °C Clear Clean, Thin, Non-Aggressive, Non-Explosive, Clear, Cold Water Without Abrasive And Solid Particle Cold Water.

MOC

Model Name Motor Body Motor Shaft Thrust Bearing Motor Bushes Pump Shaft Impeller Diffuser NRV Suction
SSQ506 SERIES Stainless Steel SS 410 Stainless Steel, Carbon, Cast iron LTB-4 SS 410 SS 410 Cast Iron Cast Iron (CED Coated) Cast Iron (CED Coated)
SSQ510 SERIES Stainless Steel SS 410 Stainless Steel, Carbon, Cast iron LTB-4 SS 410 SS 410 Cast Iron Cast Iron (CED Coated) Cast Iron (CED Coated)
SSQ512 SERIES Stainless Steel SS 410 Stainless Steel, Carbon, Cast iron LTB-4 SS 410 SS 410 Cast Iron Cast Iron (CED Coated) Cast Iron (CED Coated)

Technical Specifications

Model Name Power (KW) Power (HP) Stage Phase Delivery Size (Inch) Head Range (MTR) Discharge Range (LPM)
SSQ506 – 0305 2.2 3 5 3 2 1/2″ 6-39 400-170
SSQ506 – 0406 3 4 6 3 2 1/2″ 7-47 400-170
SSQ506 – 0508 3.7 5 8 3 2 1/2″ 9-63 400-170
SSQ506 – 0610 4.5 6 10 3 2 1/2″ 11-79 400-170
SSQ506 – 7512 5.5 7.5 12 3 2 1/2″ 14-95 400-170
SSQ506 – 1016 7.5 10 16 3 2 1/2″ 18-126 400-170
SSQ510 – 0303 2.2 3 3 3 2 1/2″ 6-2 655-115
SSQ510 – 0304 2.2 3 4 3 2 1/2″ 8-35 655-115
SSQ510 – 0404 3 4 4 3 2 1/2″ 8-36 655-115
SSQ510 – 0505 3.7 5 5 3 2 1/2″ 10-45 655-115
SSQ510 – 0606 4.5 6 6 3 2 1/2″ 12-54 655-115
SSQ510 – 7508 5.5 7.5 8 3 2 1/2″ 16-72 655-115
SSQ510 – 1010 7.5 10 10 3 2 1/2″ 20-90 655-115
SSQ512 – 0303 2.2 3 3 3 2 1/2″ 6-26 740-175
SSQ512 – 0403 3 4 3 3 2 1/2″ 6-27 740-175
SSQ512 – 0504 3.7 5 4 3 2 1/2″ 8-36 740-175
SSQ512 – 0605 4.5 6 5 3 2 1/2″ 10-45 740-175
SSQ512 – 7506 5.5 7.5 6 3 2 1/2″ 12-54 740-175
SSQ512 – 1007 7.5 10 7 3 2 1/2″ 14-63 740-175
SSQ512 – 1008 7.5 10 8 3 2 1/2″ 16-72 740-175
