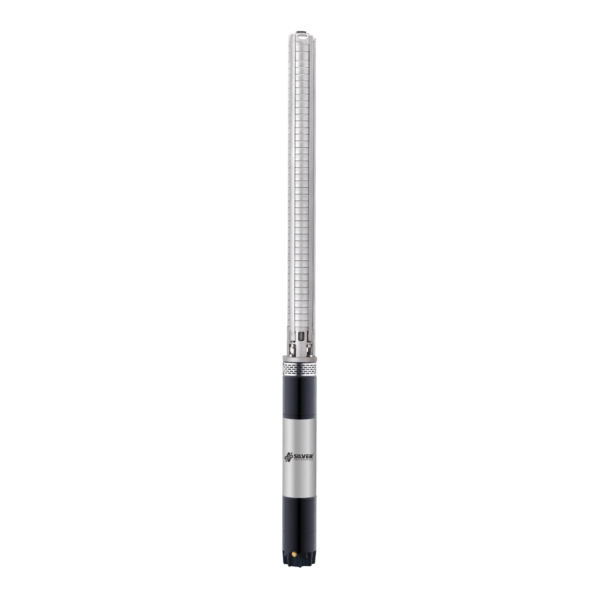

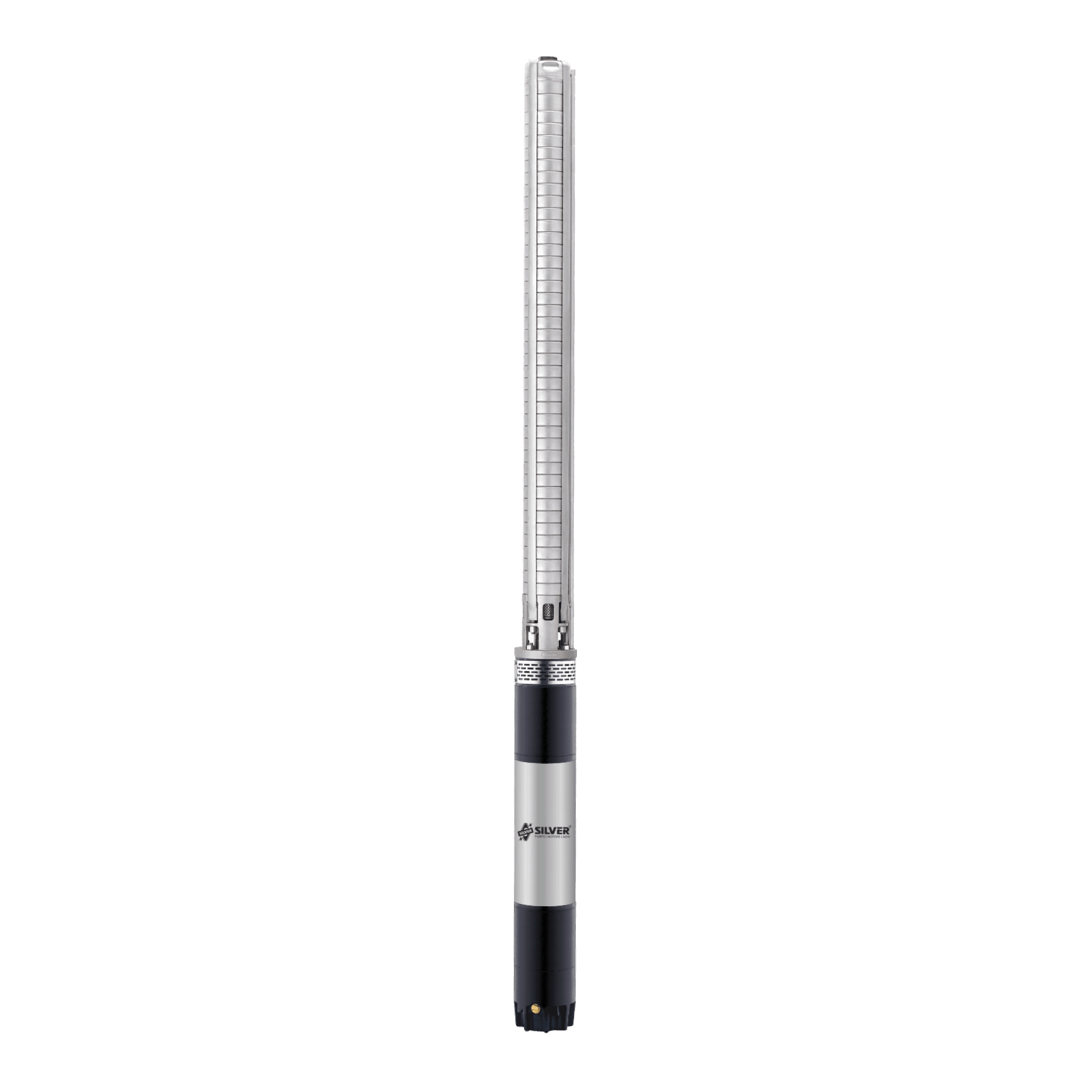

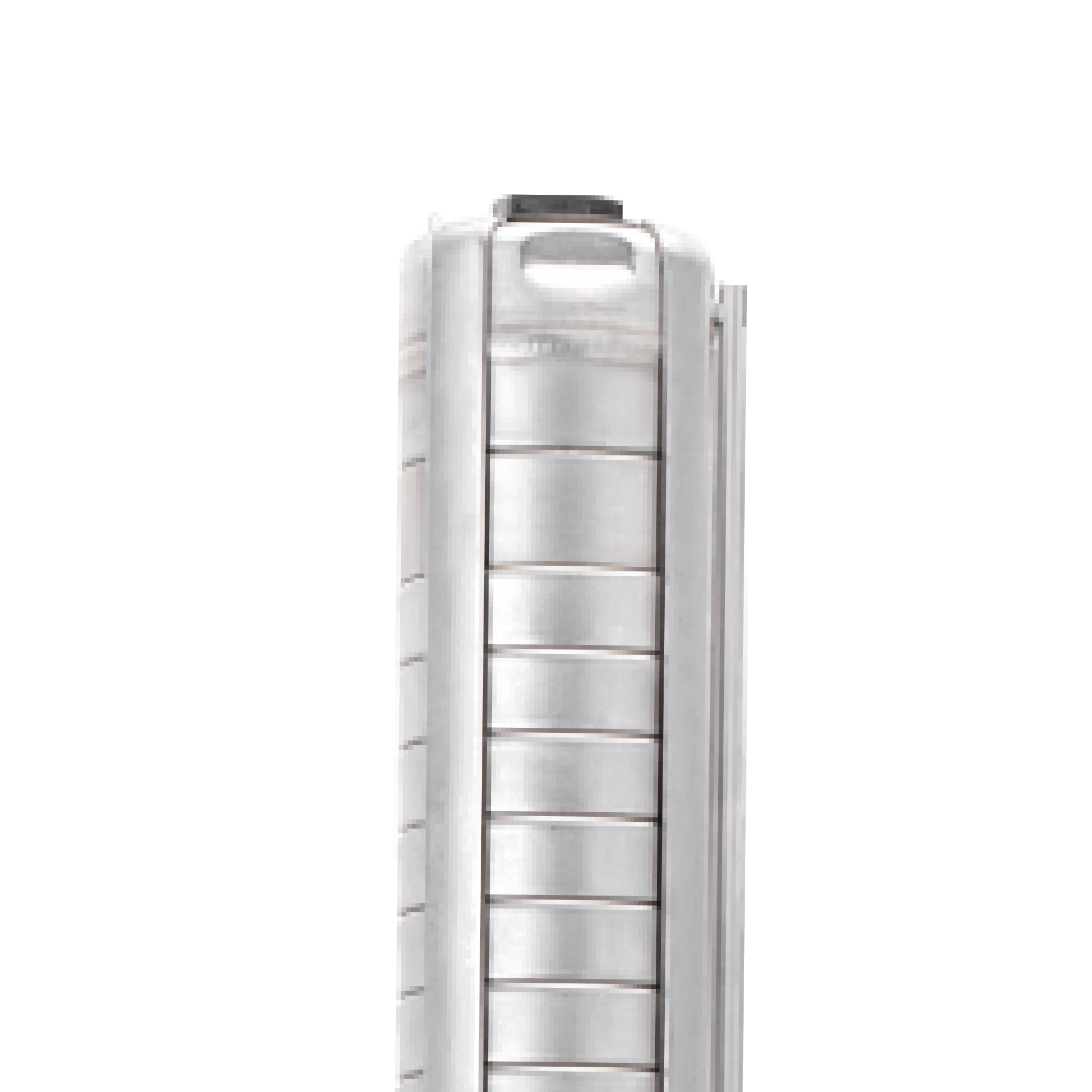

6” 4″ Water filled Stainless Steel Fabricated Mixed Flow Submersible Pump Sets

  • High Efficiency and energy Saving Design
  • Wide Voltage Range
  • Designed To Prevent Overloading
  • Dynamically Balanced Rotating Parts
  • Low Power Consumption and Less Operating Cost
  • Longer And Trouble Free Life
  • Reliable Non-Return Valve so reduce Friction Loss
  • All Parts are Dual Coated
  • All Parts Machining Precisly
  • Easy Maintainable Designs

Specifications

Model Name Motor Rating Delivery Size Bore Size Head Range Discharge Range Power Supply Direction of Rotation Liquid Temperature Pumped Liquids
SSF8-6 SERIES 7.50 – 18.50 kW (10.00 – 25.00 HP) – 3 PHASE 2” 150 MM Up to 649 meters Up to 180 LPM 350V TO 440V – (3 PHASE) Anti-Clockwise Observed When viewed from Top side Maximum 45 °C Clear Clean, Thin, Non-Aggressive, Non-Explosive, Clear, Cold Water Without Abrasive And Solid Particle Cold Water.

MOC

Model Name Motor Body Motor Shaft Thrust Bearing Motor Bushes Pump Shaft Impeller Diffuser NRV Suction
SSF8-6 SERIES Stainless Steel SS 410/ SS 420 Stainless Steel, Carbon, Cast iron LTB-4 SS 431 SS 304 SS 304 SS 304 SS 304

Technical Specifications

Model Name Power (KW) Power (HP) Stage Phase Delivery Size (Inch) Head Range (MTR) Discharge Range (LPM)
SSF8-1050-6 7.50 10.00 50 3 2″ 100-250 180-45
SSF8-12558-6 9.30 12.50 58 3 2″ 116-290 180-45
SSF8-1566-6 11.00 15.00 66 3 2″ 132-330 180-45
SSF8-1573-6 11.00 15.00 73 3 2″ 146-365 180-45
SSF8-1582-6 11.00 15.00 82 3 2″ 164-410 180-45
SSF8-2091-6 15.00 20.00 91 3 2″ 182-455 180-45
SSF8-20100-6 15.00 20.00 100 3 2″ 200-500 180-45
SSF8-25110-6 18.50 25.00 110 3 2″ 220-550 180-45
