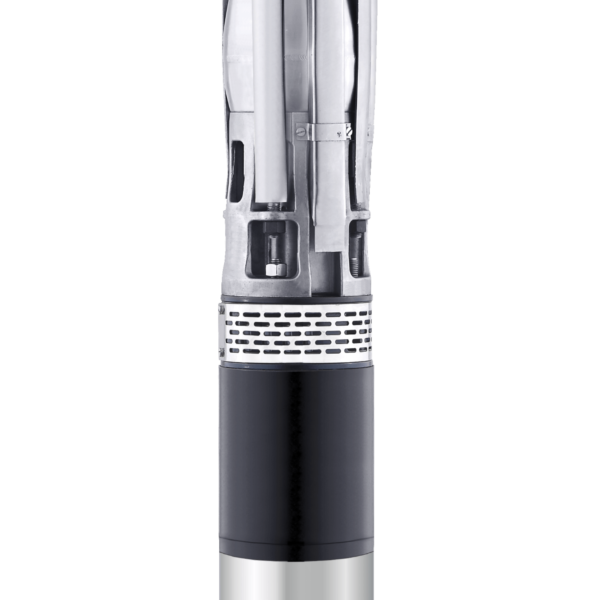

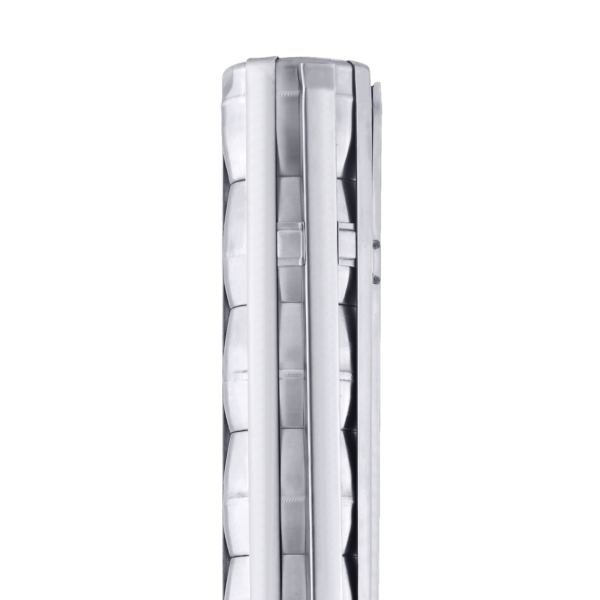

6” Water filled Stainless Steel Fabricated Mixed Flow Submersible Pump Sets

  • High Efficiency and energy Saving Design
  • Wide Voltage Range
  • Designed To Prevent Overloading
  • Dynamically Balanced Rotating Parts
  • Low Power Consumption and Less Operating Cost
  • Longer And Trouble Free Life
  • Reliable Non-Return Valve so reduce Friction Loss
  • All Parts are Dual Coated
  • All Parts Machining Precisly
  • Easy Maintainable Designs

Specifications

Model Name Motor Rating Delivery Size Bore Size Head Range Discharge Range Power Supply Direction of Rotation Liquid Temperature Pumped Liquids
SSF46 SERIES 3.00 – 5.50 kW (4.00 – 7.50 HP) – 1 PHASE & 3.00 – 37.00 kW (4.00 – 50.00 HP) – 3 PHASE 4” 150 MM Up to 350 meters Up to 1150 LPM 180V TO 250V – (1 PHASE) & 350V TO 440V – (3 PHASE) Anti-Clockwise Observed When viewed from Top side Maximum 45 ° C Clear Clean, Thin, Non-Aggressive, Non-Explosive, Clear, Cold Water Without Abrasive And Solid Particle Cold Water.
SSF60 SERIES 3.70 – 5.50 kW (5.00 – 7.50 HP) – 1 PHASE & 3.70 – 37.00 kW (5.00 – 50.00 HP) – 3 PHASE 4” 150 MM Up to 298 meters Up to 1400 LPM 180V TO 250V – (1 PHASE) & 350V TO 440V – (3 PHASE) Anti-Clockwise Observed When viewed from Top side Maximum 45 ° C Clear Clean, Thin, Non-Aggressive, Non-Explosive, Clear, Cold Water Without Abrasive And Solid Particle Cold Water.

MOC

Model Name Motor Body Motor Shaft Thrust Bearing Motor Bushes Pump Shaft Impeller Diffuser NRV Suction
SSF46 SERIES Stainless Steel SS 410/ SS 420/ SS 431 Stainless Steel, Carbon, Cast iron LTB-4 SS 431 SS 304 SS 304 SS 304 SS 304
SSF60 SERIES Stainless Steel SS 410/ SS 420/ SS 431 Stainless Steel, Carbon, Cast iron LTB-4 SS 431 SS 304 SS 304 SS 304 SS 304

Technical Specifications

Model Name Power (KW) Power (HP) Stage Phase Delivery Size (Inch) Head Range (MTR) Discharge Range (LPM)
SSF46-0402 3.00 4.00 2 1 & 3 4″ 4-24 1150-430
SSF46-0503 3.70 5.00 3 1 & 3 4″ 6-36 1150-430
SSF46-7504 5.50 7.50 4 1 & 3 4″ 8-48 1150-430
SSF46-1005 7.50 10.00 5 3 4″ 10-60 1150-430
SSF46-12506 9.30 12.50 6 3 4″ 12-72 1150-430
SSF46-1508 11.00 15.00 8 3 4″ 16-96 1150-430
SSF46-17509 13.00 17.50 9 3 4″ 18-108 1150-430
SSF46-2010 15.00 20.00 10 3 4″ 20-120 1150-430
SSF46-2512 18.50 25.00 12 3 4″ 24-144 1150-430
SSF46-3015 22.00 30.00 15 3 4″ 30-180 1150-430
SSF46-4018 30.00 40.00 18 3 4″ 36-216 1150-430
SSF46-4020 30.00 40.00 20 3 4″ 40-240 1150-430
SSF46-5022 37.00 50.00 22 3 4″ 44-264 1150-430
SSF46-5024 37.00 50.00 24 3 4″ 48-288 1150-430
SSF60-0502 3.70 5.00 2 1 & 3 4″ 4-24 1400-410
SSF60-7503 5.50 7.50 3 1 & 3 4″ 6-36 1400-410
SSF60-1004 7.50 10.00 4 3 4″ 8-48 1400-410
SSF60-12505 9.30 12.50 5 3 4″ 10-60 1400-410
SSF60-1506 11.00 15.00 6 3 4″ 12-72 1400-410
SSF60-17508 13.00 17.50 8 3 4″ 16-96 1400-410
SSF60-2009 15.00 20.00 9 3 4″ 18-108 1400-410
SSF60-2510 18.50 25.00 10 3 4″ 20-120 1400-410
SSF60-3012 22.00 30.00 12 3 4″ 24-144 1400-410
SSF60-4017 30.00 40.00 17 3 4″ 34-204 1400-410
SSF60-5019 37.00 50.00 19 3 4″ 38-228 1400-410
SSF60-5021 37.00 50.00 21 3 4″ 42-252 1400-410
