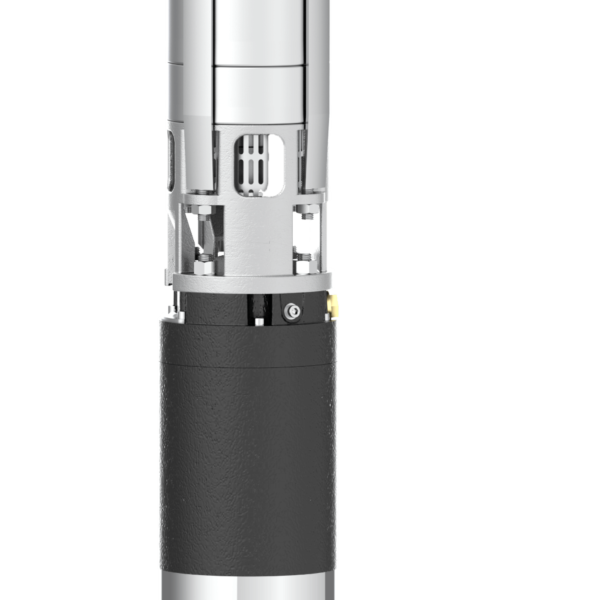

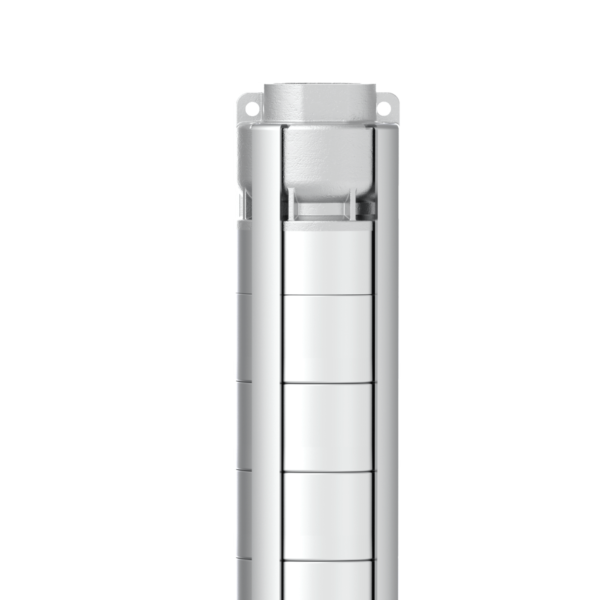

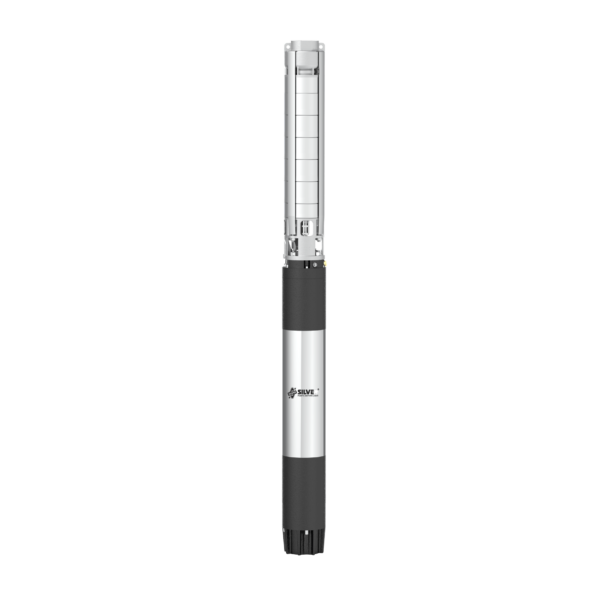

6” Water filled Stainless Steel Fabricated Radial Flow Submersible Pump Sets

  • High Efficiency and energy Saving Design
  • Wide Voltage Range
  • Designed To Prevent Overloading
  • Dynamically Balanced Rotating Parts
  • Low Power Consumption and Less Operating Cost
  • Longer And Trouble Free Life
  • Reliable Non-Return Valve so reduce Friction Loss
  • All Parts are Dual Coated
  • All Parts Machining Precisly
  • Easy Maintainable Designs

Specifications

Model Name Motor Rating Delivery Size Bore Size Head Range Discharge Range Power Supply Direction of Rotation Liquid Temperature Pumped Liquids
SSF17 SERIES 2.20 – 5.50 kW (3.00 – 7.50 HP) – 1 PHASE & 2.20 – 37.00 kW (3.00 – 50.00 HP) – 3 PHASE 2 1/2” 150 MM Up to 660 meters Up to 415 LPM 180V TO 250V – (1 PHASE) & 350V TO 440V – (3 PHASE) Anti-Clockwise Observed When viewed from Top side Maximum 45 ° C Clear Clean, Thin, Non-Aggressive, Non-Explosive, Clear, Cold Water Without Abrasive And Solid Particle Cold Water.
SSF30 SERIES 2.20 – 5.50 kW (3.00 – 7.50 HP) – 1 PHASE & 2.20 – 37.00 kW (3.00 – 50.00 HP) – 3 PHASE 3” 150 MM Up to 473 meters Up to 740 LPM 180V TO 250V – (1 PHASE) & 350V TO 440V – (3 PHASE) Anti-Clockwise Observed When viewed from Top side Maximum 45 ° C Clear Clean, Thin, Non-Aggressive, Non-Explosive, Clear, Cold Water Without Abrasive And Solid Particle Cold Water.
SSF111 SERIES 3.70 – 5.50 kW (5.00 – 7.50 HP) – 1 PHASE & 3.70 – 37.00 kW (5.00 – 50.00 HP) – 3 PHASE 2 1/2” 150 MM Up to 515 meters Up to 625 LPM 180V TO 250V – (1 PHASE) & 350V TO 440V – (3 PHASE) Anti-Clockwise Observed When viewed from Top side Maximum 45 ° C Clear Clean, Thin, Non-Aggressive, Non-Explosive, Clear, Cold Water Without Abrasive And Solid Particle Cold Water.
SSF135 SERIES 2.20 – 5.50 kW (3.00 – 7.50 HP) – 1 PHASE & 2.20 – 37.00 kW (3.00 – 50.00 HP) – 3 PHASE 2 1/2” 150 MM Up to 459 meters Up to 770 LPM 180V TO 250V – (1 PHASE) & 350V TO 440V – (3 PHASE) Anti-Clockwise Observed When viewed from Top side Maximum 45 ° C Clear Clean, Thin, Non-Aggressive, Non-Explosive, Clear, Cold Water Without Abrasive And Solid Particle Cold Water.

MOC

Model Name Motor Body Motor Shaft Thrust Bearing Motor Bushes Pump Shaft Impeller Diffuser NRV Suction
SSF17 SERIES Stainless Steel SS 410/ SS 420/ SS 431 Stainless Steel, Carbon, Cast iron LTB-4 SS 431 SS 304 SS 304 SS 304 SS 304
SSF30 SERIES Stainless Steel SS 410/ SS 420/ SS 431 Stainless Steel, Carbon, Cast iron LTB-4 SS 431 SS 304 SS 304 SS 304 SS 304
SSF111 SERIES Stainless Steel SS 410/ SS 420/ SS 431 Stainless Steel, Carbon, Cast iron LTB-4 SS 431 SS 304 SS 304 SS 304 SS 304
SSF135 SERIES Stainless Steel SS 410/ SS 420/ SS 431 Stainless Steel, Carbon, Cast iron LTB-4 SS 431 SS 304 SS 304 SS 304 SS 304

Technical Specifications

Model Name Power (KW) Power (HP) Stage Phase Delivery Size (Inch) Head Range (MTR) Discharge Range (LPM)
SSF17-0305 2.20 3.00 5 1 & 3 2 1/2″ 10-50 415-140
SSF17-0406 3.00 4.00 6 1 & 3 2 1/2″ 12-60 415-140
SSF17-0508 3.70 5.00 8 1 & 3 2 1/2″ 16-80 415-140
SSF17-7509 5.50 7.50 9 1 & 3 2 1/2″ 18-90 415-140
SSF17-7512 5.50 7.50 12 1 & 3 2 1/2″ 24-120 415-140
SSF17-1016 7.50 10.00 16 3 2 1/2″ 32-160 415-140
SSF17-12520 9.30 12.50 20 3 2 1/2″ 40-200 415-140
SSF17-1524 11.00 15.00 24 3 2 1/2″ 48-240 415-140
SSF17-17527 13.00 17.50 27 3 2 1/2″ 54-270 415-140
SSF17-2032 15.00 20.00 32 3 2 1/2″ 64-320 415-140
SSF17-2537 18.50 25.00 37 3 2 1/2″ 74-370 415-140
SSF17-3043 22.00 30.00 43 3 2 1/2″ 86-430 415-140
SSF17-4051 30.00 40.00 51 3 2 1/2″ 102-510 415-140
SSF17-4053 30.00 40.00 53 3 2 1/2″ 106-530 415-140
SSF17-5055 37.00 50.00 55 3 2 1/2″ 110-550 415-140
SSF17-5060 37.00 50.00 60 3 2 1/2″ 120-600 415-140
SSF30-0302 2.20 3.00 2 1 & 3 3″ 4-20 740-255
SSF30-0403 3.00 4.00 3 1 & 3 3″ 6-30 740-255
SSF30-0505 3.70 5.00 5 1 & 3 3″ 10-50 740-255
SSF30-7507 5.50 7.50 7 1 & 3 3″ 14-70 740-255
SSF30-1009 7.50 10.00 9 3 3″ 18-90 740-255
SSF30-12512 9.30 12.50 12 3 3″ 24-120 740-255
SSF30-1513 11.00 15.00 13 3 3″ 26-130 740-255
SSF30-17515 13.00 17.50 15 3 3″ 30-150 740-255
SSF30-2017 15.00 20.00 17 3 3″ 34-170 740-255
SSF30-2521 18.50 25.00 21 3 3″ 42-210 740-255
SSF30-3026 22.00 30.00 26 3 3″ 52-260 740-255
SSF30-4032 30.00 40.00 32 3 3″ 64-320 740-255
SSF30-4035 30.00 40.00 35 3 3″ 70-350 740-255
SSF30-5039 37.00 50.00 39 3 3″ 78-390 740-255
SSF30-5043 37.00 50.00 43 3 3″ 86-430 740-255
SSF111-0504 3.70 5.00 4 1 & 3 2 1/2″ 4-52 625-170
SSF111-0605 4.50 6.00 5 1 & 3 2 1/2″ 5-65 625-170
SSF111-7506 5.50 7.50 6 1 & 3 2 1/2″ 6-78 625-170
SSF111-1008 7.50 10.00 8 3 2 1/2″ 8-104 625-170
SSF111-1009 7.50 10.00 9 3 2 1/2″ 9-117 625-170
SSF111-12511 9.30 12.50 11 3 2 1/2″ 11-143 625-170
SSF111-1513 11.00 15.00 13 3 2 1/2″ 13-169 625-170
SSF111-17515 13.00 17.50 15 3 2 1/2″ 15-195 625-170
SSF111-2017 15.00 20.00 17 3 2 1/2″ 17-221 625-170
SSF111-2521 18.50 25.00 21 3 2 1/2″ 21-273 625-170
SSF111-3025 22.00 30.00 25 3 2 1/2″ 25-325 625-170
SSF111-4030 30.00 40.00 30 3 2 1/2″ 30-390 625-170
SSF111-5035 37.00 50.00 35 3 2 1/2″ 35-455 625-170
SSF135-0302 2.20 3.00 2 1 & 3 2 1/2″ 4-28 770-220
SSF135-0503 3.70 5.00 3 1 & 3 2 1/2″ 6-42 770-220
SSF135-0604 4.50 6.00 4 1 & 3 2 1/2″ 8-56 770-220
SSF135-7505 5.50 7.50 5 1 & 3 2 1/2″ 10-70 770-220
SSF135-1006 7.50 10.00 6 3 2 1/2″ 12-84 770-220
SSF135-1007 7.50 10.00 7 3 2 1/2″ 14-98 770-220
SSF135-12508 9.30 12.50 8 3 2 1/2″ 16-112 770-220
SSF135-12509 9.30 12.50 9 3 2 1/2″ 18-126 770-220
SSF135-1510 11.00 15.00 10 3 2 1/2″ 20-140 770-220
SSF135-1511 11.00 15.00 11 3 2 1/2″ 22-154 770-220
SSF135-17512 13.00 17.50 12 3 2 1/2″ 24-168 770-220
SSF135-17513 13.00 17.50 13 3 2 1/2″ 26-182 770-220
SSF135-2014 15.00 20.00 14 3 2 1/2″ 28-196 770-220
SSF135-2015 15.00 20.00 15 3 2 1/2″ 30-210 770-220
SSF135-2516 18.50 25.00 16 3 2 1/2″ 32-224 770-220
SSF135-2518 18.50 25.00 18 3 2 1/2″ 36-252 770-220
SSF135-3020 22.00 30.00 20 3 2 1/2″ 40-280 770-220
SSF135-3021 22.00 30.00 21 3 2 1/2″ 42-294 770-220
SSF135-4025 30.00 40.00 25 3 2 1/2″ 50-350 770-220
SSF135-5030 37.00 50.00 30 3 2 1/2″ 60-420 770-220
