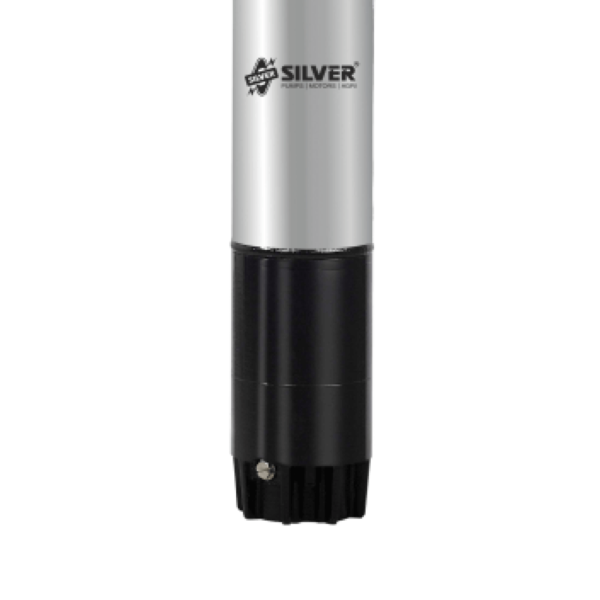

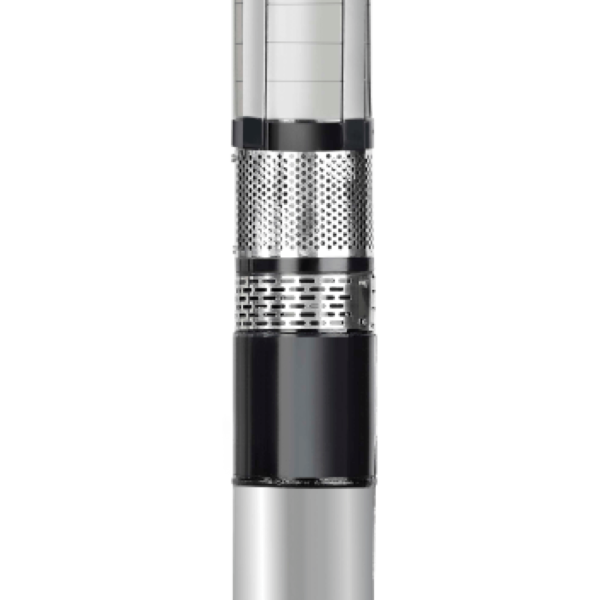

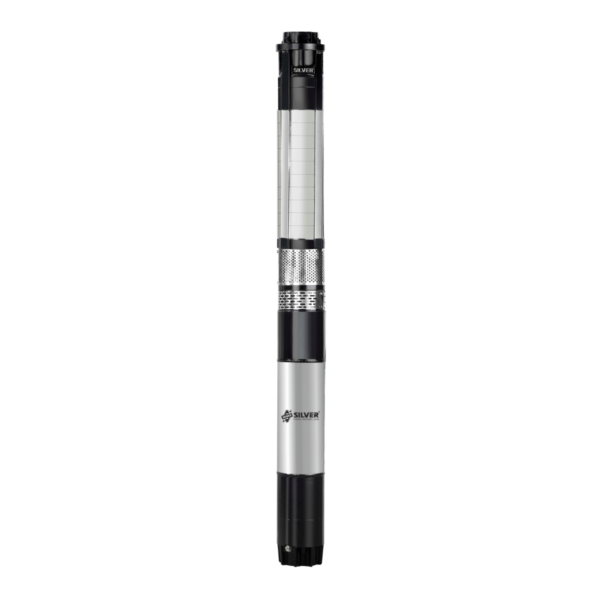

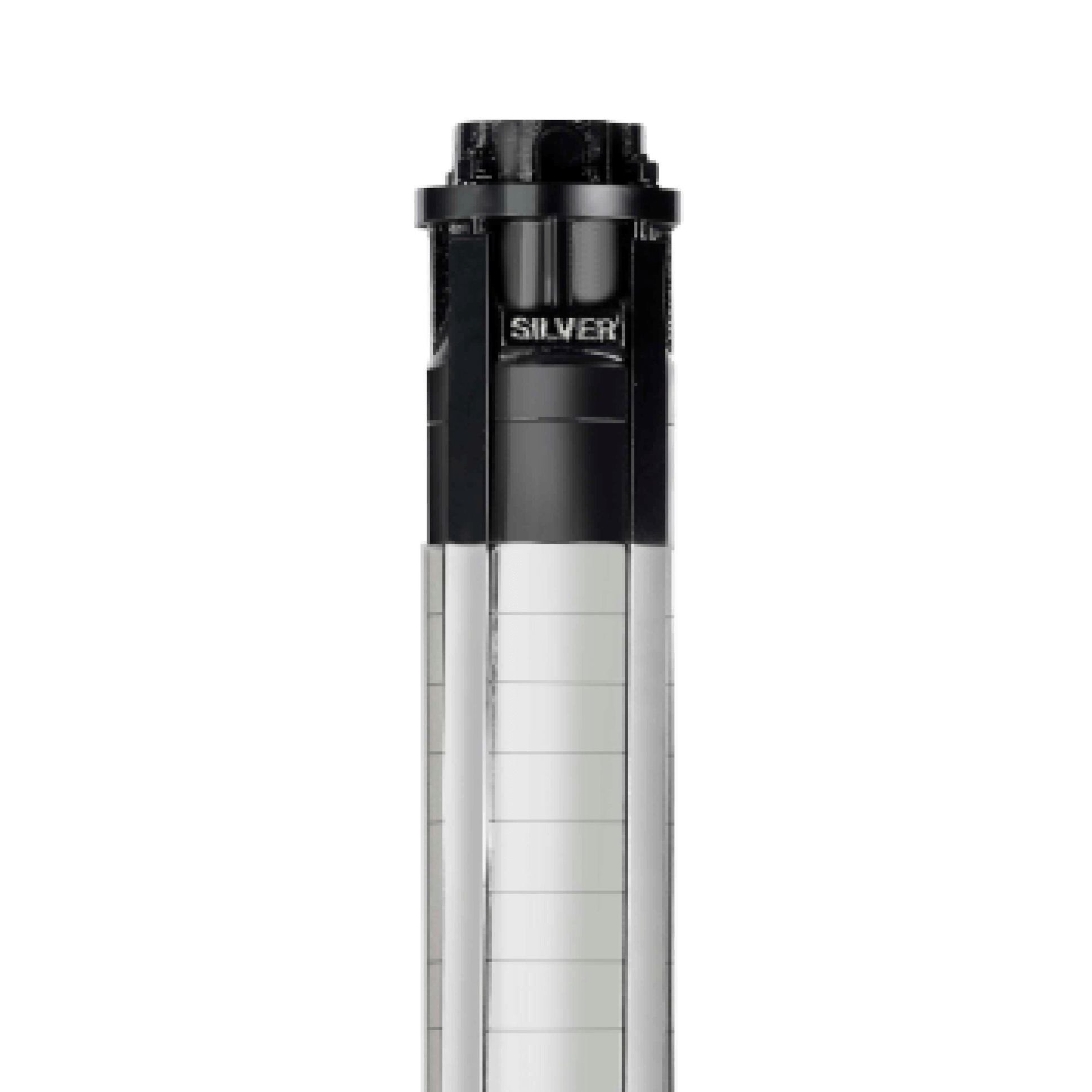

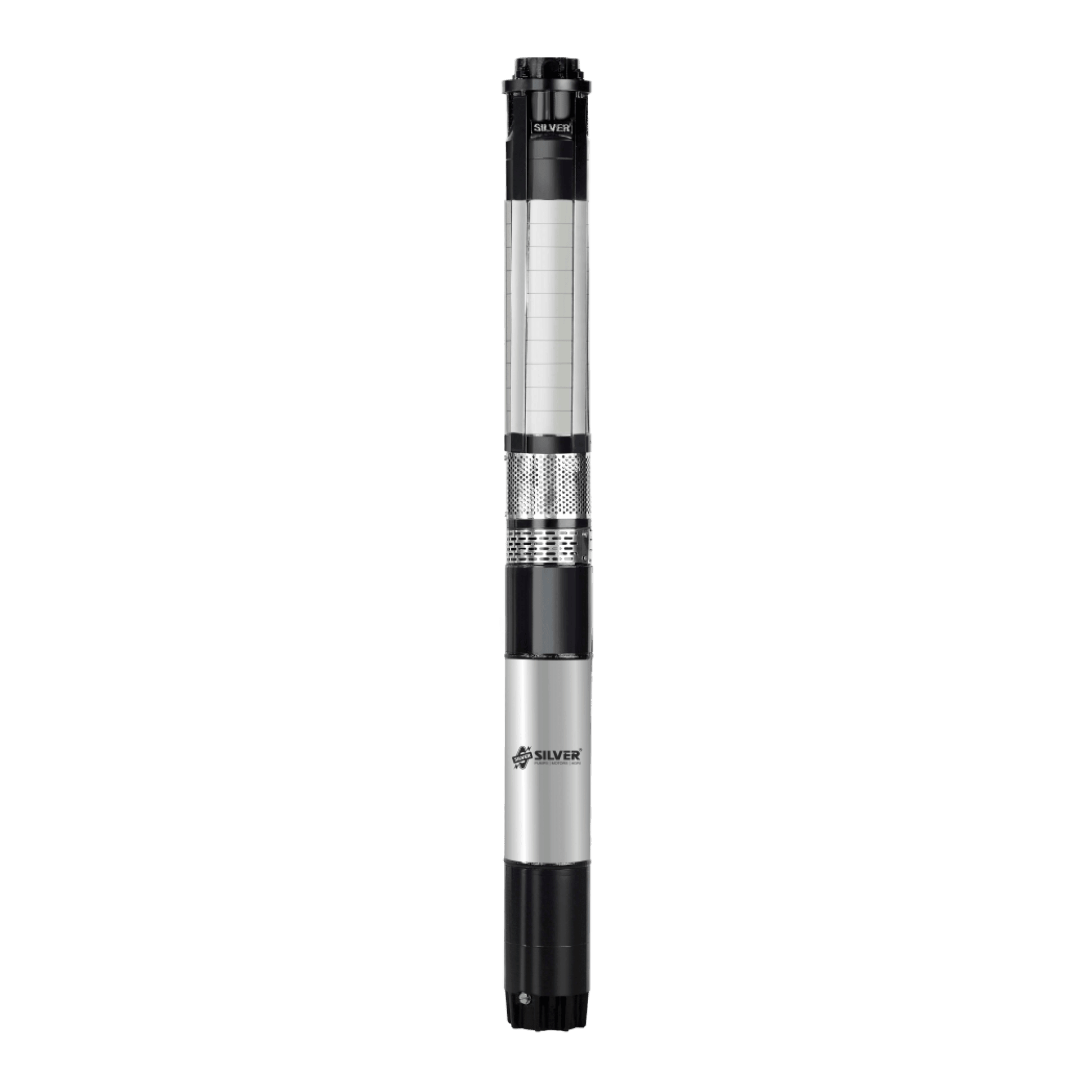

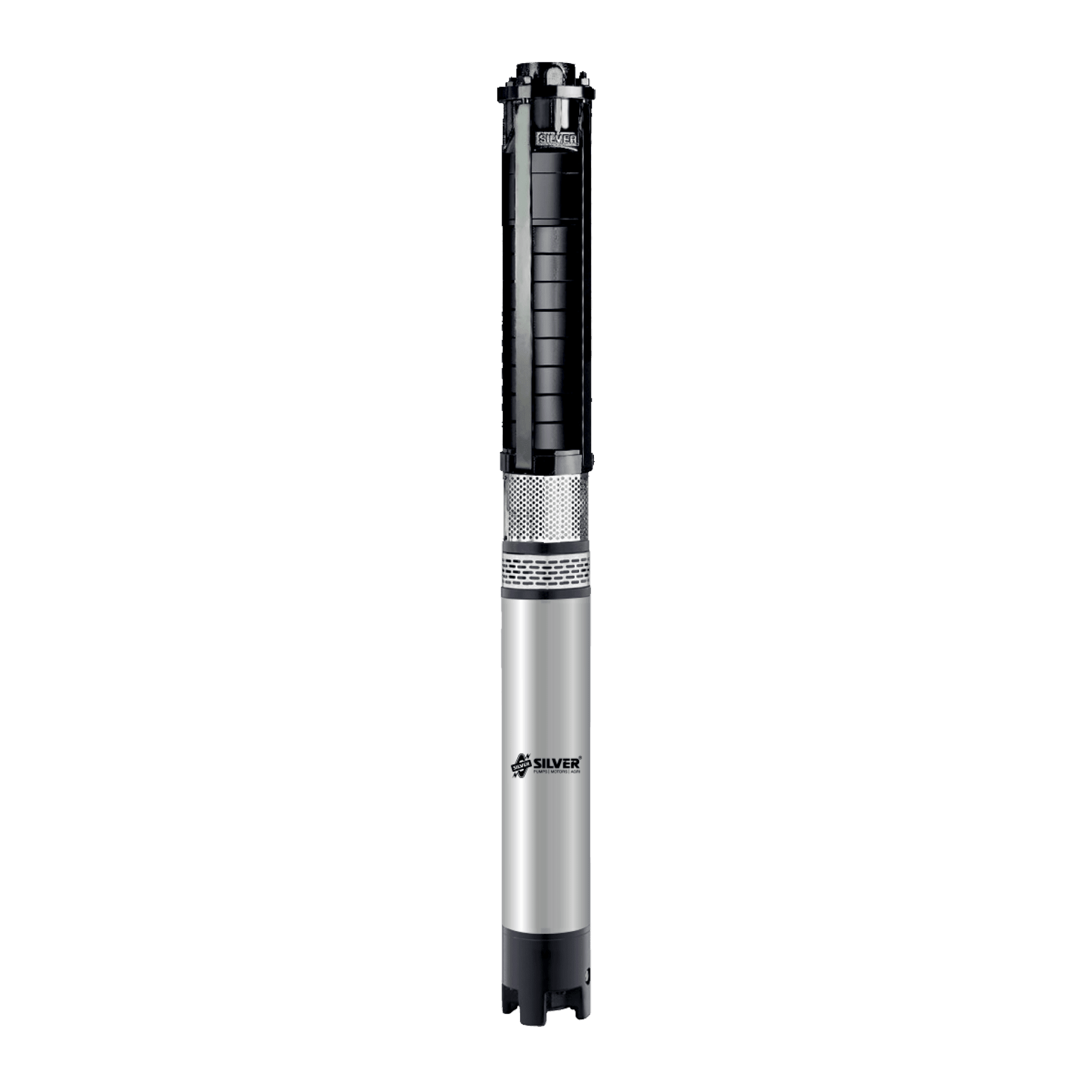

6” Water filled Stainless Steel Radial Flow Submersible Pump Sets
- High Efficiency and energy Saving Design
- Wide Voltage Range
- Designed To Prevent Overloading
- Dynamically Balanced Rotating Parts
- Low Power Consumption and Less Operating Cost
- Longer And Trouble Free Life
- Reliable Non-Return Valve so reduce Friction Loss
- All Parts are Dual Coated
- All Parts Machining Precisly
- Easy Maintainable Designs
Specifications
| Model Name | Motor Rating | Delivery Size | Bore Size | Head Range | Discharge Range | Power Supply | Direction of Rotation | Liquid Temperature | Pumped Liquids |
|---|---|---|---|---|---|---|---|---|---|
| SS50 SERIES | 2.20 – 5.50 kW (3.00 – 7.50 HP) – 1 PHASE & 2.20 – 15.00 kW (3.00 – 20.00 HP) – 3 PHASE | 2 1/2” | 150 MM | Up to 578 meters | Up to 220 LPM | 180V TO 250V – (1 PHASE) & 350V TO 440V – (3 PHASE) | Anti-Clockwise Observed When viewed from Top side | Maximum 45 ° C | Clear Clean, Thin, Non-Aggressive, Non-Explosive, Clear, Cold Water Without Abrasive And Solid Particle Cold Water. |
| SS60 SERIES | 2.20 – 5.50 kW (3.00 – 7.50 HP) – 1 PHASE & 2.20 – 22.00 kW (3.00 – 30.00 HP) – 3 PHASE | 2 1/2” | 150 MM | Up to 558 meters | Up to 225 LPM | 180V TO 250V – (1 PHASE) & 350V TO 440V – (3 PHASE) | Anti-Clockwise Observed When viewed from Top side | Maximum 45 ° C | Clear Clean, Thin, Non-Aggressive, Non-Explosive, Clear, Cold Water Without Abrasive And Solid Particle Cold Water. |
| SS80 SERIES | 2.20 – 5.50 kW (3.00 – 7.50 HP) – 1 PHASE & 2.20 – 22.00 kW (3.00 – 30.00 HP) – 3 PHASE | 2 1/2” | 150 MM | Up to 544 meters | Up to 330 LPM | 180V TO 250V – (1 PHASE) & 350V TO 440V – (3 PHASE) | Anti-Clockwise Observed When viewed from Top side | Maximum 45 ° C | Clear Clean, Thin, Non-Aggressive, Non-Explosive, Clear, Cold Water Without Abrasive And Solid Particle Cold Water. |
| SS100 SERIES | 2.20 – 5.50 kW (3.00 – 7.50 HP) – 1 PHASE & 2.20 – 30.00 kW (3.00 – 40.00 HP) – 3 PHASE | 2 1/2” | 150 MM | Up to 576 meters | Up to 390 LPM | 180V TO 250V – (1 PHASE) & 350V TO 440V – (3 PHASE) | Anti-Clockwise Observed When viewed from Top side | Maximum 45 ° C | Clear Clean, Thin, Non-Aggressive, Non-Explosive, Clear, Cold Water Without Abrasive And Solid Particle Cold Water. |
| SS125 SERIES | 3.00 – 5.50 kW (4.00 – 7.50 HP) – 1 PHASE & 3.00 – 30.00 kW (4.00 – 40.00 HP) – 3 PHASE | 2 1/2” | 150 MM | Up to 450 meters | Up to 560 LPM | 180V TO 250V – (1 PHASE) & 350V TO 440V – (3 PHASE) | Anti-Clockwise Observed When viewed from Top side | Maximum 45 ° C | Clear Clean, Thin, Non-Aggressive, Non-Explosive, Clear, Cold Water Without Abrasive And Solid Particle Cold Water. |
| SS150 SERIES | 3.00 – 5.50 kW (4.00 – 7.50 HP) – 1 PHASE & 3.00 – 30.00 kW (4.00 – 40.00 HP) – 3 PHASE | 2 1/2” | 150 MM | Up to 360 meters | Up to 590 LPM | 180V TO 250V – (1 PHASE) & 350V TO 440V – (3 PHASE) | Anti-Clockwise Observed When viewed from Top side | Maximum 45 ° C | Clear Clean, Thin, Non-Aggressive, Non-Explosive, Clear, Cold Water Without Abrasive And Solid Particle Cold Water. |
| SS200 SERIES | 3.00 – 5.50 kW (4.00 – 7.50 HP) – 1 PHASE & 3.00 – 37.00 kW (4.00 – 50.00 HP) – 3 PHASE | 2 1/2” | 150 MM | Up to 330 meters | Up to 860 LPM | 180V TO 250V – (1 PHASE) & 350V TO 440V – (3 PHASE) | Anti-Clockwise Observed When viewed from Top side | Maximum 45 ° C | Clear Clean, Thin, Non-Aggressive, Non-Explosive, Clear, Cold Water Without Abrasive And Solid Particle Cold Water. |
| SS60H SERIES | 2.20 – 5.50 kW (3.00 – 7.50 HP) – 1 PHASE & 2.20 – 18.50 kW (3.00 – 25.00 HP) – 3 PHASE | 2 1/2” | 150 MM | Up to 783 meters | Up to 250 LPM | 180V TO 250V – (1 PHASE) & 350V TO 440V – (3 PHASE) | Anti-Clockwise Observed When viewed from Top side | Maximum 45 ° C | Clear Clean, Thin, Non-Aggressive, Non-Explosive, Clear, Cold Water Without Abrasive And Solid Particle Cold Water. |
| SS80H SERIES | 2.20 – 5.50 kW (3.00 – 7.50 HP) – 1 PHASE & 2.20 – 18.50 kW (3.00 – 25.00 HP) – 3 PHASE | 2 1/2” | 150 MM | Up to 627 meters | Up to 300 LPM | 180V TO 250V – (1 PHASE) & 350V TO 440V – (3 PHASE) | Anti-Clockwise Observed When viewed from Top side | Maximum 45 ° C | Clear Clean, Thin, Non-Aggressive, Non-Explosive, Clear, Cold Water Without Abrasive And Solid Particle Cold Water. |
| SS100H SERIES | 2.20 – 5.50 kW (3.00 – 7.50 HP) – 1 PHASE & 2.20 – 22.00 kW (3.00 – 30.00 HP) – 3 PHASE | 2 1/2” | 150 MM | Up to 624 meters | Up to 400 LPM | 180V TO 250V – (1 PHASE) & 350V TO 440V – (3 PHASE) | Anti-Clockwise Observed When viewed from Top side | Maximum 45 ° C | Clear Clean, Thin, Non-Aggressive, Non-Explosive, Clear, Cold Water Without Abrasive And Solid Particle Cold Water. |
| SS125H SERIES | 3.00 – 5.50 kW (4.00 – 7.50 HP) – 1 PHASE & 3.00 – 22.00 kW (4.00 – 30.00 HP) – 3 PHASE | 2 1/2” | 150 MM | Up to 510 meters | Up to 525 LPM | 180V TO 250V – (1 PHASE) & 350V TO 440V – (3 PHASE) | Anti-Clockwise Observed When viewed from Top side | Maximum 45 ° C | Clear Clean, Thin, Non-Aggressive, Non-Explosive, Clear, Cold Water Without Abrasive And Solid Particle Cold Water. |
| SS150H SERIES | 2.20 – 5.50 kW (3.00 – 7.50 HP) – 1 PHASE & 2.20 – 22.00 kW (3.00 – 30.00 HP) – 3 PHASE | 2 1/2” | 150 MM | Up to 409 meters | Up to 625 LPM | 180V TO 250V – (1 PHASE) & 350V TO 440V – (3 PHASE) | Anti-Clockwise Observed When viewed from Top side | Maximum 45 ° C | Clear Clean, Thin, Non-Aggressive, Non-Explosive, Clear, Cold Water Without Abrasive And Solid Particle Cold Water. |
| SS200H SERIES | 4.50 – 5.50 kW (6.00 – 7.50 HP) – 1 PHASE & 4.50 – 22.00 kW (6.00 – 30.00 HP) – 3 PHASE | 2 1/2” | 150 MM | Up to 306 meters | Up to 800 LPM | 180V TO 250V – (1 PHASE) & 350V TO 440V – (3 PHASE) | Anti-Clockwise Observed When viewed from Top side | Maximum 45 ° C | Clear Clean, Thin, Non-Aggressive, Non-Explosive, Clear, Cold Water Without Abrasive And Solid Particle Cold Water. |

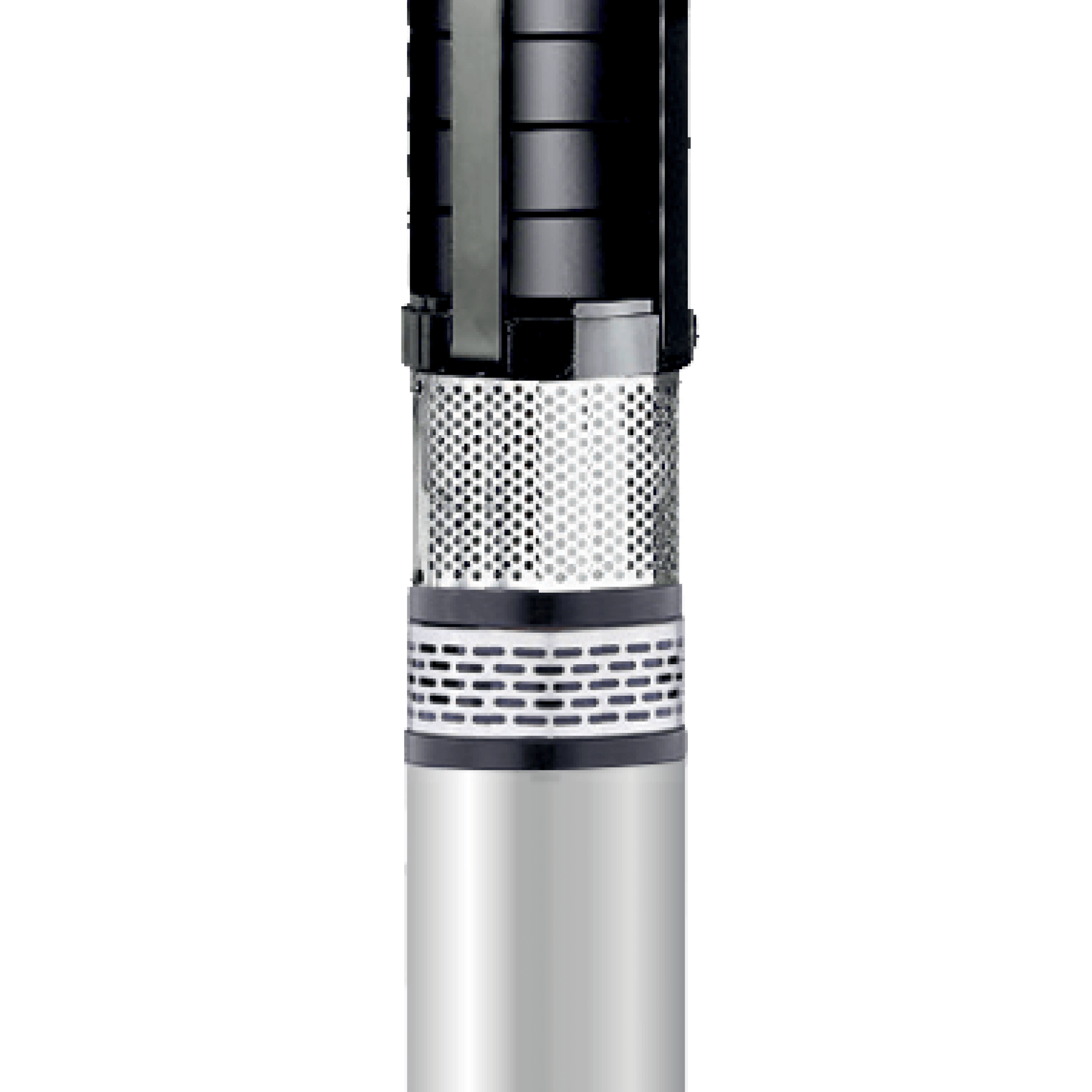

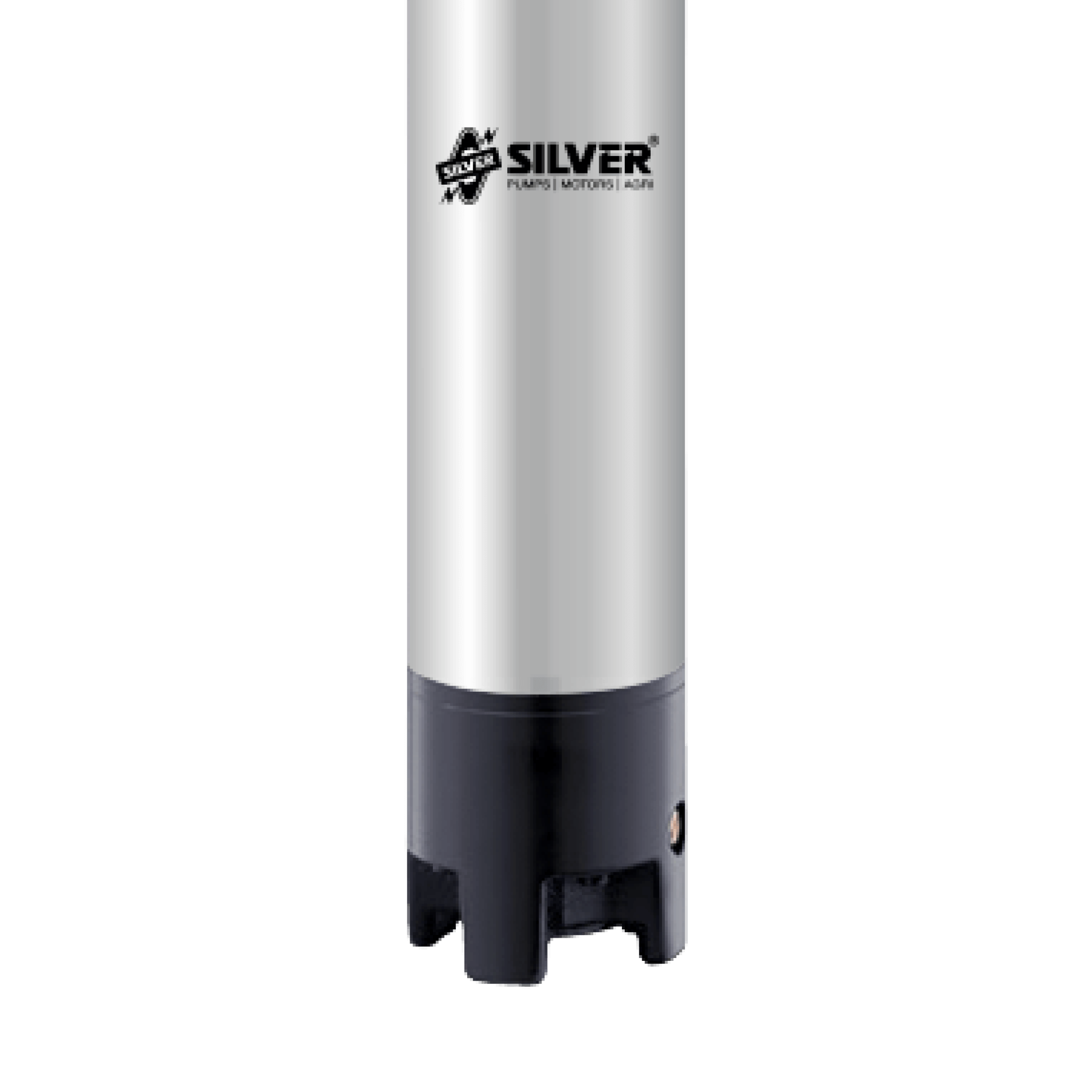

| SSK40 SERIES | 2.20 – 5.50 kW (3.00 – 7.50 HP) – 1 PHASE & 2.20 – 9.30 kW (3.00 – 12.50 HP) – 3 PHASE | 2” | 150 MM | Up to 294 meters | Up to 280 LPM | 180V TO 250V – (1 PHASE) & 350V TO 440V – (3 PHASE) | Anti-Clockwise Observed When viewed from Top side | Maximum 45 ° C | Clear Clean, Thin, Non-Aggressive, Non-Explosive, Clear, Cold Water Without Abrasive And Solid Particle Cold Water. |
| SSK60 SERIES | 2.20 – 5.50 kW (3.00 – 7.50 HP) – 1 PHASE & 2.20 – 15.00 kW (3.00 – 20.00 HP) – 3 PHASE | 2” | 150 MM | Up to 304 meters | Up to 360 LPM | 180V TO 250V – (1 PHASE) & 350V TO 440V – (3 PHASE) | Anti-Clockwise Observed When viewed from Top side | Maximum 45 ° C | Clear Clean, Thin, Non-Aggressive, Non-Explosive, Clear, Cold Water Without Abrasive And Solid Particle Cold Water. |
| SSK70 SERIES | 2.20 – 5.50 kW (3.00 – 7.50 HP) – 1 PHASE & 2.20 – 15.00 kW (3.00 – 20.00 HP) – 3 PHASE | 2” | 150 MM | Up to 280 meters | Up to 420 LPM | 180V TO 250V – (1 PHASE) & 350V TO 440V – (3 PHASE) | Anti-Clockwise Observed When viewed from Top side | Maximum 45 ° C | Clear Clean, Thin, Non-Aggressive, Non-Explosive, Clear, Cold Water Without Abrasive And Solid Particle Cold Water. |
| SSK100 SERIES | 2.20 – 5.50 kW (3.00 – 7.50 HP) – 1 PHASE & 2.20 – 15.00 kW (3.00 – 20.00 HP) – 3 PHASE | 2” | 150 MM | Up to 222 meters | Up to 525 LPM | 180V TO 250V – (1 PHASE) & 350V TO 440V – (3 PHASE) | Anti-Clockwise Observed When viewed from Top side | Maximum 45 ° C | Clear Clean, Thin, Non-Aggressive, Non-Explosive, Clear, Cold Water Without Abrasive And Solid Particle Cold Water. |
MOC
| Model Name | Motor Body | Motor Shaft | Thrust Bearing | Motor Bushes | Pump Shaft | Impeller | Diffuser | NRV | Suction |
|---|---|---|---|---|---|---|---|---|---|
| SS50 SERIES | Stainless Steel | SS 410/ SS 420/ SS 431 | Stainless Steel, Carbon, Cast iron | LTB-4 | SS 410 | SS 410 / SS 304 | SS 304, SS202 | Cast Iron (CED Coated) | Cast Iron (CED Coated) |
| SS60 SERIES | Stainless Steel | SS 410/ SS 420/ SS 431 | Stainless Steel, Carbon, Cast iron | LTB-4 | SS 410 | SS 410 / SS 304 | SS 304, SS202 | Cast Iron (CED Coated) | Cast Iron (CED Coated) |
| SS80 SERIES | Stainless Steel | SS 410/ SS 420/ SS 431 | Stainless Steel, Carbon, Cast iron | LTB-4 | SS 410 | SS 410 / SS 304 | SS 304, SS202 | Cast Iron (CED Coated) | Cast Iron (CED Coated) |
| SS100 SERIES | Stainless Steel | SS 410/ SS 420/ SS 431 | Stainless Steel, Carbon, Cast iron | LTB-4 | SS 410 | SS 410 / SS 304 | SS 304, SS202 | Cast Iron (CED Coated) | Cast Iron (CED Coated) |
| SS125 SERIES | Stainless Steel | SS 410/ SS 420/ SS 431 | Stainless Steel, Carbon, Cast iron | LTB-4 | SS 410 | SS 410 / SS 304 | SS 304, SS202 | Cast Iron (CED Coated) | Cast Iron (CED Coated) |
| SS150 SERIES | Stainless Steel | SS 410/ SS 420/ SS 431 | Stainless Steel, Carbon, Cast iron | LTB-4 | SS 410 | SS 410 / SS 304 | SS 304, SS202 | Cast Iron (CED Coated) | Cast Iron (CED Coated) |
| SS200 SERIES | Stainless Steel | SS 410/ SS 420/ SS 431 | Stainless Steel, Carbon, Cast iron | LTB-4 | SS 410 | SS 410 / SS 304 | SS 304, SS202 | Cast Iron (CED Coated) | Cast Iron (CED Coated) |
| SS60H SERIES | Stainless Steel | SS 410/ SS 420/ SS 431 | Stainless Steel, Carbon, Cast iron | LTB-4 | SS 410 | SS 304 | SS 304 | Cast Iron (CED Coated) | Cast Iron (CED Coated) |
| SS80H SERIES | Stainless Steel | SS 410/ SS 420/ SS 431 | Stainless Steel, Carbon, Cast iron | LTB-4 | SS 410 | SS 304 | SS 304 | Cast Iron (CED Coated) | Cast Iron (CED Coated) |
| SS100H SERIES | Stainless Steel | SS 410/ SS 420/ SS 431 | Stainless Steel, Carbon, Cast iron | LTB-4 | SS 410 | SS 304 | SS 304 | Cast Iron (CED Coated) | Cast Iron (CED Coated) |
| SS125H SERIES | Stainless Steel | SS 410/ SS 420/ SS 431 | Stainless Steel, Carbon, Cast iron | LTB-4 | SS 410 | SS 304 | SS 304 | Cast Iron (CED Coated) | Cast Iron (CED Coated) |
| SS150H SERIES | Stainless Steel | SS 410/ SS 420/ SS 431 | Stainless Steel, Carbon, Cast iron | LTB-4 | SS 410 | SS 304 | SS 304 | Cast Iron (CED Coated) | Cast Iron (CED Coated) |
| SS200H SERIES | Stainless Steel | SS 410/ SS 420/ SS 431 | Stainless Steel, Carbon, Cast iron | LTB-4 | SS 410 | SS 304 | SS 304 | Cast Iron (CED Coated) | Cast Iron (CED Coated) |
| SSK40 SERIES | Stainless Steel | SS 410/ SS 420/ SS 431 | Stainless Steel, Carbon, Cast iron | LTB-4 | SS 410 | SS 410 | Cast Iron (CED Coated) | Cast Iron (CED Coated) | Cast Iron (CED Coated) |
| SSK60 SERIES | Stainless Steel | SS 410/ SS 420/ SS 431 | Stainless Steel, Carbon, Cast iron | LTB-4 | SS 410 | SS 410 | Cast Iron (CED Coated) | Cast Iron (CED Coated) | Cast Iron (CED Coated) |
| SSK70 SERIES | Stainless Steel | SS 410/ SS 420/ SS 431 | Stainless Steel, Carbon, Cast iron | LTB-4 | SS 410 | SS 410 | Cast Iron (CED Coated) | Cast Iron (CED Coated) | Cast Iron (CED Coated) |
| SSK100 SERIES | Stainless Steel | SS 410/ SS 420/ SS 431 | Stainless Steel, Carbon, Cast iron | LTB-4 | SS 410 | SS 410 | Cast Iron (CED Coated) | Cast Iron (CED Coated) | Cast Iron (CED Coated) |
Technical Specifications
| Model Name | Power (KW) | Power (HP) | Stage | Phase | Delivery Size (Inch) | Head Range (MTR) | Discharge Range (LPM) |
|---|---|---|---|---|---|---|---|
| SS50-0306 | 2.20 | 3.00 | 6 | 1 & 3 | 2 1/2″ | 16-85 | 220-60 |
| SS50-0408 | 3.00 | 4.00 | 8 | 1 & 3 | 2 1/2″ | 21-113 | 220-60 |
| SS50-0510 | 3.70 | 5.00 | 10 | 1 & 3 | 2 1/2″ | 26-142 | 220-60 |
| SS50-0612 | 4.50 | 6.00 | 12 | 1 & 3 | 2 1/2″ | 31-170 | 220-60 |
| SS50-7515 | 5.50 | 7.50 | 15 | 1 & 3 | 2 1/2″ | 39-212 | 220-60 |
| SS50-1020 | 7.50 | 10.00 | 20 | 3 | 2 1/2″ | 52-283 | 220-60 |
| SS50-12525 | 9.30 | 12.50 | 25 | 3 | 2 1/2″ | 65-354 | 220-60 |
| SS50-1530 | 11.00 | 15.00 | 30 | 3 | 2 1/2″ | 78-425 | 220-60 |
| SS50-17535 | 13.00 | 17.50 | 35 | 3 | 2 1/2″ | 91-496 | 220-60 |
| SS50-2040 | 15.00 | 20.00 | 40 | 3 | 2 1/2″ | 104-566 | 220-60 |
| SS60-0305 | 2.20 | 3.00 | 5 | 1 & 3 | 2 1/2″ | 30-75 | 225-80 |
| SS60-0407 | 3.00 | 4.00 | 7 | 1 & 3 | 2 1/2″ | 42-105 | 225-80 |
| SS60-0508 | 3.70 | 5.00 | 8 | 1 & 3 | 2 1/2″ | 45-120 | 225-80 |
| SS60-0610 | 4.50 | 6.00 | 10 | 1 & 3 | 2 1/2″ | 60-148 | 225-80 |
| SS60-7512 | 5.50 | 7.50 | 12 | 1 & 3 | 2 1/2″ | 70-177 | 225-80 |
| SS60-1014 | 7.50 | 10.00 | 14 | 3 | 2 1/2″ | 82-207 | 225-80 |
| SS60-1015 | 7.50 | 10.00 | 15 | 3 | 2 1/2″ | 88-221 | 225-80 |
| SS60-1016 | 7.50 | 10.00 | 16 | 3 | 2 1/2″ | 95-235 | 225-80 |
| SS60-12518 | 9.30 | 12.50 | 18 | 3 | 2 1/2″ | 107-264 | 225-80 |
| SS60-12520 | 9.30 | 12.50 | 20 | 3 | 2 1/2″ | 120-290 | 225-80 |
| SS60-1522 | 11.00 | 15.00 | 22 | 3 | 2 1/2″ | 132-319 | 225-80 |
| SS60-1524 | 11.00 | 15.00 | 24 | 3 | 2 1/2″ | 140-355 | 225-80 |
| SS60-1525 | 11.00 | 15.00 | 25 | 3 | 2 1/2″ | 146-370 | 225-80 |
| SS60-17527 | 13.00 | 17.50 | 27 | 3 | 2 1/2″ | 150-395 | 225-80 |
| SS60-17528 | 13.00 | 17.50 | 28 | 3 | 2 1/2″ | 168-401 | 225-80 |
| SS60-2030 | 15.00 | 20.00 | 30 | 3 | 2 1/2″ | 180-430 | 225-80 |
| SS60-2534 | 18.50 | 25.00 | 34 | 3 | 2 1/2″ | 204-487 | 225-80 |
| SS60-3034 | 22.00 | 30.00 | 34 | 3 | 2 1/2″ | 204-487 | 225-80 |
| SS60-3036 | 22.00 | 30.00 | 36 | 3 | 2 1/2″ | 216-516 | 225-80 |
| SS80-0304 | 2.20 | 3.00 | 4 | 1 & 3 | 2 1/2″ | 20-59 | 330-150 |
| SS80-0405 | 3.00 | 4.00 | 5 | 1 & 3 | 2 1/2″ | 28-74 | 330-150 |
| SS80-0506 | 3.70 | 5.00 | 6 | 1 & 3 | 2 1/2″ | 32-88 | 330-150 |
| SS80-0608 | 4.50 | 6.00 | 8 | 1 & 3 | 2 1/2″ | 42-118 | 330-150 |
| SS80-7510 | 5.50 | 7.50 | 10 | 1 & 3 | 2 1/2″ | 55-144 | 330-150 |
| SS80-1012 | 7.50 | 10.00 | 12 | 3 | 2 1/2″ | 65-175 | 330-150 |
| SS80-12514 | 9.30 | 12.50 | 14 | 3 | 2 1/2″ | 75-196 | 330-150 |
| SS80-12515 | 9.30 | 12.50 | 15 | 3 | 2 1/2″ | 80-210 | 330-150 |
| SS80-1516 | 11.00 | 15.00 | 16 | 3 | 2 1/2″ | 93-240 | 330-150 |
| SS80-1518 | 11.00 | 15.00 | 18 | 3 | 2 1/2″ | 105-270 | 330-150 |
| SS80-17520 | 13.00 | 17.50 | 20 | 3 | 2 1/2″ | 114-295 | 330-150 |
| SS80-17521 | 13.00 | 17.50 | 21 | 3 | 2 1/2″ | 120-310 | 330-150 |
| SS80-17522 | 13.00 | 17.50 | 22 | 3 | 2 1/2″ | 128-323 | 330-150 |
| SS80-2024 | 15.00 | 20.00 | 24 | 3 | 2 1/2″ | 140-352 | 330-150 |
| SS80-2025 | 15.00 | 20.00 | 25 | 3 | 2 1/2″ | 146-366 | 330-150 |
| SS80-2528 | 18.50 | 25.00 | 28 | 3 | 2 1/2″ | 163-410 | 330-150 |
| SS80-3034 | 22.00 | 30.00 | 34 | 3 | 2 1/2″ | 198-498 | 330-150 |
| SS100-0303 | 2.20 | 3.00 | 3 | 1 & 3 | 2 1/2″ | 9-40 | 390-180 |
| SS100-0404 | 3.00 | 4.00 | 4 | 1 & 3 | 2 1/2″ | 12-55 | 390-180 |
| SS100-0505 | 3.70 | 5.00 | 5 | 1 & 3 | 2 1/2″ | 15-70 | 390-180 |
| SS100-0606 | 4.50 | 6.00 | 6 | 1 & 3 | 2 1/2″ | 18-82 | 390-180 |
| SS100-7508 | 5.50 | 7.50 | 8 | 1 & 3 | 2 1/2″ | 22-110 | 390-180 |
| SS100-1010 | 7.50 | 10.00 | 10 | 3 | 2 1/2″ | 30-135 | 390-180 |
| SS100-12512 | 9.30 | 12.50 | 12 | 3 | 2 1/2″ | 35-165 | 390-180 |
| SS100-1514 | 11.00 | 15.00 | 14 | 3 | 2 1/2″ | 39-191 | 390-180 |
| SS100-1515 | 11.00 | 15.00 | 15 | 3 | 2 1/2″ | 42-205 | 390-180 |
| SS100-17516 | 13.00 | 17.50 | 16 | 3 | 2 1/2″ | 46-222 | 390-180 |
| SS100-17518 | 13.00 | 17.50 | 18 | 3 | 2 1/2″ | 52-250 | 390-180 |
| SS100-2020 | 15.00 | 20.00 | 20 | 3 | 2 1/2″ | 60-275 | 390-180 |
| SS100-2525 | 18.50 | 25.00 | 25 | 3 | 2 1/2″ | 76-338 | 390-180 |
| SS100-3028 | 22.00 | 30.00 | 28 | 3 | 2 1/2″ | 84-378 | 390-180 |
| SS100-4036 | 30.00 | 40.00 | 36 | 3 | 2 1/2″ | 108-486 | 390-180 |
| SS125-0403 | 3.00 | 4.00 | 3 | 1 & 3 | 2 1/2″ | 8-40 | 560-250 |
| SS125-0504 | 3.70 | 5.00 | 4 | 1 & 3 | 2 1/2″ | 10-54 | 560-250 |
| SS125-0605 | 4.50 | 6.00 | 5 | 1 & 3 | 2 1/2″ | 14-68 | 560-250 |
| SS125-7506 | 5.50 | 7.50 | 6 | 1 & 3 | 2 1/2″ | 16-80 | 560-250 |
| SS125-7507 | 5.50 | 7.50 | 7 | 1 & 3 | 2 1/2″ | 21-95 | 560-250 |
| SS125-1008 | 7.50 | 10.00 | 8 | 3 | 2 1/2″ | 24-108 | 560-250 |
| SS125-12510 | 9.30 | 12.50 | 10 | 3 | 2 1/2″ | 28-135 | 560-250 |
| SS125-1512 | 11.00 | 15.00 | 12 | 3 | 2 1/2″ | 34-160 | 560-250 |
| SS125-17514 | 13.00 | 17.50 | 14 | 3 | 2 1/2″ | 40-190 | 560-250 |
| SS125-2015 | 15.00 | 20.00 | 15 | 3 | 2 1/2″ | 42-206 | 560-250 |
| SS125-2016 | 15.00 | 20.00 | 16 | 3 | 2 1/2″ | 45-220 | 560-250 |
| SS125-2520 | 18.50 | 25.00 | 20 | 3 | 2 1/2″ | 56-275 | 560-250 |
| SS125-3024 | 22.00 | 30.00 | 24 | 3 | 2 1/2″ | 68-330 | 560-250 |
| SS125-4030 | 30.00 | 40.00 | 30 | 3 | 2 1/2″ | 84-412 | 560-250 |
| SS150-0402 | 3.00 | 4.00 | 2 | 1 & 3 | 2 1/2″ | 7-27 | 590-270 |
| SS150-0503 | 3.70 | 5.00 | 3 | 1 & 3 | 2 1/2″ | 10-40 | 590-270 |
| SS150-0604 | 4.50 | 6.00 | 4 | 1 & 3 | 2 1/2″ | 15-54 | 590-270 |
| SS150-7505 | 5.50 | 7.50 | 5 | 1 & 3 | 2 1/2″ | 18-66 | 590-270 |
| SS150-1006 | 7.50 | 10.00 | 6 | 3 | 2 1/2″ | 22-79 | 590-270 |
| SS150-1007 | 7.50 | 10.00 | 7 | 3 | 2 1/2″ | 26-92 | 590-270 |
| SS150-12508 | 9.30 | 12.50 | 8 | 3 | 2 1/2″ | 30-105 | 590-270 |
| SS150-1509 | 11.00 | 15.00 | 9 | 3 | 2 1/2″ | 36-122 | 590-270 |
| SS150-1510 | 11.00 | 15.00 | 10 | 3 | 2 1/2″ | 40-135 | 590-270 |
| SS150-17512 | 13.00 | 17.50 | 12 | 3 | 2 1/2″ | 45-158 | 590-270 |
| SS150-2013 | 15.00 | 20.00 | 13 | 3 | 2 1/2″ | 50-172 | 590-270 |
| SS150-2516 | 18.50 | 25.00 | 16 | 3 | 2 1/2″ | 64-208 | 590-270 |
| SS150-3018 | 22.00 | 30.00 | 18 | 3 | 2 1/2″ | 72-234 | 590-270 |
| SS150-3020 | 22.00 | 30.00 | 20 | 3 | 2 1/2″ | 80-260 | 590-270 |
| SS150-4024 | 30.00 | 40.00 | 24 | 3 | 2 1/2″ | 96-312 | 590-270 |
| SS200-0402 | 3.00 | 4.00 | 2 | 1 & 3 | 2 1/2″ | 8-28 | 860-390 |
| SS200-0603 | 4.50 | 6.00 | 3 | 1 & 3 | 2 1/2″ | 12-42 | 860-390 |
| SS200-7504 | 5.50 | 7.50 | 4 | 1 & 3 | 2 1/2″ | 16-56 | 860-390 |
| SS200-1005 | 7.50 | 10.00 | 5 | 3 | 2 1/2″ | 20-70 | 860-390 |
| SS200-12506 | 9.30 | 12.50 | 6 | 3 | 2 1/2″ | 24-84 | 860-390 |
| SS200-1508 | 11.00 | 15.00 | 8 | 3 | 2 1/2″ | 32-112 | 860-390 |
| SS200-17509 | 13.00 | 17.50 | 9 | 3 | 2 1/2″ | 36-126 | 860-390 |
| SS200-2010 | 15.00 | 20.00 | 10 | 3 | 2 1/2″ | 40-140 | 860-390 |
| SS200-2513 | 18.50 | 25.00 | 13 | 3 | 2 1/2″ | 52-182 | 860-390 |
| SS200-3015 | 22.00 | 30.00 | 15 | 3 | 2 1/2″ | 60-210 | 860-390 |
| SS200-4018 | 30.00 | 40.00 | 18 | 3 | 2 1/2″ | 72-252 | 860-390 |
| SS200-5022 | 37.00 | 50.00 | 22 | 3 | 2 1/2″ | 88-308 | 860-390 |
| SS60H-0305 | 2.20 | 3.00 | 5 | 1 & 3 | 2 1/2″ | 15-89 | 250-60 |
| SS60H-0508 | 3.70 | 5.00 | 8 | 1 & 3 | 2 1/2″ | 24-142 | 250-60 |
| SS60H-0610 | 4.00 | 6.00 | 10 | 1 & 3 | 2 1/2″ | 30-178 | 250-60 |
| SS60H-7512 | 5.50 | 7.50 | 12 | 1 & 3 | 2 1/2″ | 36-214 | 250-60 |
| SS60H-7513 | 5.50 | 7.50 | 13 | 1 & 3 | 2 1/2″ | 39-231 | 250-60 |
| SS60H-1016 | 7.50 | 10.00 | 16 | 3 | 2 1/2″ | 48-285 | 250-60 |
| SS60H-12520 | 9.30 | 12.50 | 20 | 3 | 2 1/2″ | 60-356 | 250-60 |
| SS60H-1524 | 11.00 | 15.00 | 24 | 3 | 2 1/2″ | 72-427 | 250-60 |
| SS60H-17528 | 13.00 | 17.50 | 28 | 3 | 2 1/2″ | 84-498 | 250-60 |
| SS60H-2032 | 15.00 | 20.00 | 32 | 3 | 2 1/2″ | 96-570 | 250-60 |
| SS60H-2538 | 18.50 | 25.00 | 38 | 3 | 2 1/2″ | 114-676 | 250-60 |
| SS80H-0304 | 2.20 | 3.00 | 4 | 1 & 3 | 2 1/2″ | 8-75 | 300-65 |
| SS80H-0506 | 3.70 | 5.00 | 6 | 1 & 3 | 2 1/2″ | 12-113 | 300-65 |
| SS80H-0608 | 4.00 | 6.00 | 8 | 1 & 3 | 2 1/2″ | 16-150 | 300-65 |
| SS80H-7510 | 5.50 | 7.50 | 10 | 3 | 2 1/2″ | 20-188 | 300-65 |
| SS80H-1012 | 7.50 | 10.00 | 12 | 3 | 2 1/2″ | 24-226 | 300-65 |
| SS80H-1013 | 7.50 | 10.00 | 13 | 3 | 2 1/2″ | 26-244 | 300-65 |
| SS80H-12515 | 9.30 | 12.50 | 15 | 3 | 2 1/2″ | 30-282 | 300-65 |
| SS80H-12516 | 9.30 | 12.50 | 16 | 3 | 2 1/2″ | 32-301 | 300-65 |
| SS80H-1518 | 11.00 | 15.00 | 18 | 3 | 2 1/2″ | 36-338 | 300-65 |
| SS80H-1519 | 11.00 | 15.00 | 19 | 3 | 2 1/2″ | 38-357 | 300-65 |
| SS80H-17522 | 13.50 | 17.50 | 22 | 3 | 2 1/2″ | 44-414 | 300-65 |
| SS80H-2025 | 15.00 | 20.00 | 25 | 3 | 2 1/2″ | 50-470 | 300-65 |
| SS80H-2530 | 18.50 | 25.00 | 30 | 3 | 2 1/2″ | 60-564 | 300-65 |
| SS100H-0303 | 2.20 | 3.00 | 3 | 1 & 3 | 2 1/2″ | 8-55 | 400-80 |
| SS100H-0505 | 3.70 | 5.00 | 5 | 1 & 3 | 2 1/2″ | 13-91 | 400-80 |
| SS100H-0606 | 4.00 | 6.00 | 6 | 1 & 3 | 2 1/2″ | 15-109 | 400-80 |
| SS100H-7508 | 5.50 | 7.50 | 8 | 1 & 3 | 2 1/2″ | 20-146 | 400-80 |
| SS100H-1010 | 7.50 | 10.00 | 10 | 3 | 2 1/2″ | 25-182 | 400-80 |
| SS100H-12512 | 9.30 | 12.50 | 12 | 3 | 2 1/2″ | 30-218 | 400-80 |
| SS100H-12513 | 9.30 | 12.50 | 13 | 3 | 2 1/2″ | 33-237 | 400-80 |
| SS100H-1515 | 11.00 | 15.00 | 15 | 3 | 2 1/2″ | 38-273 | 400-80 |
| SS100H-17518 | 13.50 | 17.50 | 18 | 3 | 2 1/2″ | 45-328 | 400-80 |
| SS100H-2020 | 15.00 | 20.00 | 20 | 3 | 2 1/2″ | 50-364 | 400-80 |
| SS100H-2525 | 18.50 | 25.00 | 25 | 3 | 2 1/2″ | 63-455 | 400-80 |
| SS100H-3030 | 22.00 | 30.00 | 30 | 3 | 2 1/2″ | 75-546 | 400-80 |
| SS125H-0403 | 3.00 | 4.00 | 3 | 1 & 3 | 2 1/2″ | 10-55 | 525-125 |
| SS125H-0504 | 3.70 | 5.00 | 4 | 1 & 3 | 2 1/2″ | 13-74 | 525-125 |
| SS125H-0605 | 4.50 | 6.00 | 5 | 1 & 3 | 2 1/2″ | 16-92 | 525-125 |
| SS125H-7506 | 5.50 | 7.50 | 6 | 1 & 3 | 2 1/2″ | 20-110 | 525-125 |
| SS125H-1008 | 7.50 | 10.00 | 8 | 3 | 2 1/2″ | 26-147 | 525-125 |
| SS125H-12510 | 9.30 | 12.50 | 10 | 3 | 2 1/2″ | 33-184 | 525-125 |
| SS125H-1512 | 11.00 | 15.00 | 12 | 3 | 2 1/2″ | 39-221 | 525-125 |
| SS125H-17514 | 13.00 | 17.50 | 14 | 3 | 2 1/2″ | 46-258 | 525-125 |
| SS125H-2016 | 15.00 | 20.00 | 16 | 3 | 2 1/2″ | 52-294 | 525-125 |
| SS125H-2520 | 18.50 | 25.00 | 20 | 3 | 2 1/2″ | 65-368 | 525-125 |
| SS125H-3024 | 22.00 | 30.00 | 24 | 3 | 2 1/2″ | 78-442 | 525-125 |
| SS150H-0302 | 2.20 | 3.00 | 2 | 1 & 3 | 2 1/2″ | 2-37 | 625-170 |
| SS150H-0604 | 4.50 | 6.00 | 4 | 1 & 3 | 2 1/2″ | 6-74 | 625-170 |
| SS150H-7505 | 5.50 | 7.50 | 5 | 1 & 3 | 2 1/2″ | 10-93 | 625-170 |
| SS150H-1007 | 7.50 | 10.00 | 7 | 3 | 2 1/2″ | 14-130 | 625-170 |
| SS150H-12508 | 9.30 | 12.50 | 8 | 3 | 2 1/2″ | 16-148 | 625-170 |
| SS150H-1510 | 11.00 | 15.00 | 10 | 3 | 2 1/2″ | 20-185 | 625-170 |
| SS150H-17512 | 13.00 | 17.50 | 12 | 3 | 2 1/2″ | 24-221 | 625-170 |
| SS150H-2014 | 15.00 | 20.00 | 14 | 3 | 2 1/2″ | 28-258 | 625-170 |
| SS150H-2517 | 18.50 | 25.00 | 17 | 3 | 2 1/2″ | 34-313 | 625-170 |
| SS150H-3020 | 22.00 | 30.00 | 20 | 3 | 2 1/2″ | 40-409 | 625-170 |
| SS200H-0603 | 4.50 | 6.00 | 3 | 1 & 3 | 2 1/2″ | 3-53 | 800-140 |
| SS200H-7504 | 5.50 | 7.50 | 4 | 1 & 3 | 2 1/2″ | 4-71 | 800-140 |
| SS200H-1005 | 7.50 | 10.00 | 5 | 1 & 3 | 2 1/2″ | 5-89 | 800-140 |
| SS200H-12506 | 9.30 | 12.50 | 6 | 3 | 2 1/2″ | 6-107 | 800-140 |
| SS200H-1507 | 11.00 | 15.00 | 7 | 3 | 2 1/2″ | 7-125 | 800-140 |
| SS200H-1508 | 11.00 | 15.00 | 8 | 3 | 2 1/2″ | 8-142 | 800-140 |
| SS200H-17509 | 13.00 | 17.50 | 9 | 3 | 2 1/2″ | 9-160 | 800-140 |
| SS200H-2010 | 15.00 | 20.00 | 10 | 3 | 2 1/2″ | 10-178 | 800-140 |
| SS200H-2512 | 18.50 | 25.00 | 12 | 3 | 2 1/2″ | 12-214 | 800-140 |
| SS200H-2513 | 18.50 | 25.00 | 13 | 3 | 2 1/2″ | 13-231 | 800-140 |
| SS200H-3015 | 22.00 | 30.00 | 15 | 3 | 2 1/2″ | 15-267 | 800-140 |
| SSK40N-0306 | 2.20 | 3.00 | 6 | 1 & 3 | 2″ | 4-58 | 280-40 |
| SSK40N-0307 | 2.20 | 3.00 | 7 | 1 & 3 | 2″ | 5-67 | 280-40 |
| SSK40N-0308 | 2.20 | 3.00 | 8 | 1 & 3 | 2″ | 6-77 | 280-40 |
| SSK40N-0410 | 3.00 | 4.00 | 10 | 1 & 3 | 2″ | 7-96 | 280-40 |
| SSK40N-0512 | 3.70 | 5.00 | 12 | 1 & 3 | 2″ | 8-115 | 280-40 |
| SSK40N-0614 | 4.50 | 6.00 | 14 | 1 & 3 | 2″ | 12-135 | 280-40 |
| SSK40N-0615 | 4.50 | 6.00 | 15 | 1 & 3 | 2″ | 13-145 | 280-40 |
| SSK40N-7518 | 5.50 | 7.50 | 18 | 1 & 3 | 2″ | 15-174 | 280-40 |
| SSK40N-7520 | 5.50 | 7.50 | 20 | 1 & 3 | 2″ | 17-193 | 280-40 |
| SSK40N-1022 | 7.50 | 10.00 | 22 | 3 | 2″ | 18-212 | 280-40 |
| SSK40N-1024 | 7.50 | 10.00 | 24 | 3 | 2″ | 20-232 | 280-40 |
| SSK40N-1025 | 7.50 | 10.00 | 25 | 3 | 2″ | 21-241 | 280-40 |
| SSK40-12528 | 9.30 | 12.50 | 28 | 3 | 2″ | 23-270 | 280-40 |
| SSK40-12530 | 9.30 | 12.50 | 30 | 3 | 2″ | 25-290 | 280-40 |
| SSK60N-0305 | 2.20 | 3.00 | 5 | 1 & 3 | 2″ | 14-49 | 360-65 |
| SSK60N-0406 | 3.00 | 4.00 | 6 | 1 & 3 | 2″ | 17-59 | 360-65 |
| SSK60N-0407 | 3.00 | 4.00 | 7 | 1 & 3 | 2″ | 19-69 | 360-65 |
| SSK60N-0508 | 3.70 | 5.00 | 8 | 1 & 3 | 2″ | 22-78 | 360-65 |
| SSK60N-0610 | 4.50 | 6.00 | 10 | 1 & 3 | 2″ | 28-98 | 360-65 |
| SSK60N-7512 | 5.50 | 7.50 | 12 | 1 & 3 | 2″ | 33-118 | 360-65 |
| SSK60N-1015 | 7.50 | 10.00 | 15 | 3 | 2″ | 41-147 | 360-65 |
| SSK60N-1016 | 7.50 | 10.00 | 16 | 3 | 2″ | 44-157 | 360-65 |
| SSK60-12518 | 9.30 | 12.50 | 18 | 3 | 2″ | 50-177 | 360-65 |
| SSK60-12520 | 9.30 | 12.50 | 20 | 3 | 2″ | 55-196 | 360-65 |
| SSK60-1522 | 11.00 | 15.00 | 22 | 3 | 2″ | 61-216 | 360-65 |
| SSK60-1524 | 11.00 | 15.00 | 24 | 3 | 2″ | 66-236 | 360-65 |
| SSK60-1525 | 11.00 | 15.00 | 25 | 3 | 2″ | 69-245 | 360-65 |
| SSK60-17526 | 13.00 | 17.50 | 26 | 3 | 2″ | 72-255 | 360-65 |
| SSK60-17528 | 13.00 | 17.50 | 28 | 3 | 2″ | 77-275 | 360-65 |
| SSK60-2030 | 15.00 | 20.00 | 30 | 3 | 2″ | 83-294 | 360-65 |
| SSK70N-0304 | 2.20 | 3.00 | 4 | 1 & 3 | 2″ | 7-38 | 420-80 |
| SSK70N-0405 | 3.00 | 4.00 | 5 | 1 & 3 | 2″ | 9-48 | 420-80 |
| SSK70N-0406 | 3.00 | 4.00 | 6 | 1 & 3 | 2″ | 11-57 | 420-80 |
| SSK70N-0507 | 3.70 | 5.00 | 7 | 1 & 3 | 2″ | 12-67 | 420-80 |
| SSK70N-0608 | 4.50 | 6.00 | 8 | 1 & 3 | 2″ | 14-76 | 420-80 |
| SSK70N-7510 | 5.50 | 7.50 | 10 | 1 & 3 | 2″ | 18-95 | 420-80 |
| SSK70N-1012 | 7.50 | 10.00 | 12 | 3 | 2″ | 21-114 | 420-80 |
| SSK70N-1014 | 7.50 | 10.00 | 14 | 3 | 2″ | 25-133 | 420-80 |
| SSK70-1016 | 7.50 | 10.00 | 16 | 3 | 2″ | 29-152 | 420-80 |
| SSK70-12518 | 9.30 | 12.50 | 18 | 3 | 2″ | 32-171 | 420-80 |
| SSK70-1520 | 11.00 | 15.00 | 20 | 3 | 2″ | 36-190 | 420-80 |
| SSK70-17522 | 13.00 | 17.50 | 22 | 3 | 2″ | 39-209 | 420-80 |
| SSK70-17524 | 13.00 | 17.50 | 24 | 3 | 2″ | 43-228 | 420-80 |
| SSK70-17525 | 13.00 | 17.50 | 25 | 3 | 2″ | 45-238 | 420-80 |
| SSK70-2026 | 15.00 | 20.00 | 26 | 3 | 2″ | 46-247 | 420-80 |
| SSK70-2028 | 15.00 | 20.00 | 28 | 3 | 2″ | 50-266 | 420-80 |
| SSK100N-0303 | 2.20 | 3.00 | 3 | 1 & 3 | 2″ | 4-32 | 525-75 |
| SSK100N-0404 | 3.00 | 4.00 | 4 | 1 & 3 | 2″ | 5-43 | 525-75 |
| SSK100N-0505 | 3.70 | 5.00 | 5 | 1 & 3 | 2″ | 6-54 | 525-75 |
| SSK100N-0606 | 4.50 | 6.00 | 6 | 1 & 3 | 2″ | 7-65 | 525-75 |
| SSK100N-7507 | 5.50 | 7.50 | 7 | 1 & 3 | 2″ | 8-76 | 525-75 |
| SSK100N-7508 | 5.50 | 7.50 | 8 | 1 & 3 | 2″ | 10-86 | 525-75 |
| SSK100N-1010 | 7.50 | 10.00 | 10 | 3 | 2″ | 12-108 | 525-75 |
| SSK100-12512 | 9.30 | 12.50 | 12 | 3 | 2″ | 14-130 | 525-75 |
| SSK100-1514 | 11.00 | 15.00 | 14 | 3 | 2″ | 17-151 | 525-75 |
| SSK100-1515 | 11.00 | 15.00 | 15 | 3 | 2″ | 18-162 | 525-75 |
| SSK100-17518 | 13.00 | 17.50 | 18 | 3 | 2″ | 22-194 | 525-75 |
| SSK100-2020 | 15.00 | 20.00 | 20 | 3 | 2″ | 24-216 | 525-75 |
Related products
-
Nova Plus
Read more -
Vikrant
Read more -
Victor
Read more -
Vertical Submersible Openwell Pumpset
Read more -
Yuva Plus
Read more -
Hathi
Read more -
Trendy
Read more -
Mizu
Read more -
Horizontal Submersible Openwell Pumps
Read more -
Major
Read more -
Boss
Read more -
Self Priming Bare Mud Pump for Engine Coupled
Read more -
Self Priming Monoblock Mud Pump
Read more -
Power
Read more -
Prince Plus
Read more -
Bulbul
Read more -
Centrifugal Monoblock Pumpset
Read more -
Submersible Sewage Pumps
Read more
