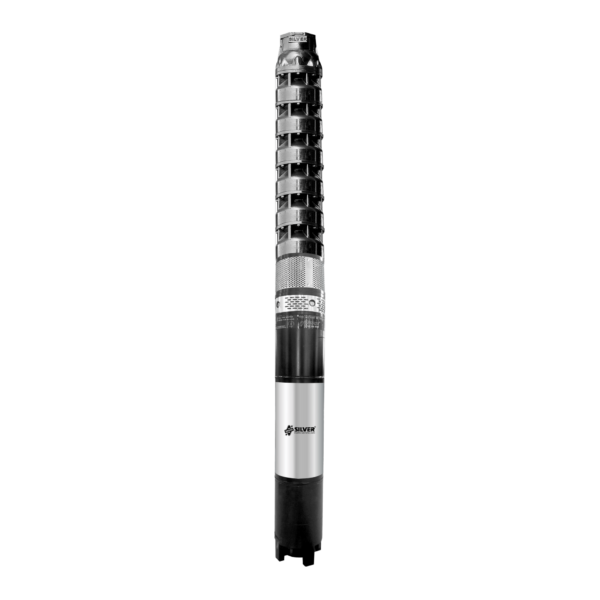

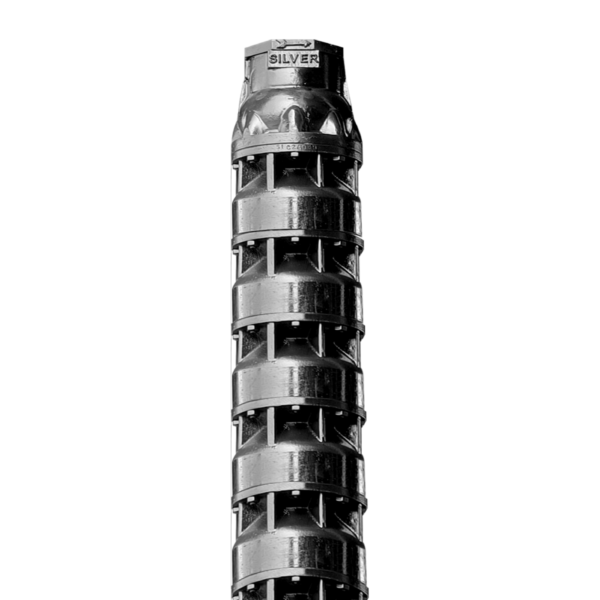

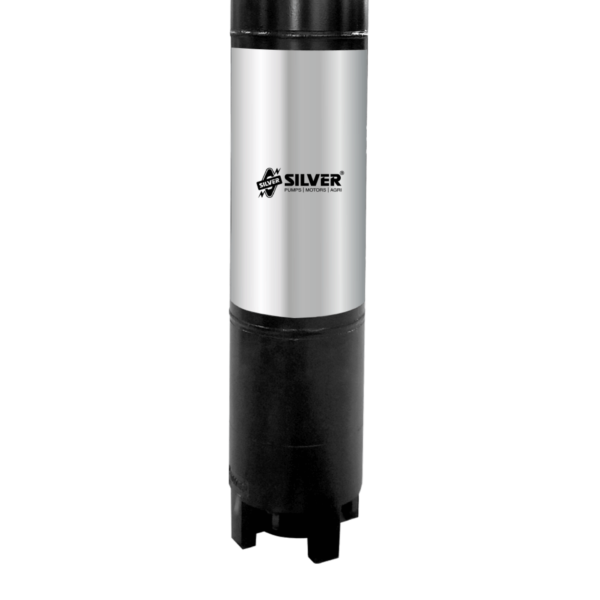

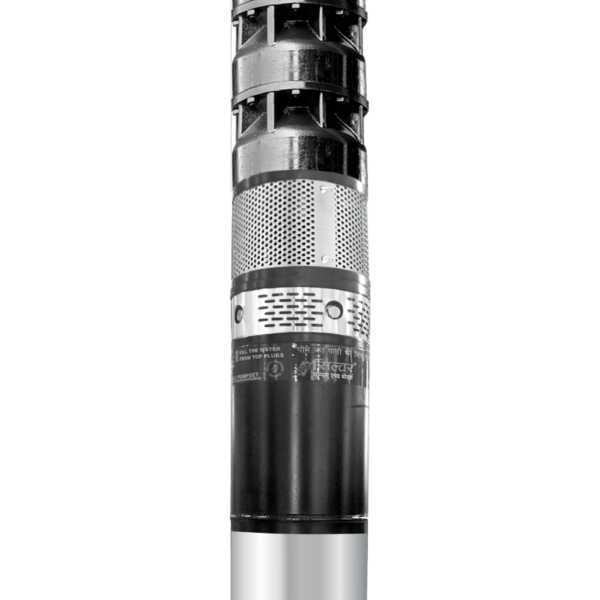

8″ Water filled Cast Iron Type Mixed Flow Submersible Pump Sets

  • High Efficiency and energy Saving Design
  • Wide Voltage Range
  • Designed To Prevent Overloading
  • Dynamically Balanced Rotating Parts
  • Low Power Consumption and Less Operating Cost
  • Longer And Trouble Free Life
  • Reliable Non-Return Valve so reduce Friction Loss
  • All Parts are Dual Coated
  • All Parts Machining Precisly
  • Easy Maintainable Designs

Specifications

Model Name Motor Rating Delivery Size Bore Size Head Range Discharge Range Power Supply Direction of Rotation Liquid Temperature Pumped Liquids
SSQ883 SERIES 7.50 – 30.00 kW (10.00 – 40.00 HP) – 3 PHASE 4” 200 MM Up to 252 meters Up to 1075 LPM 350V TO 440V – (3 PHASE) Anti-Clockwise Observed When viewed from Top side Maximum 45 °C Clear Clean, Thin, Non-Aggressive, Non-Explosive, Clear, Cold Water Without Abrasive And Solid Particle Cold Water.
SSQ8835 SERIES 11.00 – 33.30 kW (15.00 – 45.00 HP) – 3 PHASE 4” 200 MM Up to 240 meters Up to 1300 LPM 350V TO 440V – (3 PHASE) Anti-Clockwise Observed When viewed from Top side Maximum 45 °C Clear Clean, Thin, Non-Aggressive, Non-Explosive, Clear, Cold Water Without Abrasive And Solid Particle Cold Water.
SSQ884 SERIES 9.30 – 37.00 kW (12.50 – 50.00 HP) – 3 PHASE 4” 200 MM Up to 264 meters Up to 1400 LPM 350V TO 440V – (3 PHASE) Anti-Clockwise Observed When viewed from Top side Maximum 45 °C Clear Clean, Thin, Non-Aggressive, Non-Explosive, Clear, Cold Water Without Abrasive And Solid Particle Cold Water.
SSQ885 SERIES 7.50 – 45.00 kW (10.00 – 60.00 HP) – 3 PHASE 4” 200 MM Up to 288 meters Up to 1500 LPM 350V TO 440V – (3 PHASE) Anti-Clockwise Observed When viewed from Top side Maximum 45 °C Clear Clean, Thin, Non-Aggressive, Non-Explosive, Clear, Cold Water Without Abrasive And Solid Particle Cold Water.
SSQ886 SERIES 9.30 – 60.00 kW (12.50 – 80.00 HP) – 3 PHASE 4” 200 MM Up to 288 meters Up to 1600 LPM 350V TO 440V – (3 PHASE) Anti-Clockwise Observed When viewed from Top side Maximum 45 °C Clear Clean, Thin, Non-Aggressive, Non-Explosive, Clear, Cold Water Without Abrasive And Solid Particle Cold Water.
SSQ887 SERIES 11.00 – 67.00 kW (15.00 – 90.00 HP) – 3 PHASE 4” 200 MM Up to 288 meters Up to 1750 LPM 350V TO 440V – (3 PHASE) Anti-Clockwise Observed When viewed from Top side Maximum 45 °C Clear Clean, Thin, Non-Aggressive, Non-Explosive, Clear, Cold Water Without Abrasive And Solid Particle Cold Water.
SSQ888 SERIES 11.00 – 75.00 kW (15.00 – 100.00 HP) – 3 PHASE 4” 200 MM Up to 252 meters Up to 2000 LPM 350V TO 440V – (3 PHASE) Anti-Clockwise Observed When viewed from Top side Maximum 45 °C Clear Clean, Thin, Non-Aggressive, Non-Explosive, Clear, Cold Water Without Abrasive And Solid Particle Cold Water.
SSQ8810 SERIES 7.50 – 75.00 kW (10.00 – 100.00 HP) – 3 PHASE 4” 200 MM Up to 220 meters Up to 2200 LPM 350V TO 440V – (3 PHASE) Anti-Clockwise Observed When viewed from Top side Maximum 45 °C Clear Clean, Thin, Non-Aggressive, Non-Explosive, Clear, Cold Water Without Abrasive And Solid Particle Cold Water.

MOC

Model Name Motor Body Motor Shaft Thrust Bearing Motor Bushes Pump Shaft Impeller Diffuser NRV Suction
SSQ883 SERIES Stainless Steel SS 410 Stainless Steel, Carbon, Cast iron LTB-4 SS 410 SS 410 Cast Iron Cast Iron (CED Coated) Cast Iron (CED Coated)
SSQ8835 SERIES Stainless Steel SS 410 Stainless Steel, Carbon, Cast iron LTB-4 SS 410 SS 410 Cast Iron Cast Iron (CED Coated) Cast Iron (CED Coated)
SSQ884 SERIES Stainless Steel SS 410 Stainless Steel, Carbon, Cast iron LTB-4 SS 410 SS 410 Cast Iron Cast Iron (CED Coated) Cast Iron (CED Coated)
SSQ885 SERIES Stainless Steel SS 410 Stainless Steel, Carbon, Cast iron LTB-4 SS 410 SS 410 Cast Iron Cast Iron (CED Coated) Cast Iron (CED Coated)
SSQ886 SERIES Stainless Steel SS 410 Stainless Steel, Carbon, Cast iron LTB-4 SS 410 SS 410 Cast Iron Cast Iron (CED Coated) Cast Iron (CED Coated)
SSQ887 SERIES Stainless Steel SS 410 Stainless Steel, Carbon, Cast iron LTB-4 SS 410 SS 410 Cast Iron Cast Iron (CED Coated) Cast Iron (CED Coated)
SSQ888 SERIES Stainless Steel SS 410 Stainless Steel, Carbon, Cast iron LTB-4 SS 410 SS 410 Cast Iron Cast Iron (CED Coated) Cast Iron (CED Coated)
SSQ8810 SERIES Stainless Steel SS 410 Stainless Steel, Carbon, Cast iron LTB-4 SS 410 SS 410 Cast Iron Cast Iron (CED Coated) Cast Iron (CED Coated)

Technical Specifications

Model Name Power (KW) Power (HP) Stage Delivery Size (Inch) Head Range (MTR) Discharge Range (LPM)
SSQ883-1003 7.50 10.00 3 4″ 30-60 1075-200
SSQ883-12504 9.30 12.50 4 4″ 40-80 1075-200
SSQ883-1505 11.00 15.00 5 4″ 50-100 1075-200
SSQ883-17506 13.00 17.50 6 4″ 60-120 1075-200
SSQ883-2007 15.00 20.00 7 4″ 70-140 1075-200
SSQ883-2508 18.50 25.00 8 4″ 80-160 1075-200
SSQ883-3009 22.00 30.00 9 4″ 90-180 1075-200
SSQ883-3010 22.00 30.00 10 4″ 100-120 1075-200
SSQ883-3511 26.00 35.00 11 4″ 110-220 1075-200
SSQ883-4012 30.00 40.00 12 4″ 120-240 1075-200
SSQ8835-1504 11.00 15.00 4 4″ 40-76 1300-400
SSQ8835-17505 13.00 17.50 5 4″ 50-95 1300-400
SSQ8835-2006 15.00 20.00 6 4″ 60-114 1300-400
SSQ8835-2507 18.50 25.00 7 4″ 70-133 1300-400
SSQ8835-3008 22.00 30.00 8 4″ 80-152 1300-400
SSQ8835-3509 26.00 35.00 9 4″ 90-171 1300-400
SSQ8835-3510 26.00 35.00 10 4″ 100-190 1300-400
SSQ8835-4011 30.00 40.00 11 4″ 110-209 1300-400
SSQ8835-4512 33.30 45.00 12 4″ 120-228 1300-400
SSQ884-12503 9.30 12.50 3 4″ 29-60 1400-600
SSQ884-17504 13.00 17.50 4 4″ 38-80 1400-600
SSQ884-2005 15.00 20.00 5 4″ 48-100 1400-600
SSQ884-2506 18.50 25.00 6 4″ 57-120 1400-600
SSQ884-3007 22.20 30.00 7 4″ 67-140 1400-600
SSQ884-3508 26.00 35.00 8 4″ 76-160 1400-600
SSQ884-4009 30.00 40.00 9 4″ 86-180 1400-600
SSQ884-4010 30.00 40.00 10 4″ 95-200 1400-600
SSQ884-4511 33.30 45.00 11 4″ 105-220 1400-600
SSQ884-5012 37.00 50.00 12 4″ 114-240 1400-600
SSQ885-1002 7.50 10.00 2 4″ 20-44 1500-450
SSQ885-1503 11.00 15.00 3 4″ 30-66 1500-450
SSQ885-2004 15.00 20.00 4 4″ 40-88 1500-450
SSQ885-2505 18.50 25.00 5 4″ 50-110 1500-450
SSQ885-3006 22.00 30.00 6 4″ 60-132 1500-450
SSQ885-3507 26.00 35.00 7 4″ 70-154 1500-450
SSQ885-4008 30.00 40.00 8 4″ 80-176 1500-450
SSQ885-4509 33.30 45.00 9 4″ 90-198 1500-450
SSQ885-5010 37.00 50.00 10 4″ 100-220 1500-450
SSQ885-5511 41.00 55.00 11 4″ 110-240 1500-450
SSQ885-6012 45.00 60.00 12 4″ 120-264 1500-450
SSQ886-12502 9.30 12.50 2 4″ 20-44 1600-600
SSQ886-17503 13.00 17.50 3 4″ 30-66 1600-600
SSQ886-2504 18.50 25.00 4 4″ 40-88 1600-600
SSQ886-3005 22.00 30.00 5 4″ 50-110 1600-600
SSQ886-3506 26.00 35.00 6 4″ 60-132 1600-600
SSQ886-4007 30.00 40.00 7 4″ 70-154 1600-600
SSQ886-5008 37.00 50.00 8 4″ 80-176 1600-600
SSQ886-5509 41.00 55.00 9 4″ 90-198 1600-600
SSQ886-6010 45.00 60.00 10 4″ 100-220 1600-600
SSQ886-7511 55.00 75.00 11 4″ 110-240 1600-600
SSQ886-8012 60.00 80.00 12 4″ 120-264 1600-600
SSQ887-1502 11.00 15.00 2 4″ 20-44 1750-700
SSQ887-2003 15.00 20.00 3 4″ 30-66 1750-700
SSQ887-3004 22.00 30.00 4 4″ 40-88 1750-700
SSQ887-3505 26.00 35.00 5 4″ 50-110 1750-700
SSQ887-4506 33.30 45.00 6 4″ 60-132 1750-700
SSQ887-5007 37.00 50.00 7 4″ 70-154 1750-700
SSQ887-5508 41.00 55.00 8 4″ 80-176 1750-700
SSQ887-6009 45.00 60.00 9 4″ 90-198 1750-700
SSQ887-7510 55.00 75.00 10 4″ 100-220 1750-700
SSQ887-8011 60.00 80.00 11 4″ 110-242 1750-700
SSQ887-9012 67.00 90.00 12 4″ 120-264 1750-700
SSQ888-1502 11.00 15.00 2 4″ 16-40 2000-800
SSQ888-2503 18.50 25.00 3 4″ 24-60 2000-800
SSQ888-3004 22.00 30.00 4 4″ 32-80 2000-800
SSQ888-4005 30.00 40.00 5 4″ 40-100 2000-800
SSQ888-5006 37.00 50.00 6 4″ 48-120 2000-800
SSQ888-6007 45.00 60.00 7 4″ 56-140 2000-800
SSQ888-7508 55.00 75.00 8 4″ 64-160 2000-800
SSQ888-7509 55.00 75.00 9 4″ 72-180 2000-800
SSQ888-8010 60.00 80.00 10 4″ 80-200 2000-800
SSQ888-9011 67.00 90.00 11 4″ 88-220 2000-800
SSQ888-10012 75.00 100.00 12 4″ 96-240 2000-800
SSQ8810-1001 7.50 10.00 1 4″ 8-21 2200-1000
SSQ8810-2002 15.00 20.00 2 4″ 16-42 2200-1000
SSQ8810-3003 22.00 30.00 3 4″ 24-63 2200-1000
SSQ8810-4004 30.00 40.00 4 4″ 32-84 2200-1000
SSQ8810-5005 37.00 50.00 5 4″ 40-105 2200-1000
SSQ8810-6006 45.00 60.00 6 4″ 48-126 2200-1000
SSQ8810-7507 55.00 75.00 7 4″ 56-147 2200-1000
SSQ8810-8008 60.00 80.00 8 4″ 64-168 2200-1000
SSQ8810-9009 67.00 90.00 9 4″ 72-189 2200-1000
SSQ8810-10010 75.00 100.00 10 4″ 80-210 2200-1000
