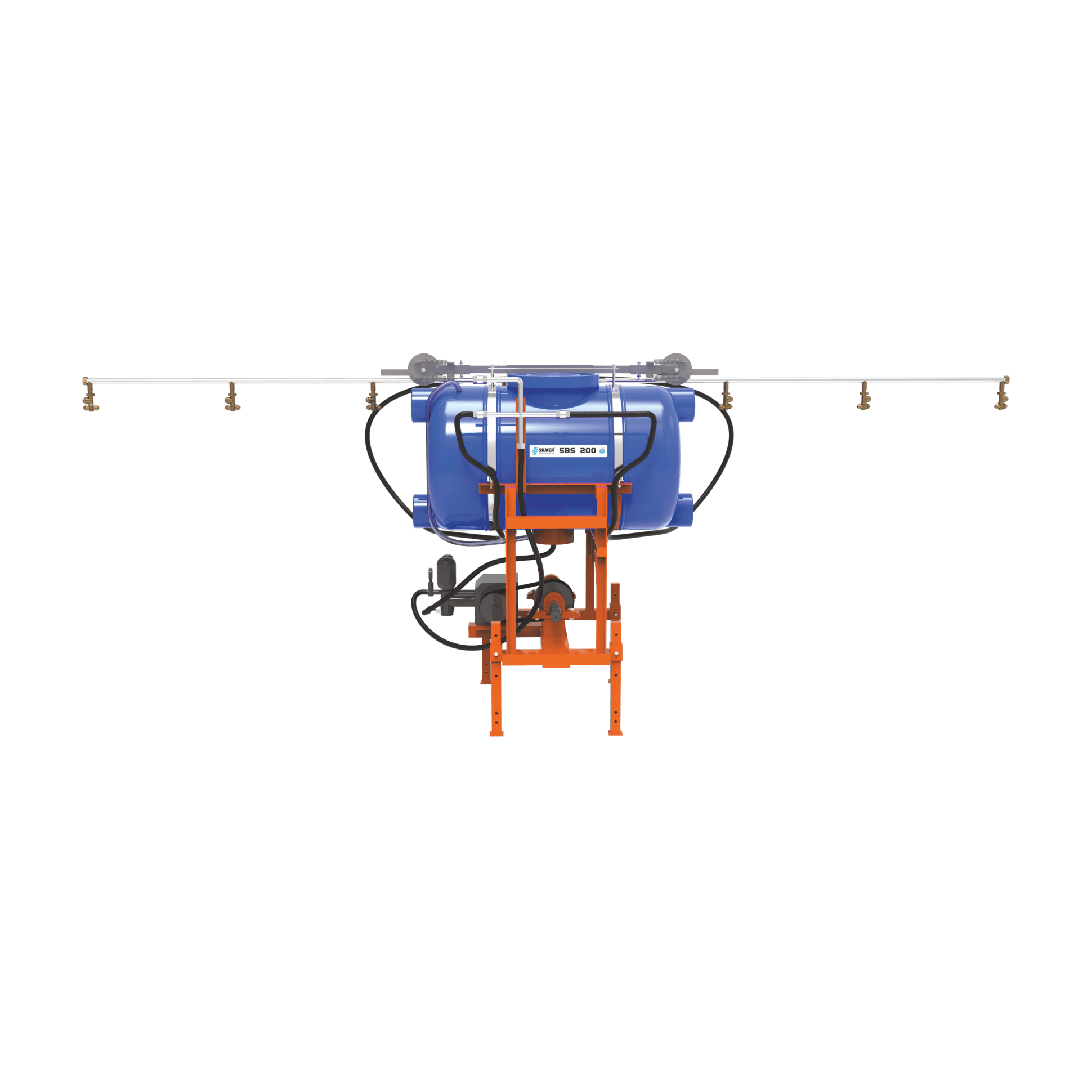

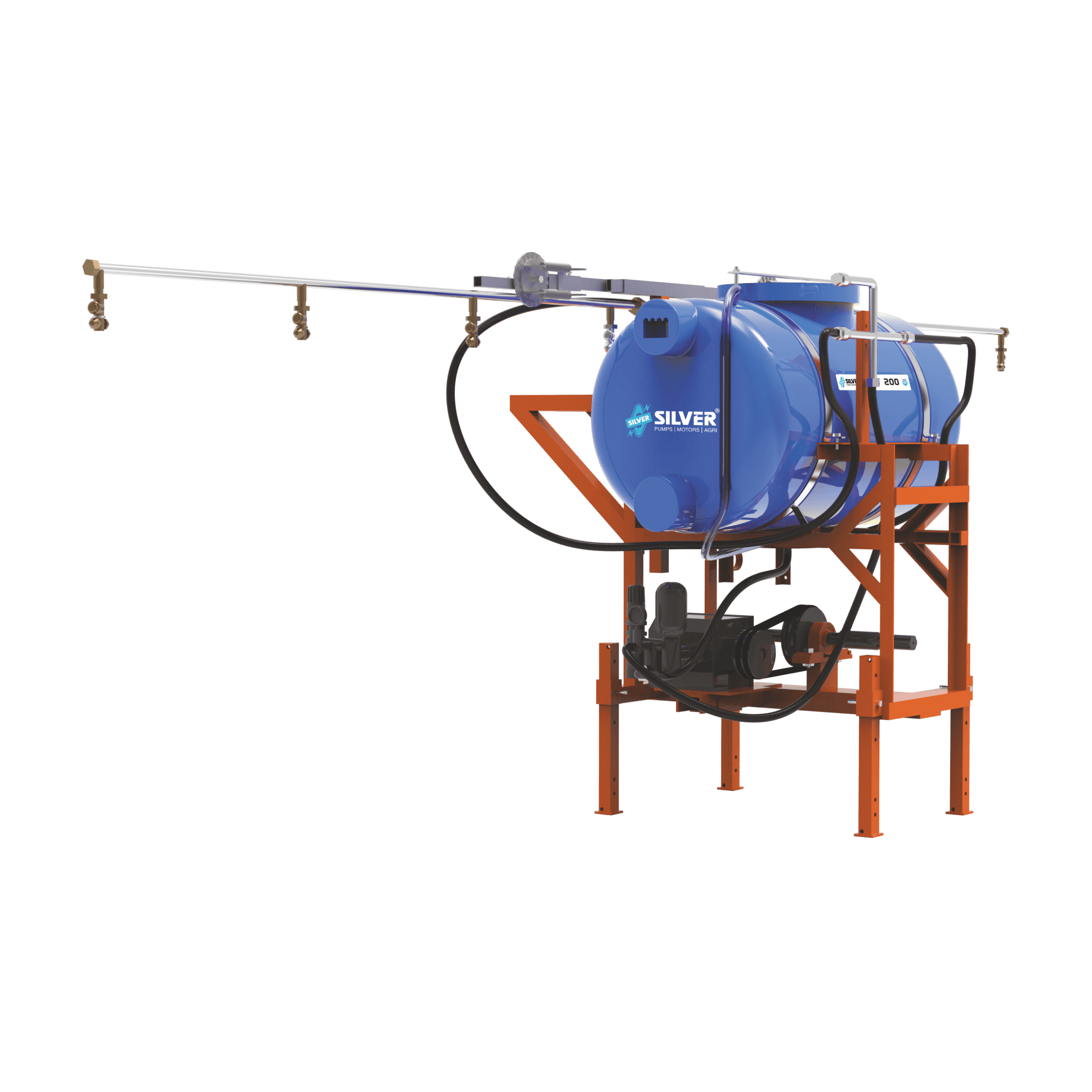

Boom Sprayer

Features

  • Can be used for all types of ground crops like Cereals, Pulses, Oil Seeds, Cash Crops, Vegetables, Orchard Gardens, Pomegranates gardens. Useful in playhouses also.
  • Provides uniform coverage and gives best crop protection.
  • Saves Time, Labor and Reduce the wastage of pesticides.
  • Stainless steel spray tubes prevent corrosion & offer long life.
  • High air output with perfect air balancing at both side with lowest power consumption.
  • 3 axis toe bar – Best for operations in low spacing vineyards

Technical Specifications

Description SILVER 400 BS
Tractor Power (HP) 40+
PTO RPM 540
Three Point Hitch Cat II
Weight (Kg/lbs) 302/666
Main Frame Size (mm) 1250x840x1100
Chemical Tank (Ltr./gal) 400/88
Circuit Cleaning Tank (Ltr./gal) 40/8.8
Small Tank (Hand Wash)(Ltr./gal) NA
Boom Structure (m) 12
Fold Condition (mm) 2640
Semi Fold Condition (mm) 7100
Spray Width (mm) 12360
Boom Division 5
Nozzle Type 2 Way (Brass)
Nozzle Disc Hollow cone (0.8 & HCL 60)
Disc Pressure (Bar) Hollow cone 7-20
Disc Pressure (Bar) Flat Fan 3-10
Number of Nozzles 24 (5+5+4+5+5)
Distance between Nozzle (mm) 500
Diaphragm Pump Specs RPM 550
Diaphragm Pump Specs Flow (lpm/gpm) 54/12
Diaphragm Pump Specs Weight (Kg/lbs) 11/24
Controller (PRV) Flow (lpm/gpm) 90/20
Controller (PRV) Weight (Kg/lbs) 1.6/3.5
Shut off Valve 1 1/2 BSP Falling capacity 100-160 lpm 22-35 gpm
Suction Filter 1 1/2 BSP with valve release knob
Spraying Height Max. (mm) 750
Hardware Stainless Steel
Structure MS Frame
Paint Galvanize with CED coating
Boom Adjustment Height (mm) 50-1200 (with support of winch mechanism)
Safety Kit Goggle/Mask/Apron/Gloves
