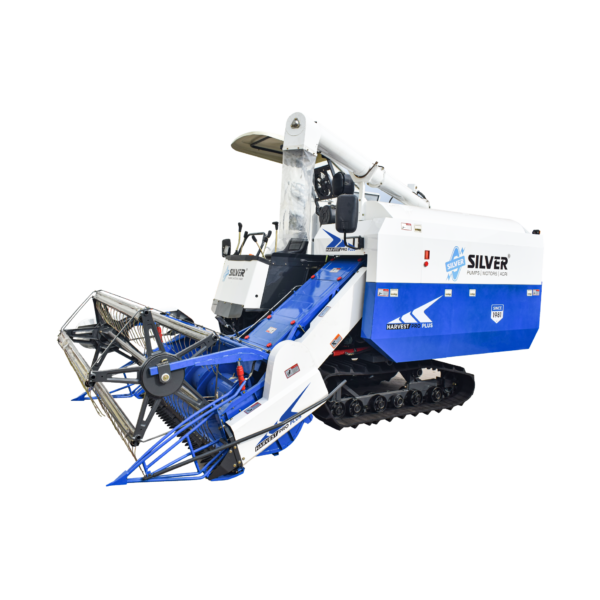

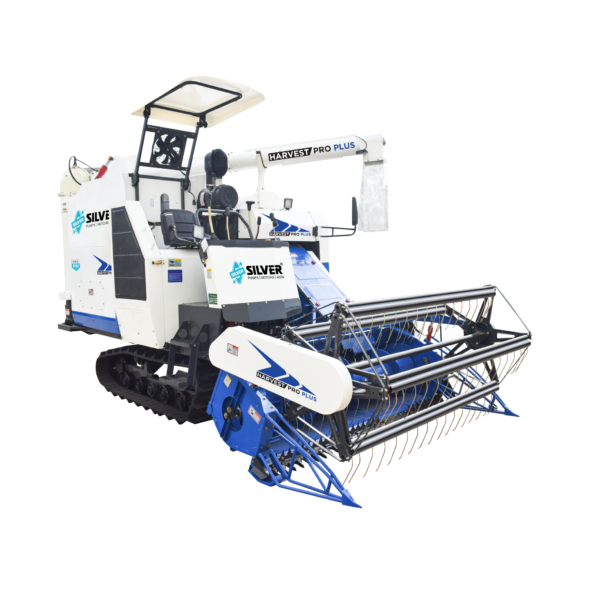

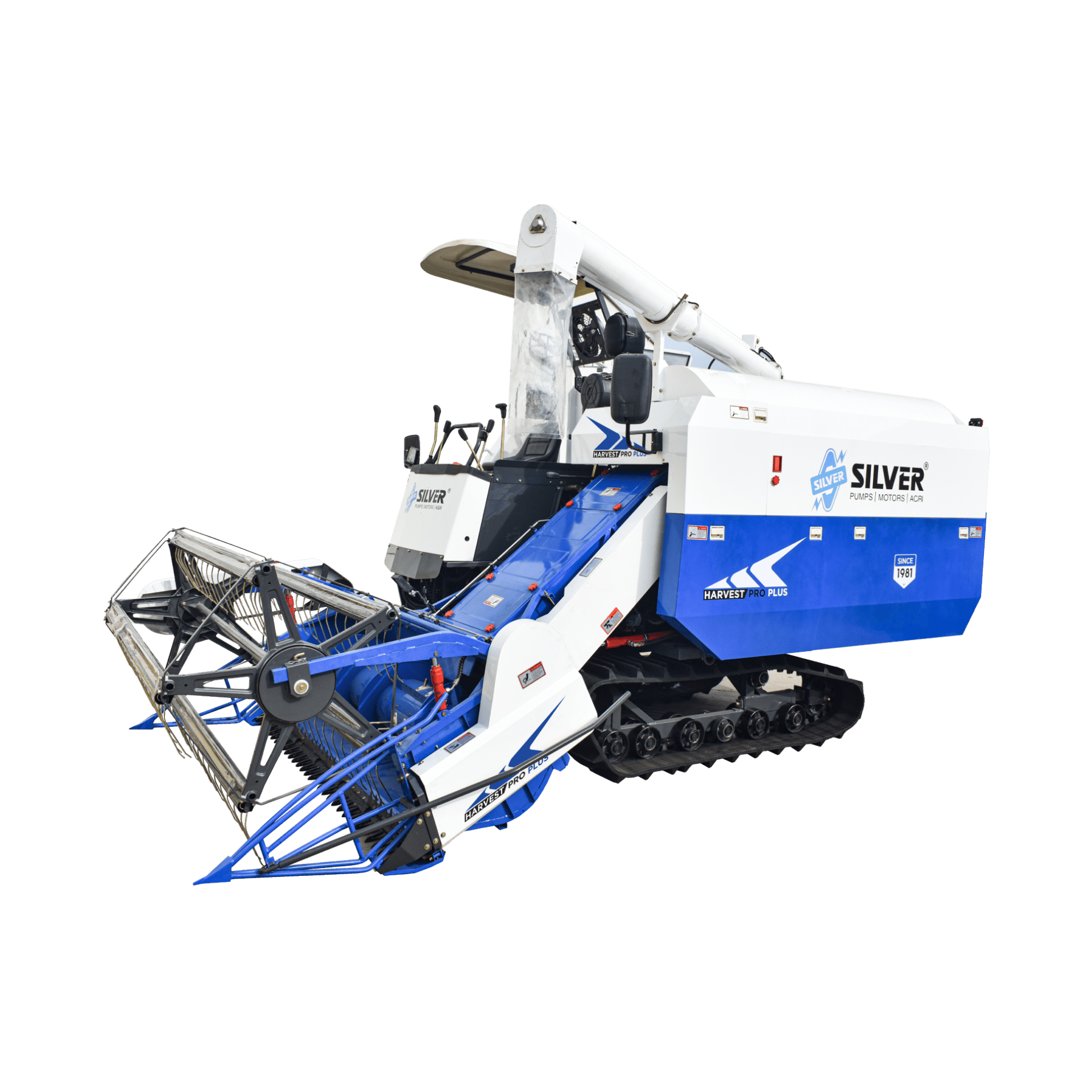

Combine Harvester Harvest Pro Plus 100 Hp

  • Best in class acreage per hour
  • Best in class cleaning efficiency
  • Fastest payback period

Technical Specifications

ITEM UNIT SPECIFICATION
Machine type Self-Propelled, Vertical Axis Flow Full Feeding Rubber Track Type
Engine Type 4-Cylinder, Vertical Engine, Water Cooled, DI-Injection, Turbocharged Engine
Model 4D35ZT
Rated Power hp 100
Rotating Speed r/min 2400
Dimension (L*W*H): Working State mm 5670*2560*2950
Weight kg 3460
Cutting Width mm 2180
Feeding Capacity kg/s 6
Minimum Ground Clearance mm 320
Operation Speed km/h 1.8 – 5.3
Productivity Hect/hr Appx 0.65

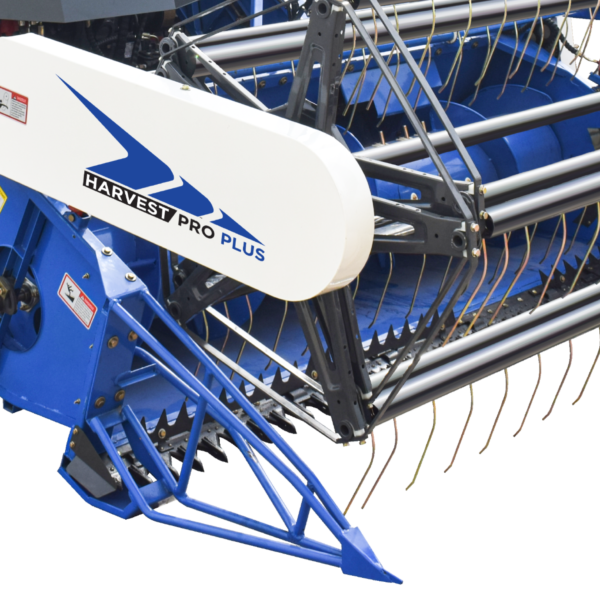

Cutting Header Auger Type Telescopic Transverse Conveyor Auger
Reel Type Eccentric Tooth (off center)
Diameter mm ∮1000
Quantity pc 5
Threshing Roller Quantity pc 1
Type Vertical Axis Flow Spike Tooth
External (D*L) mm ∮620*2200
Concave Sieve Type Grid
Brake Type Wet Friction Plate
Fan Type Centrifugal
Diameter mm ∮346
Quantity pc 1
Rubber Crawler Size 500mm*90mm*53
Track Gauge mm 1250
Gear Box Hydraulic Stepless Speed Transmission (HST)
Re-thresher Type Auger Spike Tooth
Grain Unloading Type 360-Degrees Grain Unloading Tube
Grain Tank Size m³ 1.6
Fuel Tank ltrs 200
