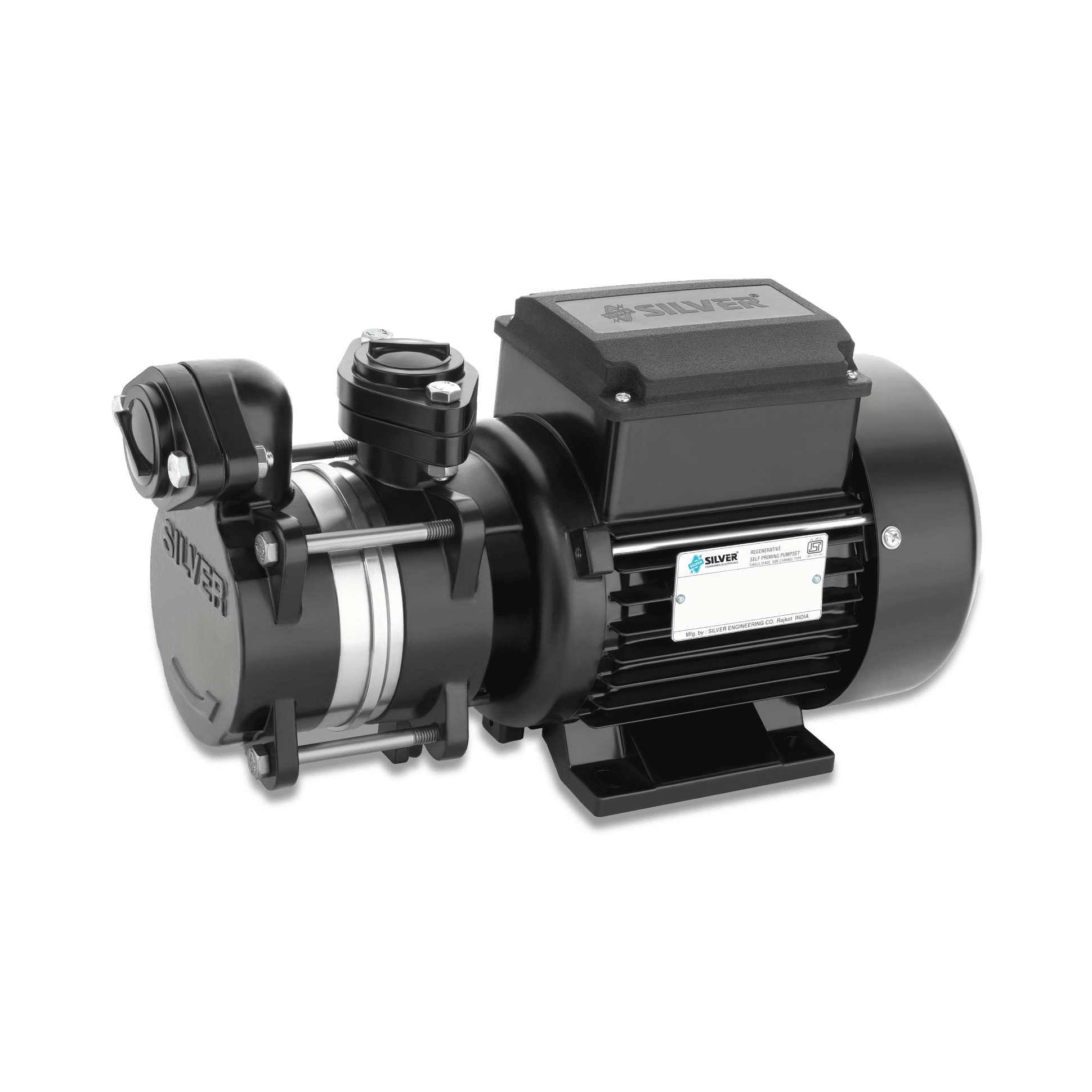

Delux

Features

  • High Efficiency and energy Saving Design
  • Wide Voltage Range
  • Fitted with Thermal Overload Protector (TOP).
  • High Suction Capacity
  • Superior Mechanical Seal for longer life
  • Anti-friction ball bearings
  • Forged Brass Impeller
  • All Parts Machining Precisly
  • Totally Enclosed Fan Cooled (TEFC) construction resists dust, moisture.
  • CED Coated Pump Parts
  • Batter Insulating Material
  • Easy Maintainable Design
  • Light Weight and Compact Design

Specifications

Suction Lift  Upto 8 meters
Motor Rating  0.09 – 1.10 kW (0.12 – 1.50 HP)
Pipe Size  1/2″ x 1/2″ & 1″ X 1″
Head Range  Up to 60 meters
Discharge Range Up to 4400 LPH
Voltage Range  180 to 250 Volt

MOC

Motor Body Cast iron
Impeller Gun Metal / Brass
Casing SS-304 / Gun Metal
Suction / Delivery Chamber Cast Iron (CED Coated)
Shaft SS 410
Mechanical Seal Ceramic/Carbon/NBR
Cover NDE Cast Iron

Technical Specifications

Model Name Power (KW) Power (HP) Phase Pipe Sizesuc X Del (Inch) Head Range (MTR) Discharge Range (LPH)
DELUX 12 0.09 0.12 1 1/2″ X 1/2″ 5-20 1300-500
DELUX 25 0.18 0.25 1 1/2″ X 1/2″ 5-25 1700-525
DELUX 50X 0.37 0.50 1 1/2″ X 1/2″ 5-30 1900-725
DELUX 50 0.37 0.50 1 1″ X 1″ 5-35 2525-775
DELUX 75 0.55 0.75 1 1″ X 1″ 5-40 2450-700
DELUX 100X 0.75 1.00 1 1″ X 1″ 5-40 2625-575
DELUX 100 0.75 1.00 1 1″ X 1″ 5-50 3900-1050
DELUX 150X 1.10 1.50 1 1″ X 1″ 5-50 3700-900
DELUX 150 1.10 1.50 1 1″ X 1″ 5-60 4400-775
