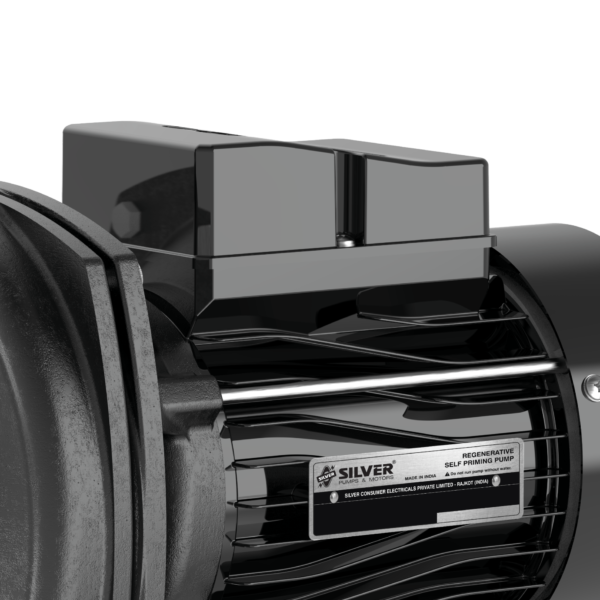

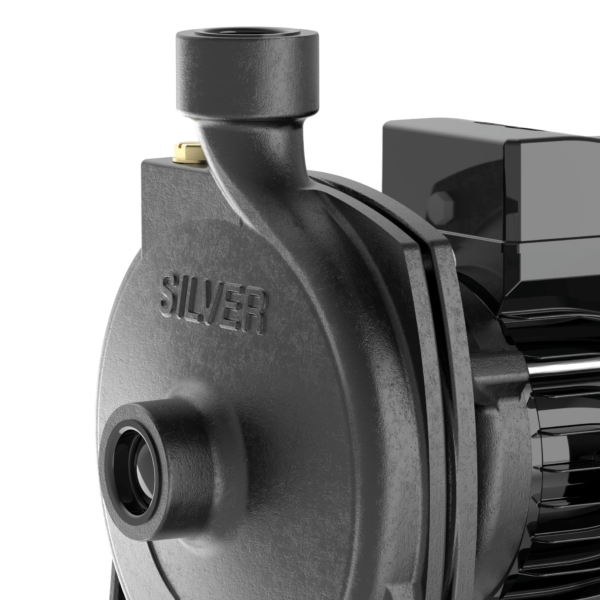

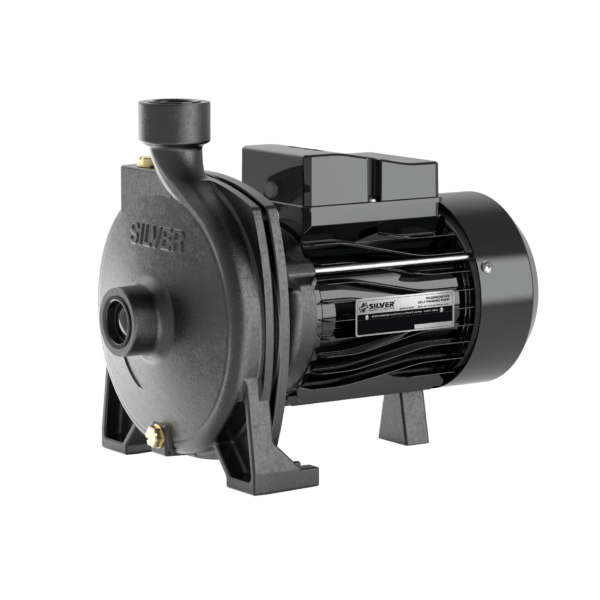

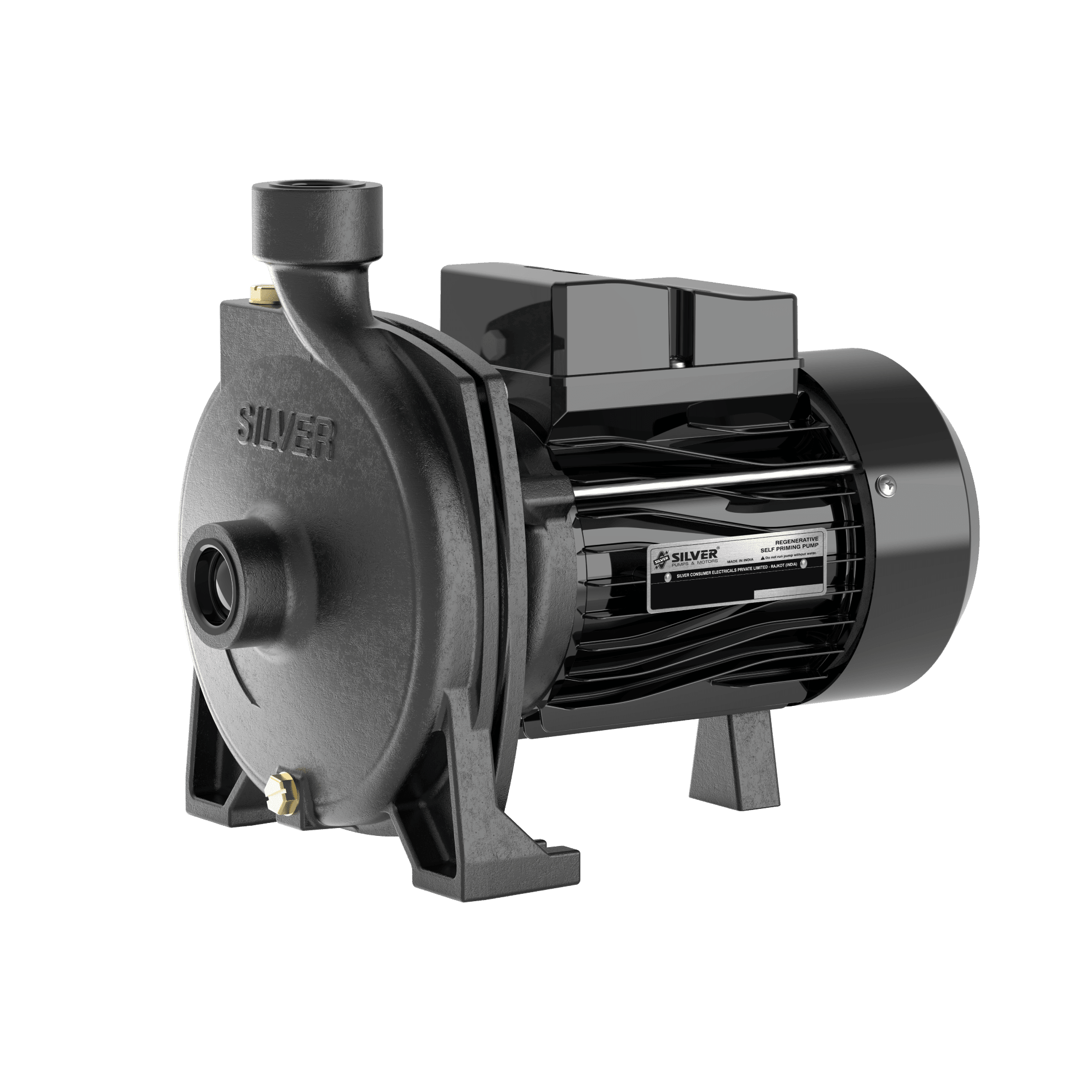

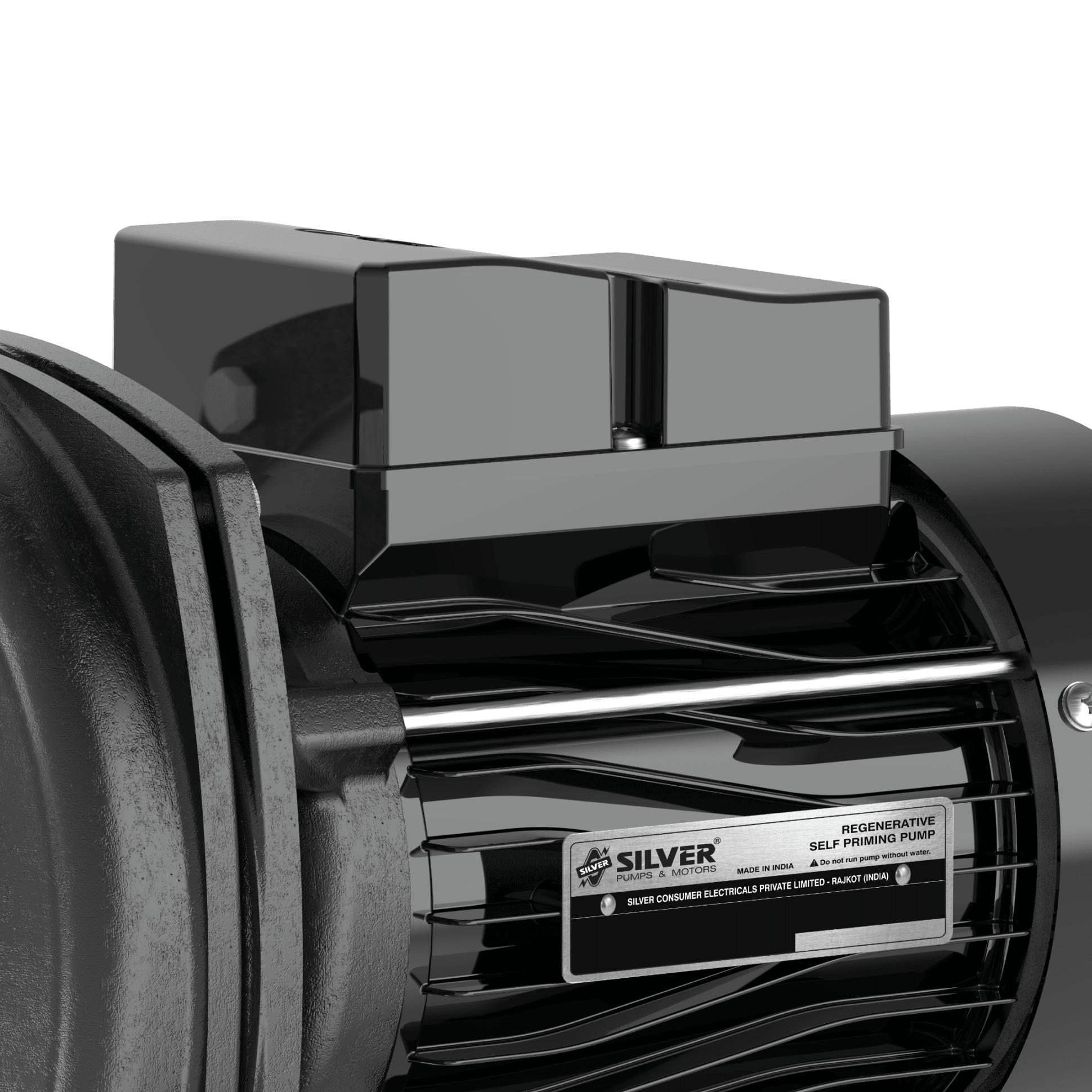

Dyno

Features

  • High Efficiency and energy Saving Design
  • Wide Voltage Range
  • Fitted with Thermal Overload Protector (TOP).
  • High Suction Capacity
  • Superior Mechanical Seal for longer life
  • Anti-friction ball bearings
  • Forged Brass Impeller
  • All Parts Machining Precisly
  • Totally Enclosed Fan Cooled (TEFC) construction resists dust, moisture.
  • CED Coated Pump Parts
  • Batter Insulating Material
  • Easy Maintainable Design
  • Light Weight and Compact Design

Specifications

Suction Lift  Upto 7 meters
Motor Rating  0.75 kW ( 1.00 HP)
Pipe Size  1″ X 1″
Head Range  Up to 28 meters
Discharge Range Up to 7020 LPH
Voltage Range  195 to 250 Volt

MOC

Motor Body Aluminium Die Cast
Impeller Noryl
Suction / Delivery Chamber Cast Iron (CED Coated)
Shaft SS 410
Mechanical Seal Ceramic/Carbon/NBR
Cover NDE Aluminium Die Cast

Technical Specifications

Model Name Power (KW) Power (HP) Phase Pipe Sizesuc X Del (Inch) Head Range (MTR) Discharge Range (LPH)
DYNO 100 0.75 1.00 1 1″ X 1″ 14-28 7020-840
