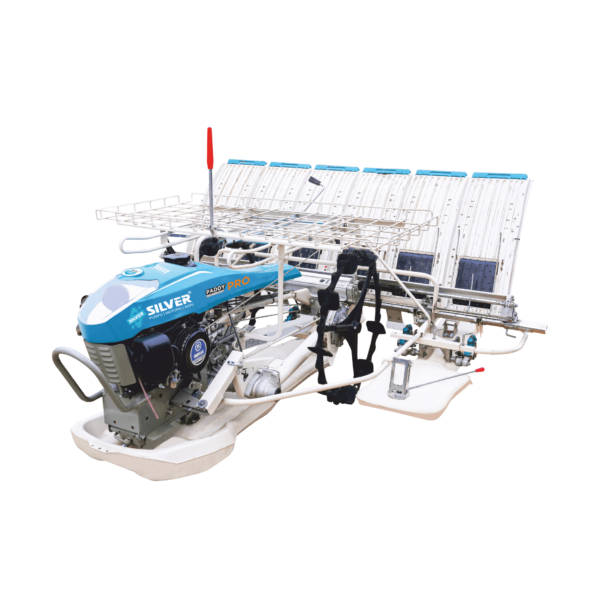

Paddy Transplant Pro Walk Behind Type (6 Row)

  • New Generation muffler with minimum noise.
  • High Beam Headlight for operations in low light condition
  • 6 row with multiple operation mode

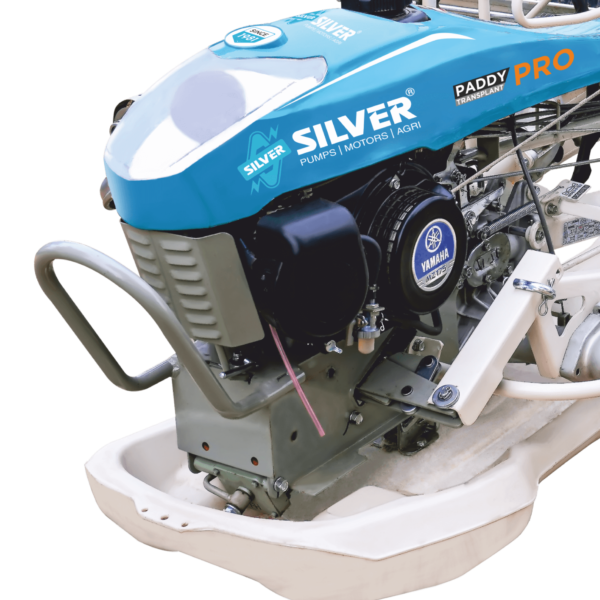

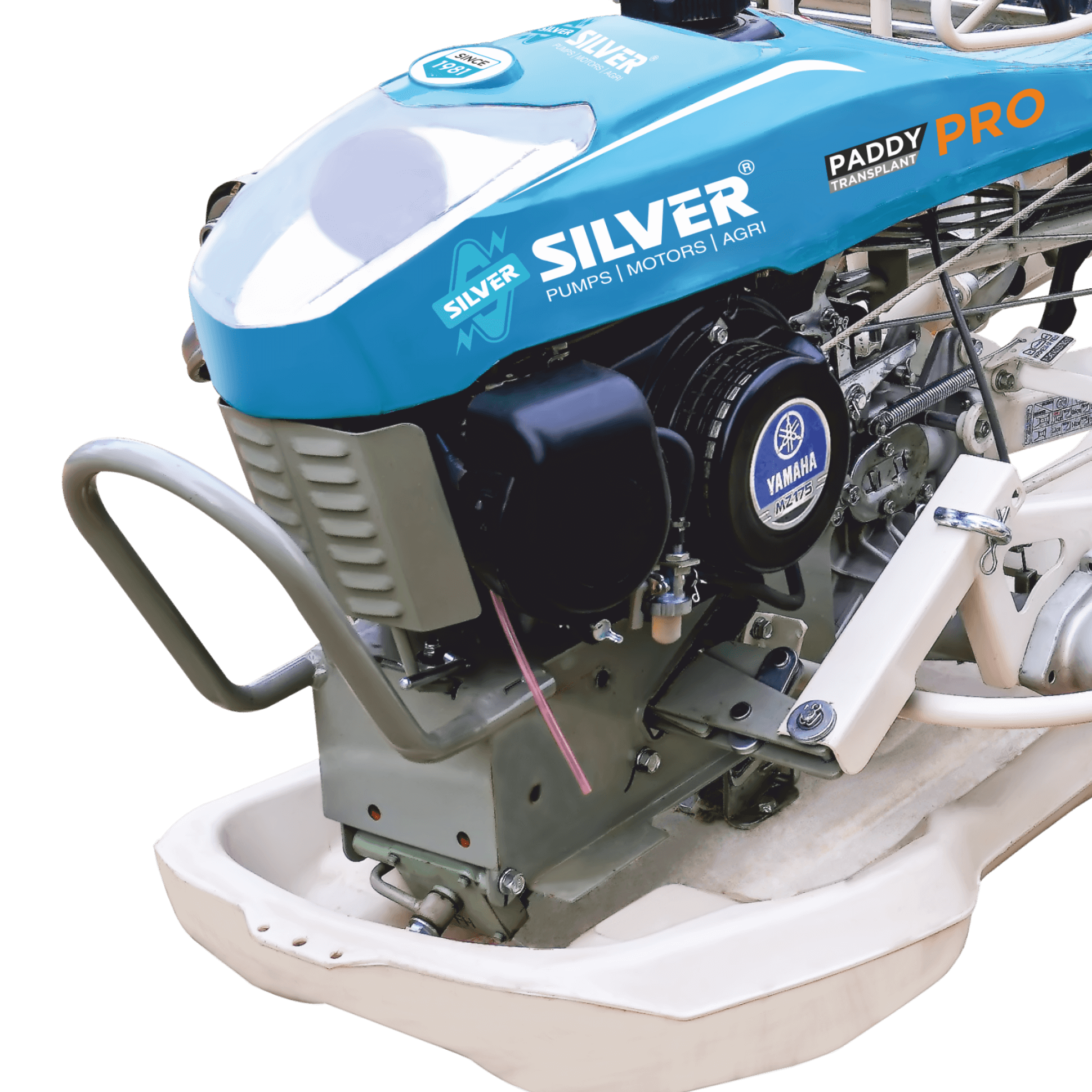

  • Powerful Yamaha Engine.

Technical Specifications

MODEL UNIT OF MEASUREMENT PADDY TRANSPLANT
DRIVING METHOD / TWO-WHEEL DRIVE
DIMENSIONS (LENGTH × WIDTH × HEIGHT) mm 2370×1930×910
WEIGHT kg 187
ENGINE MODEL / 175
TYPE / Single-cylinder, 25-degree tilt, four-stroke, overhead valve
POWER kW（PS） 3.3（4.5）
ROTATING SPEED r/min 3600
TOTAL EXHAUST L 0.171
FUEL TANK L 4
STARTING / PULLBACK
FUEL CONSUMPTION g/（kw·h） ≤6 (Ideal operating conditions)
WHEEL TYPE / Rubber wheel claw
OUTER DIAMETER mm Φ660
WIDTH mm 90
Number of working lines Row 6
Line spacing mm 300
Acupoint spacing cm 12, 14, 16, 18, 21
Transplanting holes Holes / 3.3M² 90, 80, 70, 60, 50
Lateral shift mm / times 10.8/26, 14/20
Transplanting depth mm 10 to 53 (Adjustable)
Productivity (theory) Hm²/hr 0.2-0.26
Planting speed (theory) m/s 0.34-0.80
Travel speed (theory) m/s 0.58-1.50
