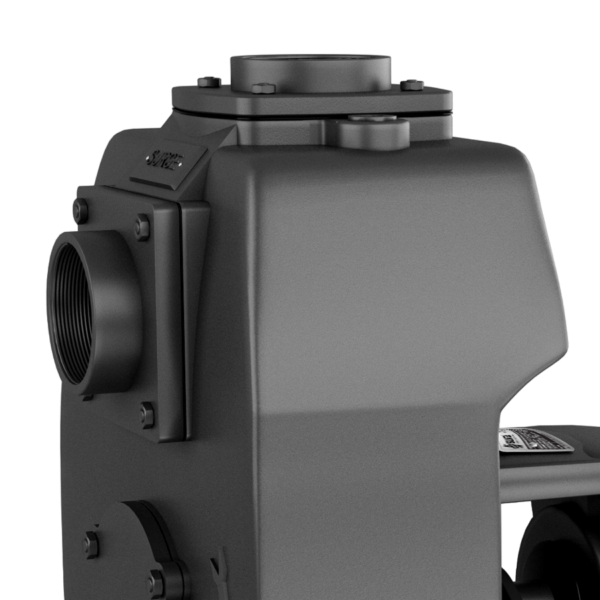

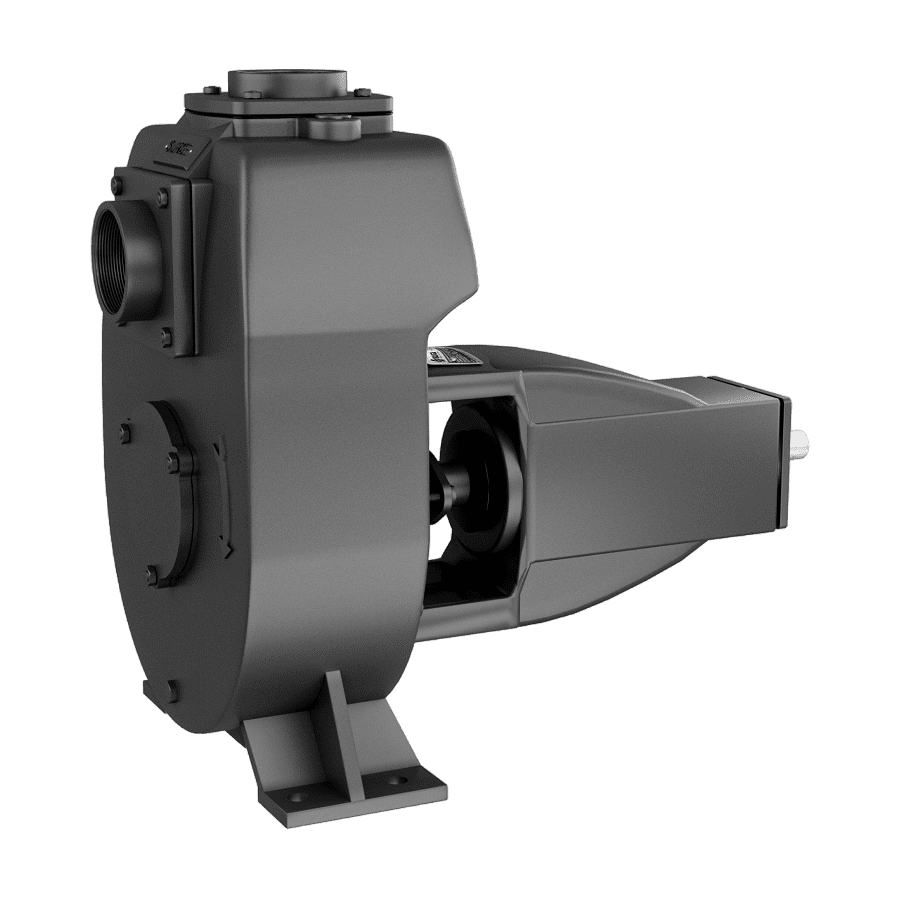

Self Priming Bare Mud Pump for Engine Coupled

Features

  • Shaft sealing: gland packing / mechanical seal
  • Totally enclosed fan cooled motor suitable for wide voltage
  • Non-clog type impeller suitable to handle liquid with solid particles & mixtures
  • Self priming pump – priming required during installation only
  • Construction: Bare pump/ mono-set / motor coupled / engine-coupled
  • Efficient Design and Performance
  • Easy to Maintain and Spare Availability
  • Dynamically Balanced Rotating Parts

Specifications

Power Rating for Motor 4.50 – 19.50 kW (6.00 – 26.00 HP)
Pipe Size 3″ X 3″ TO 6″ X 6″
Head Range Up to 28 meters
Discharge Range Up to 74.5 LPS
Power Supply 180V TO 250V – (1 PHASE) & 350V TO 440V – (3 PHASE)
Liquid Temperature Maximum 50 °C
Pumped Liquids Muddy water, Sewage, Polluted liquids including solids & Application where priming & foot valve is to be avoided
Solid Handling Size (mm) 15.5 To 40.0 MM

MOC

Motor Frame Cast Iron
Impeller Cast Iron (CED Coated)
Shaft SS 410
Pump Housing Cast Iron
Mechanical Seal Ceramic, Carbon, NBR
Bearing SKF / Equivalent

Technical Specifications

Model name Available Option Power (KW) Power (HP) Pipe Size (suc x del) (INCH) Speed in Rpm Solid Handling Size (MM) Direction of Rotation Head Range (MTR) Discharge Range (LPS)
SDWB1.0DD2P16 GP & MS 0.75 1.00 1 1/2″ X 1 1/2″ 2840 15 ACW 10-16 5.7-2.4
SDWB2.0EE2P16 GP & MS 1.50 2.00 2″ X 2″ 2840 18 ACW 10-16 7.2-2
SDWB3.0EE2P18 GP & MS 2.20 3.00 2″ X 2″ 2870 23 ACW 12-18 8.2-2.3
SDWB5.0GG4P20 GP & MS 3.70 5.00 3″ X 3″ 1440 15.5 CW 8-20 19.5-3.4
SDM-18 – 4.50 6.00 3″x3″ 1500 15.5 CW 6-20 20.5-3.0
SDM-18 – 9.00 12.00 3″x3″ 1800 15.5 CW 6-20 24.6-3.6
SDM-23 – 9.00 12.00 4″x4″ 1500 18.5 CW 10-26 35.2-5.2
SDM-23S – 10.50 14.00 4″x4″ 1500 23 CW 10-28 42.4-5.7
SDM-60 – 16.50 22.00 6″x6″ 1500 34 ACW 10-24 67.2-23.3
SDM-60S – 19.50 26.00 6″x6″ 1500 40 ACW 10-26 74.5-20.2
