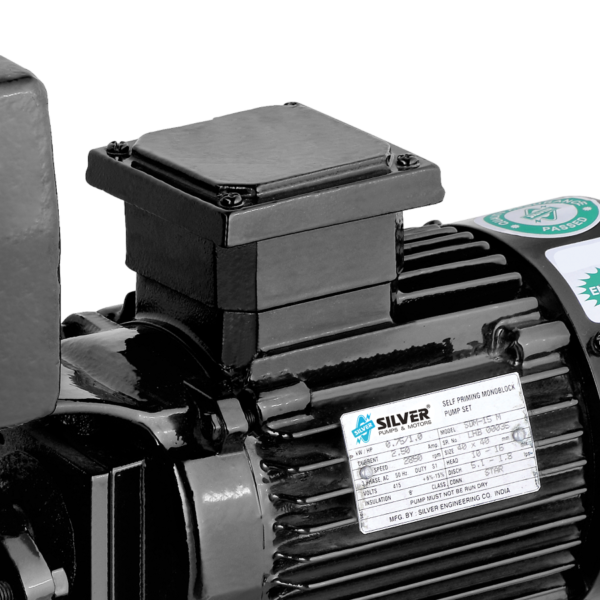

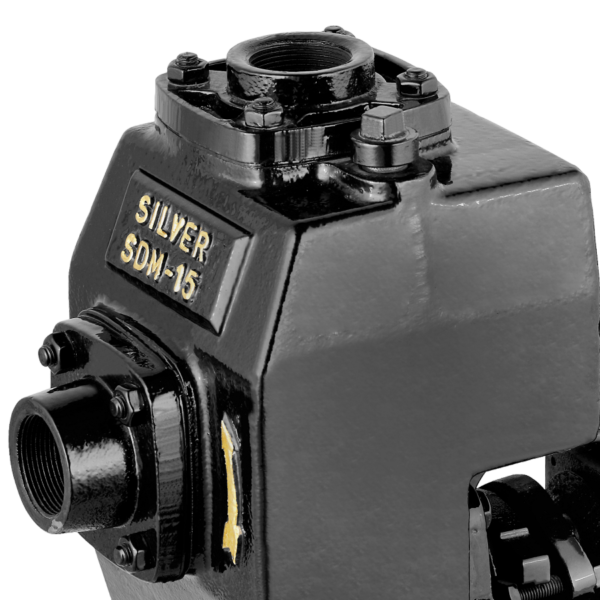

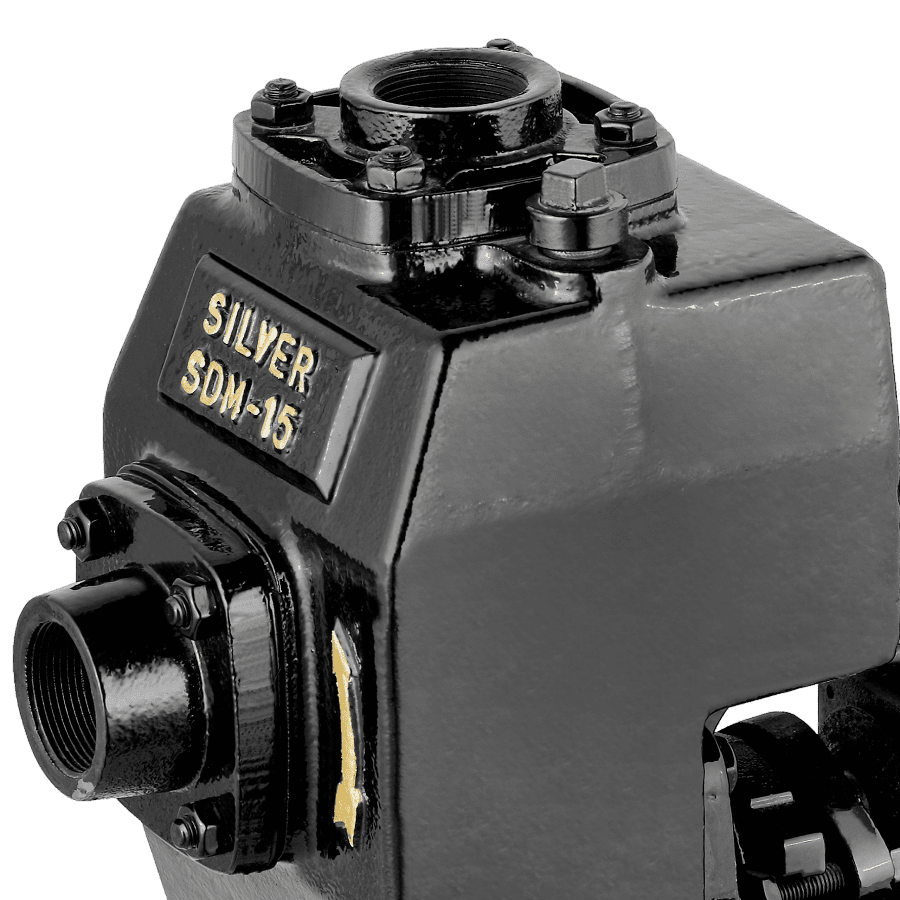

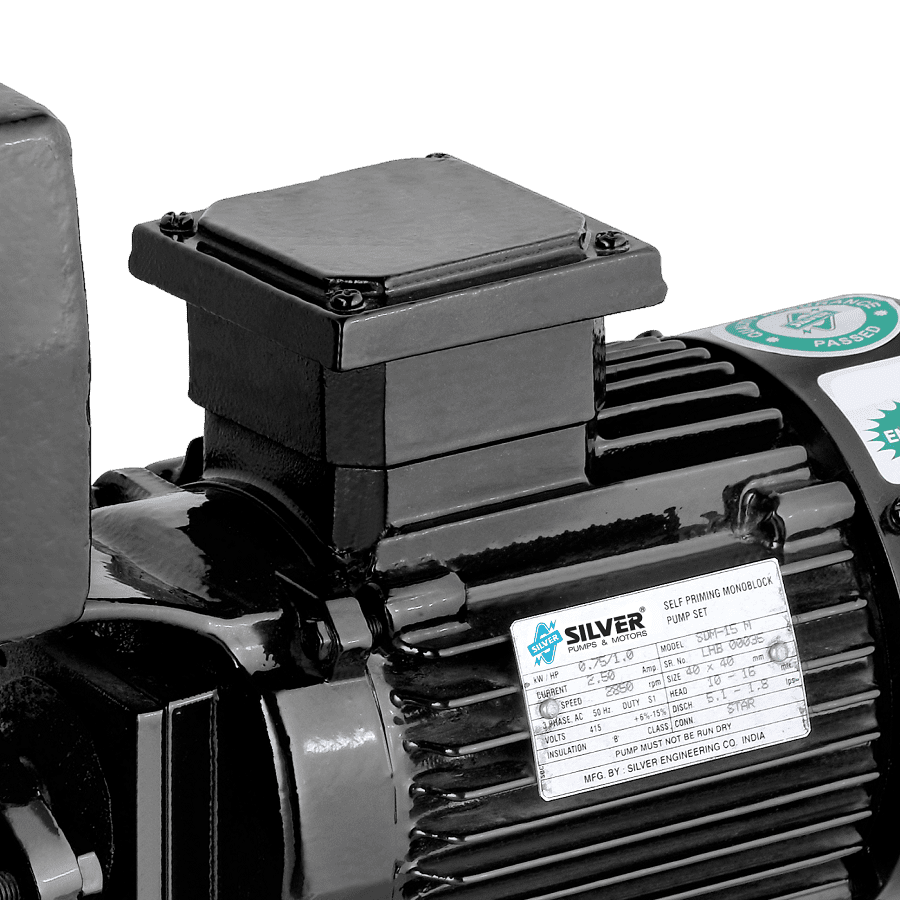

Self Priming Monoblock Mud Pump

Features

  • Shaft sealing: gland packing / mechanical seal
  • Totally enclosed fan cooled motor suitable for wide voltage
  • Non-clog type impeller suitable to handle liquid with solid particles & mixtures
  • Self priming pump – priming required during installation only
  • Construction: Bare pump/ mono-set / motor coupled / engine-coupled
  • Efficient Design and Performance
  • Easy to Maintain and Spare Availability
  • Dynamically Balanced Rotating Parts

Specifications

Motor Rating 0.37 – 1.50 kW (0.50 – 2.00 HP) – 1 PHASE & 0.75 – 5.50 kW (1.00 – 7.50 HP) – 3 PHASE
Pipe Size 1 1/4″ X 1 1/4″ TO 3″ X 3″
Head Range Up to 36 meters
Discharge Range Up to 19.5 LPS
Power Supply 180V TO 250V – (1 PHASE) & 350V TO 440V – (3 PHASE)
Direction of Rotation ACW (Anti-Clockwise) or CW (Clockwise) When Viewed From Front Side
Liquid Temperature Maximum 50 °C
Pumped Liquids Muddy water, Sewage, Polluted liquids including solids & Application where priming & foot valve is to be avoided
Solid Handling Size (mm) 7.0 To 15.5 MM

MOC

Motor Frame Cast Iron
Impeller Cast Iron (CED Coated)
Shaft SS 410
Pump Housing Cast Iron
Mechanical Seal Ceramic, Carbon, NBR

Technical Specifications

Model Name Available Option Power (KW) Power (HP) Phase Pipe Size (SUC X DEL) (INCH) Speed in RPM Solid handling Size (MM) Direction of Rotation Head Range (MTR) Discharge Range (LPS)
SDM-15M – 0.75 1.00 1 & 3 PHASE 1 1/2″ X 1 1/2″ 2900 7 ACW 8-16 5.5-1.5
SDM-16M – 1.50 2.00 3 PHASE 1 1/2″ X 1 1/2″ 2900 8.5 ACW 10-20 7.0-2.1
SDM-17M – 2.20 3.00 3 PHASE 2″ X 2″ 2900 10.5 ACW 12-25 9.3-1.8
SDM-18M – 3.70 5.00 3 PHASE 3″ X 3″ 1450 15.5 CW 8-20 19.4-5.8
SDM-14M – 3.70 5.00 3 PHASE 3″ X 3″ 2900 7 ACW 20-36 9.6-2.1
SDM-14SM – 5.50 7.50 3 PHASE 3″ X 3″ 2900 14.5 ACW 20-36 15.0-2.0
SDWM0.50DDS2P12-MS – 0.37 0.50 1 & 3 PHASE 1 1/2″ X 1 1/2″ 2800 6 ACW 6-12 3.3-1
SDWM1.0DDS2P16 GP & MS 0.75 1.00 1 & 3 PHASE 1 1/2″ X 1 1/2″ 2840 15 ACW 10-16 5.7-2.4
SDWM2.0EES2P16 GP & MS 1.50 2.00 1 & 3 PHASE 2″ X 2″ 2840 18 ACW 10-16 7.2-2
SDWM3.0EET2P18 GP & MS 2.20 3.00 3 PHASE 2″ X 2″ 2870 23 ACW 12-18 8.2-2.3
SDWM5.0GGT4P20 GP & MS 3.70 5.00 3 PHASE 3″ X 3″ 1440 15.5 CW 8-20 19.5-3.4
