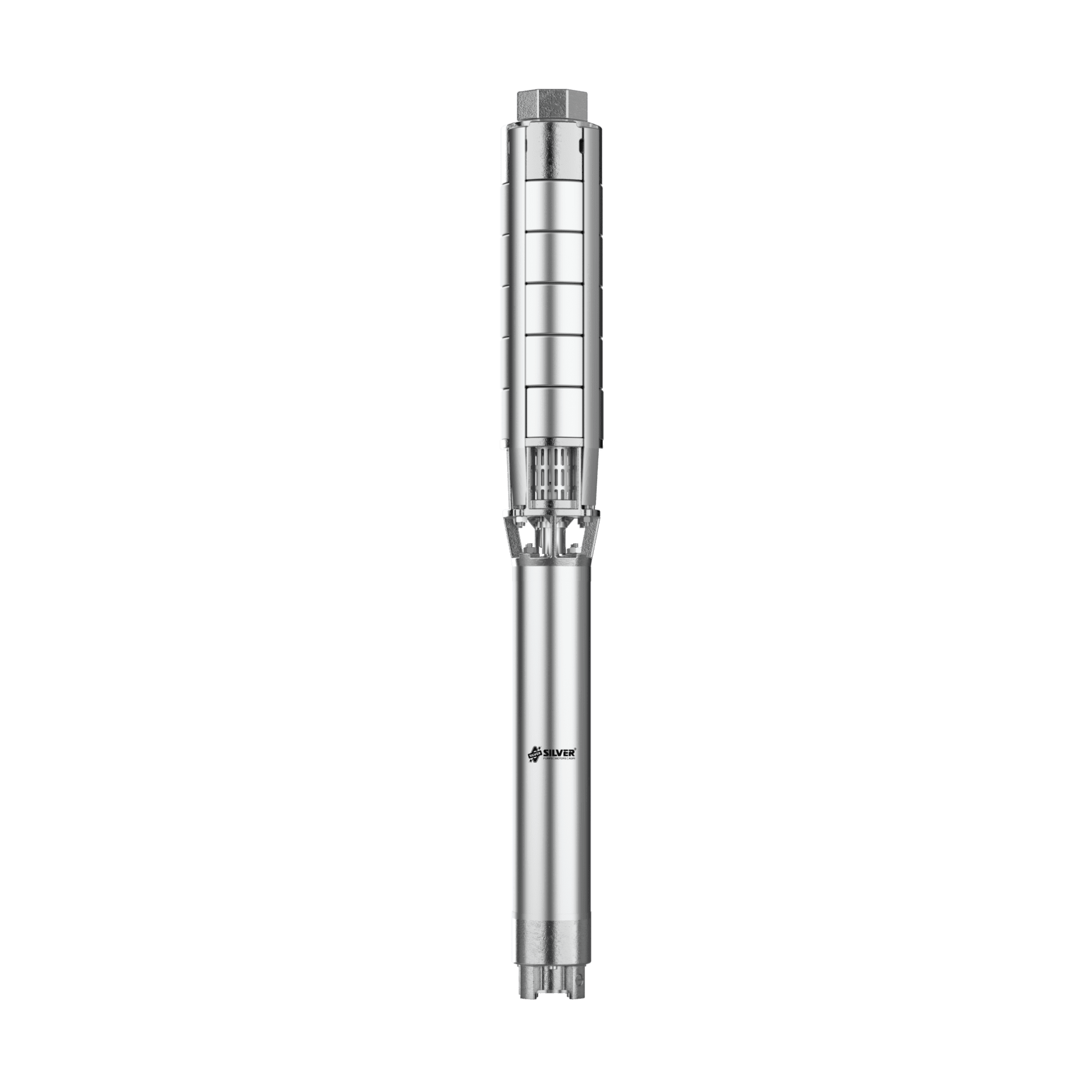

Solar DC Borewell Submersible Pump-set
Features
- High Efficient
- Dynamically Balanced Rotating Parts
- Low Maintanace
- Low Operating Cost
- Longer and Trouble Free Life
- All Parts of Ss Material
- Reliable Non-return Valve to Reduce Friction Loss
Specifications
| MODEL | HP | VOLT. | FREQ. | POWER (WATT) | HEAD (M) | S. HEAD (M) | LPD | MOTOR V4/V6 | PUMP V4/V6 | DELIVERY SIZE (INCH) | TYPE |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SSWF3D1-0109-70-44-1.25-30 | 1 | 70 | 120 | 1200 | 30 | 45 | 45600 | V4 | V4 | 1.25 | WF |
| SSWF9D1-0206-90-44-2.00-30 | 2 | 90 | 120 | 1800 | 30 | 45 | 68400 | V4 | V4 | 2.00 | WF |
| SSWF17D1-0303-160-46-2.50-30 | 3 | 160 | 120 | 3000 | 30 | 45 | 114000 | V4 | V6 | 2.5 | WF |
| SSWF9D1-0309-160-44-2.00-50 | 3 | 160 | 120 | 3000 | 50 | 70 | 69000 | V4 | V4 | 2 | WF |
| SSWF9D1-0312-160-44-2.00-70 | 3 | 160 | 120 | 3000 | 70 | 100 | 45000 | V4 | V4 | 2 | WF |
| SSWF30D1-0503-240-46-2.50-30 | 5 | 240 | 120 | 4800 | 30 | 45 | 182400 | V4 | V6 | 2.5 | WF |
| SSWF17D1-0505-240-46-2.50-50 | 5 | 240 | 120 | 4800 | 50 | 70 | 110400 | V4 | V6 | 2.5 | WF |
| SSWF9D1-0512-240-44-2.00-70 | 5 | 240 | 120 | 4800 | 70 | 100 | 72000 | V4 | V4 | 2 | WF |
| SSWF9D1-0517-240-44-2.00-100 | 5 | 240 | 120 | 4800 | 100 | 150 | 50400 | V4 | V4 | 2 | WF |
| SSWF30D1-7503-340-46-3.00-30 | 7.5 | 340 | 120 | 6750 | 30 | 45 | 256500 | V4 | V6 | 3 | WF |
| SSWF17D1-7505-340-46-2.50-50 | 7.5 | 340 | 120 | 6750 | 50 | 70 | 155250 | V4 | V6 | 2.5 | WF |
| SSWF17D1-7507-340-46-2.00-70 | 7.5 | 340 | 120 | 6750 | 70 | 100 | 101250 | V4 | V6 | 2 | WF |
| SSWF9D1-7518-340-44-2.00-100 | 7.5 | 340 | 120 | 6750 | 100 | 150 | 70875 | V4 | V4 | 2 | WF |
| SSWF46D1-1003-415-46-4.00-30 | 10 | 415 | 120 | 9000 | 30 | 45 | 342000 | V4 | V6 | 4 | WF |
| SSWF30D1-1005-415-46-3.00-50 | 10 | 415 | 120 | 9000 | 50 | 70 | 207000 | V4 | V6 | 3 | WF |
| SSWF17D1-1008-415-46-2.50-70 | 10 | 415 | 120 | 9000 | 70 | 100 | 135000 | V4 | V6 | 2.5 | WF |
| SSWF17D1-1010-415-46-2.00-100 | 10 | 415 | 120 | 9000 | 100 | 150 | 94500 | V4 | V6 | 2 | WF |
MOC
| Motor Body | Motor Shaft | Thrust Bearing | Motor Bushes | Pump Shaft | Impeller | Diffuser | NRV | Suction |
|---|---|---|---|---|---|---|---|---|
| Stainless Steel | SS431 | Stainless Steel, Carbon, Cast iron | LTB-4 / Carbon | SS431 | SS 304 | SS 304 | SS 304 | SS 304 |
