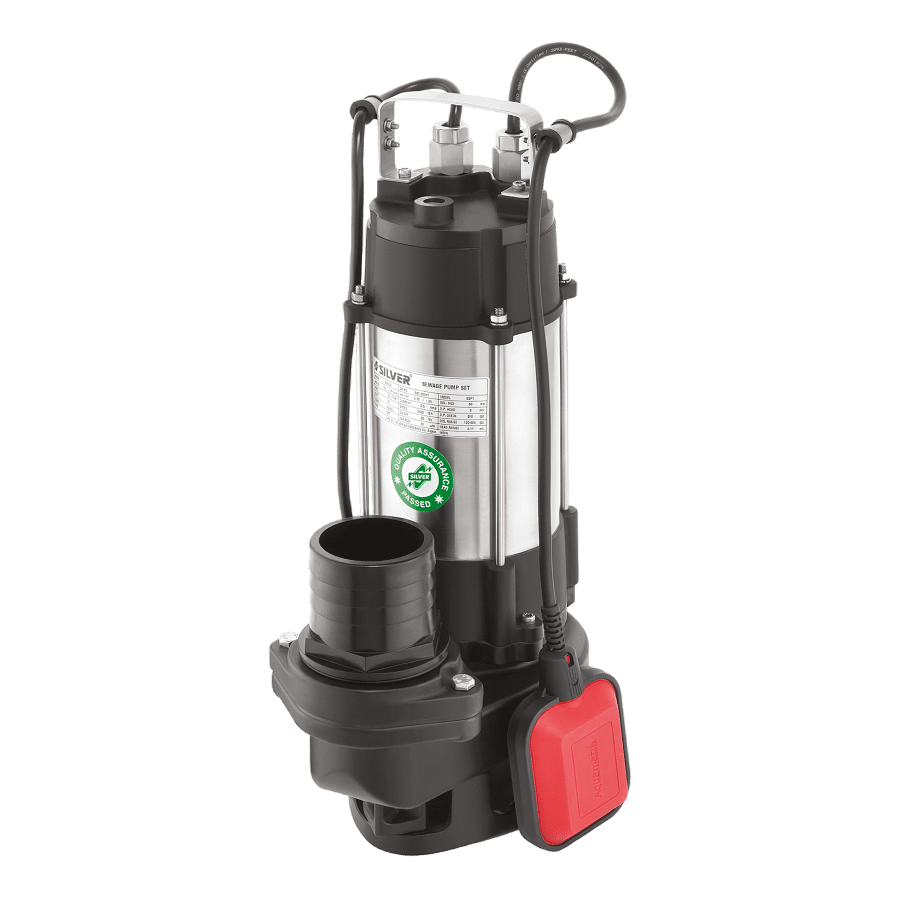

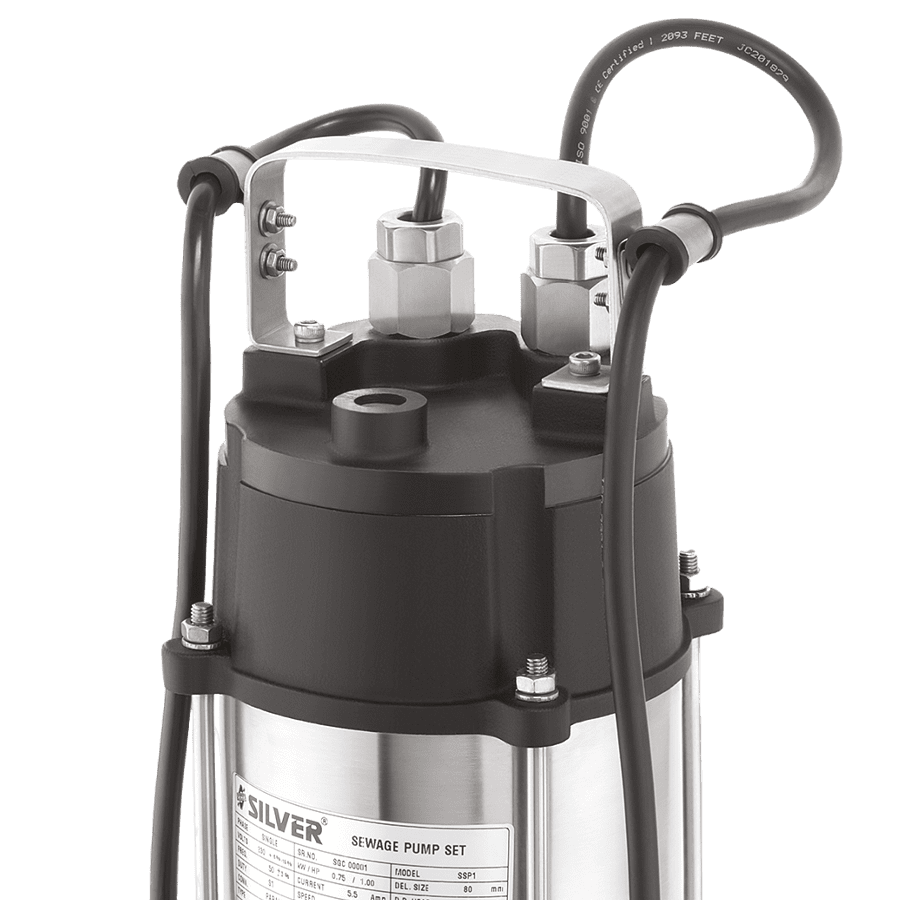

Submersible Sewage Pumps

Features

  • Overload Protection
  • Dry Run Protection
  • Auto Stop Function
  • High Grade Electrical Stamping & Compact Design
  • Anti Dust CED Coating
  • Easy to Movable

Specifications

Motor Rating 0.37 – 1.50 kW (0.50 – 2.00 HP) – 1 PHASE
Delivery Pipe Size 1″ TO 3″
Head Range Up to 22 meters
Discharge Range Up to 510 LPM
Power Supply 180V TO 250V – (1 PHASE)

MOC

Stator Shell SS 202
Impeller Cast Iron (CED Coated)
Shaft SS 410
Pump Housing Cast Iron (CED Coated)
Mechanical Seal Ceramic, Carbon, NBR
Top and End Cover Cast Iron (CED Coated)

Technical Specifications

Model Name Power (KW) Power (HP) Stage Delivery Size (Inch) Head Range (MTR) Discharge Range (LPH)
SSP 0.50 0.37 0.50 1 1″ & 1 1/4″ & 1 1/2″ 4-8 150-22
SSP 1.00 0.75 1.00 1 2 1/2″ & 3” 4-10 400-200
SSP 1.50 1.10 1.50 1 1 1/2″ & 2″ 4-12 510-90
SSP 2.00 1.50 2.00 1 1 1/2″ & 2″ 4-22 340-45
