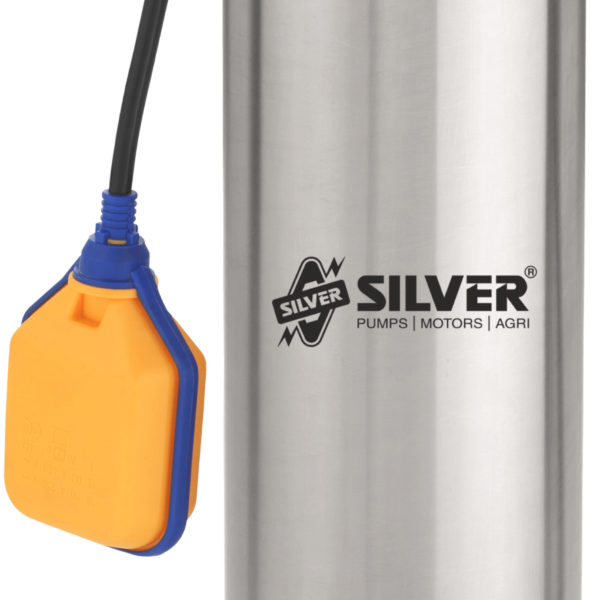

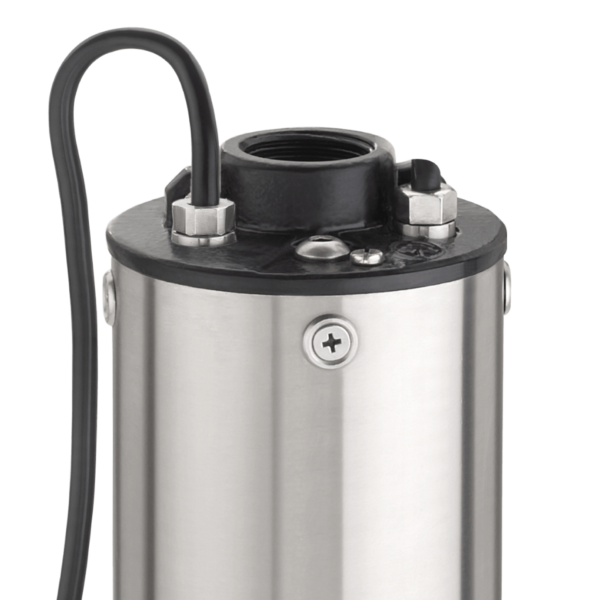

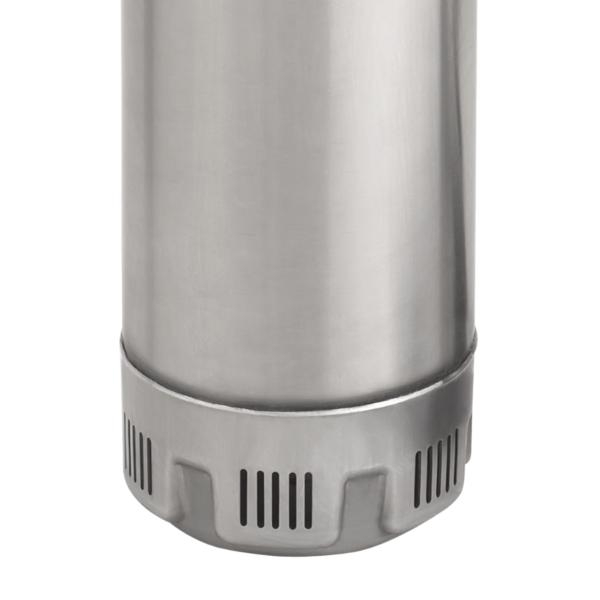

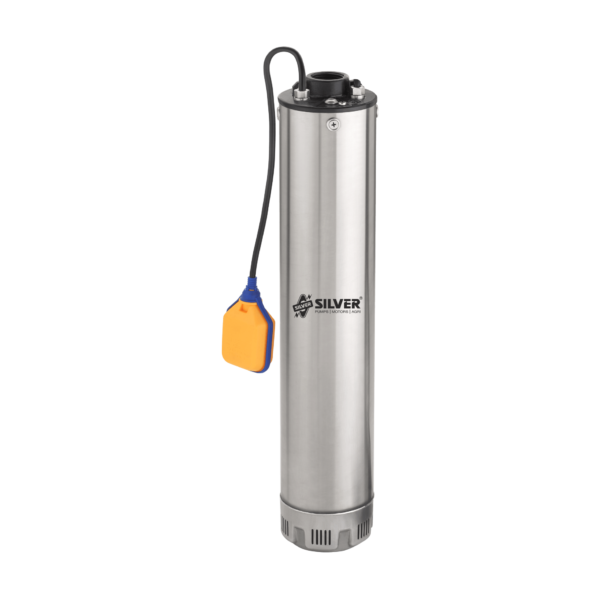

SV4N80
- Compact close-coupled design, robust and rust resistant
- Impellers and diffusers are made of stainless steel in order to achieve durability, superior effciency and the highest performances
- Heavy duty over size motor shaft
- Stainless steel water proof capsule to protect the motor
- All Parts Machining Precisly
Specifications
Motor Rating (Dry Type) | 0.37 – 0.75 kW (0.50 – 1.00 HP) – 1 PHASE |
Delivery Size | 1” |
Bore Size | 100 MM |
Head Range | Up to 36 meters |
Discharge Range | Up to 125 LPM |
Power Supply | 180V TO 250V – (1 PHASE) |
Liquid Temperature | Maximum 45 °C |
Pumped Liquids | Clear Clean, Thin, Non-Aggressive, Non-Explosive, Clear, Cold Water Without Abrasive And Solid Particle Cold Water. |
Technical Specifications
Model Name | Power (KW) | Power (HP) | Phase | Pipe Sizesuc X Del (Inch) | Head Range (MTR) | Discharge Range (LPH) |
---|---|---|---|---|---|---|
SV4N80-0503 | 0.37 | 0.50 | 3 | 1″ X 1″ | 6-21 | 125-20 |
SV4N80-7504 | 0.55 | 0.75 | 4 | 1″ X 1″ | 8-28 | 125-20 |
SV4N80-1005 | 0.75 | 1.00 | 5 | 1″ X 1″ | 10-35 | 125-20 |
