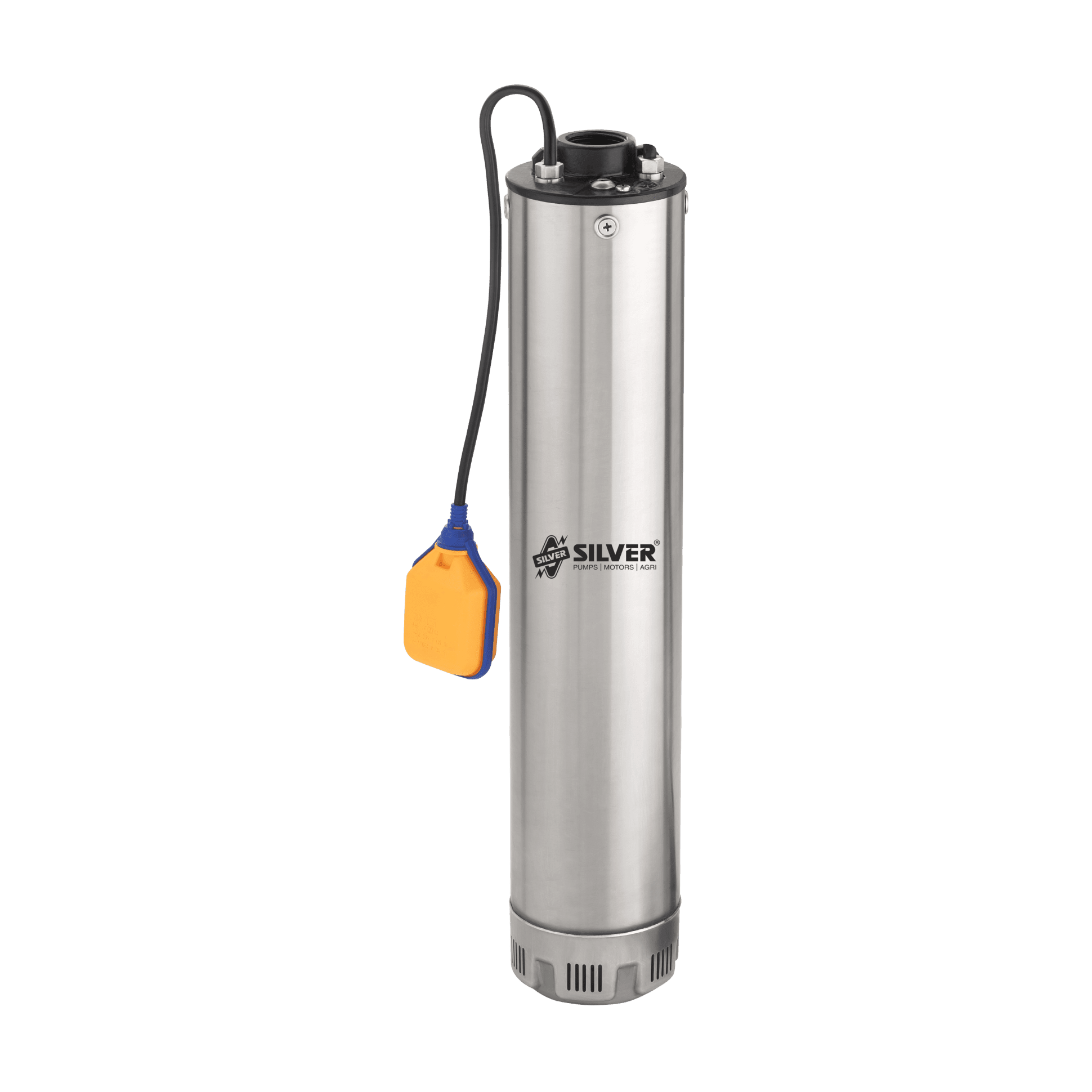

SV4NC55

  • Compact close-coupled design, robust and rust resistant
  • Impellers and diffusers are made of stainless steel in order to achieve durability, superior effciency and the highest performances
  • Heavy duty over size motor shaft
  • Stainless steel water proof capsule to protect the motor
  • All Parts Machining Precisly

Specifications

Motor Rating 0.37 – 0.75 kW (0.50 – 1.00 HP) – 1 PHASE
Delivery Size 1”
Bore Size 100 MM
Head Range Up to 45 meters
Discharge Range Up to 100 LPM
Power Supply 180V TO 250V – (1 PHASE)
Liquid Temperature Maximum 45 ° C
Pumped Liquids Clear Clean, Thin, Non-Aggressive, Non-Explosive, Clear, Cold Water Without Abrasive And Solid Particle Cold Water

Technical Specifications

Model Name Power (KW) Power (HP) Phase Pipe Sizesuc X Del (Inch) Head Range (MTR) Discharge Range (LPH)
SV4NC55-0504 0.37 0.50 4 1″ X 1″ 8-22 100-10
SV4NC55-7506 0.55 0.75 6 1″ X 1″ 12-33 100-10
SV4NC55-1008 0.75 1.00 8 1″ X 1″ 16-44 100-10
