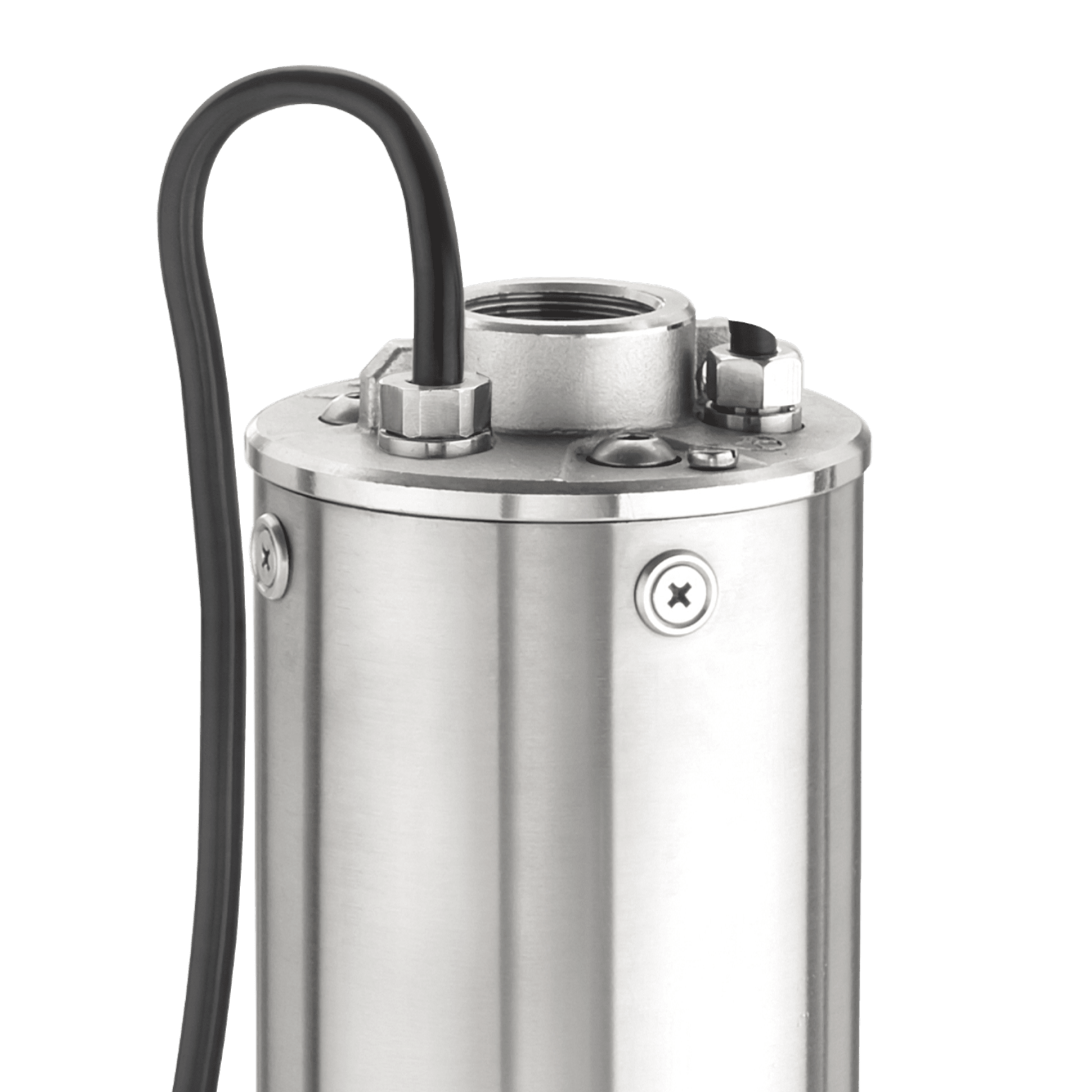

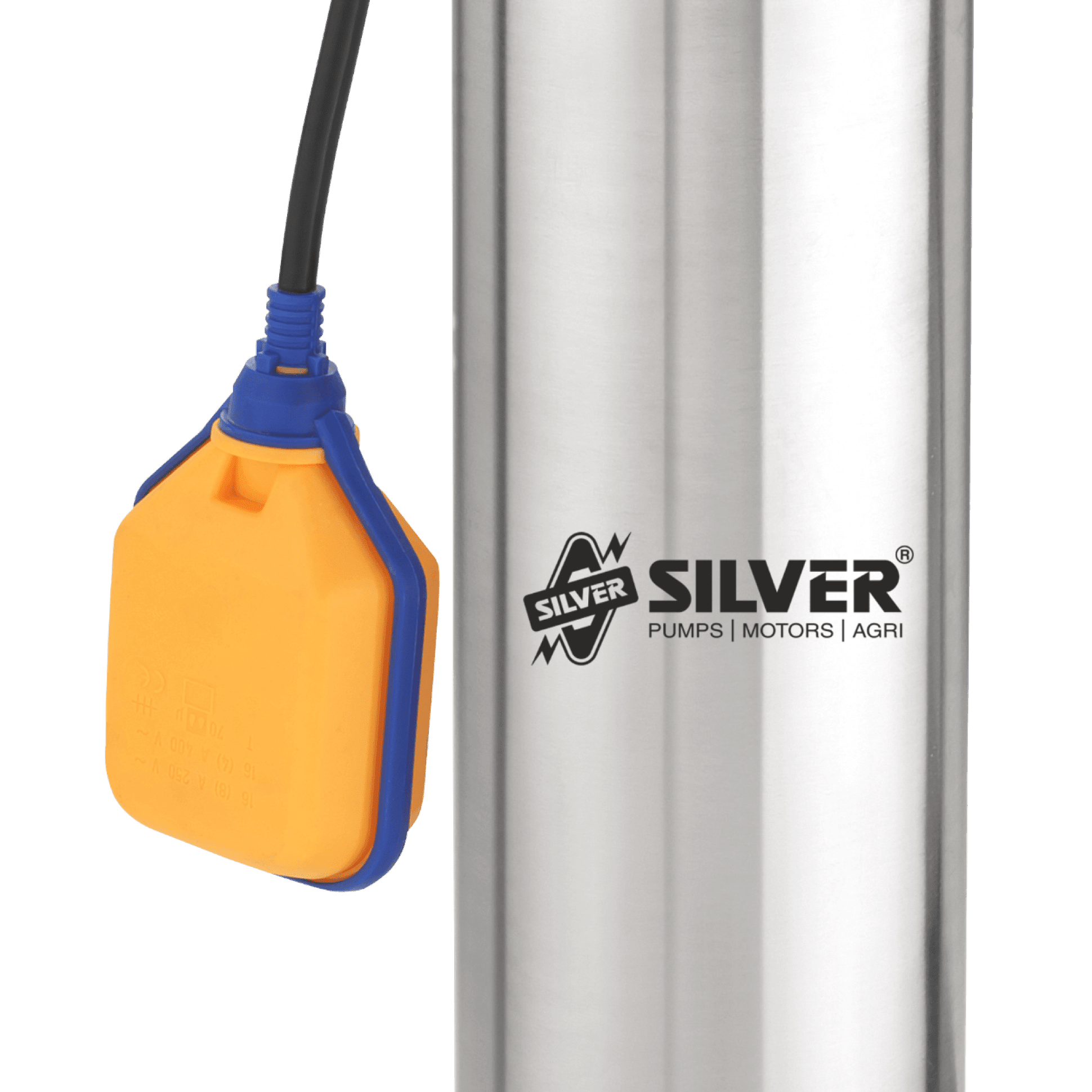

SV4S55

  • Compact close-coupled design, robust and rust resistant
  • Impellers and diffusers are made of stainless steel in order to achieve durability, superior effciency and the highest performances
  • Heavy duty over size motor shaft
  • Stainless steel water proof capsule to protect the motor
  • All Parts Machining Precisly

Specifications

Motor Rating (Dry Type) 0.30 – 0.75 kW (0.40 – 1.00 HP) – 1 PHASE
Delivery Size 1”
Bore Size 100 MM
Head Range Up to 45 meters
Discharge Range Up to 102 LPM
Power Supply 180V TO 250V – (1 PHASE)
Liquid Temperature Maximum 45 °C
Pumped Liquids Clear Clean, Thin, Non-Aggressive, Non-Explosive, Clear, Cold
Water Without Abrasive And Solid Particle Cold Water.

MOC

Stator & Pump Shell SS 304
Mechanical Seal Ceramic, Carbon, NBR
Shaft SS 431
Impeller SS 304
Diffuser SS 304
Delivery Casing SS 304

Technical Specifications

Model Name Power (KW) Power (HP) Phase Pipe Sizesuc X Del (Inch) Head Range (MTR) Discharge Range (LPH)
SV4S55-0403 0.30 0.40 3 1″ X 1″ 3-16 102-12
SV4S55-0505 0.37 0.50 5 1″ X 1″ 5-28 102-12
SV4S55-7507 0.55 0.75 7 1″ X 1″ 7-38 102-12
SV4S55-1008 0.75 1.00 8 1″ X 1″ 8-43 102-12
