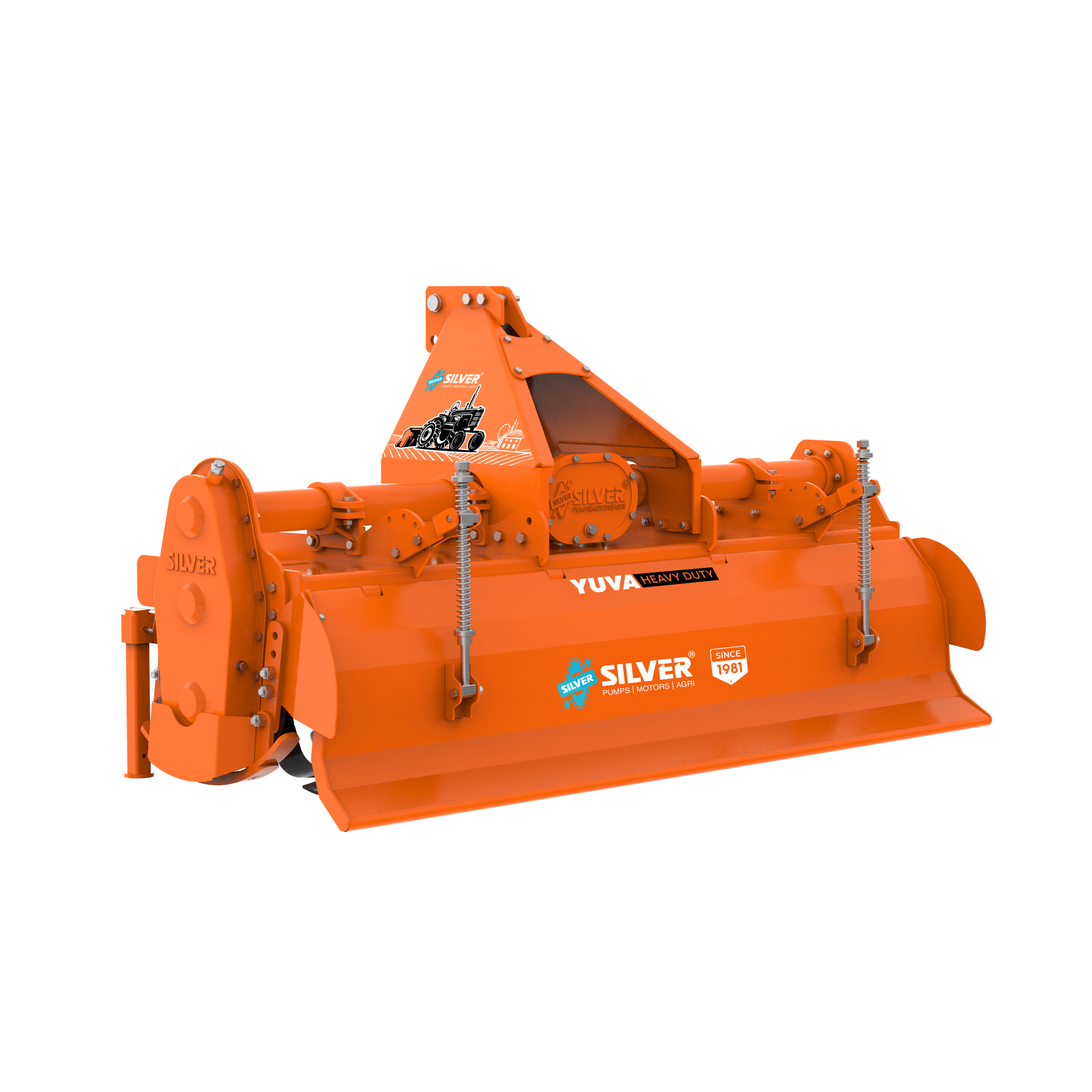

Yuva Heavy Duty

  • Complete Solution for Progressive Farmers in Tillage & Cultivation
  • Most suitable for all types of soils and smooth operations
  • Best Pulverisation quality and high depth of cut
  • Effective deep puddling in wet land
  • Low Fuel Consumption with lesser maintenance cost
  • Increased productivity Faster operation in lesser time
  • Low Vibration and Low Noise
  • Easy availability of Spare Parts
  • Strong structure with robust design
  • High tensile fasteners
  • Adjustable Heavy duty Rear Board Dampers with Springs
  • PTO shaft with protection guard, and dust Proof seal
  • Oil filled heavy duty multi speed/ single speed sturdier gear box
  • Available in Offset & Centre mounted Gear Box
  • Water proofed seals with oil bath high load rotor bearings
  • International quality anti wear Boron steel blade with C, J & L type
Download Brochure Contact us

Specifications

Model SLRT-75 SLRT-105 4Ft SLRT-120 5Ft SLRT-150 5.5Ft SLRT-165 6FT SLRT-180 7FT SLRT-201 8Ft SLRT-240
Overall Length “L” (cm) NA NA 96 96 96 96 96 96
Overall Width “W” (cm) NA NA 148 178 193 208 238 268
Overall Height “H” (cm) NA NA 109.5 109.5 109.5 109.5 109.5 109.5
Tilling Width (cm) NA NA 120 150 165 180 201 240
Tractor Power – HP NA NA 30-35 35-45 35-45 45-55 45-55 55-70
Number of Blades (C/L) NA NA 30 36 39/42 42 48/54 54/60
Weight NA NA 412 445 463-476 490 515-536 554-568
Three Point Hitch NA NA Cat-II Cat-II Cat-II Cat-II Cat-II Cat-II
Crown – Pinion (Gearbox) NA NA 13 X 23 13 X 23 13 X 23 13 X 23 13 X 23 13 X 23
Transmission Type NA NA Gear Gear Gear Gear Gear Gear
Max. Working Depth (inch) NA NA 5″ – 8″ 5″ – 8″ 5″ – 8″ 5″ – 8″ 5″ – 8″ 5″ – 8″

Rotor RPM Chart

Input RPM Gear speed Gear Spur-1 Gear Spur-2 Rotor Speed
540 Single Speed 218 218 218
540 Multi Speed 16 19 184
540 * Multi Speed 17 18 206
540 Multi Speed 14 21 145
540 Multi Speed 15 20 164
1000 Multi Speed 13 22 239
* Default Spur Gear Pair in Gear Box
