Trendy

Features

  • High Efficiency and energy Saving Design
  • Wide Voltage Range
  • Fitted with Thermal Overload Protector (TOP).
  • High Suction Capacity
  • Superior Mechanical Seal for longer life
  • Anti-friction ball bearings
  • Forged Brass Impeller
  • All Parts Machining Precisly
  • Totally Enclosed Fan Cooled (TEFC) construction resists dust, moisture.
  • CED Coated Pump Parts
  • Batter Insulating Material
  • Easy Maintainable Design
  • Light Weight and Compact Design

Specifications

Suction Lift  Upto 8 meters
Motor Rating  0.75 kW (1.00 HP)
Pipe Size  1″ X 1″
Head Range  Up to 28 meters
Discharge Range Up to 6600 LPH
Voltage Range  180 to 250 Volt

MOC

Motor Body Cast iron / MS
Impeller Gun Metal
Casing Cast Iron (CED Coated)
Suction / Delivery Chamber Cast Iron (CED Coated)
Shaft  SS 410
Mechanical Seal  Ceramic/Carbon/NBR
Cover NDE Cast Iron

Technical Specifications

Model Name Power (KW) Power (HP) Phase Pipe Sizesuc X Del (Inch) Head Range (MTR) Discharge Range (LPH)
TRENDY 50 0.37 0.50 1 1″ X 1″ 5-35 3175-600
TRENDY 100 0.75 1.00 1 1″ X 1″ 5-45 3900-875

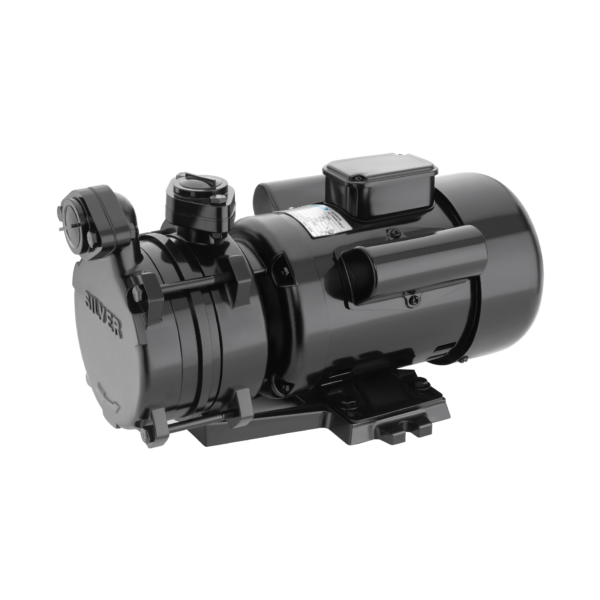

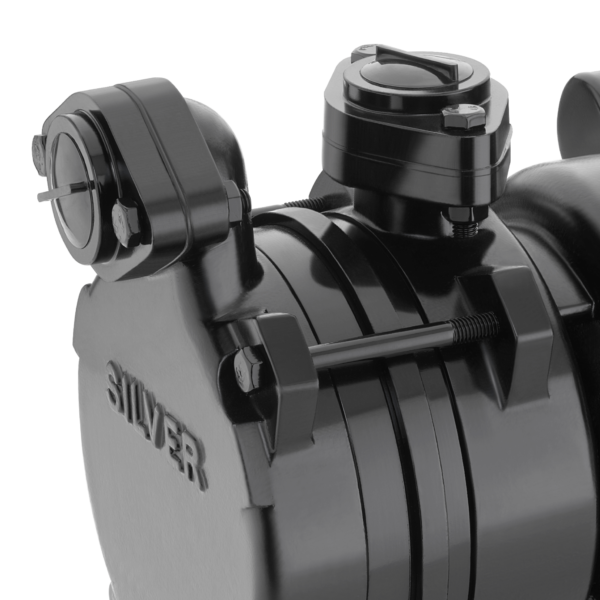

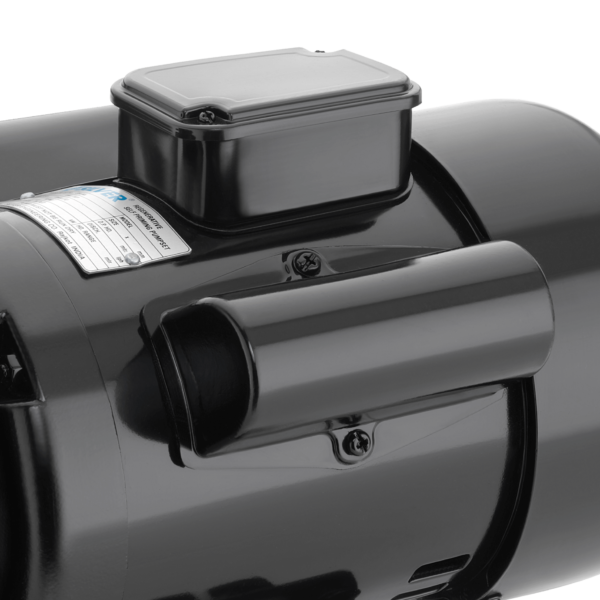

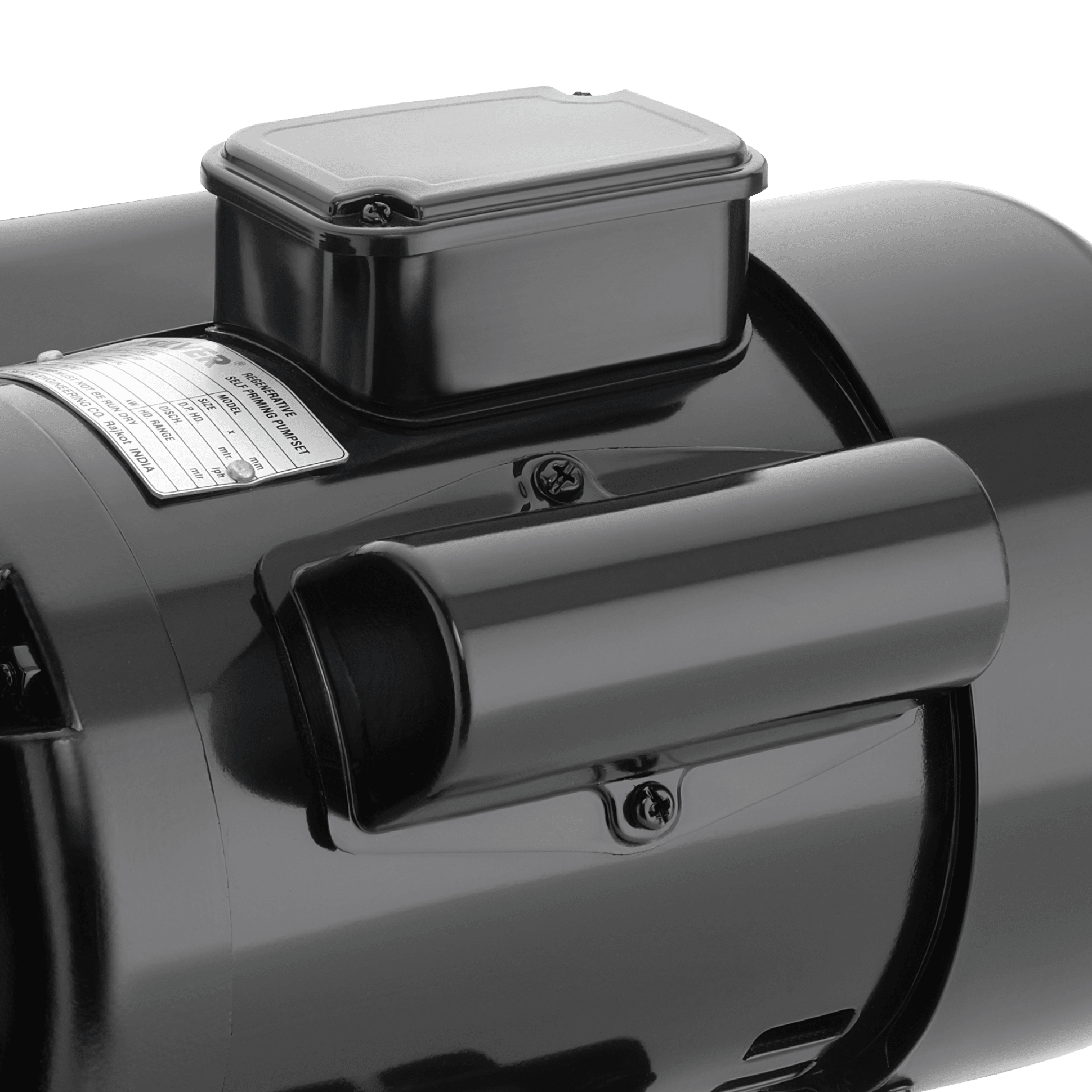

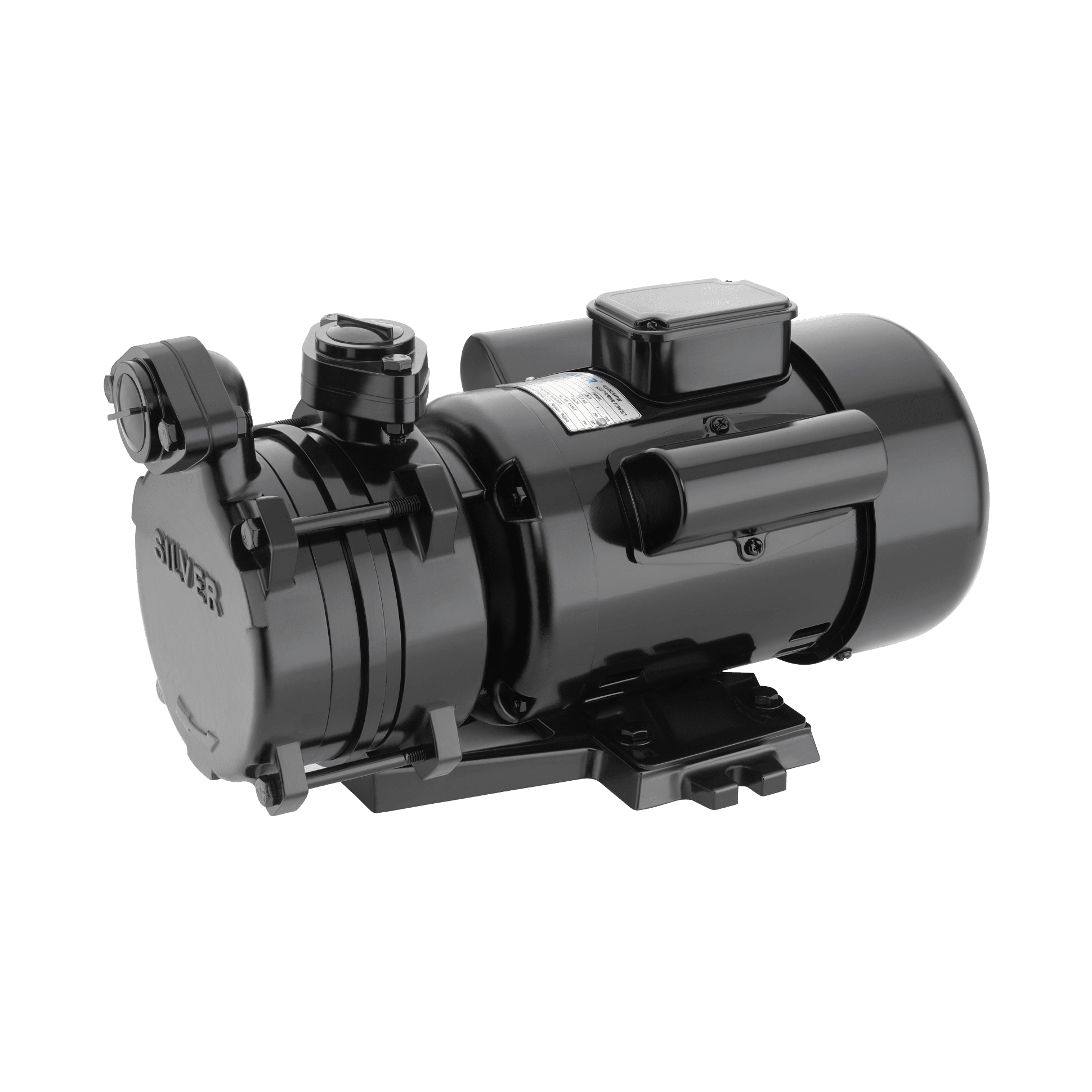

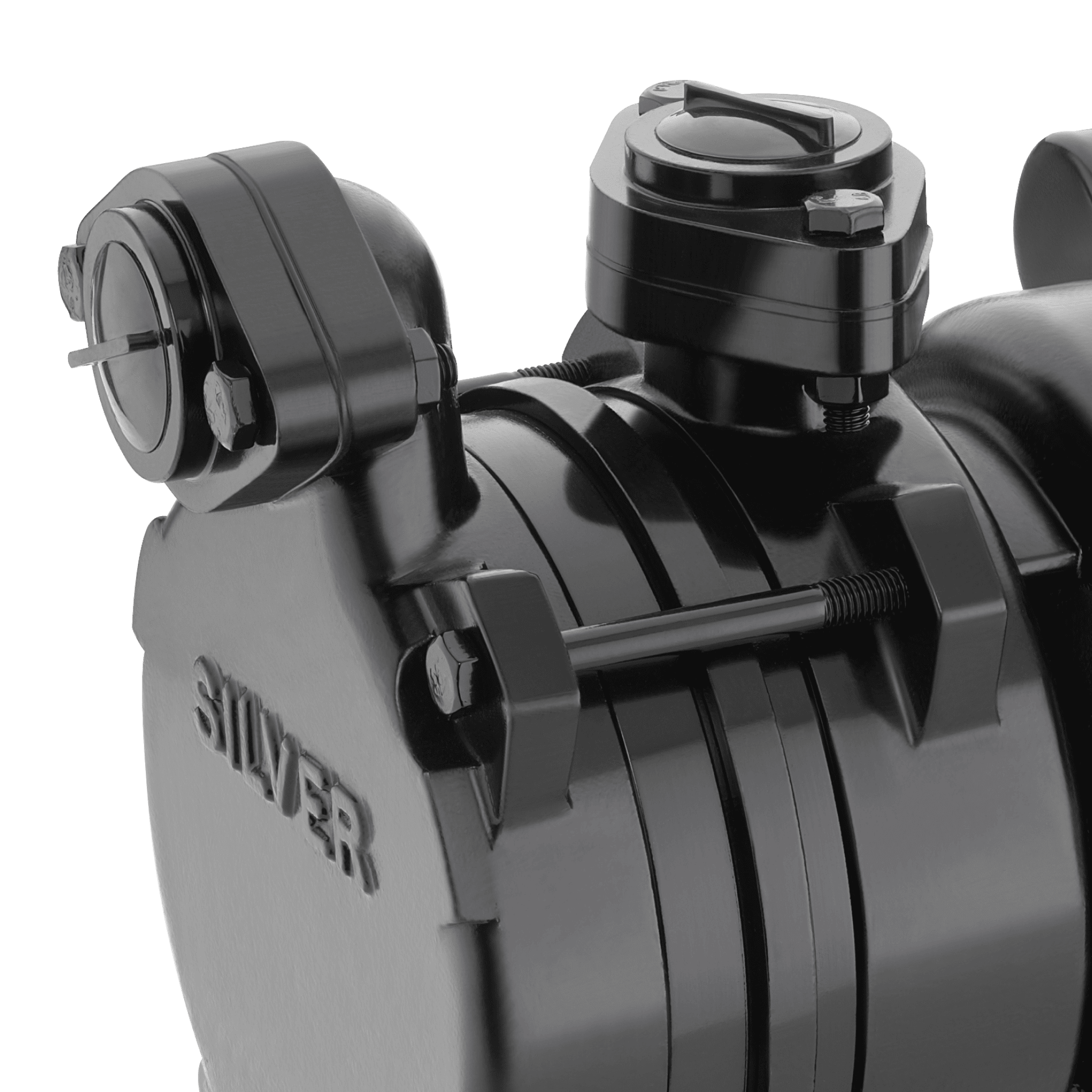

TRENDY 100SM 0.75 1.00 1 1″ X 1″ 5-45 3900-875

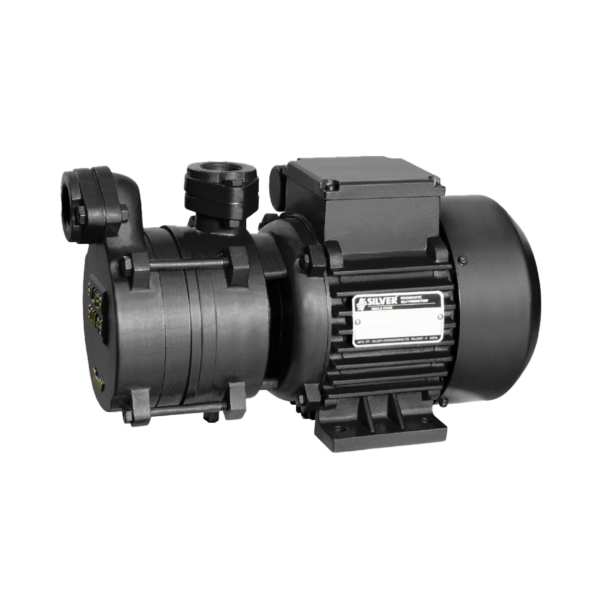

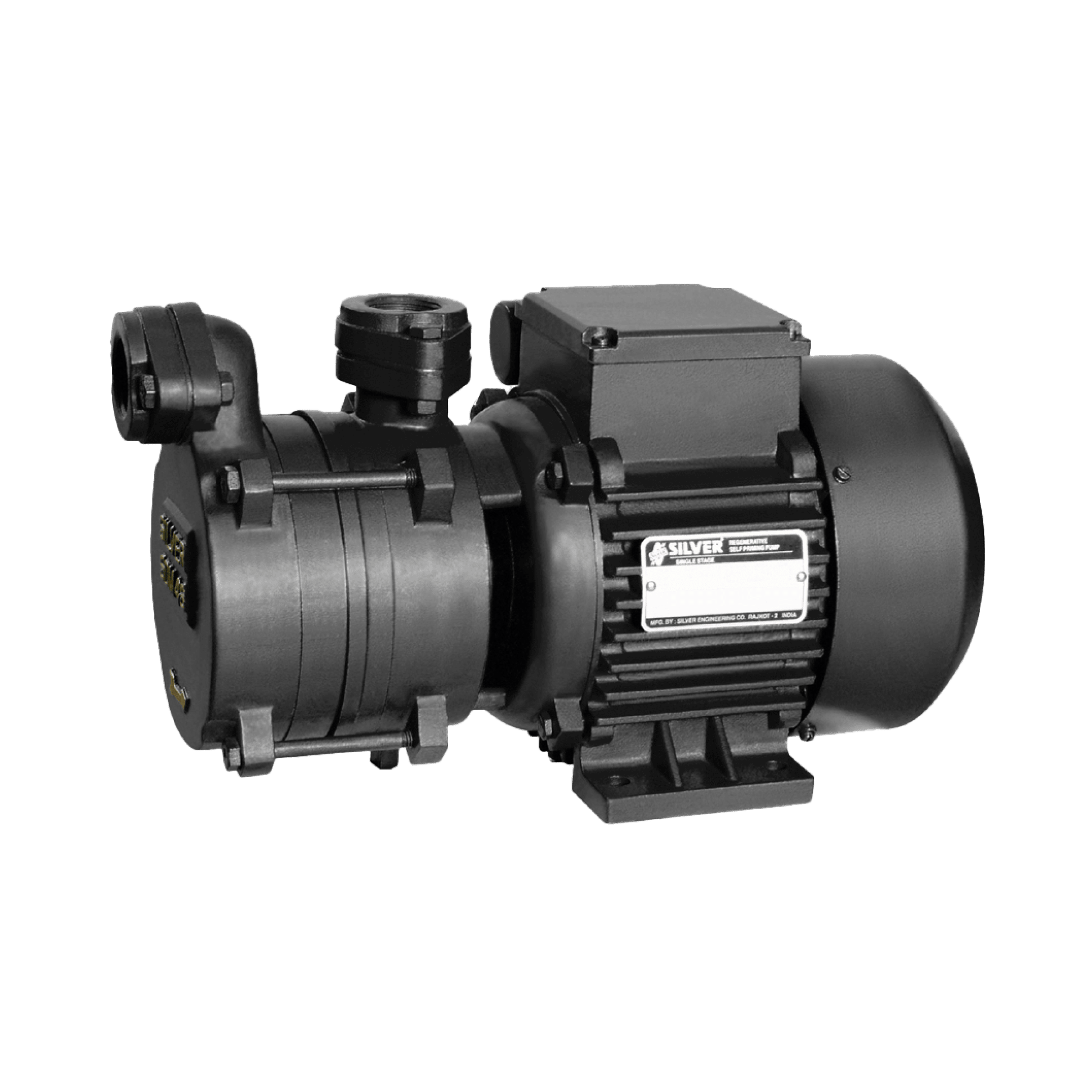

TRENDY 100-2ST 0.75 1.00 1 1″ X 1″ 10-70 3000-800
TRENDY 200-2ST 1.50 2.00 1 1″ X 1″ 10-90 4725-850

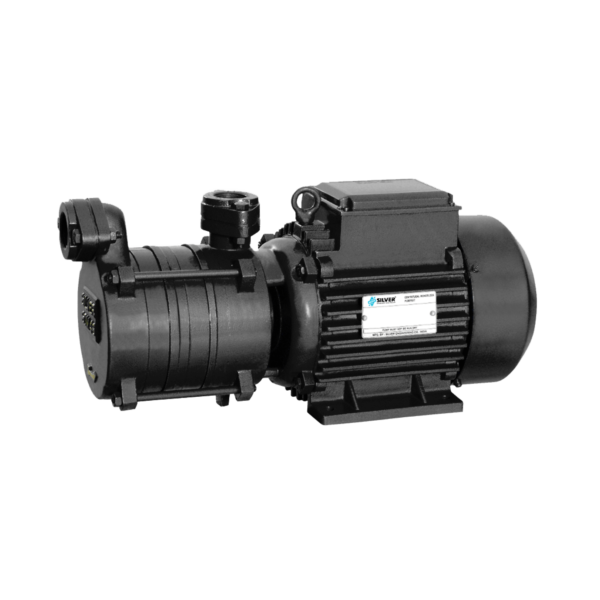

TRENDY 200-2ST/40 1.50 2.00 1 1 1/2″ X 1 1/2″ 10-50 6600-2000
