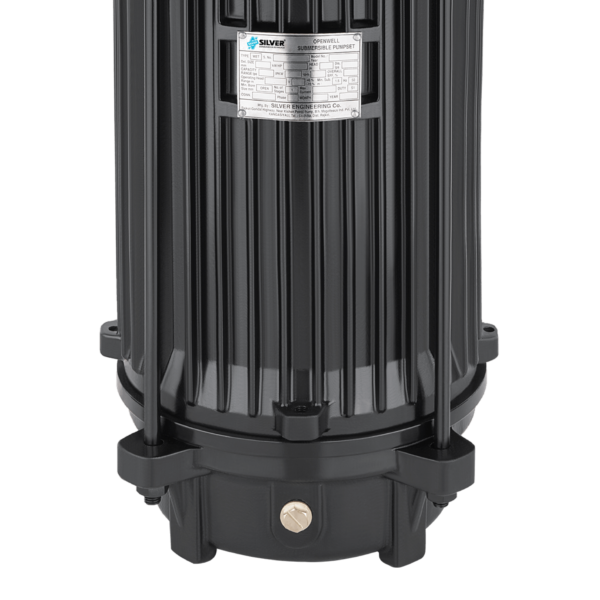

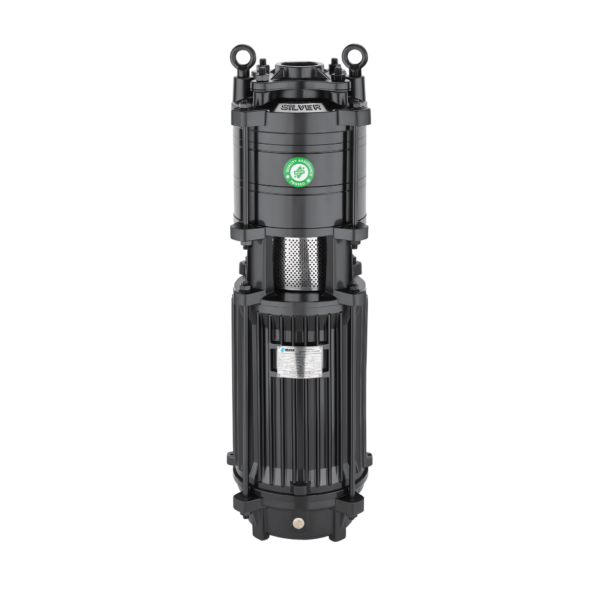

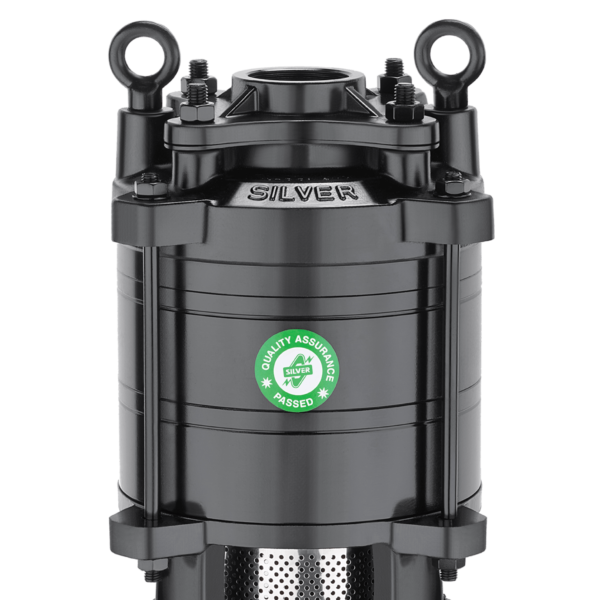

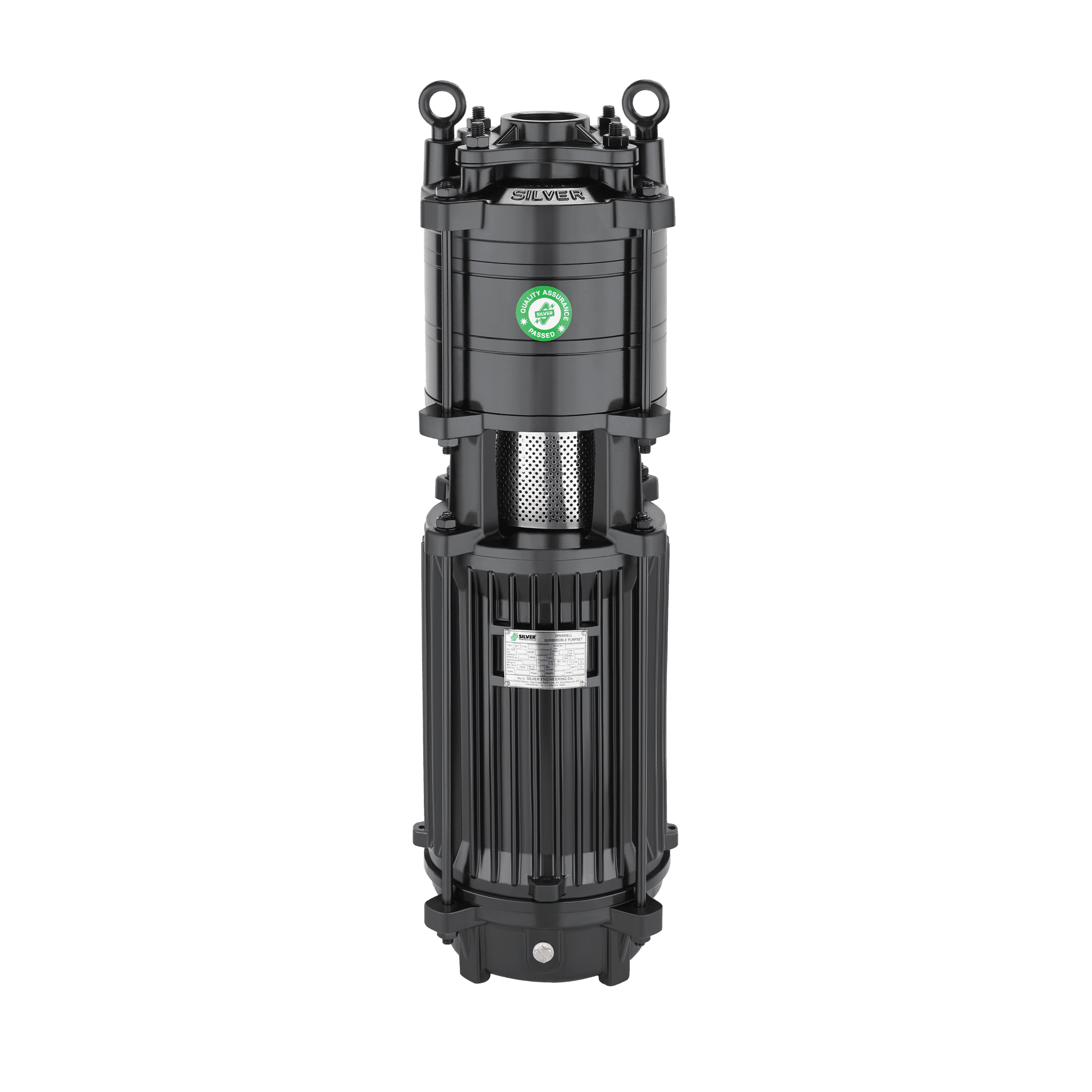

Vertical Submersible Openwell Pumpset

Features

  • High Efficiency and Energy Saving Design
  • Wide Voltage Design
  • Dynamically Balanced Rotating Parts
  • Low maintenance & Replaceable Wearing Parts
  • All Parts Machining Precisly
  • CED Coated Pump Parts
  • Longer And Trouble Free Life

Specifications

Motor Rating 3.70 – 9.30 kW (5.00 – 12.50 HP) – 3 PHASE
Delivery Pipe Size 2″
Head Range Up to 12 meters
Discharge Range Up to 800 LPM
Power Supply 350V TO 440V – (3 PHASE)
Direction of Rotation Anti-Clockwise Observed When Viewed from Top Side
Liquid Temperature Maximum 45 °C
Pumped Liquids Clear Clean, Thin, Non-Aggressive, Non-Explosive, Clear, Cold Water Without Abrasive and Solid Particles

MOC

Motor Body Cast Iron
Impeller Cast Iron (CED Coated)
Delivery Casing Cast Iron
Shaft SS-410
Thrust Bearing Stainless Steel, Carbon, Cast Iron
Bearing Bush LTB-4

Technical Specifications

Model Name Power (KW) Power (HP) Phase Pipe Sizesuc X Del (Inch) Head Range (MTR) Discharge Range (LPH)
OWV5.0ET60CIC 3.70 5.00 3 2″ 10-60 800-80
OWV7.5ET80CIC 5.50 7.50 3 2″ 13-80 800-80
OWV10.0ET100CIC 7.50 10.00 3 2″ 17-100 800-80
OWV12.5ET120CIC 9.30 12.50 3 2″ 20-120 800-80
