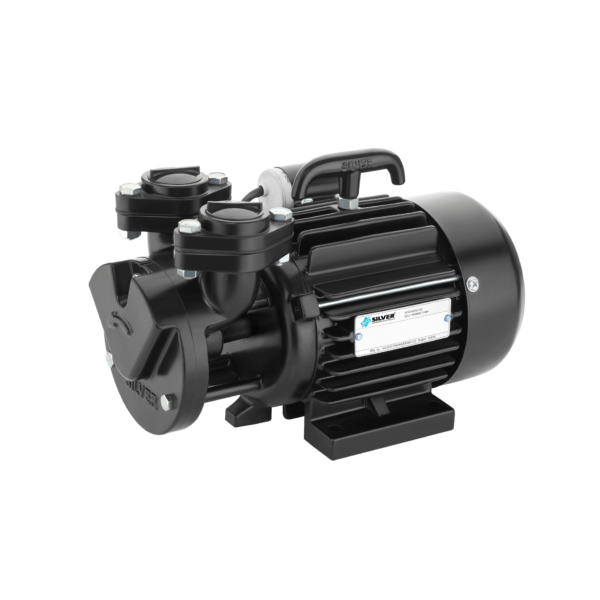

Vikrant

Features

  • High Efficiency and energy Saving Design
  • Wide Voltage Range
  • Fitted with Thermal Overload Protector (TOP).
  • High Suction Capacity
  • Superior Mechanical Seal for longer life
  • Anti-friction ball bearings
  • Forged Brass Impeller
  • All Parts Machining Precisly
  • Totally Enclosed Fan Cooled (TEFC) construction resists dust, moisture.
  • CED Coated Pump Parts
  • Batter Insulating Material
  • Easy Maintainable Design
  • Light Weight and Compact Design

Specifications

Suction Lift  Upto 8 meters
Motor Rating  0.37 – 0.75 kW (0.50 – 1.00 HP)
Pipe Size  1″ X 1″”
Head Range  Up to 55 meters
Discharge Range Up to 4000 LPH
Voltage Range  180 to 250 Volt

MOC

Motor Body Aluminium Extruded / Cast iron
Impeller Gun Metal
Suction / Delivery Chamber Cast Iron (CED Coated)
Shaft  SS 410
Mechanical Seal  Ceramic/Carbon/NBR
Cover NDE Cast Iron (CED Coated)

Technical Specifications

Model Name Power (KW) Power (HP) Phase Pipe Sizesuc X Del (Inch) Head Range (MTR) Discharge Range (LPH)
VIKRANT 50CI 0.37 0.50 1 1″ X 1″ 5-35 1900-500
VIKRANT 50 0.37 0.50 1 1″ X 1″ 5-35 1925-525
VIKRANT 75 0.55 0.75 1 1″ X 1″ 5-40 3300-900
VIKRANT 100 0.75 1.00 1 1″ X 1″ 5-55 4000-900
