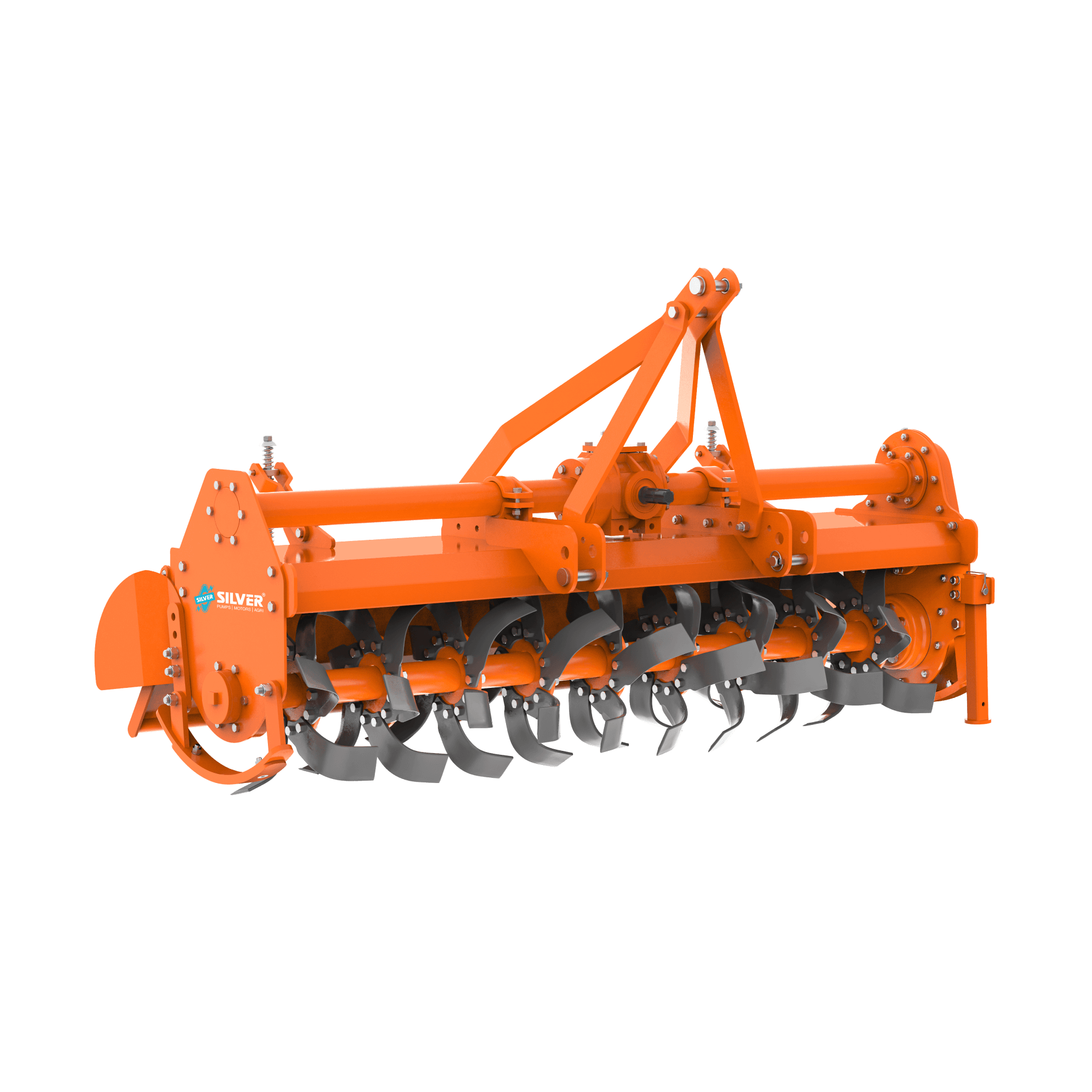

Yuva Acqua

  • Complete Solution for Progressive Farmers in Tillage & Cultivation
  • Most suitable for all types of soils and smooth operations
  • Best Pulverisation quality and high depth of cut
  • Effective deep puddling in wet land
  • Low Fuel Consumption with lesser maintenance cost
  • Increased productivity Faster operation in lesser time
  • Low Vibration and Low Noise
  • Easy availability of Spare Parts
  • Strong structure with robust design
  • High tensile fasteners
  • Adjustable Heavy duty Rear Board Dampers with Springs
  • PTO shaft with protection guard, and dust Proof seal
  • Oil filled heavy duty multi speed/ single speed sturdier gear box
  • Available in Offset & Centre mounted Gear Box
  • Water proofed seals with oil bath high load rotor bearings
  • International quality anti wear Boron steel blade with C, J & L type

Specifications

Model SLRT-75 SLRT-105 4Ft SLRT-120 5Ft SLRT-150 5.5Ft SLRT-165 6FT SLRT-180 7FT SLRT-201 8Ft SLRT-240
Overall Length “L” (cm) 96 96 96 96 96 96 96 96
Overall Width “W” (cm) NA NA 148 178 193 208 238 268
Overall Height “H” (cm) NA NA 109.5 109.5 109.5 109.5 109.5 109.5
Tilling Width (cm) NA NA 120 150 165 180 201 240
Tractor Power – HP NA NA 30-35 35-45 35-45 45-55 45-55 55-70
Number of Blades (C/L) NA NA 42 36/48 54 54/72 60 66/72
Weight NA NA 320 331-376 376-402 384-436 405 462-475
Three Point Hitch NA NA Cat-II Cat-II Cat-II Cat-II Cat-II Cat-II
Crown – Pinion (Gearbox) NA NA 11 X 20 11 X 20 11 X 20 11 X 20 11 X 20 11 X 20
Transmission Type NA NA Gear Gear Gear Gear Gear Gear
Max. Working Depth (inch) NA NA 5″ – 8″ 5″ – 8″ 5″ – 8″ 5″ – 8″ 5″ – 8″ 5″ – 8″

Rotor RPM Chart

Input RPM Gear speed Gear Spur-1 Gear Spur-2 Rotor Speed
540 Single Speed 212 212 212
540 Multi Speed 16 19 179
540 * Multi Speed 17 18 200
540 Multi Speed 14 21 141
540 Multi Speed 15 20 159
1000 Multi Speed 13 22 232
* Default Spur Gear Pair in Gear Box
