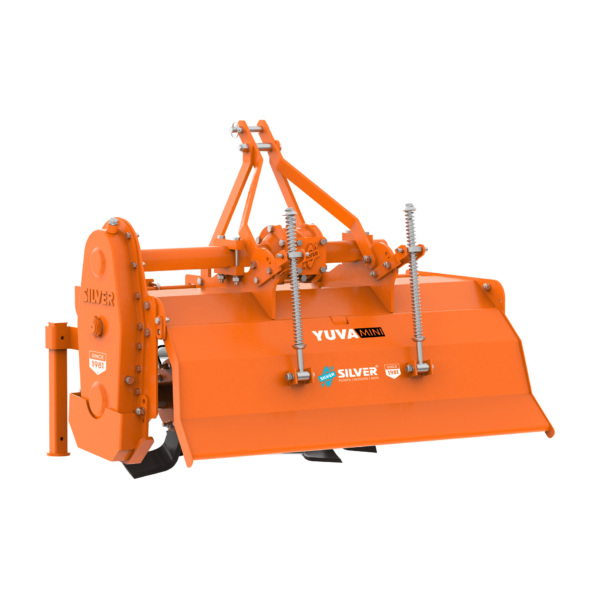

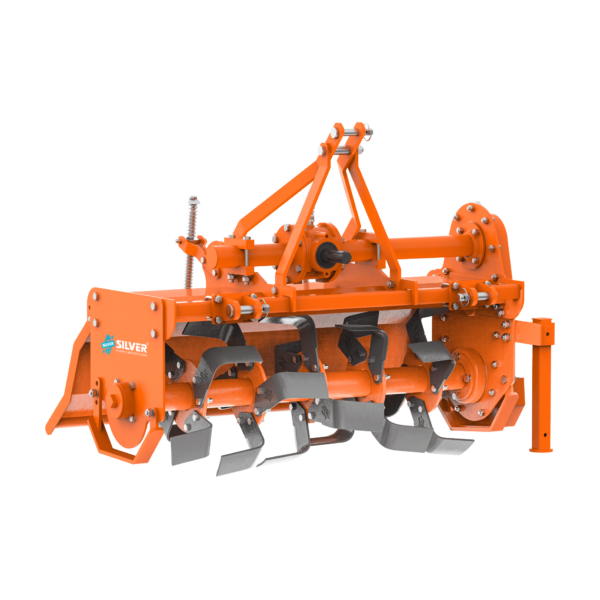

Yuva Mini

  • Complete Solution for Progressive Farmers in Tillage & Cultivation
  • Most suitable for all types of soils and smooth operations
  • Best Pulverisation quality and high depth of cut
  • Effective deep puddling in wet land
  • Low Fuel Consumption with lesser maintenance cost
  • Increased productivity Faster operation in lesser time
  • Low Vibration and Low Noise
  • Easy availability of Spare Parts
  • Strong structure with robust design
  • High tensile fasteners
  • Adjustable Heavy duty Rear Board Dampers with Springs
  • PTO shaft with protection guard, and dust Proof seal
  • Oil filled heavy duty multi speed/ single speed sturdier gear box
  • Available in Offset & Centre mounted Gear Box
  • Water proofed seals with oil bath high load rotor bearings
  • International quality anti wear Boron steel blade with C, J & L type

Specifications

Model SLRT-75 SLRT-105 4Ft SLRT-120 5Ft SLRT-150 5.5Ft SLRT-165 6FT SLRT-180 7FT SLRT-201 8Ft SLRT-240
Overall Length “L” (cm) 67 67 67 24x43x34
Overall Width “W” (cm) 101.5 120.5 138.5
Overall Height “H” (cm) 95 95 95
Tilling Width (cm) 75 105 120
Tractor Power – HP 12-22 15-25 25-35
Number of Blades (C/L) 16 20 24/30
Weight 164 182 219-235
Crown – Pinion (Gearbox) 13 X 23 13 X 23 13 X 23
Transmission Type Gear Gear Gear
Max. Working Depth (inch) 5″ – 8″ 5″ – 8″ 5″ – 8″

Rotor RPM Chart

Input RPM Gear speed Gear Spur-1 Gear Spur-2 Rotor Speed
540 Single Speed na na 215
540 Multi Speed 16 19 181
540 * Multi Speed 17 18 203
540 Multi Speed 14 21 144
540 Multi Speed 15 20 162
1000 Multi Speed 13 22 236
* Default Spur Gear Pair in Gear Box
