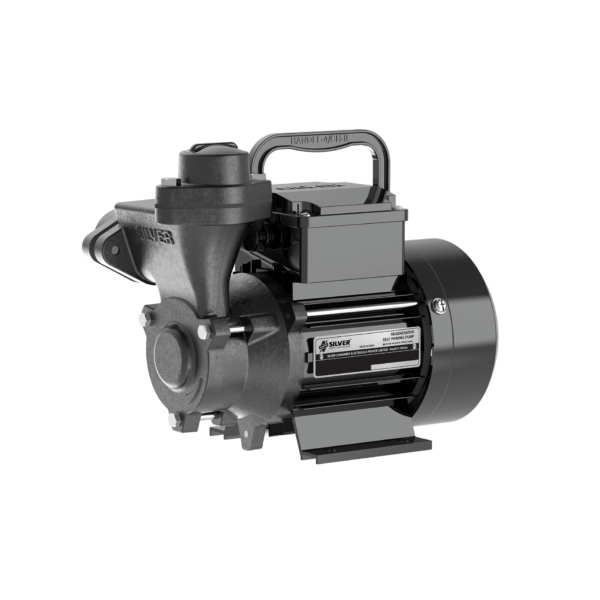

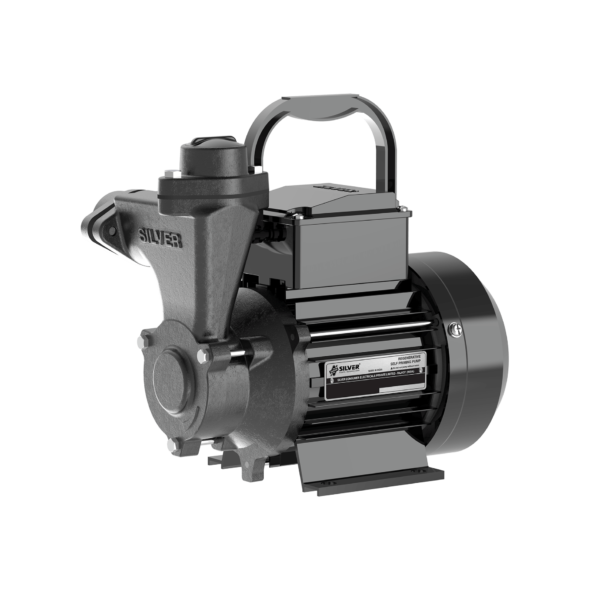

Yuva Plus

Features

  • High Efficiency and energy Saving Design
  • Wide Voltage Range
  • Fitted with Thermal Overload Protector (TOP).
  • High Suction Capacity
  • Superior Mechanical Seal for longer life
  • Anti-friction ball bearings
  • Forged Brass Impeller
  • All Parts Machining Precisly
  • Totally Enclosed Fan Cooled (TEFC) construction resists dust, moisture.
  • CED Coated Pump Parts
  • Batter Insulating Material
  • Easy Maintainable Design
  • Light Weight and Compact Design

Specifications

Suction Lift  Upto 7 meters
Motor Rating  0.37 – 0.75 kW (0.50 – 1.00 HP)
Pipe Size  1″ X 1″
Head Range  Up to 40 meters
Discharge Range Up to 2938 LPH
Voltage Range  180 to 260 Volt

MOC

Motor Body Aluminium Extruded
Impeller Brass
Suction / Delivery Chamber Cast Iron (CED Coated)
Shaft  SS 410
Mechanical Seal  Ceramic/Carbon/NBR
Cover NDE Aluminum Die Cast

Technical Specifications

Model Name Power (KW) Power (HP) Phase Pipe Sizesuc X Del (Inch) Head Range (MTR) Discharge Range (LPH)
MIZU 50  0.37 0.50 1 1″ X 1″ 5-30 2130-120
MIZU 100 0.75 1.00 1 1″ X 1″ 5-40 2938-230
