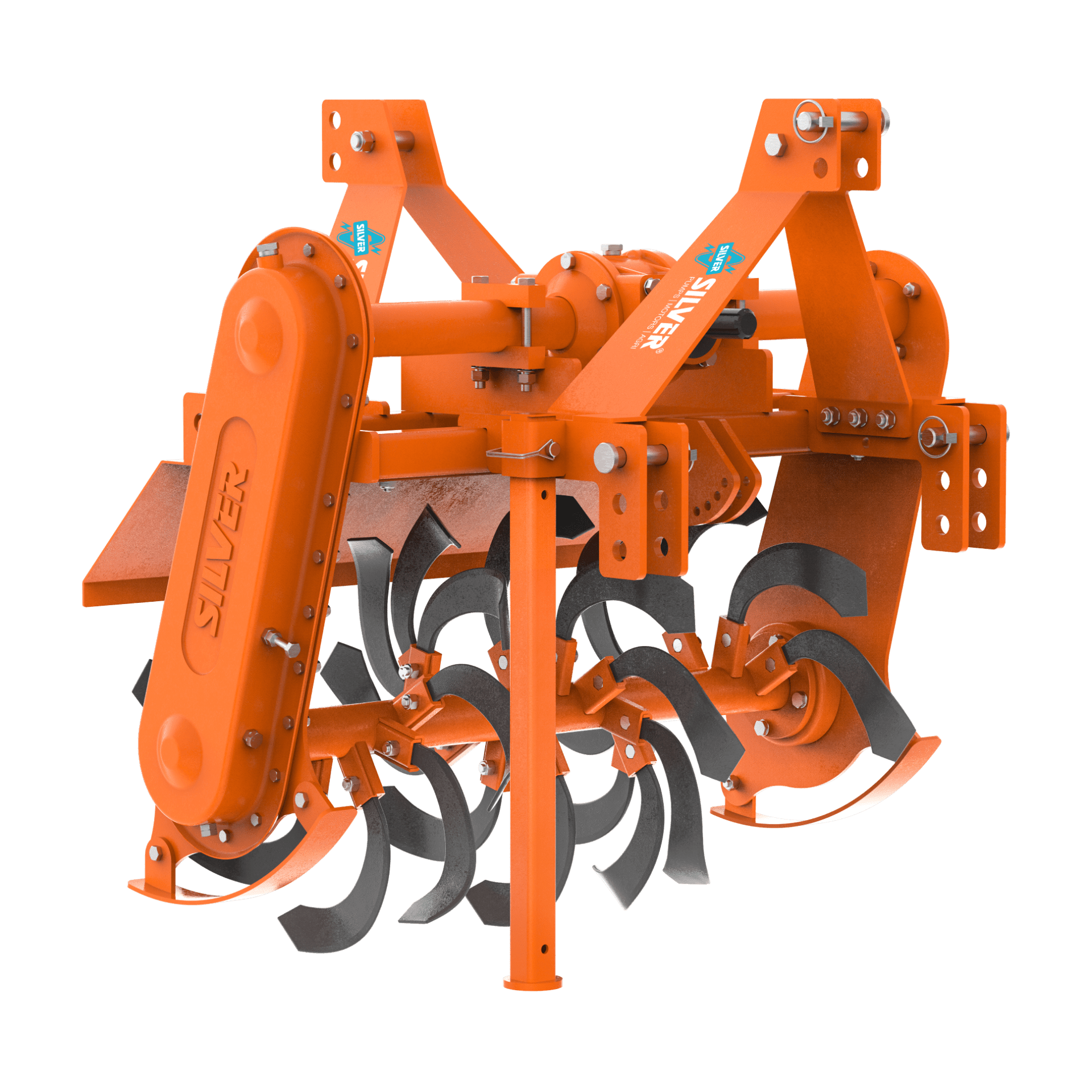

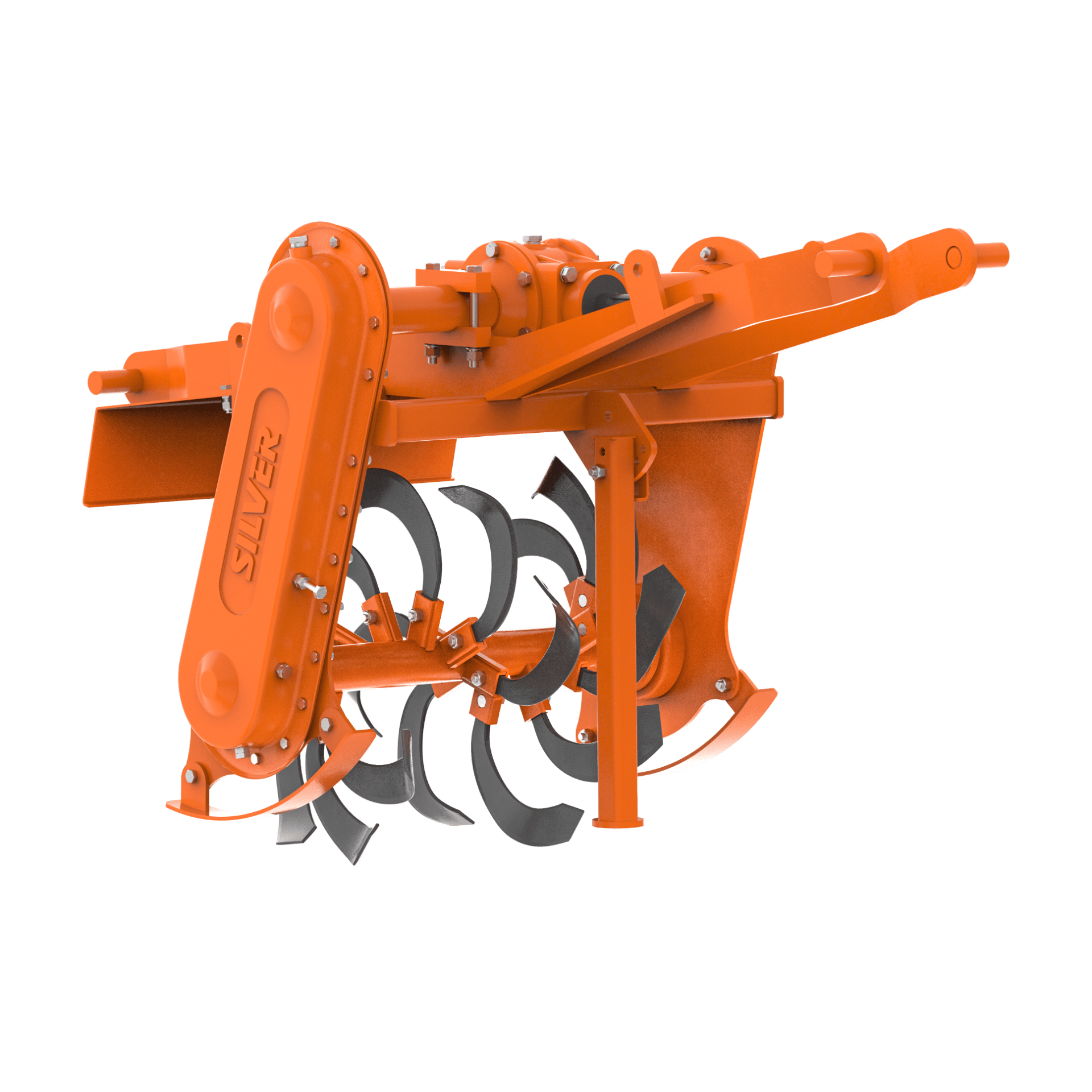

Yuva R/F

Features

  • Robust Structure
  • Single-speed Gearbox With Two-way Operation
  • Reverse Forward Blade
  • Dust Cover
  • J Type Blades
  • Low Fuel Consumption & Labor Savings
  • Enhanced Infiltration And Water Seepage

Specifications

Model SLRT-75 SLRT-105
Overall Length “L” (cm) 138.6 102
Overall Width “W” (cm) 80 89
Overall Height “H” (cm) 88 97.5
Tilling Width (cm) 75 78
Tractor Power – HP 18-25 18-25
Number of Blades (C/L) 16/18 22
Weight 138-150 160
Crown – Pinion (Gearbox) 13 X 23 13 X 23
Transmission Type Chain & Sprocket
Max. Working Depth (inch) 5″ – 8″

Rotor RPM Chart

Input RPM Gear speed Sprocket-1 Sprocket-2 Rotor Speed
540 Single Speed 12 15 244
